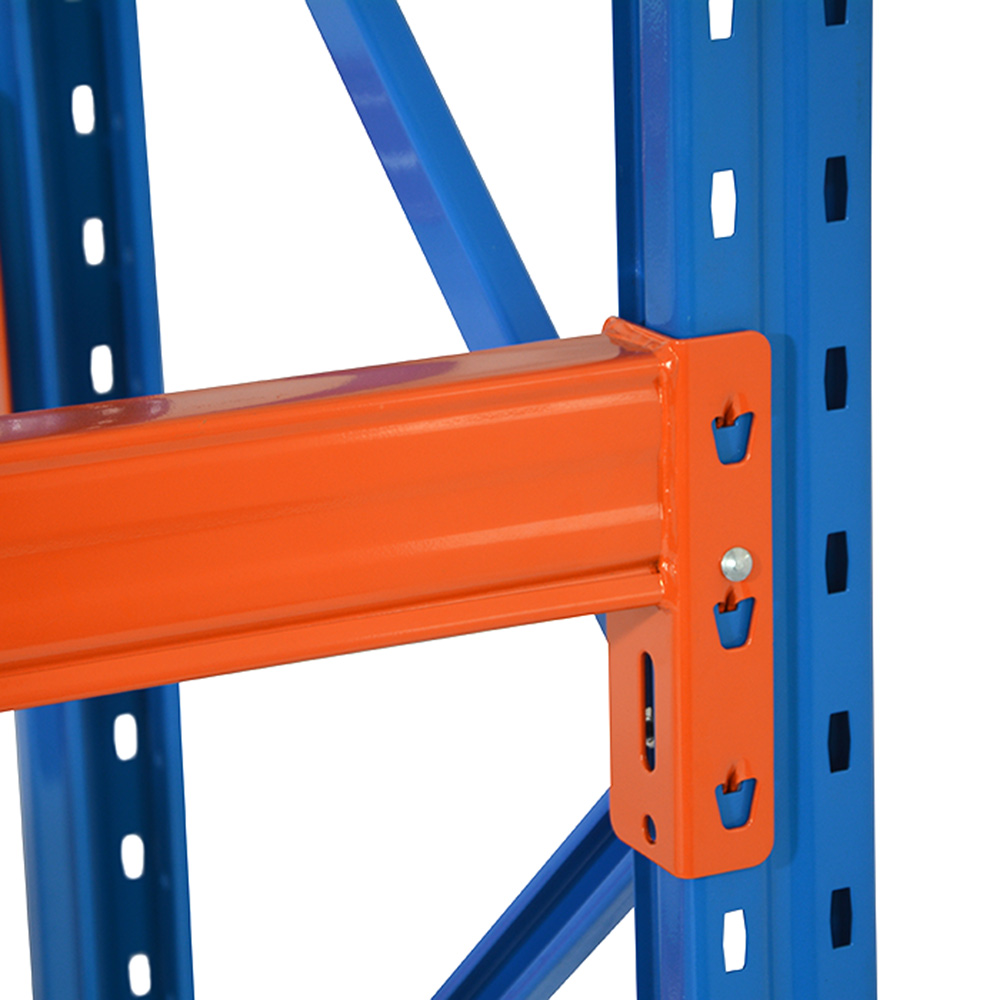

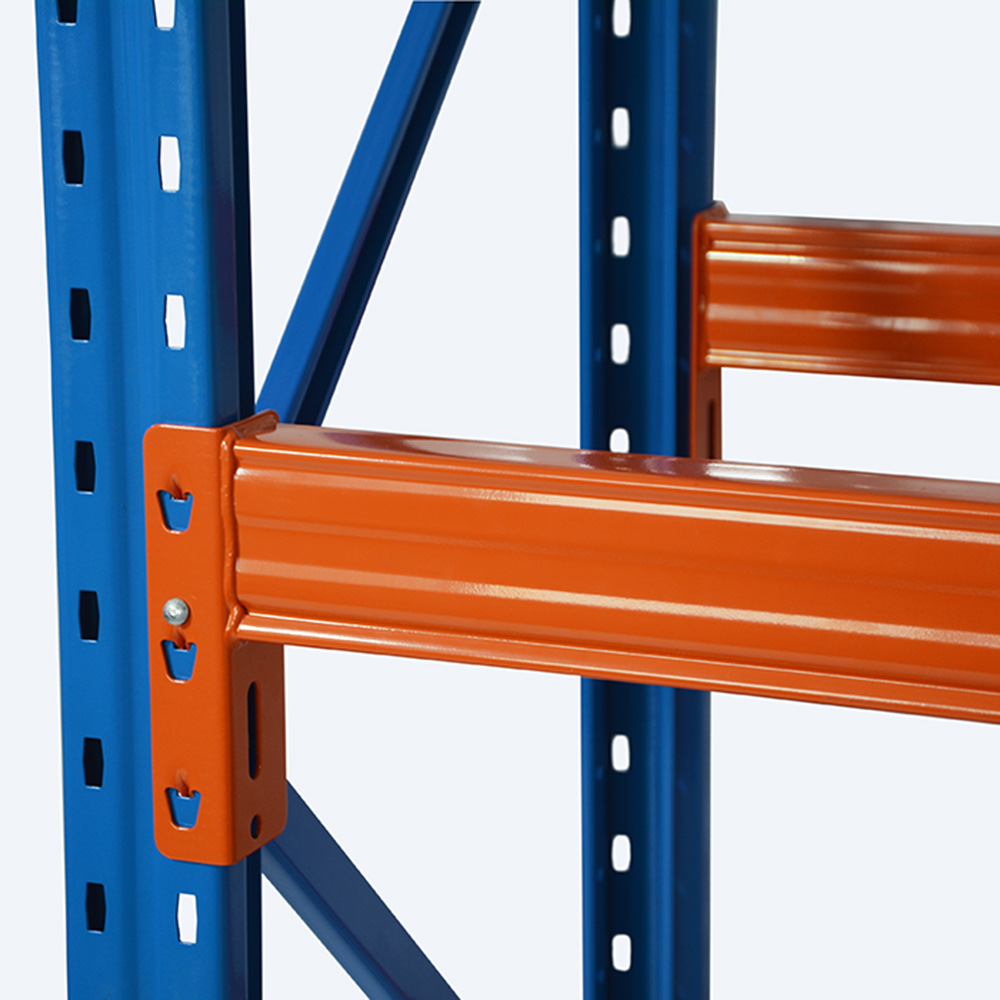

Heavy Duty Pallet Racks Redirack Teardrop Hole Canada Storage Racking System Drive-in Mezzanine System
Product Description
Products Description

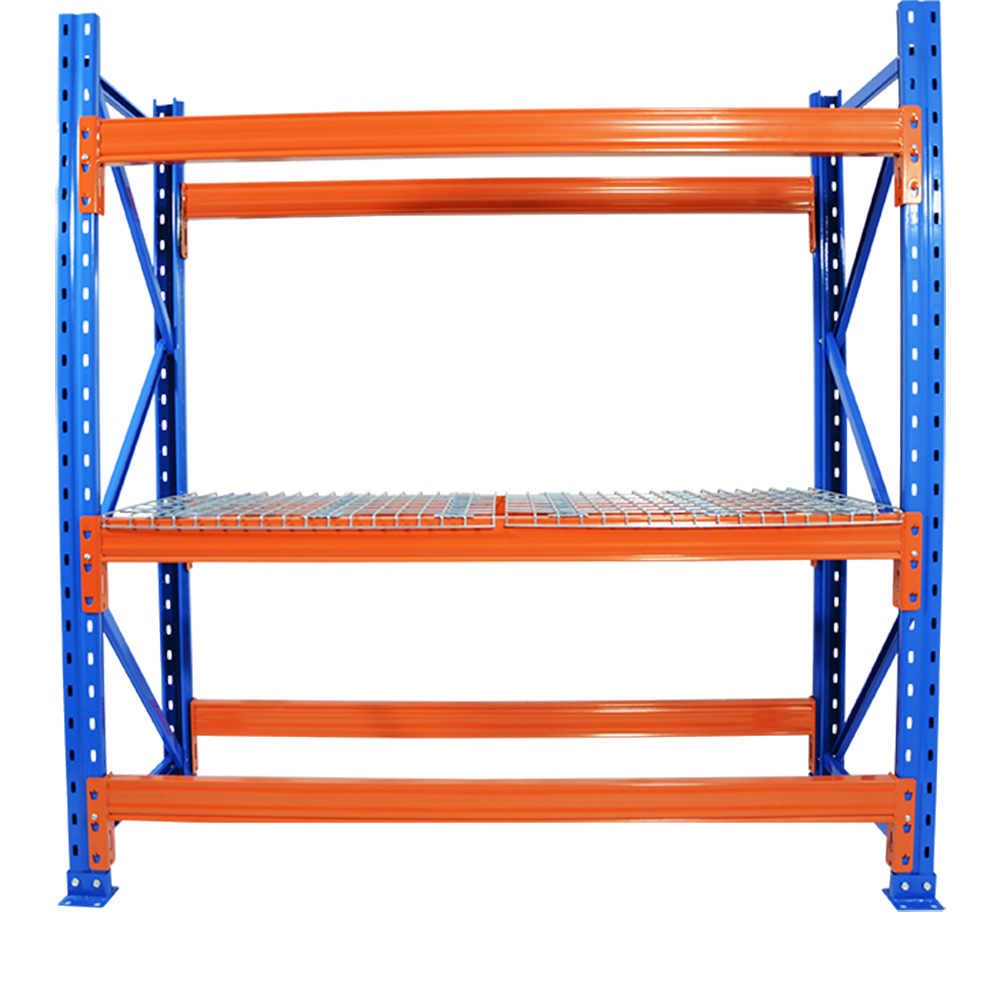

Selective Pallet Racking is the simplest & economical racking system which allows 100% accessibility to each pallet. This racking is suitable for large variety of SKU’s irrespective of quantity.
✔
100% selective of goods / pallets
⚡
Picking rate: Fast
📐
Floor space utilization: 30% to 40%
💰
Most economical to maximise warehouse space
⭐
Most popular application / solution to warehouse storage solution
| Length | 80x50 | 100x40 | 100x50 | 110x50 | 120x40 | 120x50 | 140x40 | 140x50 | 160x50 |
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 4286 | ||||||||
| 1800 | 2977 | ||||||||
| 1900 | 2672 | 3809 | 4535 | ||||||
| 2200 | 1993 | 2841 | 3382 | 4219 | |||||
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | ||||
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | |||
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | ||
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | |
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3145 | 3716 | |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2419 |

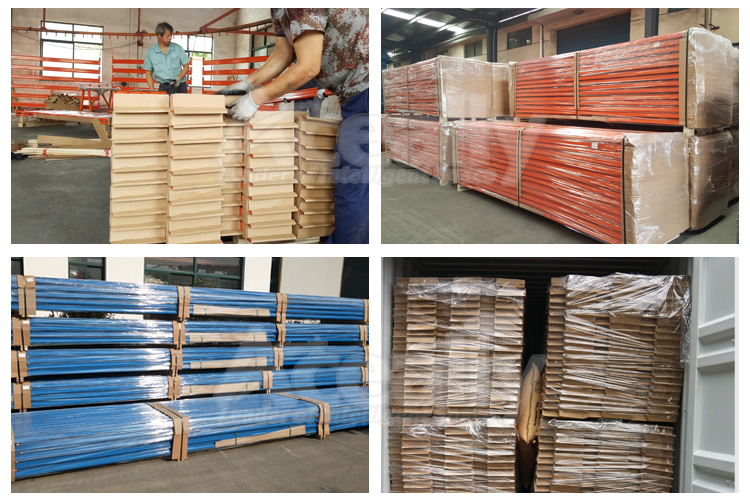

Product packaging

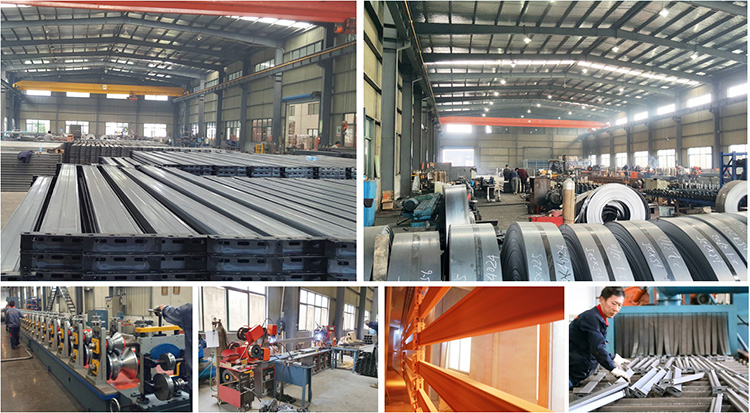

Workshop Show

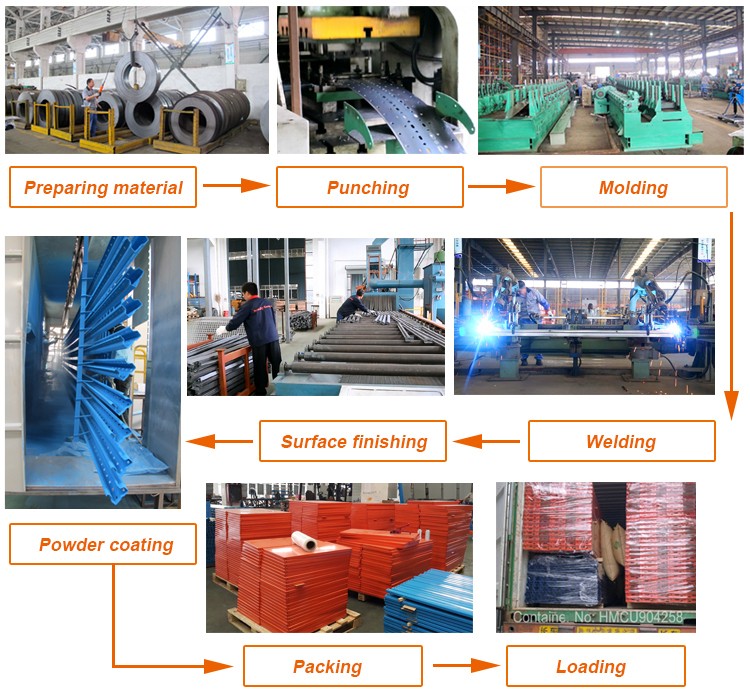

Productive Process
Aceally Brand
Company Information
Company Profile
Aceally (International) Group is a manufacturer of innovative and professional logistics equipment products for warehousing storage markets worldwide. Which specializes in light duty shelving, medium duty racking, heavy duty ones and various storage and shelving solutions for nearly 15 years. Please feel free to contact our highly knowledgeable staff and allow us the pleasure of proposing the most innovative and affordable solution to your material handling needs.
Frequently Asked Questions
❓What is Selective Pallet Racking?
Selective Pallet Racking is the most popular, cost-effective storage system designed to provide 100% direct access to every pallet in the warehouse. It is ideal for facilities handling diverse SKUs with high stock turnover.
❓What is the picking rate and floor utilization of this system?
Selective pallet racking delivers a fast picking rate due to unimpeded pallet access. It typically yields a floor space utilization rate between 30% and 40%, balancing easy accessibility with efficient space usage.
❓How are beam profiles and lengths selected for load capacities?

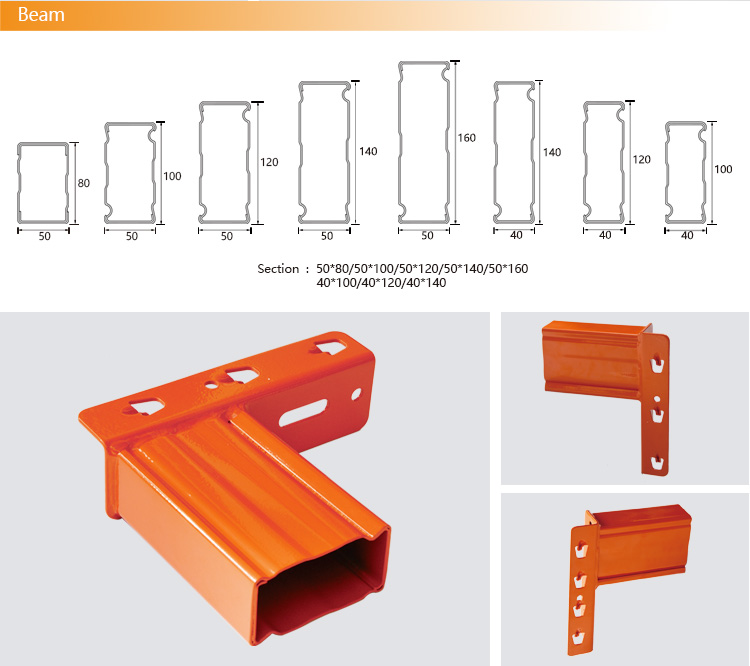

Beam dimensions range from 80x50 up to 160x50 with beam lengths spanning 1500mm to 4000mm. Load capacity varies by span and profile size, accommodating light to heavy-duty industrial storage requirements according to standard engineering load charts.
❓Can the racking system accommodate different pallet types and sizes?
Yes, selective pallet racking is highly versatile and can be configured with wire mesh decking, support bars, and adjustable beam levels to securely hold Euro pallets, standard standard pallets, or custom containers.
❓How is the pallet racking packaged and secured for international transit?
All racking components including upright frames, cross beams, and accessories are bundled, stretch-wrapped, and strapped onto pallet bases to ensure optimal protection and corrosion resistance throughout overseas transit.
