Guangzhou Heda Shelves Co., Ltd. designs and manufactures industrial shelving systems tailored for distribution centers, manufacturing warehouses, auto parts depots, and e-commerce picking facilities.
Heavy Duty Engineered for bulky, non-palletized goods, cartons, and irregularly shaped components. Built with rigid Q235B steel roll-formed frames and step beams supporting steel panels, wire mesh decks, or timber shelves.
Fast Assembly Optimized for fast manual order picking in stockrooms, maintenance rooms, and commercial distribution centers. Argon-arc welded construction ensures a smooth finish without rough weld spatter.
FIFO Dynamic Gravity-driven roller tracks automatically feed goods from replenishment aisles to forward picking faces. Ideal for fast-turnover FMCG, pharmaceutical distribution, and assembly line kitting.
Max Density Shelving units mounted on precision floor rails that compress together, requiring only one operating aisle. Increases effective storage volume by 80% to 100% in documents, archives, and high-value tools.
Manufactured in full compliance with ISO 9001 quality protocols using certified structural grade steel coils.
| Shelving System | Upright Profile (mm) | Shelf Deck Options | Unit Load Capacity | Surface Finish |
|---|---|---|---|---|

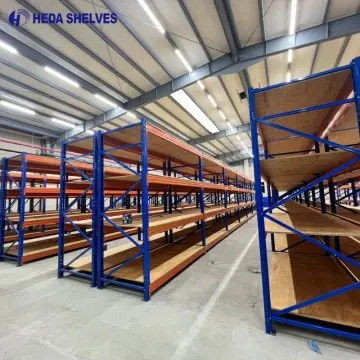

| Longspan Shelving | 55×47, 55×55, 60×50 roll-formed | Solid Steel / Wire Mesh / Plywood | 500 – 1,000 kg / level | Pickling, Phosphating + Electrostatic Powder Coating |

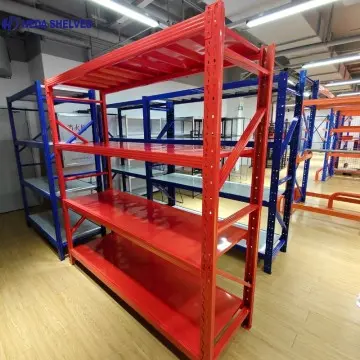

| Medium Duty Shelving | 38×38, 50×30 perforated steel | Cold-rolled steel panel (embedded) | 200 – 800 kg / level | Epoxy Polyester Powder Coating (RoHS compliant) |

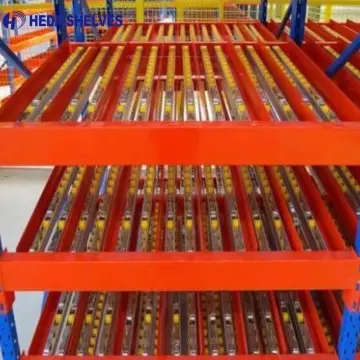

| Carton Flow Racking | 60×50, 80×60 structural frame | Aluminum alloy or plastic roller beds | 50 – 100 kg / linear meter | Industrial grade durable zinc / powder coated |

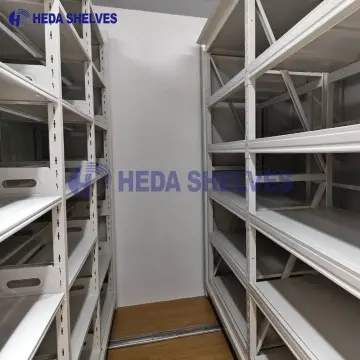

| Mobile Shelving | Heavy base chassis + modular upright | Multi-tier adjustable steel shelves | 80 – 120 kg / shelf layer | Anti-scratch electrostatic powder coat |
We support international procurement teams, 3PL managers, and general contractors from concept design through to overseas delivery.
Share your architectural floor plans or room measurements. Our structural engineering department delivers precise 2D CAD layouts within 24 to 72 hours, optimizing aisle widths and pick paths.
Visualize structural clearances, mezzanine integrations, and multi-tier picking aisles before production begins. 3D models assist your operations team with workflow sign-offs.
Whether combining longspan shelving with rack-supported mezzanines, carton flow systems, or pallet racks, we engineer unified systems that scale with your logistics demands.
Over 10,000 warehouse projects completed across Southeast Asia, the Americas, Europe, and Africa.
Organized 12,000 SKU spare parts inventory with adjustable 500 kg capacity boltless shelving units.
Combined heavy-duty industrial shelving with integrated catwalk levels to double order picking throughput.
Supplied high-density longspan shelving integrated with heavy automotive part cantilever arms in Chonburi, Thailand.
Key technical and procurement details for international buyers sourcing industrial shelving.
Longspan shelving uses heavier roll-formed upright columns and step beams designed for broader clear spans (up to 2,500 mm wide) and higher load ratings (500 to 1,000 kg per level). Medium-duty shelving is suited for smaller, hand-loaded cartons and components up to 200 to 500 kg per shelf level with lighter beam sections.
Every steel component undergoes an automatic 9-stage surface treatment including alkaline degreasing, acid pickling, rust removal, and phosphate passivation. Following this, thermosetting epoxy polyester powder coating is applied electrostatically and cured at 200°C, providing superior anti-corrosion protection in high-humidity tropical conditions.
All beams, uprights, and shelf panels are bundled with protective corrugated paper, air bubble wrapping, and plastic banding straps. Metal parts are fitted with corner protectors to prevent transit impact damage during ocean transport in 20GP or 40HQ containers.
Yes. Guangzhou Heda Shelves Co., Ltd. is an established OEM/ODM manufacturer. We can customize beam profiles, upright gauge thicknesses, frame heights, shelf depths, surface colors (RAL palette), and client brand labeling according to your project specifications.
