Mezzanine Racking Project

Turnkey multi-tier platforms, rack-supported floors, and custom picking mezzanines engineered to double vertical cubic capacity.

Home / Cases / Mezzanine Racking Project
Real Installations

Featured Mezzanine Floor & Racking Projects

Explore how Guangzhou Heda Shelves Co., Ltd. configures custom mezzanine solutions to help industrial clients, 3PL distributors, and manufacturing plants double their floor space without relocating.

Rack-Supported Mezzanine Floor for Manual Picking Warehouse Rack-Supported
Completed: Sep 2026 Kenya

Rack-Supported Mezzanine Floor for Manual Picking

Designed for high-density carton storage and split-level order fulfillment. Pallet rack columns form the structural base, creating integrated multi-tier catwalks with staircase access and loading gates.

System TypeRack-Supported Multi-Tier
Deck Capacity500 kg / m²
Steel GradeQ235B High-Tensile
FinishElectrostatic Powder Coated
Engineered Solution Inquire Now
Mezzanine Racking for Fabric Roller Warehouse Storage Custom Textile
Completed: Aug 2026 Industrial Hub

Mezzanine Racking for Fabric Roller Warehouse

Tailored for long-span roll storage with integrated heavy-duty shelving underneath. Prevents fabric indentation, supports manual access at height, and incorporates high-capacity steel decking panels.

System TypeShelving-Supported Platform
Shelf Load800 kg / Level
Deck TypePerforated Steel Floor
Safety FeatureSafety Rails & Kickplates
Engineered Solution Inquire Now
300sqm Mezzanine Floor Storage Platform in Malaysia Structural Steel
Completed: Jul 2026 Malaysia

300 m² Mezzanine Storage Platform in Malaysia

A free-standing heavy structural steel mezzanine delivering wide column spans for ground-level forklift operations and staging, combined with a secondary deck for inventory assembly and packing.

System TypeStructural Steel Platform
Floor Area300 m² Clear Span
Floor Load800 kg / m² Uniform
CoatingAnti-Corrosive Epoxy
Engineered Solution Inquire Now

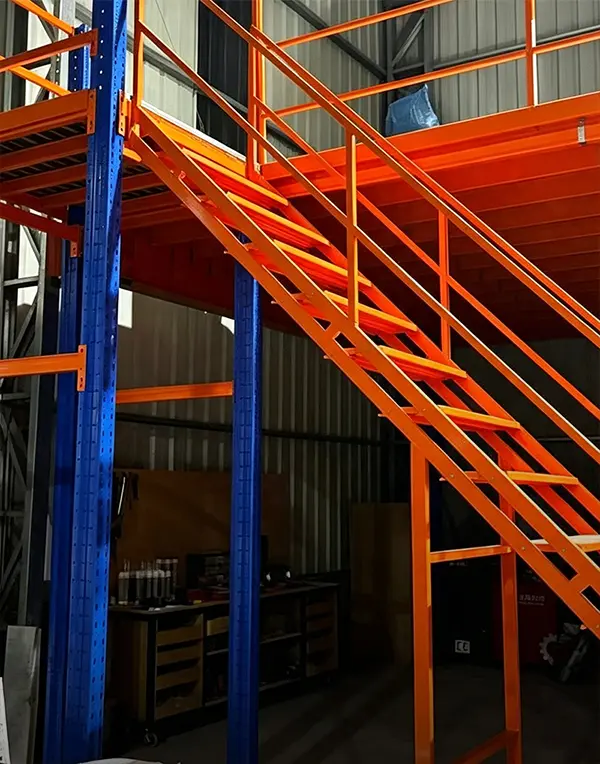

Shelving-Mezzanine Storage System for Distribution Multi-Tier Pick
Completed: Jul 2026 South America

Multi-Level Shelving-Mezzanine Distribution Center

High-density picking installation optimizing vertical overhead height. Modular multi-tier layout configured with integrated wire decking, dividing partitions, and safety staircases for retail batch picking.

System TypeMulti-Tier Shelving Mezzanine
LevelsGround + 2 Elevated Tiers
AccessStairs & Pallet Drop Gate
CertificationCE / ISO 9001:2015
Engineered Solution Inquire Now
Engineering Rigor

Why Partner with Guangzhou Heda Shelves Co., Ltd.

From initial site survey data to finite element structural verification, every mezzanine project is designed for seismic safety, fire regulation compliance, and heavy industrial use.

Certified Load Calculations

Our engineers perform static and dynamic stress analysis ensuring uniform load ratings from 300 kg/m² to over 1,500 kg/m² based on EN 15512 and RMI standards.

Custom Decking Options

Choose cold-rolled solid steel decking, anti-skid embossed plates, perforated fire-sprinkler decking, or heavy-duty plywood flooring configured for local codes.

ASEAN Climate Resistance

Pickling and phosphating pre-treatments combined with 80μm electrostatic powder coatings guarantee superior anti-corrosion protection in high-humidity climates.

Turnkey CAD & 3D Modeling

Receive comprehensive 2D floor plans, 3D clearance renderings, column positioning, and full BIM/CAD installation drawings before production begins.

Quality Verified

Verified Client Testimonials & Project Photos

Proven performance delivered to manufacturing facilities, logistics hubs, and global distributors.

Client inspection of mezzanine racking

"Guangzhou Heda Shelves Co., Ltd. delivered our multi-tier mezzanine ahead of schedule. The structural steel alignment was flawless, and the floor load capacity easily accommodates our heavy picking carts."

ML

Logistics Operations Director

Selangor, Malaysia
Drive in and mezzanine racking inspection

"The engineering calculation package provided by Heda passed local structural inspection on the first submission. Their team handled container packing efficiently, with zero damage in transit."

TH

Supply Chain Project Manager

Bangkok, Thailand
Warehouse racking installation review

"We doubled our inventory capacity without relocating our warehouse. From structural column anchors to handrails and drop gates, the build quality and powder coating are world-class."

ID

Warehouse Engineering Lead

Bekasi, Indonesia

Ready to Double Your Warehouse Floor Space?

Submit your building dimensions, clear roof height, and loading requirements to our structural engineers. We provide free CAD layouts, 3D project visuals, and factory-direct pricing within 24 hours.
