Heavy-Duty Industrial Pallet Racking Solutions
Manufactured in our 30,000 m² Guangzhou production facility, our pallet racking systems are built from high-tensile Q235B cold-rolled steel, offering custom beam lengths, high load capacities up to 5,000 kg per level, and corrosion-resistant surface coatings.
01 Very Narrow Aisle (VNA) Racking
High-density configuration designed for aisles as narrow as 1.5–1.8m operated by guided turret trucks. Maximizes cubic floor volume up to 18m high while retaining 100% selective accessibility to every stored unit load.
- Saves up to 40% floor space vs standard racking
- 100% individual pallet selectivity
- CE & ISO 9001 certified structural tolerances
02 Roll Material Pallet Racking
Customized industrial cradles and heavy-duty frame fixtures engineered for non-standard cylindrical stock including textile rolls, paper coils, plastic drums, and continuous sheet material.
- Ergonomic cradle brackets prevent deformation
- Custom diameter & load configurations
- Anti-dislodgement safety locking pins
03 Selective Pallet Racking
The industry-standard warehouse system providing unrestricted 100% direct access to every SKU. Compatible with standard counterbalance and reach forklifts, featuring adjustable beams at 50mm/75mm pitch increments.
- Load capacities up to 5,000 kg per beam level
- Adaptable to standard timber and steel pallets
- Rapid bay expansion and re-profiling
04 Drive-In Racking System
Maximum density storage that minimizes operating aisles by permitting forklifts to drive directly into deep storage bays. Perfect for high-volume batches of identical SKUs operating on Last-In, First-Out (LIFO) order.
- Reduces up to 80% aisle space requirements
- Optimal for cold storage & freezer warehouses
- Heavy-duty guide rails and column protection
05 Gravity Flow Pallet Racking
Dynamic inclined roller beds convey pallets automatically from loading aisle to unloading station under gravity control. Delivers guaranteed First-In, First-Out (FIFO) inventory rotation for food, chemical, and pharma.
- Automated mechanical FIFO stock rotation
- Integrated centrifugal speed controller rollers
- Separate replenishment & picking corridors
06 Radio Shuttle Racking System
Semi-automated high-density storage where an independent wireless shuttle transports palletized loads inside deep storage lanes. Supports both FIFO and LIFO dispatching without forklift penetration into the bays.
- Sub-zero cold room operational design (-30°C)
- Significant reduction in forklift structural impact
- High-capacity lithium battery system
07 Push Back Pallet Rack
Nested gravity carts allow storage up to 2–6 pallets deep per channel. When loading, subsequent pallets push back earlier loads along sloped steel tracks, offering high density while maintaining multi-SKU flexibility.
- Balances high density with selective SKU access
- LIFO cycle with single loading/unloading aisle
- Heavy-duty steel sealed bearing assemblies

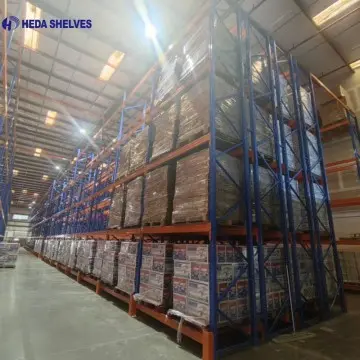

08 Double Deep Pallet Racking
Stores pallets two deep per row using pantograph or telescopic fork reach trucks. Eliminates every second operating aisle, yielding an immediate 30%–40% increase in storage volume over standard selective racking.
- Up to 40% higher density than single selective
- Cost-effective entry to high-density storage
- High rigidity beam profile and upright frames
