Featured Industrial Radio Shuttle & High-Density Racking Systems
Precision-manufactured with structural Q235B and Q355B steel, intelligent laser-guided pallet runners, and seamless WCS/WMS warehouse system integration. Engineered for heavy industrial distribution, frozen supply chains, and automated high-throughput logistics hubs.
Heavy Duty Pallet Shuttle Racking System Warehouse Storage
- Payload: Up to 1,500 kg/pallet
- Operation: FIFO & LIFO configurable
- Structure: Heavy cold-formed steel
Global High-End Heavy Duty Radio Shuttle Storage Rack
- Velocity: 0.8–1.1 m/s loaded
- Control: Industrial RF Remote / Tablet
- Battery: Quick-swap LiFePO4 cells

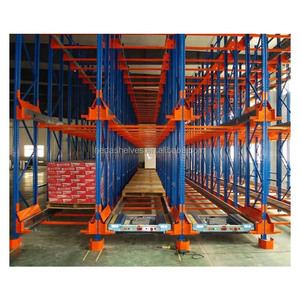

Intelligent Cold Storage Radio Shuttle Racking System
- Rating: Deep freeze down to -30°C
- Finish: Hot-dip galvanized or epoxy
- Protection: Anti-condensation electronics
Multi-Shuttle Intelligent Color-Coded Racking System
- Sensor: Omron / Sick laser detection
- Channel Depth: Up to 50+ pallet positions
- Safety: Integrated obstacle collision stop
Four-Way Radio Shuttle High-Density Storage System
- Motion: Omnidirectional X & Y transit
- Integration: Vertical lifter compatible
- Space Gain: Over 85% footprint utilization
Automated ASRS Radio Shuttle Racking with Forklift
- Synergy: Reach truck + Shuttle automation
- Software: API integration with ERP/WMS
- Scalability: Modular lane expansion
Low-Maintenance Radio Shuttle Rack for Frozen Goods
- Bearings: Low-temperature sealed grease
- Energy: High thermal capacity Li-cells
- Uptime: Over 10 hours continuous shift
Galvanized Heavy-Duty Radio Shuttle Racking System
- Anti-Corrosion: Hot-dip galvanized zinc
- Rail Design: Integrated guide-rail profile
- Endurance: Salt-spray > 1,000 hrs tested
Why Top Global Warehouses Rely on Our Radio Shuttle Infrastructure
As a tier-one manufacturing authority, Guangzhou Heda Shelves Co., Ltd. combines heavy-gauge structural metallurgy with advanced mechatronics. Sourcing direct from our manufacturing facility provides deep cost advantages, rigorous structural safety compliance, and bespoke automation compatibility.
10-Stage Precision Cold Roll-Forming
Every structural upright frame, heavy-duty beam, and sub-millimeter shuttle running track is shaped in-house through progressive CNC roll-forming lines. Utilizing high-tensile structural steel (Q235B & Q355B), profiles exhibit microscopic deflection under maximum design loads, guaranteeing smooth shuttle transition without sensor misalignments.
Tropical-Grade Pre-Treatment & Coating
Warehouses face corrosion from marine moisture and condensing atmospheres. Our steelwork undergoes an automated 8-stage pickling and phosphating pre-treatment followed by electrostatic thermosetting powder coating (60–80μm), or hot-dip galvanizing exceeding ASTM A123 standards for deep freeze (-30°C) facilities.
Intelligent Pallet Runner Mechatronics
Our pallet shuttles are powered by industrial-grade PLC processors, optical acceleration limiters, and dual Sick/Omron safety sensors. Integrated high-energy LiFePO4 batteries deliver up to 10–12 hours of continuous duty per charge, featuring 3-hour fast recharge protocols and automated dead-battery extraction cycles.
Full CE & ISO 9001:2015 Certification
All engineering calculations follow strict international codes including EN 15512, EN 15620, FEM 10.2.02, and ANSI/RMI MH16.1. Verified by third-party audit reports (CE Certificate No. 2435-CPR-8605159; ISO 9001:2015 No. 18624Q00169R0M), each installation comes complete with seismic and load certificate validation.
Rapid Port Dispatch & Sea Transit
Strategically situated in Guangzhou adjacent to Nansha and Huangpu ports, we provide rapid maritime dispatch to Southeast Asia, Australasia, the Middle East, Europe, and the Americas. Transit times average just 2–5 days to Vietnam, 3–5 days to Manila, 5–7 days to Singapore/Thailand, and 6–8 days to Port Klang, Malaysia.
Free Turnkey 3D & CAD Design Services
Prior to contract commitment, our structural engineers model your complete warehouse footprint. We analyze aisle widths, turning radiuses, column placements, floor slab load capacities, and SKU movement dynamics—supplying detailed 2D CAD engineering prints, dynamic 3D simulation renders, and exact BOM pricing matrices without cost.
Technical Architecture: High-Density Storage Comparison
Evaluating technical trade-offs between dynamic pallet racking architectures to maximize volumetric cubic efficiency and reduce operational damage costs.
| Evaluation Parameter | Radio Shuttle Racking | Drive-In Racking | Gravity Flow Racking | Automated Crane ASRS |
|---|---|---|---|---|
| Volumetric Space Utilization | 80% – 90% (Maximum) | 65% – 75% (Moderate) | 70% – 80% (High) | 85% – 95% (Ultra-High) |
| Forklift Rack Intrusion | Zero (Operates at Dock) | High (Drives inside lanes) | Zero (Front/Back Aisle) | Zero (Fully Autonomous) |
| Structural Collision Risk | Extremely Low (<1%) | High (Frequent Upright Impact) | Low | Zero (Controlled track) |
| Inventory Management Mode | FIFO & LIFO Hybrid | Strictly LIFO Only | Strictly FIFO Only | Fully Dynamic Random Access |
| Pallet Cycle Speed (Sec/Pallet) | 35 – 50 seconds | 90 – 150 seconds | 40 – 60 seconds | 30 – 45 seconds |
| Deep-Freeze Energy Efficiency | Superior (Compact Volume) | Moderate | Moderate (Rollers freeze) | High (Complex mechanisms) |
| Initial Capital Expenditure (CapEx) | Moderate / Rapid ROI | Lowest upfront | Moderate to High | Highest (3x–5x Shuttle) |
Emerging Trends in Radio Shuttle Procurement & Warehouse Automation
Global supply chains are transitioning from static storage to intelligent, energy-efficient automated material handling. Procurement directors must account for several major paradigm shifts when specifying radio shuttle racking infrastructure over the next decade.
Migration from 2-Way to 4-Way Shuttle Fleets
While standard 2-way shuttles travel longitudinally inside a single lane, 4-way shuttles navigate both transverse and longitudinal rails via integrated wheel-switching mechanisms. Coupled with high-speed automated vertical lifters, 4-way systems eliminate forklift dependency across vertical tiers, turning traditional racking into fully automated 3D cube storage matrices.
Wireless Contactless Inductive Charging
Manual battery extraction is being supplanted by continuous in-lane opportunity charging. Utilizing high-frequency magnetic resonance and supercapacitor technology, shuttles receive fast automated top-ups at home docking stations while awaiting pallet staging—enabling uninterrupted 24/7 continuous operations without battery swap rooms.
Direct Cloud WCS & AMR Integration
Future procurement mandates open API architectures. Modern pallet runners communicate via industrial 5G / Wi-Fi 6 mesh networks directly to Warehouse Control Systems (WCS). Autonomous Mobile Robots (AMRs) and automated counterbalanced AGVs drop pallets directly onto shuttle transfer bays without human forklift drivers.
IoT Telemetry & Predictive Structural Monitoring
Modern shuttle rails are increasingly outfitted with smart vibration, deflection, and ultrasonic wear sensors. Shuttle shuttles log track tolerances on every run, feeding real-time digital twins that identify rail misalignments, loose anchor bolts, or beam sagging before micro-distortions can trigger operational shutdowns.
Frequently Asked Technical Questions by Logistics Engineers
Clear, engineering-grade answers covering floor load tolerances, cold storage mechanics, safety certifications, and installation logistics.
Radio shuttle systems require high-tolerance warehouse concrete slabs complying with DIN 18202 (Table 3, Line 4) or ASTM E1155 (F-min / FF/FL standards). Because rack heights commonly exceed 10–14 meters with high concentrated point loads on baseplates (often exceeding 60–120 kN per upright column), the slab must be reinforced concrete with a minimum thickness of 180–250mm and compressive strength of C25/30 or greater.
Standard electronics fail in freezing temperatures due to battery chemical degradation, condensation short circuits, and oil freezing. Our cold-storage shuttle variants are equipped with heated PLC electronics compartments, low-temperature synthetic lubricants, IP65-rated sealed enclosures, and high-energy-density LiFePO4 cells with integrated internal heating pads, ensuring 8–10 hours of uninterrupted performance down to -30°C.
Yes. Shuttles are customized to accommodate standard Euro pallets (800x1200mm), ISO Industrial pallets (1000x1200mm), and Australian standard pallets (1165x1165mm). Optical photocells automatically detect pallet depth and underside bottom-board configurations. For mixed operations, multi-size shuttle platforms with adjustable sensor brackets and dual-depth rail configurations can be specified.
Safety incorporates multiple physical and electronic redundancies: 1) Precision-machined guide rails keep wheels locked inside track channels; 2) Front and rear Sick laser scanners stop movement instantly upon detecting obstacles; 3) Mechanical end-stop buffers prevent runway overrun; 4) Ultrasonic sensors measure load overhang to prevent beam impacts; 5) An integrated anti-drop lock prevents the shuttle from dislodging during forklift transit.
Standard production lead times for a 2,000–5,000 pallet position project range from 25 to 35 business days from final CAD signoff. Every component is pre-punched, numbered, bundled, and container-optimized for shipping. Installation is executed via our factory-dispatched bilingual site supervisors, or through local certified engineering contractors supplied with our detailed 3D step-by-step installation prints and video manuals.
While Drive-In racking has a lower upfront steel cost, it suffers from slow forklift cycle times (drivers must navigate deep within lanes) and frequent upright collision damage (often costing 10–15% of initial CapEx in annual repairs). Radio shuttle keeps forklifts at the dock face, tripling pallet movement speeds, eliminating structural damage, and recovering initial automation cost differentials within 14–22 months.
Optimize Your Warehouse Footprint with Factory-Direct Engineering
Send our project engineering team your warehouse architectural floor plan, clear building height, pallet specs, and throughput requirements. We deliver a complete 2D CAD layout, 3D structural visual simulation, and detailed factory-direct quotation within 24 hours.
