Jracking Global High-End Storage Rack Manufacture Radio Shuttle Racking System
Product Description
■Product Parameter

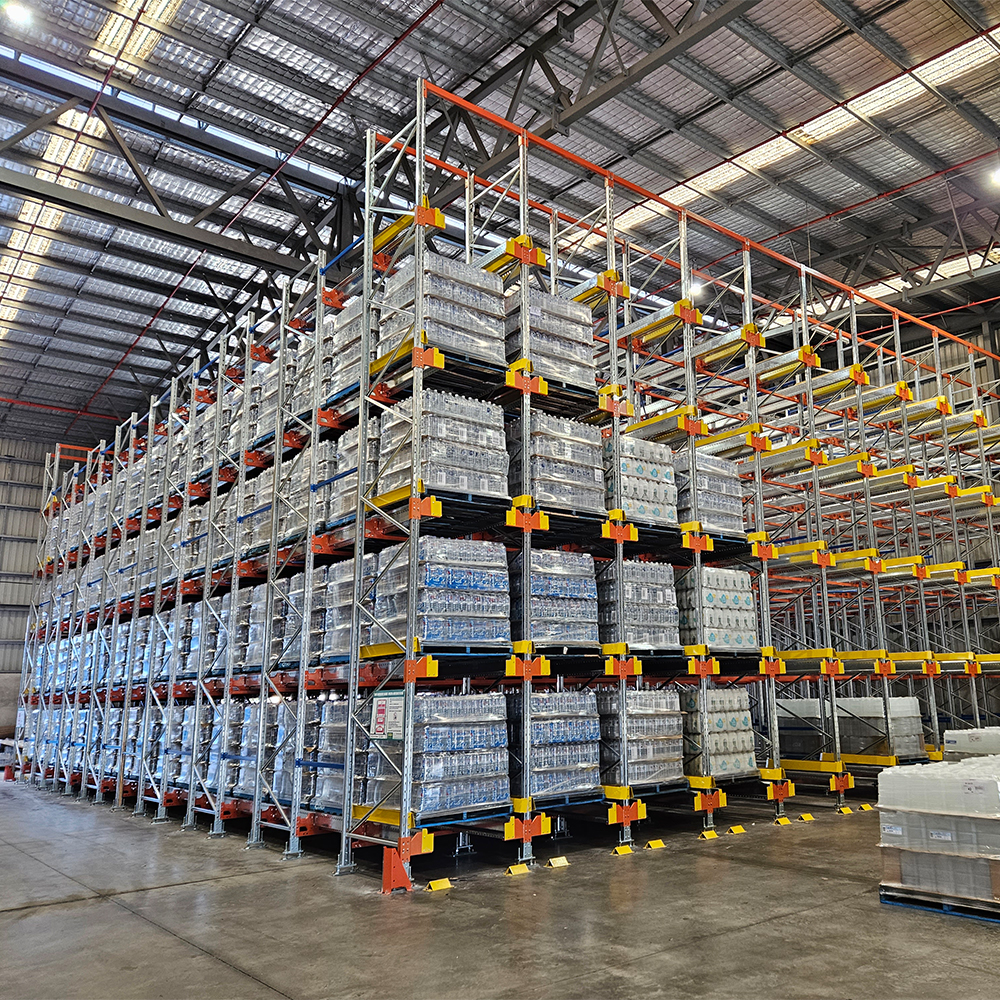

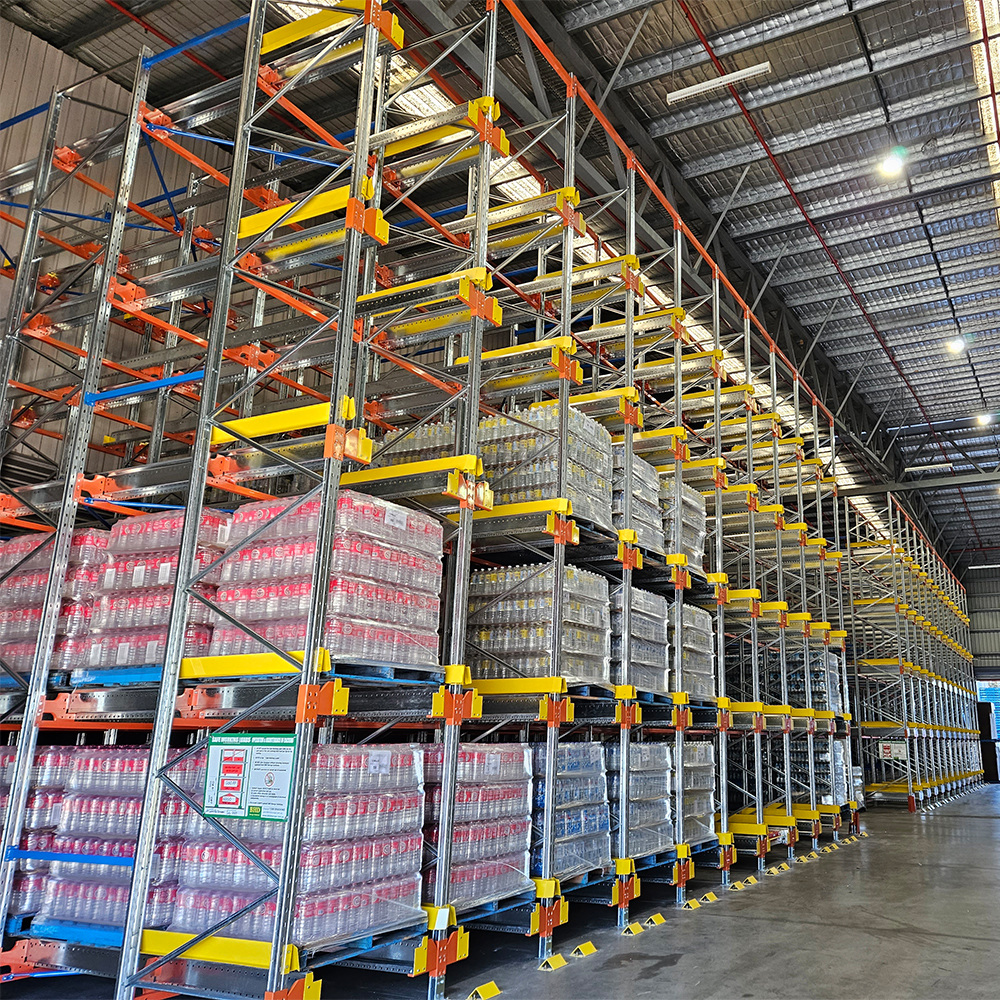

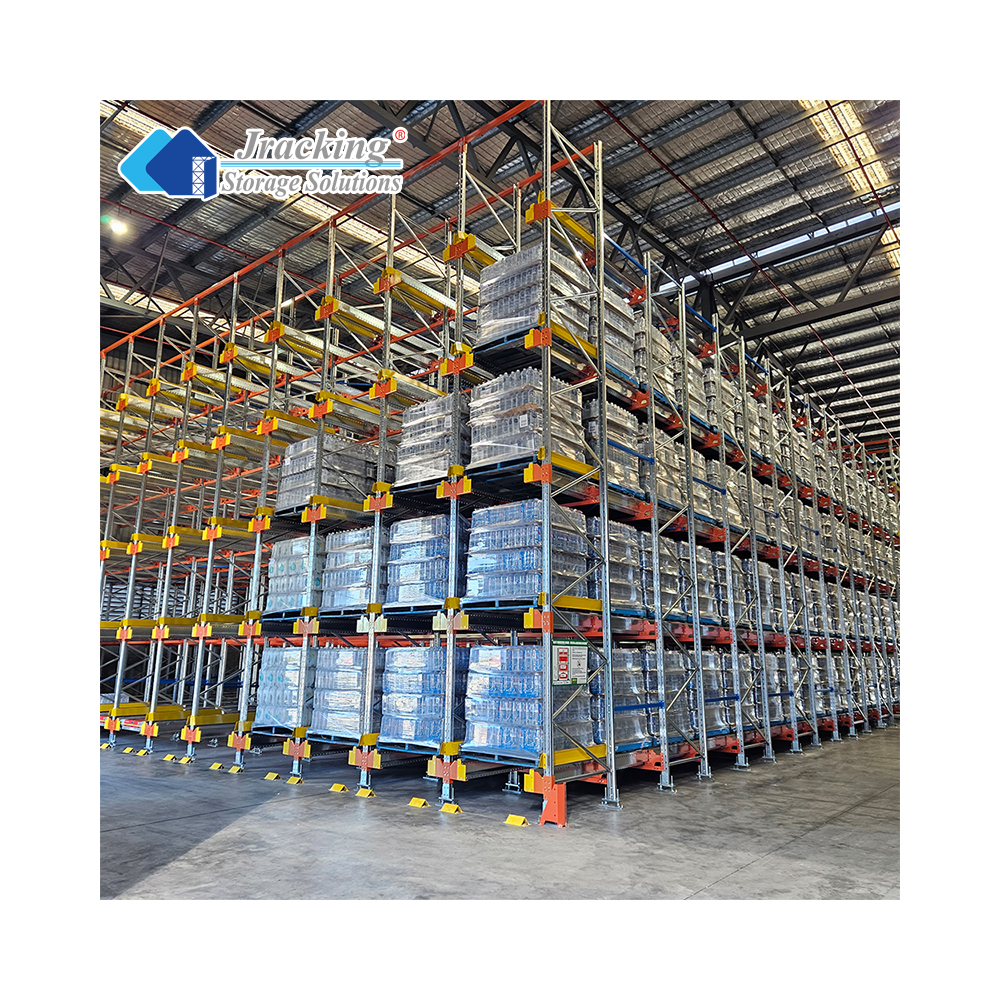

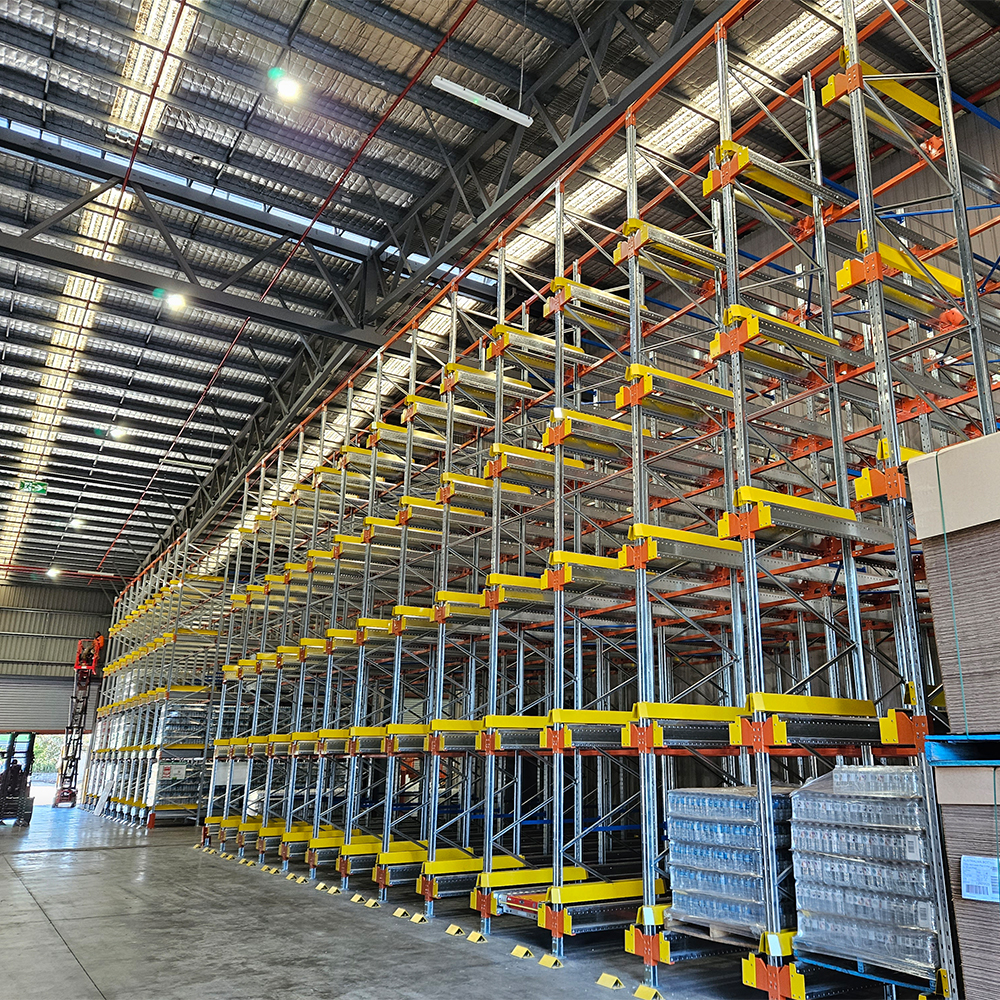

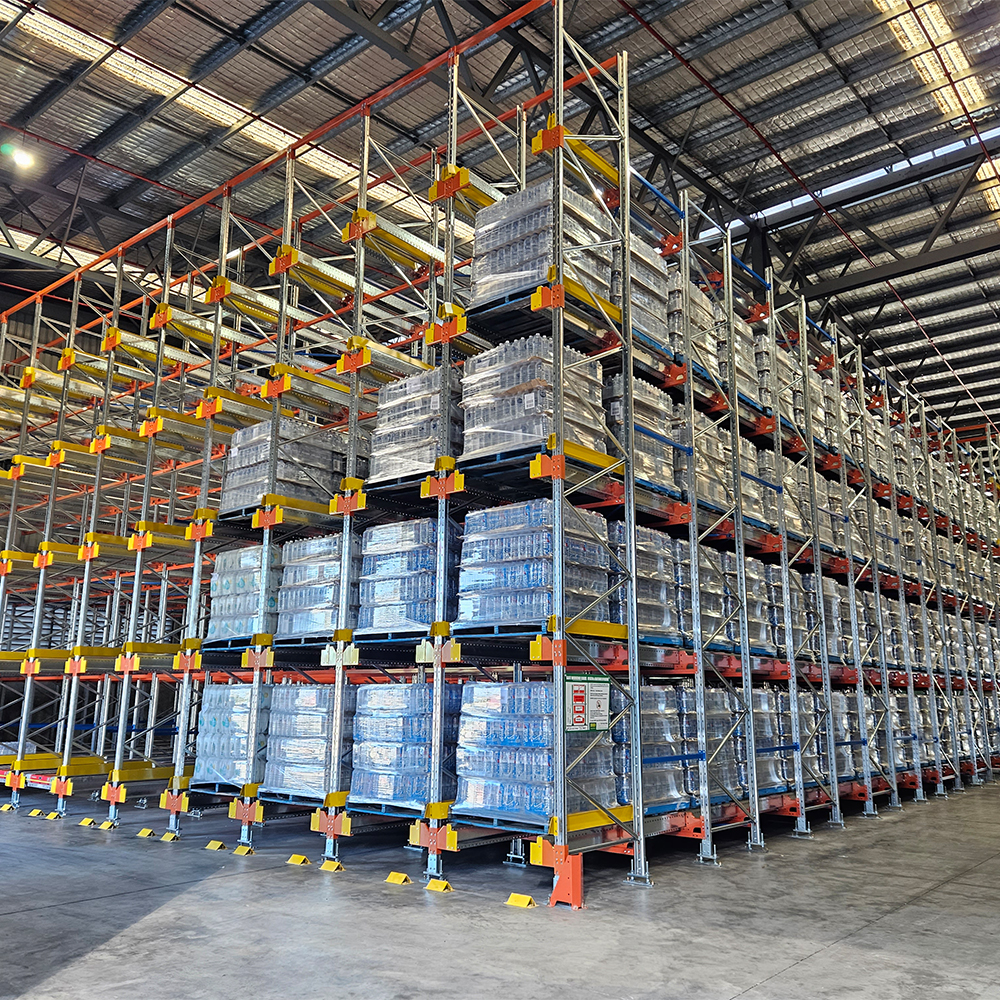

Radio Shuttle System
Jracking Shuttle Racking System is a high-density storage system. The shuttle cart, which is controlled by a wireless remote, takes the pallets in and out of the racking system. The forklift doesn't need to enter the storage area. The first pallet's location at either end is where the forklift loads and unloads the goods.
| Name | Radio shuttle system | Material | Q235a |
| Size | Customized Size | Color | Customized |
| Depth | Customized | Weight Capacity | 500~5000kg |
| Width | Customized | Height | Customized |
| Finish | Powder Coated | ||
| Usage | Warehouse Storage System | ||
| Packing | Customers' Request | ||
| Certification | AS4084-2012 / CE / ISO / RMI | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
■Product Introduction
| Technical Characteristic | |||
|---|---|---|---|
| Running Speed | Standard type | Low temperature type | Advanced type |
| Vmax_empty: 1.2m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.0m/s Vmax_full: 0.8m/s |
Vmax_empty: 1.5m/s Vmax_full: 1.0m/s |
|
| The Highest in China | The Highest in the world | ||
| Loading | 1.5T (Heavy Load Type 2T) Leading in China | ||
| Operating Efficiency | Closed-loop control of servo system is adopted to reach faster speed, which is 1.5~2 times faster than that in other counterparts. | ||
| Rapidity & stability | Motion parameter and curve of equipment are configured to realize both rapidity and stability. | ||
Direction for Use
- The shuttle has a high precision of parts that move along the aisles between shelves according to computer instructions.
- The forklift doesn't need to enter the storage area. The first pallet's location at either end is where the forklift loads and unloads the goods.
- The system could achieve both FIFO and FILO modes.
Description of Application Effect
- Can make full use of up to 90% of the total area
- Can store with both last in first out and first in first out system
- Reduce crashes between forklift and rack, decreasing incidents and maintenance costs
- Can reach 40 meters deep
■Installation, Maintenance & Repair
Installation
Jracking will provide detailed installation drawing and on-site installation guidance for your project. Professional technicians will adjust and test the shuttle cart for at least one week to ensure the shuttle racking system works properly.
Maintenance
Regular maintenance shall be made in accordance with the application manual and maintenance manual. Jracking's technician will train the responsible person in your warehouse on how to do routine maintenance.
Lifelong maintenance is provided for guaranteeing customer interests. Jracking is willing to provide lifelong paid service beyond the warranty period. Spare parts for the racking or shuttle cart will be supplied at the most favorable prices.
Repair
A one-year warranty is promised by Jracking after successful installation and commissioning, excluding natural disasters and man-made damage. Jracking's technician will train the responsible person in your warehouse on basic fault conditions and handling methods. If facing difficult situations, technicians will resolve the issues on site.
We really appreciate your trust in Jracking and Jracking's products. Please kindly keep us posted if you have any suggestions or requirements for our products.
■Product Categories
■Company Profile
■Certifications
■Production Process
■Frequently Asked Questions (FAQ)
Q: What are your trading and payment terms?
Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A (40-60 days) are also available. Lead time is normally 20-25 days after deposit is received. Samples are available for each model within 7-15 days. Shipping ports include Shanghai and Nanjing, China.
Q: How can my goods be delivered?
We offer sea freight updates once your destination sea port is provided. If you have a designated shipping partner, provide their contact details and we will coordinate direct delivery.
Q: What services and technical support do you provide?
All inquiries are replied to within 12 hours by our fluent English-speaking team. We provide complete OEM & ODM solutions, custom racking layout designs by experienced engineers, and comprehensive warranty coverage.
Q: What is the complete purchase workflow?
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping.
Q: What key advantages make your radio shuttle system stand out?
We offer factory-direct competitive pricing, support for urgent orders, a full two-year warranty with free parts replacement, flexible payment options (O/A 40-60 days), and market-leading operating speeds powered by high-precision closed-loop servo control.
Q: What are the policies on MOQ and mold tooling fees?
There is no strict MOQ limitation, though orders meeting at least one 20ft container (approx. 15 tons) receive optimal pricing. For custom mold tooling, costs charged upfront before initial production will be partially or fully refunded once reaching specified order volumes.
