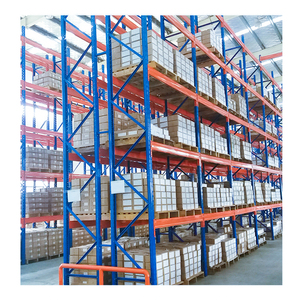

Heavy Duty Beam Pallet Racking for Industrial Storage
1000-4500kg/Level
100% Selectivity
ENGINEERED STORAGE SOLUTIONS
Standard & High-Density Pallet Racking Systems
Explore our industrial-grade pallet racking, shelving, and cantilever units fabricated from premium cold-rolled Q235B/Q355B steel, designed for maximum volumetric storage efficiency.
Drive-In High Density Pallet Racking System
FILO / FIFO
Cold Store Optimized
Modular Steel Warehouse Mezzanine Loft Platform
300-1000kg/m²
Multi-Tier Expandable
Selective Heavy-Duty Pallet Racks Direct Supply
Adjustable 75mm Pitch
ISO 9001 Certified
Warehouse Shelf Bin Containers (455x300x170mm)
PP Polymer Material
SKU Segregation
5-Layer Adjustable Carton Flow Picking Rack
Dynamic Gravity Flow
E-Commerce Picking
Boltless Adjustable 500kg/Layer Steel Racking
Snap-in Assembly
Medium-to-Heavy
Automated Radio Shuttle Deep-Lane Storage System
WMS Connected
Ultra-High Density
MANUFACTURING EXCELLENCE
Why Tier-1 Integrators Choose HEDA Shelves
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. integrates advanced structural mechanics, precision continuous roll-forming lines, and tropical-grade surface finishing directly to global B2B supply chains.
Full-Chain In-House Production
From high-strength slit steel coil inspection to 64-meter automated continuous profile roll-forming, laser shearing, and automated welding, every stage is fully audited under ISO 9001:2015 management.
Pre-Treatment & Anti-Corrosion
Our 9-stage chemical pickling and silane-phosphating process ensures surface adhesion exceeding 1,000 salt-spray hours. High-durability thermosetting epoxy-polyester prevents peel even in 85%+ tropical humidity.
Seismic & Structural Compliance
Engineered structural calculations compliant with ANSI MH16.1, FEM 10.2.02, and EN 15512. Projects in active seismic zones (Philippines, Indonesia, Japan) include customized basefooting and heavy bracing profiles.
Container Optimization & Fast Transit
Direct shipments from Guangzhou/Nansha ports reach major regional distribution nodes (Singapore, Manila, Cat Lai, Laem Chabang, Port Klang) within 2 to 8 days, bundled via nesting jigs to reduce ocean freight by 25%.
ACCREDITATIONS & AUDITS
Verified International Certifications
All load ratings, structural weld joints, and safety factors undergo certified laboratory testing. Review and verify our international compliance certificates for direct tender bidding.
CE Certificate No. 2435-CPR-8605159
ISO 9001:2015 No. 18624Q00169R0M
RoHS Chemical Safety Compliance
Mechanical Deflection Test Verified
TECHNICAL BUYER'S MATRIX
Engineering Comparison: Pallet Racking Specifications
A systematic technical overview comparing pallet access efficiency, structural load thresholds, operational floor space utilization, and relative CapEx ratios.
| Storage Architecture | Pallet Selectivity | Floor Footprint Utilization | Standard Safe Working Load | Typical MHE Match | Best Industry Fit |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% (Instant Direct Access) | 35% – 42% (Aisle Intensive) | 1,000 – 4,500 kg per beam level | Counterbalance, Reach Trucks | FMCG, 3PL Distribution, Multi-SKU Retail |
| Drive-In / Drive-Through | Low (FILO / FIFO Batch Lane) | 65% – 78% (Aisle-Less Blocks) | 800 – 1,800 kg per pallet position | Narrow Counterbalance | Cold Storage, Agricultural Bulk, Beverage |
| Radio Shuttle Automation | High Batching Speed (FILO/FIFO) | 75% – 85% (Ultra-Dense) | 500 – 2,000 kg per pallet runner | Standard Forklift + Shuttle Unit | Frozen Food Exporters, High-Turnover Pharma |
| Gravity Pallet Flow | 100% Strict FIFO Rotation | 60% – 75% (Gravity Roller Slopes) | 1,000 – 1,500 kg per pallet lane | Standard Reach / Counterbalance | Perishable Dairy, Brewing, Batch Expiry Goods |
| Cantilever Racks | 100% Linear Front Selectivity | Customized per Material Length | 500 – 3,000 kg per arm level | Side Loader, Multi-Directional MHE | Pipes, Extrusions, Rebar, Timber Profiles |
| Rack-Supported Mezzanine | Tiered Split Selectivity | Doubles/Triples Vertical Cube | 300 – 1,000 kg/m² Floor Decking | Hydraulic Lifts, Pallet Jacks, AGVs | E-Commerce Fulfillment, Auto Parts Hubs |
STRATEGIC FORECAST
Emerging Procurement & Architectural Racking Trends
Key evolutionary vectors shaping the next five years of industrial warehousing investments, structural engineering, and supplier collaboration.
Convergence of Racking with AMR & Autonomous Fleets
Traditional static racking designs are rapidly transitioning toward AMR (Autonomous Mobile Robot) and 4-way shuttle readiness. Buyers increasingly prioritize lower beam clearances, laser-guided upright tolerances, and integrated track channels over legacy forklift configurations.
Higher-Grade Micro-Alloyed Steels (Q355B vs. Q235B)
To reduce container tare weight and optimize structural dead load without sacrificing deflection resistance, global purchasers are migrating from traditional thick Q235B profiles toward thinner, cold-hardened micro-alloyed Q355B steel, unlocking 15% deeper beam spans.
Vertical Densification via Catwalks & Multi-Tiers
With industrial land leasing rates escalating worldwide, logistics operators are converting unused vertical clearance into profit centers. The specification of rack-supported multi-tier platforms (up to 4 levels) eliminates traditional construction permits while tripling SKU pick locations.
SOURCING INTELLIGENCE
Frequently Asked Questions on Importing Racks from China
Essential guidance covering technical drawings, rust prevention, structural safety factors, ocean shipping transit, and on-site assembly.
What specific details are required to generate an exact CAD layout & static load calculation?
We require your facility's clear height beneath trusses/sprinklers, slab floor core load capacity (kN/m²), column grids, pallet dimensions (W×D×H including overhang), maximum loaded weight per unit, and your preferred Material Handling Equipment (MHE) minimum turning radius and lift ceiling.
How does HEDA prevent oxidation and paint peel in coastal or sub-zero environments?
Every profile undergoes an automated continuous 9-step pre-treatment (acid pickling, alkaline degreasing, and nanometer silane phosphating) prior to robotic electrostatic powder coating. For exterior storage or deep-freeze cold facilities (-30°C), we apply hot-dip galvanization (HDG) rated above 85 microns.
Can the racking profiles be engineered to satisfy local seismic zones in ASEAN and the Americas?
Yes. Structural calculations integrate seismic acceleration parameters (Ss, S1) matching UBC-97, IBC 2021, and EN 1998 codes. We adjust upright cross-section inertia, increase brace gauge thickness, weld heavy-duty gusseted baseplates, and provide certified anchor bolt torque specifications.
What is the typical shipping lead time and installation support provided?
Standard fabrication takes 15 to 20 days. Port-to-port sea freight from South China to Southeast Asia averages 3-8 days; North America/Europe is 20-30 days. Every consignment contains 3D structural exploded diagrams, component tagging numbers, installation video walkthroughs, and optional field supervisor dispatch.
Transform Your Warehouse Floor Space with Factory-Direct Engineering
Send our senior engineering team your architectural blueprint, SKU density goals, or fork truck models. Receive a fully validated 3D layout, structural load analysis, and competitive factory-direct pricing within 24 hours.
