Dynamic FIFO

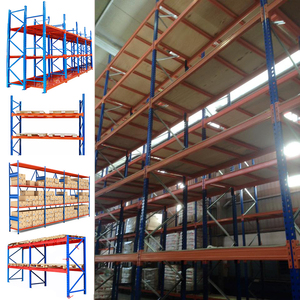

Adjustable Customized Gravity Storage Shelf Heavy Duty Racking System
Gravity Flow
1,000-2,500kg/Pallet
Galvanized Rollers
2001.
Established Year
30,000t
Monthly Production Tonnage
30,000m²
Automated Plant Scale
10,000+
Delivered Turnkey Sites
Enterprise Product Portfolio
Featured Industrial Heavy-Duty Storage Systems
Engineered for mechanical resilience, load integrity, and corrosion defense. Inspect our top-tier pallet, cantilever, mezzanine, and live-roller gravity configurations built to EN 15512, RMI, and ISO 9001:2015 specifications.
Dynamic FIFO
Floor Multiplication

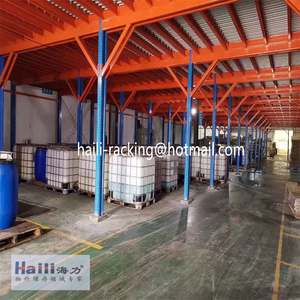

Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine
300-1,200kg/m²
Multi-Tier
Custom Decking
Long Goods Handling

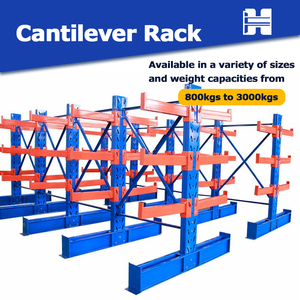

Sheet Storage Rack Industrial Storage Inventory Organization Long Goods Handling
Heavy Plate
Up to 3,000kg/Tier
Anti-Scratch
Zero-Energy Flow
Roller Racking System Pallet Storage Warehouse Gravity Flow Rack
Braking Rollers
Deep Lane FIFO
Cold Chain Rated
Modular Components

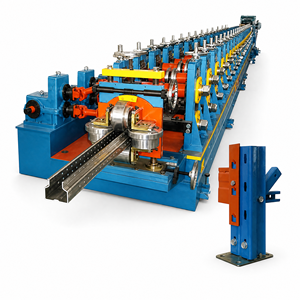

Heavy Duty Steel Pallet Rack Upright Column Warehouse Storage Post Connector
Q235B/Q355B Steel
50/75mm Pitch
HDG Finished
Manual Picking
4 Tier Heavy Duty Boltless Metal Storage Rack Industrial Warehouse Shelving
300-800kg/Shelf
Fast Interlock
Scratch Proof
Maximum Volumetric Use

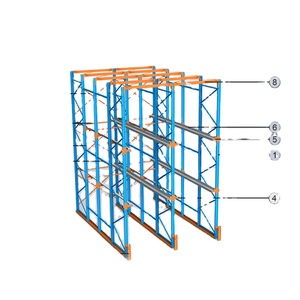

Warehouse Storage Drive In/Through Racking System Heavy Duty Steel Rack
LIFO / FIFO Lanes
High-Density Batches
85% Footprint Use
Heavy Batch Transit

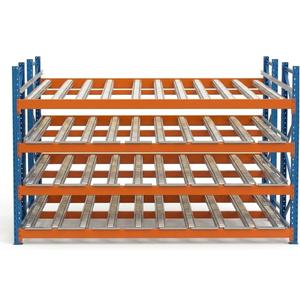

Heavy Duty Flow Rack Gravity Flow Q235 Steel Assembled Main Rack
1000-2000kg/Pallet
Galvanized Guides
OEM Spec
Metallurgical & Engineering Rigor
Engineering Metallurgy: Hot-Dip Galvanizing vs. Electrostatic Powder Coating
A comparative engineering deep-dive on zinc-iron intermetallic alloy bonds versus thermosetting polymer barriers for industrial storage racks operating in aggressive environments.
Understanding Atmospheric Corrosion Kinetics in Industrial Warehousing
Industrial storage systems installed across coastal supply corridors (e.g., Southeast Asia, Mediterranean basins, and the Gulf Coast) confront rapid degradation induced by cyclic condensation, airborne chloride ions (Cl⁻), and sulfur dioxide (SO₂). Conventional organic coatings (standard polyester powder coatings) function purely as a passive physical barrier. The moment an accidental forklift tine strike pierces this 60–80 micron plastic layer, an active electrochemical cell is generated. The underlying carbon steel acts as an anode, sparking creeping subsurface oxidation (filiform corrosion) that compromises structural frame load capacities without external detection.
Hot-Dip Galvanizing (HDG) per ISO 1461 and ASTM A123 fundamentally alters this failure mechanism through high-temperature metallurgical diffusion (approx. 450°C). Molten zinc diffuses into the substrate steel, creating sequential intermetallic iron-zinc alloy layers (Gamma, Delta, and Zeta phases) culminating in a pure zinc outer layer (Eta phase). This atomic metallurgy delivers a rockwell micro-hardness exceeding structural base steel, paired with sacrificial cathodic protection: if scratched, zinc prioritizes its own electron loss to electrochemically shield the adjoining bare steel from rust propagation.
| Evaluation Parameter | Hot-Dip Galvanized (HDG) | Pre-Galvanized Coil (Sendzimir) | Standard Powder Coating |
|---|---|---|---|
| Standard Specification | ISO 1461 / ASTM A123 | EN 10346 / ASTM A653 | Qualicoat / ASTM D3451 |
| Average Coating Thickness | 65 – 100 μm (450–600 g/m²) | 15 – 25 μm (180–275 g/m²) | 60 – 90 μm (Film) |
| Edge & Slit Hole Protection | Complete 360° Full Immersion | Cathodic Sacrificial Edge | Vulnerable (Faraday Cage Gaps) |
| Cold Store Sub-Zero Endurance (-30°C) | Zero Embrittlement / Flaking | High Performance | Prone to Micro-Cracking |
| Forklift Abrasion & Impact Defense | Alloy layers harder than parent steel | Moderate resistance | Readily gouged down to base metal |
| Service Life in High Salinity/Humid Zone | 35 to 50+ Years Zero-Maintenance | 15 to 25 Years Internal | 3 to 7 Years Before Underfilm Rust |
Production Excellence
10-Stage Precision Manufacturing Discipline
Guangzhou Heda Shelves Co., Ltd. controls the end-to-end processing pipeline across our 30,000 m² complex, securing millimeter structural tolerances across beam profiles, roll-formed posts, and bracing trusses.
01
Certified Raw Steel
Strict spectroscopic testing of hot-rolled structural steel coils (Q235B and Q355B) guaranteeing yield strength (≥235-355 MPa) and ultimate elongation.
02
High-Speed Slitting
CNC automated continuous slitting lines process master mother coils into micron-accurate ribbons with micro-burr elimination for cold-bending feeds.
03
CNC Dynamic Punching
Continuous progression die punches create diamond/teardrop pitch configurations (50mm / 75mm) at high speeds with pitch center variances under ±0.1mm.
04
Multi-Pass Cold Forming
22-station high-rigidity roll-forming lines generate custom upright profiles featuring 12 directional load-bearing stiffeners that maximize torsional rigidity.
05
Box & Step Beams
Dual interlocking C-profile automated crimping and continuous high-frequency seam rolling produce ultra-rigid interlocking beam modules with near-zero deflection.
06
Robotic MIG/CO2 Welding
Panasonic and ABB multi-axis robot workstations secure beam-end connectors (3-claw, 4-claw, 5-claw) with deeply penetrated, porosity-free structural fillets.
07
Chemical Pre-treatment
8-stage automated tunnel degreasing, ultrasonic acid pickling, surface conditioning, and nano-ceramic/zinc phosphating establish superior zinc/coating adhesion.
08
Load Testing & Export Stowing
Full destructive weld-macro verification, deflection testing per EN 15512, steel strapped bundle grouping, and custom container stowage optimization for marine freight.
Strategic Procurement Horizons
Industrial Warehouse Storage: 2025–2030 Procurement Trends
Macro-economic volatility, urbanization land costs, and cold-chain compliance are actively transforming global procurement criteria from lowest spot piece-price to Lifecycle Value Optimization (LVO).
1. Cold-Chain TCO & Galvanization Shifts
With chilled space refrigeration driving operational expenses over $45/m³ annually, procurement heads cannot afford the multi-week downtime required to paint or remediate flaking epoxy racks inside -25°C chambers. Continuous hot-dip galvanized and Sendzimir pre-galvanized framing has transitioned into mandatory standard project specifications across global dairy, biologics, and frozen food 3PL logistics developments.
- Elimination of VOC release in clean packaging zones
- Zero embrittlement delamination under thermal cycling
- Estimated 42% TCO savings over a 20-year operational horizon
2. AS/RS & Autonomous Mobile Robot Integration
Standard selective racking tolerances (±3mm) induce navigational errors when interfacing with automated AGVs and ultra-narrow aisle (VNA) automatic guide wire or vision systems. Next-generation procurement contracts demand structural tolerances within ±0.75mm, stiffened floor slab expansion joints, and laser-guided leveling baseplates rated for high-acceleration mast dynamics.
- Strict adherence to EN 15620 Class 100-400 tolerances
- Customized floor run channels and safety interlocks
- Pre-engineered bracketry for RFID and LiDAR beacons
3. Nearshoring Resilience & Direct Exporter Alliances
Intermediary traders introduce up to 35% margin markups, lack direct liability for engineering calculation stamps, and introduce severe delivery variance. Tier-1 multi-facility operators and international engineering contractors are pivoting exclusively to direct factory partnerships in China capable of supplying bilingual finite element analysis (FEA), verified CE CPR structural documentation, and optimized maritime flat-pack logistics.
- Direct container staging lowering ocean cubic meter costs
- Dedicated bilingual structural project engineering
- Customized CAD and Revit BIM integration files
R&D Horizons
Next-Gen Storage System Evolution: Where R&D is Heading
Material science, digital structural twins, and seismic-ductility innovations represent the frontier of heavy-duty warehouse infrastructure engineering.
Ultra-High Strength Zinc-Magnesium-Aluminum (ZAM)
Moving beyond conventional galvanizing, Heda Shelves is deploying next-generation ZAM (Zinc-Aluminum-Magnesium alloy) rolled sheets. The ternary eutectic structure generates a persistent magnesium-based protective film over cut edges that heals puncture fissures up to triple the rate of traditional pre-galvanized coils, even in saline maritime testing.
Dissipative Seismic Isolators & Baseplate Dynamics
For seismic zones across the Pacific Rim, Indonesia, and the Philippines, engineering teams are integrating elastomeric lead-rubber hysteretic dampers directly beneath the racking upright columns. These dissipators isolate dynamic ground acceleration (PGA up to 0.45g), preventing post buckling and accidental load shedding during critical earthquake events.
Embedded IoT Structural Strain Telemetry
Intelligent rack monitors incorporating piezo-resistive fiber-optic strain gauges are embedded inside main load-carrying horizontal beams. These transmit real-time deflection telemetry into warehouse WMS and BMS dashboards, instantly alerting safety compliance officers the moment an accidental forklift impact or overweight pallet exceeds the safety threshold.
Enterprise Reliability
Guangzhou HEDA Shelves: Enterprise Strengths & Compliance
Headquartered strategically in South China's manufacturing heartland since 2001, we offer institutional-grade supply security backed by third-party verifications and direct maritime routing.
Accredited Certifications
Full compliance testing: CE Certified (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and RoHS verification.
300+ Engineering Experts
Over 30 dedicated structural engineers and 270 skilled production specialists delivering complimentary CAD layouts, 3D renderings, and finite element calculations.
Rapid Maritime Staging
Guangzhou / Nansha port proximity cuts maritime transit times across global routes: 2-5 days to Vietnam, 5-7 days to Singapore/Thailand, and reliable container runs to the Middle East, Europe, and the Americas.
End-to-End Execution
Full EPC support spanning warehouse layout design, OEM/ODM customized fabrication, pre-assembly staging, numbered component dispatch, and field supervision guidance.
Procurement Clarity
Frequently Asked Technical & Procurement Questions
Clear, verifiable answers to common structural, metallurgical, and international logistics questions raised by EPC contractors and global procurement managers.
What structural steel grades are utilized, and can mill certificates be furnished?
We fabricate exclusively from high-integrity Q235B and Q355B low-carbon micro-alloy structural steel sourced from certified prime domestic mills (such as Baosteel and Shougang). Every production batch undergoes incoming spectrometer verification and tensile stress-strain validation. Original EN 10204 3.1 Mill Test Certificates (MTC) detailing complete chemical ladle analysis (Carbon, Silicon, Manganese, Phosphorus, Sulfur) and mechanical yield, ultimate tensile strength, and Charpy impact values are provided alongside export bill of lading packages.
How does HEDA handle international seismic load calculations?
Our structural engineering division implements finite element structural modeling based on the client site's specific geotechnical data, peak ground acceleration (PGA), seismic risk group, and soil classification (per ASCE 7-22, Eurocode 3 / EN 15512, or local codes such as the NSCP for the Philippines). We calibrate the upright cross-section, back-to-back tie spacers, upright bracing configurations (K-type, D-type, or X-type), enlarged heavy-duty baseplates, and high-tensile wedge expansion or chemical resin floor anchors to ensure energy dissipation without brittle structural collapse.
What is the difference between Hot-Dip Galvanized and Pre-Galvanized racking?
Pre-galvanized (Sendzimir) steel is continuously hot-dip coated at the coil mill before slitting, punching, and roll-forming (typical zinc layer 15–25 microns). When punched, the edges of bolt slots and diamond holes are exposed, relying solely on thin sacrificial side-action. In contrast, batch Hot-Dip Galvanizing (HDG) per ISO 1461 occurs *after* all fabrication, shearing, and punching is complete. The finished steel frame is immersed entirely in a 450°C bath of molten zinc, encasing all inner surfaces, internal column returns, and slit edges in a heavy 65–100 micron metallurgical bond. HDG is imperative for extreme outdoor environments, open chemical staging, and marine coastal conditions.
What details are needed to produce a custom warehouse layout & quotation?
To provide a fully verified structural blueprint and load schedule, our engineering team requires: (1) Warehouse architectural drawings indicating clear height under roof trusses, internal column grids, dock doors, and building egress paths; (2) Pallet dimensions (Length x Width x Height including overhang) and gross weight per unit load; (3) Operational forklift specifications (model type, collapsed mast height, maximum reach, turning radius / AST); (4) Inventory flow velocity (FIFO or LIFO requirements); and (5) Ambient room operating temperature (-30°C freezer, air-conditioned, or ambient).
How are components bundled and protected for international ocean shipping?
Heavy upright frames and long horizontal beams are nested, banded with high-tensile steel straps, and isolated with wood/corrugated edge protectors and air-cushioned bubble wraps to avoid surface rub damage. Smaller hardware (base plates, bolts, nuts, safety lock pins, shims) are packed into sealed, heavy-duty wooden crates or steel-strapped export cartons clearly barcoded with component IDs matching your master CAD installation sequence drawings. We pack containers (40HQ / 20GP) to maximize volumetric capacity, minimize sea freight per pallet position, and facilitate direct offloading with standard telehandlers or forklifts.
Does HEDA provide on-site installation support globally?
Yes. Every dispatch is accompanied by an itemized installation manual, complete 3D assembly exploded views, and step-by-step video guidance. For major projects across Southeast Asia, the Middle East, South America, and Europe, we can dispatch senior project installation supervisors to manage, train, and oversee your local mechanical contractors, verifying plumbness, torque wrench calibration on beam connectors, anchor bolt pull-out testing, and handover sign-off.
Plan Your Storage Capacity With China's Leading Pallet Racking Exporter
Maximize vertical space, eliminate structural corrosion risks, and connect directly with senior storage engineers. Request our verified industrial catalog, structural loading profiles, and 3D CAD design proposal.
