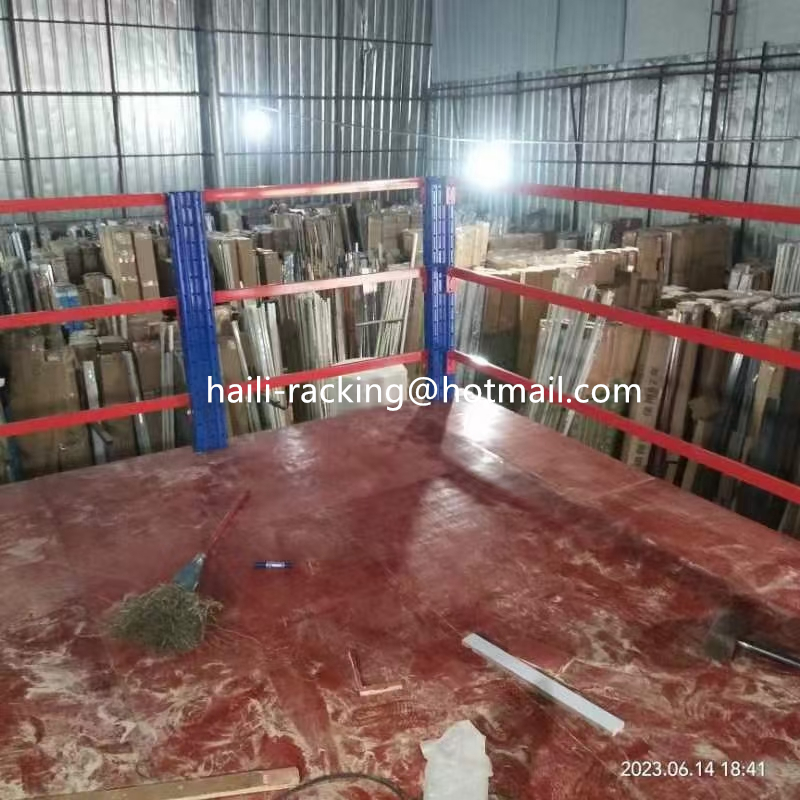

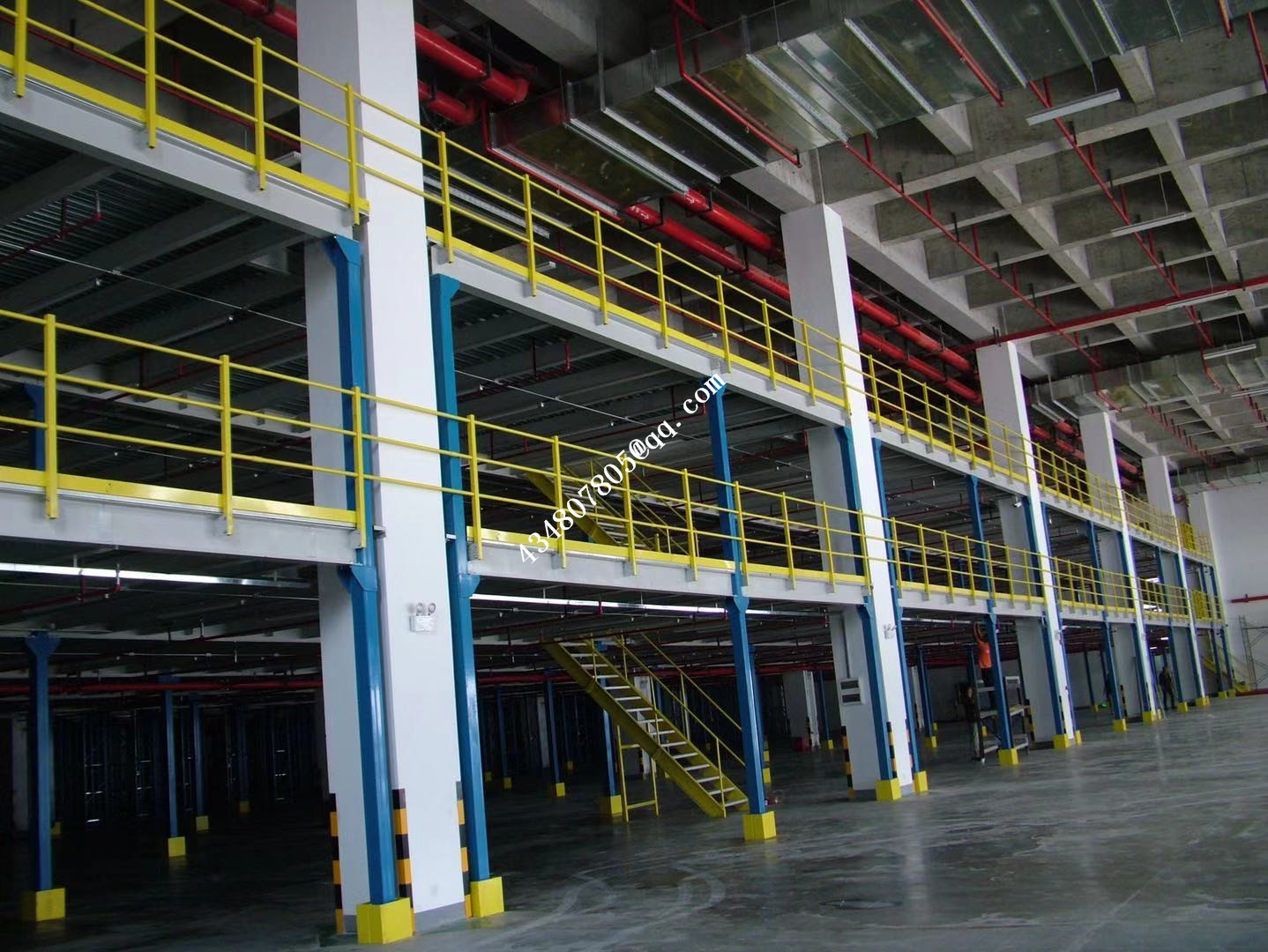

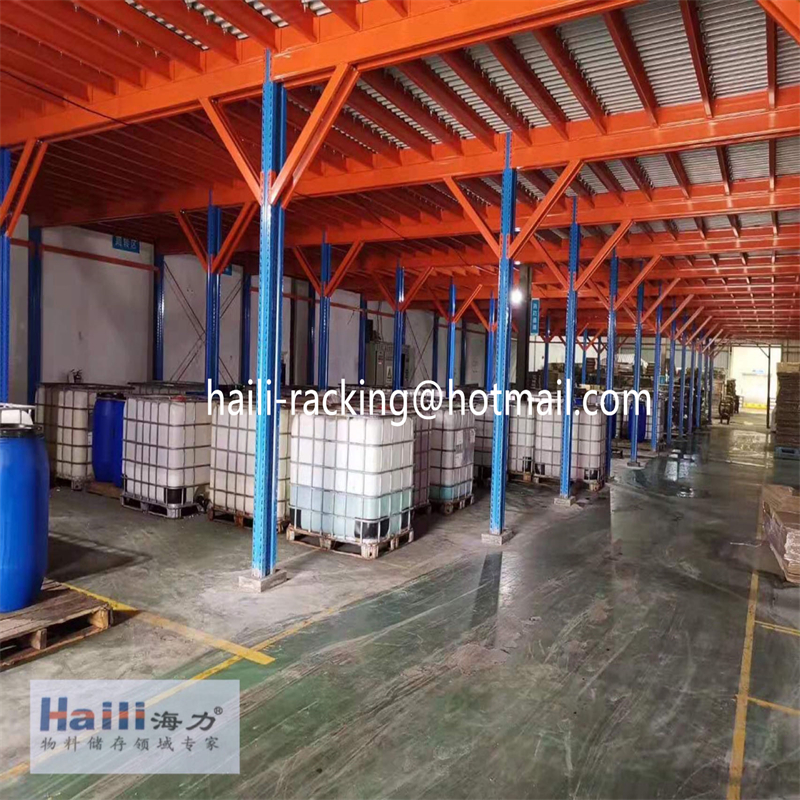

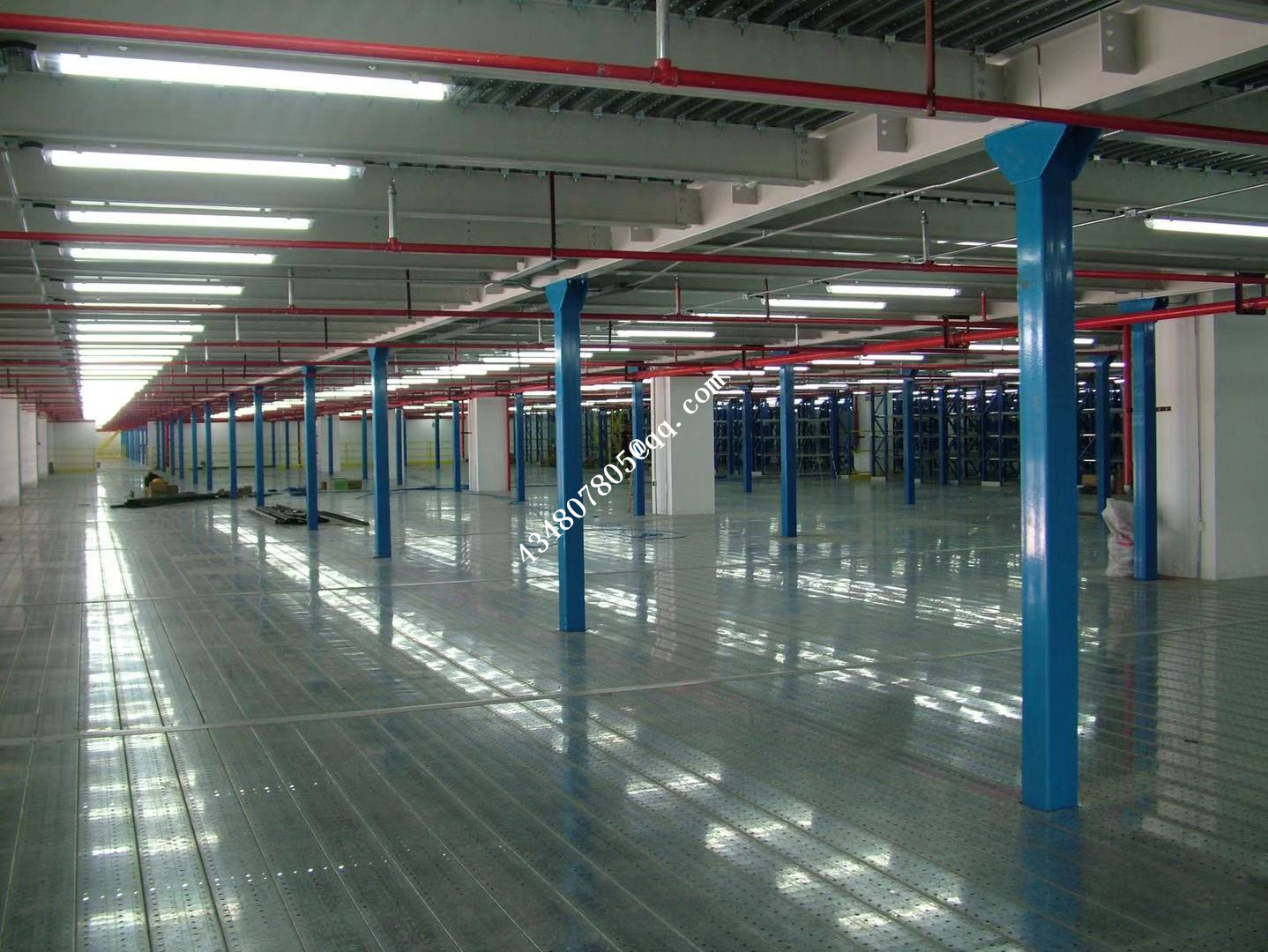

Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform
Product Description
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform can create additional floors of space for a variety of different uses such storage or extra mezzanine office. It is a very quick and cost effective way to create new space without the high expenses and inconvenience of relocation.
Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform can be one-floor or multi-floors according to the requirements from customers. They can be built over existing equipment and work areas, making maximum use of warehouse height.

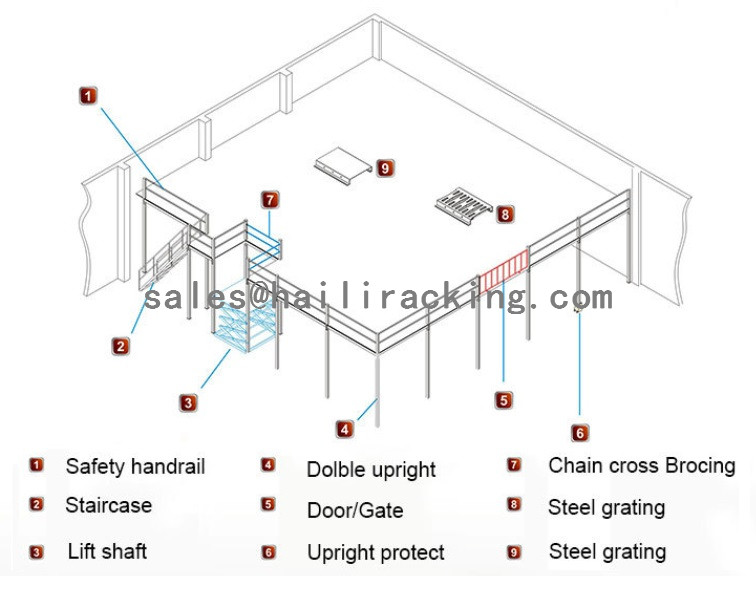

Structural Design: It is with uprights, main beams, sub-beams, stairs, handrails and floorings, which is totally assembly structure, pre-manufactured thus no cutting and welding are needed. Dismountable and re-usable, the dimensions and locations are easily modified. Double uprights to support the floor decking, more stable.

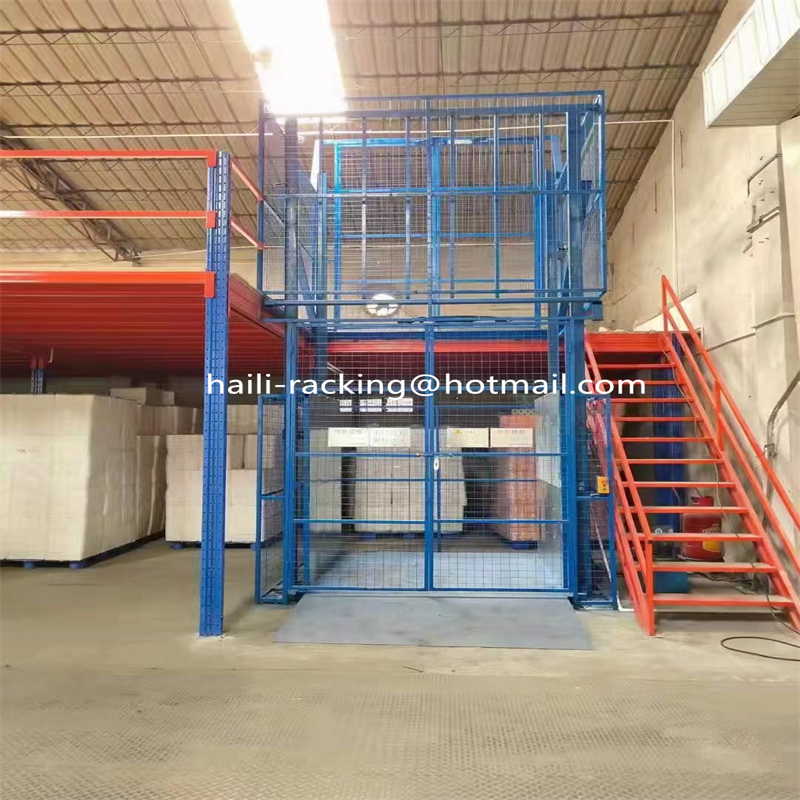

Stairs, hydraulic lift table and goods lift, slide, conveyer belt, are equipped, combined with forklifts, for moving goods from ground to upper floors.
Key Features & Characteristics
- ✓One-floor or multi-floors according to the requirements from customers.
- ✓Create additional floors of space for storage or office, etc.
- ✓A very quick and cost effective way to create new space.
- ✓Can be built over existing equipment and work areas.
- ✓Totally assembly structure, no need cutting and welding.
- ✓Dismountable and re-usable, the dimensions and locations are easily modified.
- ✓High loading capacity, high precision, easy to be installed.
- ✓Walkway surface can be customized to be many types of floorings.
- ✓Customized to meet clients specific storage needs; can be built on top of shelving racks, pallet racks, drive in racks, cantilever racks, etc.
- ✓Ideal for warehouses requiring stock management for a wide variety of products.
Product Specifications
| Classification | Strong Load Capacity Durable Steel Structure Platform Pallet Rack Supported Mezzanine Floor Platform |
| HS Code | 73089000 |
| Use | For storage purpose or as mezzanine office |
| Structure | Can be assembled and dismantled easily |
| Feature | Create new space |
| Solution | We provide with free safety design Autocad drawings |
| Loading Capacity | Up to 1000 kgs per square meter |
| Floors | 1~5 floors, customized |
| Floor Height | Every 50mm adjustable from bottom to top of uprights |
| Mezzanine Height | Up to 12000mm |
| Mezzanine Depth | 2000-100000mm |
| Mezzanine Width | 2000-100000mm |
| Beam Length | Up to 4000mm |
| Welding | Good welding by our skilled workers |
| Corrosion Protection | Lead free epoxy electrostatic powder coating |
| Colors | Blue, safety orange and computer grey or customized |
| Raw Steel Code | Q235B High Grade Hot Rolled Steel |
| Material Thickness | 1.5-6.0mm |
| Main Parts | Double upright column, beams, steel floorings or wood boards, loading gate, loading platform, stairs, handrails, base plates, bolts and nuts, etc. |
| Upright Frames | Omega Section 55*90mm / 65*90mm / 80*126mm |
| Beams | 80*50, 90*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50mm |

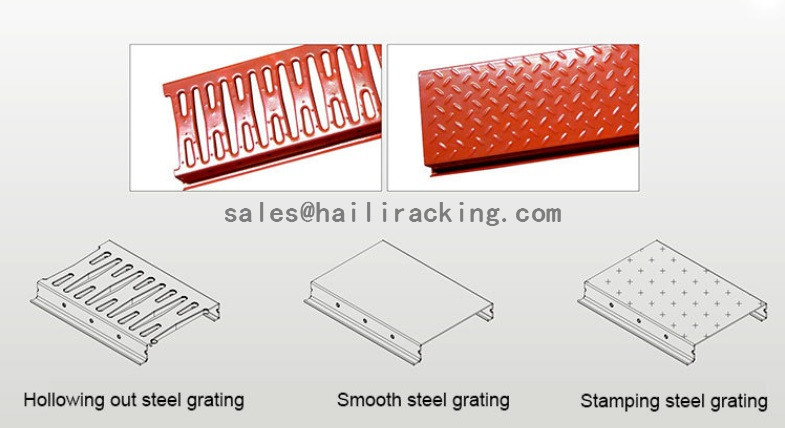

| Flooring Types | Steel flooring or stamped steel flooring, perforated steel flooring, plywood, etc. |
| Free Accessories | Horizontal & diagonal bracings, base plates, safety locking pins, bolts & nuts and all necessary components. |
| Packing | Knockdown packing with air bubble film package, Neutral package or according to customer's requirements |
| Loading Port | Shenzhen, China |
| Lead Time | 20 working days |
| Installation Guide | We can send you installation instructions before shipment. |
| Warranty Time | Warranty: 3 years guarantee from the delivery date |

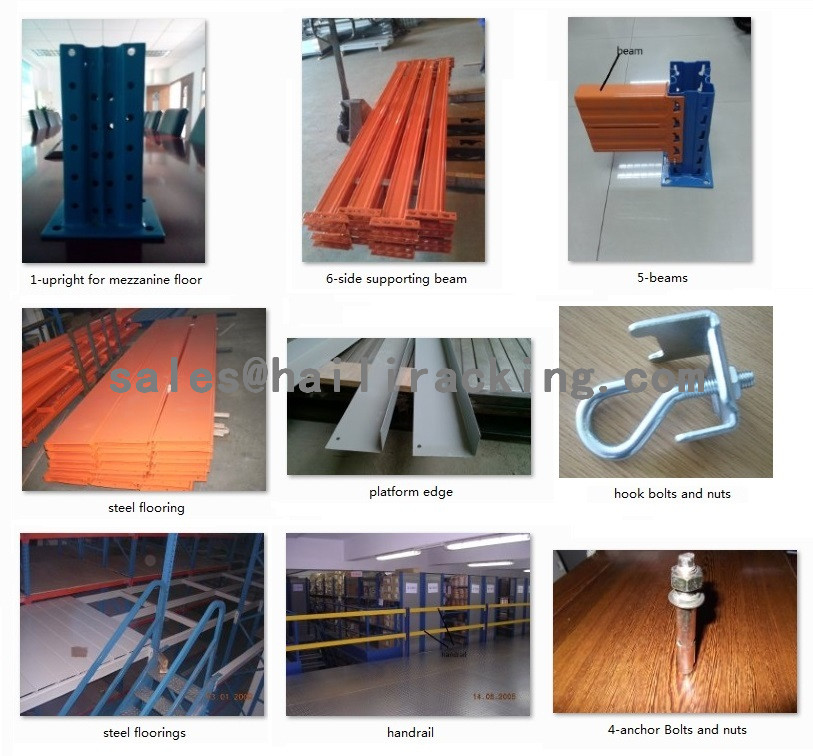

Primary Components
1. Double Welded Uprights
Including baseplates and anchor bolts for maximum structural stability.
2. Cross Beams
Featuring a solid tubular construction with pin connectors for rigid connection.
3. Steel Floorings
Options include steel flooring, stamped steel flooring, perforated steel flooring, plywood, etc.
4. Stairs & Handrails
Equipped with standardized, safe access staircases and surrounding handrails.
Optional Components: The floorings can be steel flooring, stamped steel flooring, perforated steel flooring, or plywood, etc.
Advantages: Why Clients Buy From Us
- ★Over 22 years of experience in the storage racking industry.
- ★Famous Rack Brand of China with certified engineering.
- ★Engineered seismic design for structural protection.
- ★Free samples available (short section around 300mm).
- ★Small quantity orders acceptable.
- ★Great production capacity reaching 5,000 tons per month.
- ★Rapid response: prices replied within 24 hours (often within 1 hour).
- ★24 hours support online with persistent standby.

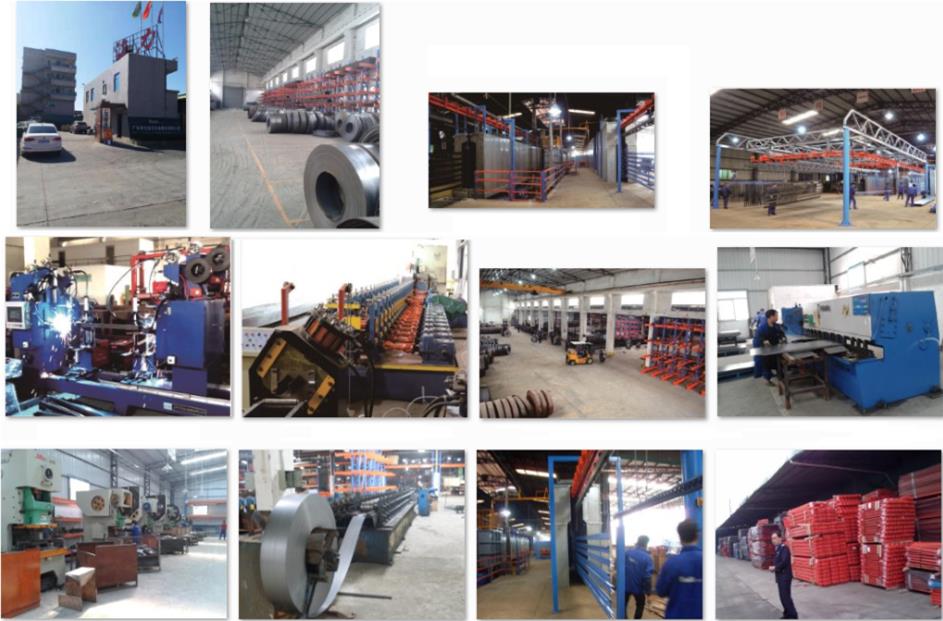

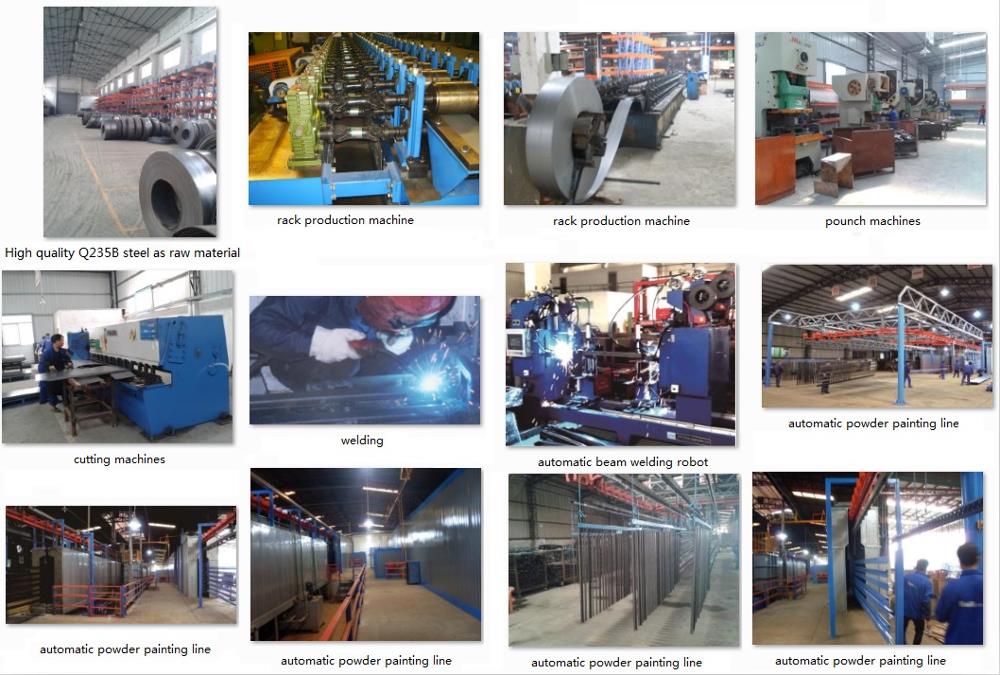

Production Flow
Packaging & Shipping
Standard Export Seaworthy Packing: Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.
Loading Port: Shenzhen Port of China (or Guangzhou Port of China)

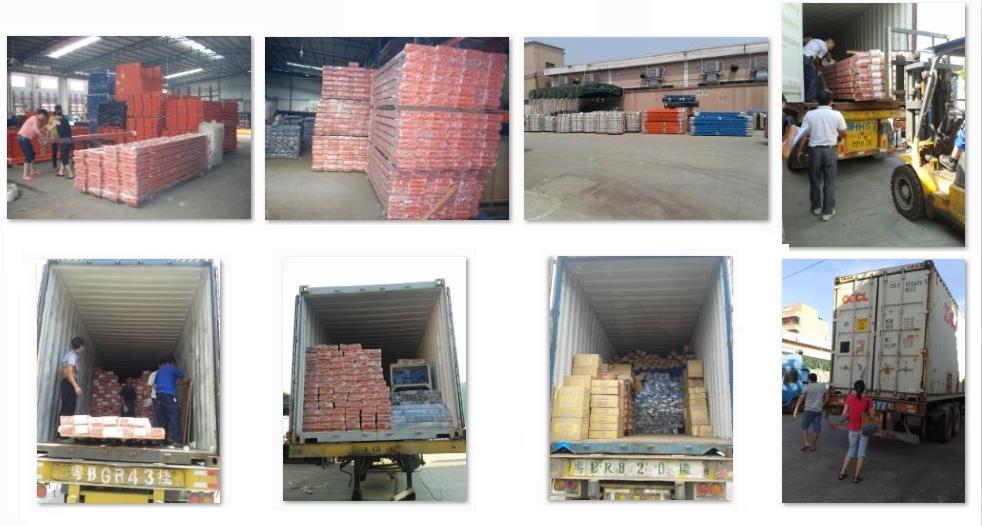

Products package & loading for exporting:
Our Services
- ►1. Free Samples (short section around 300mm) within 3 days;
- ►2. CAD design as your requirement;
- ►3. Feedback of the status of your order timely in different production processes, detailed information with photos;
- ►4. 24 hours service is available.
Company Information & Certifications
Certifications:
Associated Brands:

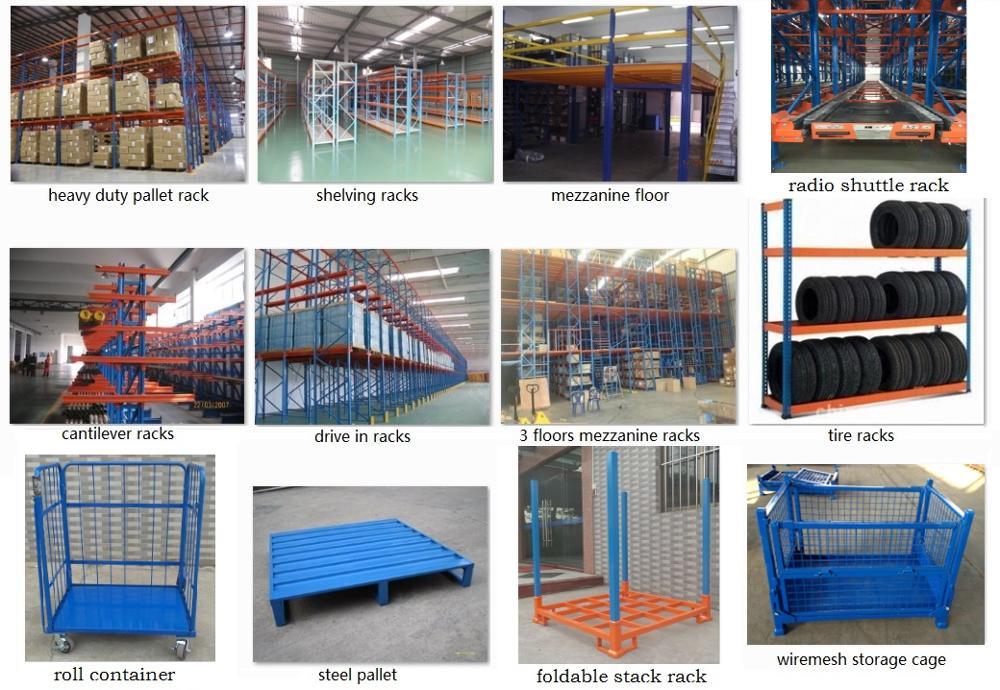

Other Products We Produce

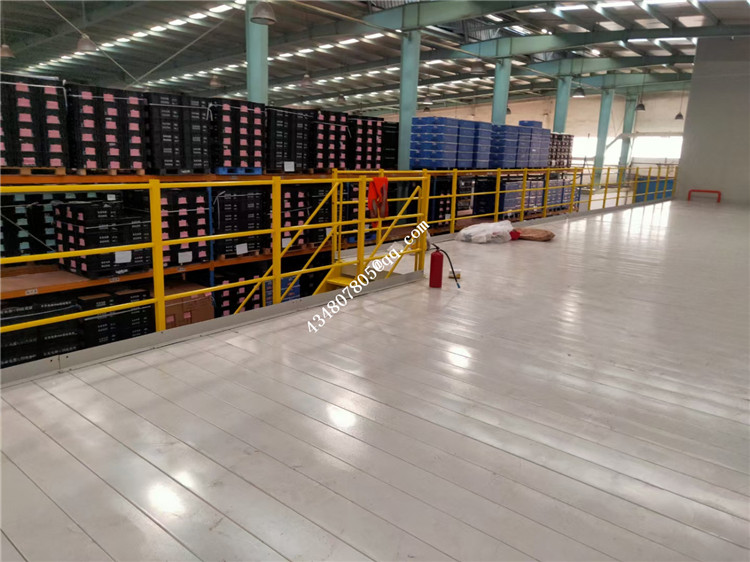

Smooth surface mezzanine floor platform racking system for industrial storage
Data Required for Quotation
| Length (mm) | Depth (mm) | Height (mm) | Loading Capacity (kg/layer) | Number of Layers |
|---|---|---|---|---|
| ? | ? | ? | ? | ? |
| If not very sure of above info, please just let us know your storage needs. | ||||
Contact Information:
Frequently Asked Questions (FAQ)
What is the maximum loading capacity of the mezzanine platform?
The platform can support heavy loads of up to 1,000 kg per square meter, depending on the engineering requirements and components used.
Is on-site cutting or welding required during installation?
No. The platform is designed with a fully pre-manufactured assembly structure. It uses bolts and pin connectors, meaning no on-site cutting or welding is required, allowing easy relocation and modification.
What types of flooring materials are available?
We offer various flooring options to suit your needs, including flat steel flooring, stamped steel flooring, perforated steel panels, and plywood boards.
Can I get a custom AutoCAD drawing and design before manufacturing?
Yes, we provide free safety design AutoCAD layout drawings according to your warehouse height, space limitations, and target loading requirements.
What is the standard lead time and warranty period?
The lead time is typically 20 working days. We provide a 3-year guarantee from the delivery date, along with complete installation instructions before dispatch.
