Product Description
►
Product Description
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing, lumber etc. This is achieved by eliminating structural blocks in front of the racking and providing an unobstructed opening. Jracking cantilever racking is used worldwide. We can custom-engineer dimensions according to goods size and warehouse parameters, offering various column heights, arm lengths, and base configurations (single or double sided) to ensure an ideal warehousing fit.
| Name | Cantilever Racking | Material | Steel Q235B or Q345B |
| Scale | Heavy Duty | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg / arm |
| Width | Customized | Height | Customized |
| Color and Finish | RAL Powder Coating or Hot-Dip Galvanized (HDG) | ||
| Application Environment | Warehouse, Outdoors, Cold Room (Max -40°C) | ||
| Packing | Export Package | ||
| Certification | RMI, AS4084-2012 | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
■

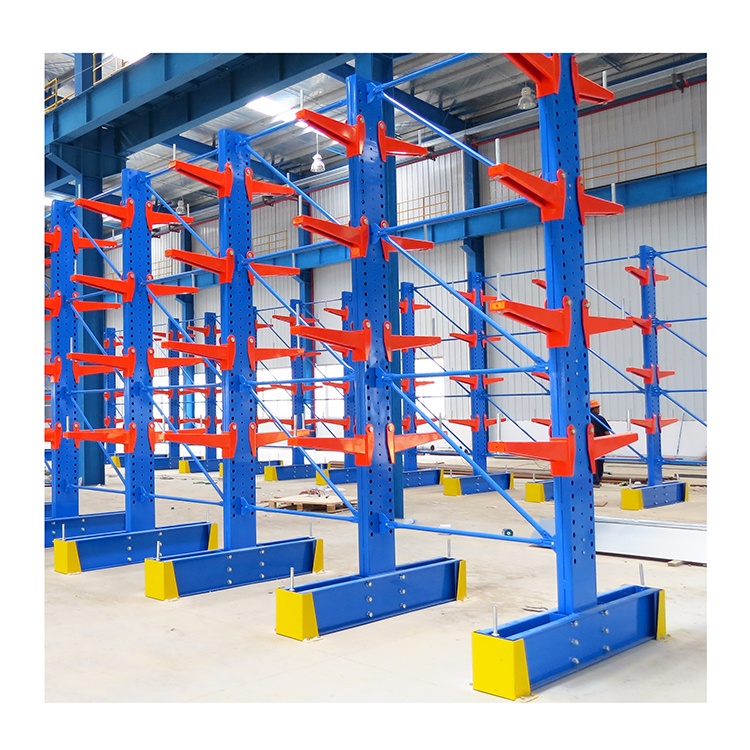

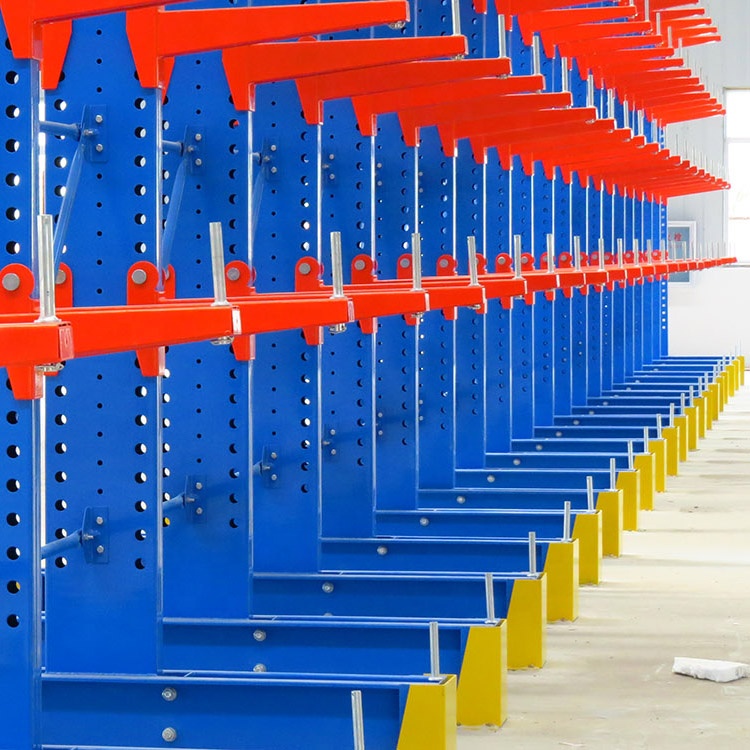

Product Display
★
Brief Introduction

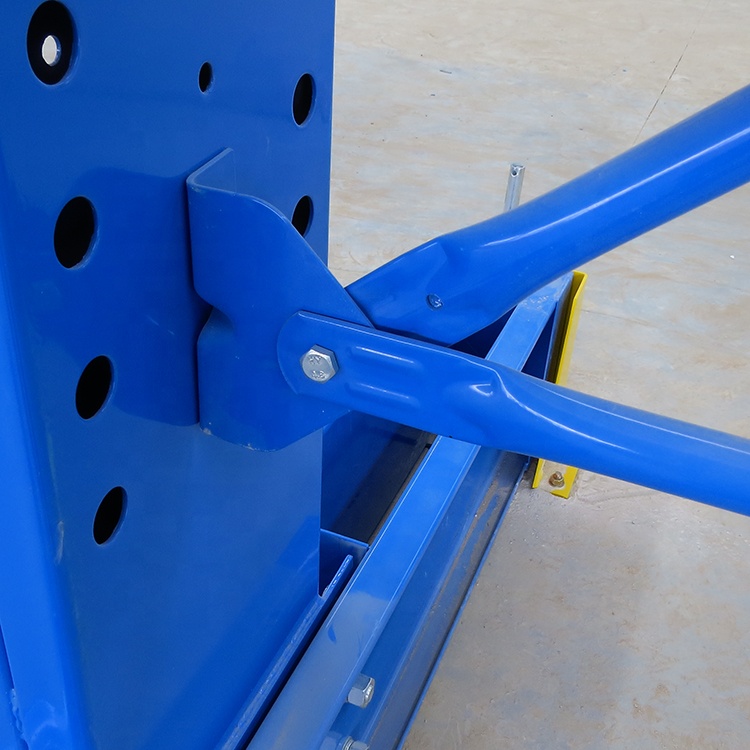

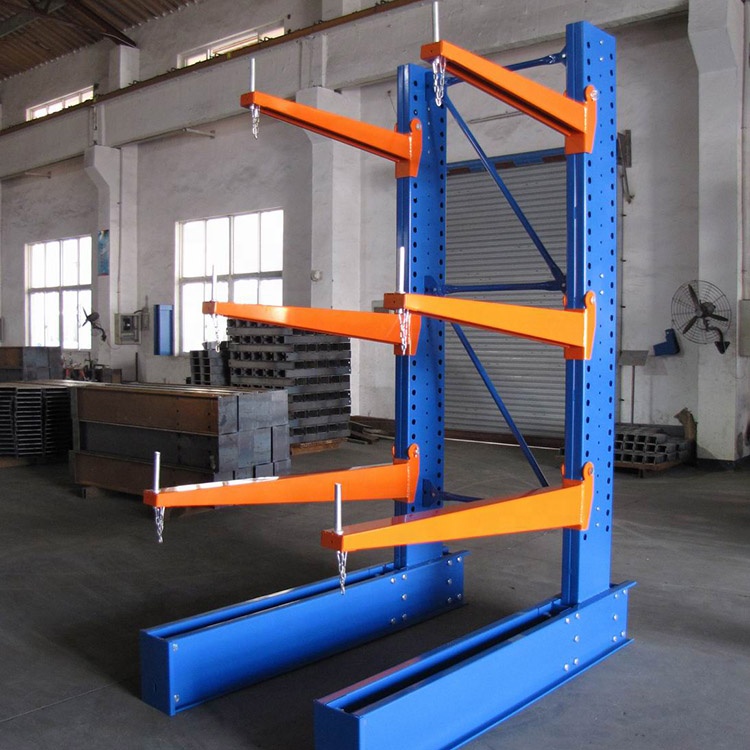

Jracking Cantilever Rack is designed with a C/C roll-formed upright column made of hot-rolled coil. The arm and column are securely connected via bolted connections with a lifting lug. The base is an integrated welded unit bolted directly to the column. Adjustable diagonal flats and connecting cross bars are implemented to optimize complete system stability. Both single-side and double-side bases are available to fulfill distinct operational storage configurations.
✔
Key Advantages
- 1 Column heights exceeding 6m are available, with upright profiles reaching up to 10.5m.
- 2 Heavy-duty capacity: single-arm loading holds up to 1500kg.
- 3 Proven global track record, consistently supplying the Australian market for over 10 years.
- 4 Ideal engineering for organized storage of long, bulky, and irregular materials.
- 5 Integrated 2° arm uptilt design prevents goods from sagging or shifting during loading.
- 6 Extended customization options allow cantilever arm lengths to extend up to 3m.
- 7 Specialized joint connection between column and arm buffers against forklift impacts.
◆
Product Details
▦
Product Categories
●
Company Profile
✪
Certifications
⚙
Production Process
❓
Frequently Asked Questions
Q: What are your trading and payment terms?
Payment terms: T/T 30% deposit upon order confirmation, 70% balance paid against the bill of lading. L/C and O/A (40-60 days) are also available. The standard production lead time is typically 20-25 days after the deposit is received. All cargo ships from Shanghai or Nanjing port, China.
Q: How is delivery managed for international shipments?
We handle full sea freight coordination, providing real-time rate updates once your destination seaport is confirmed. If you prefer to designate your own freight forwarder, simply supply their contact details and our logistics team will coordinate delivery with them.
Q: What engineering and support services do you provide?
All inquiries are handled within 12 hours by experienced technical personnel. We support complete OEM & ODM customization, with professional design engineers producing custom warehouse layouts and loading capacity evaluations tailored directly to your facility needs.
Q: What is the step-by-step product purchasing process?
Design drawing approval → Drawing confirmation → Formal Quotation → Proforma Invoice (PI) → PI Confirmation → 30% deposit arrangement → Manufacturing → Rigorous QC inspection → Balance payment → Final Shipping.
Q: Do you enforce a minimum order quantity (MOQ)?
There is no strict MOQ limit. However, optimal container consolidation optimizes cost efficiency. We recommend an order quantity suitable for at least one 20ft container (approx. 15 tons) to maximize freight and unit economics.
Q: What warranty and tooling policies are offered?
We provide a comprehensive two-year warranty with direct replacement for broken parts. For custom designs requiring new mold profiles, upfront tooling costs are collected and subsequently refunded partially or completely based on tiered order volume targets.
