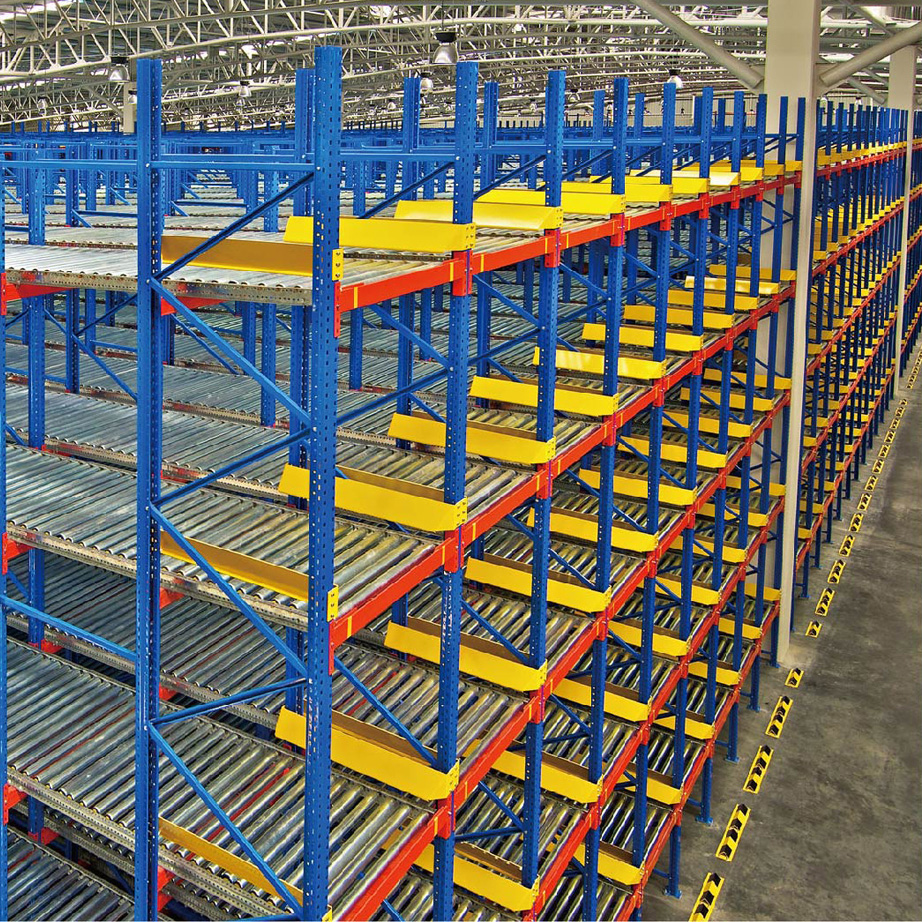

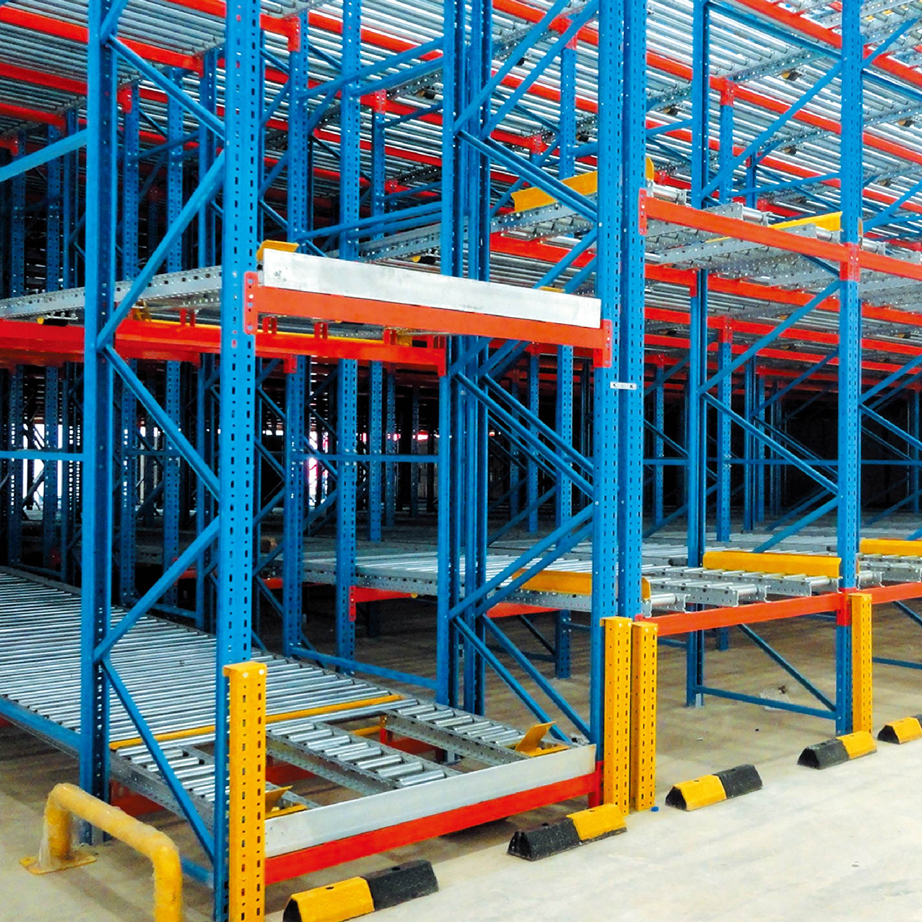

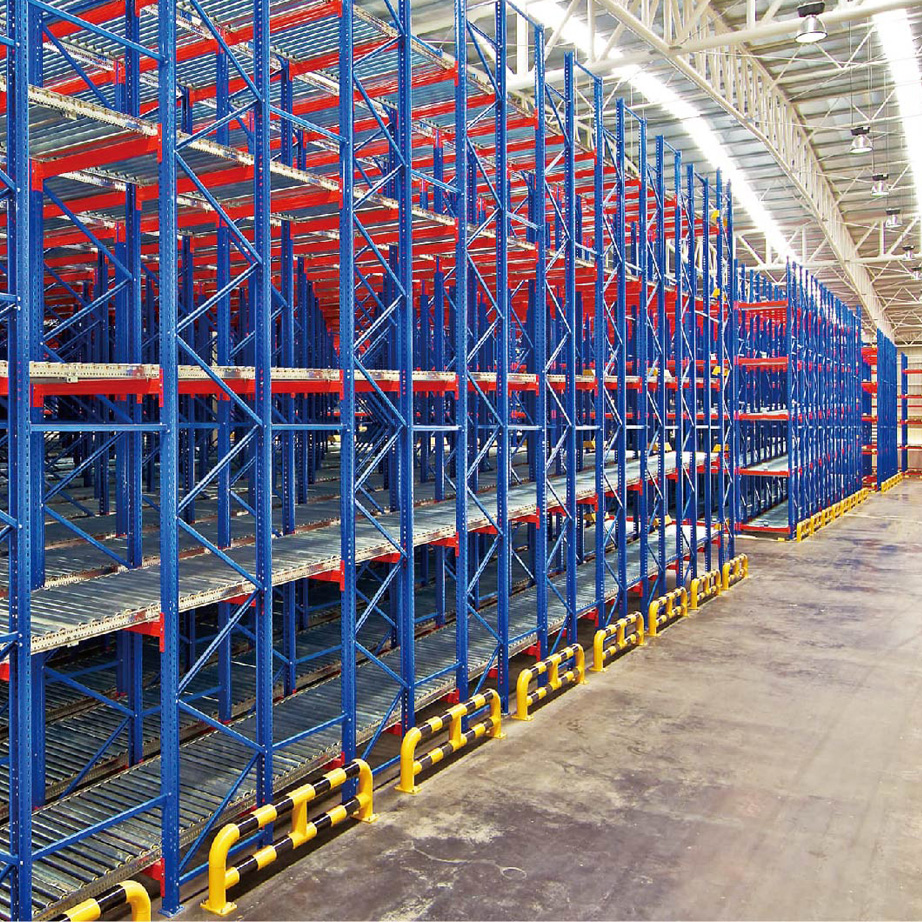

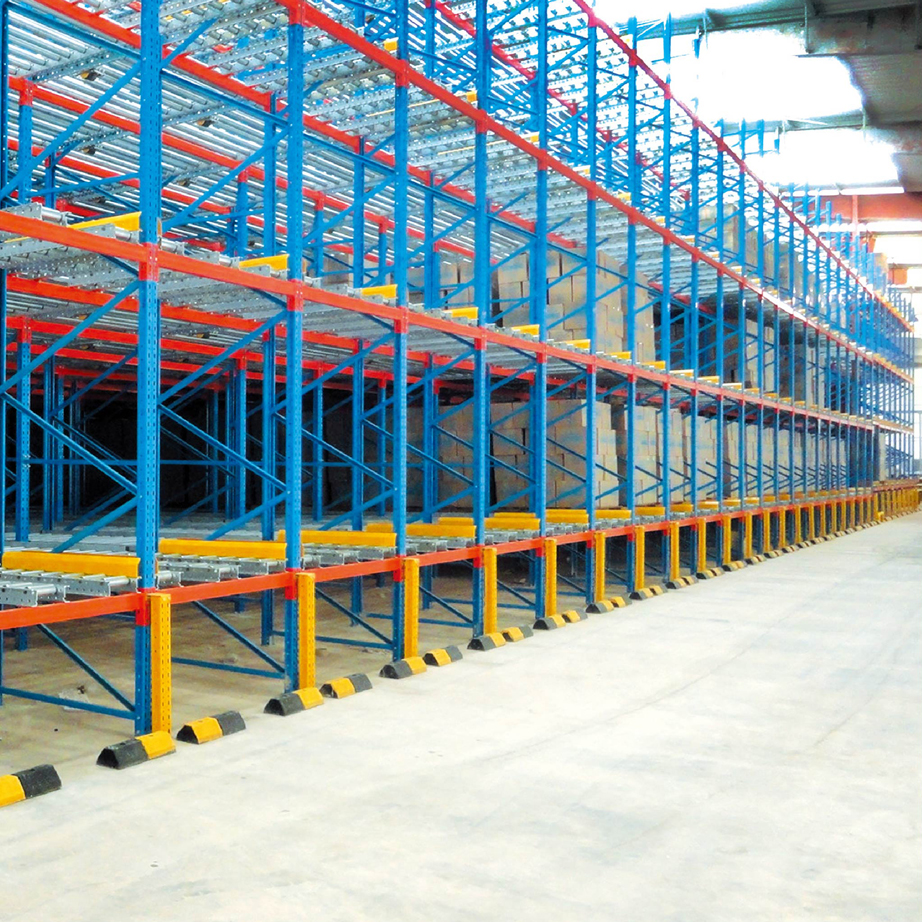

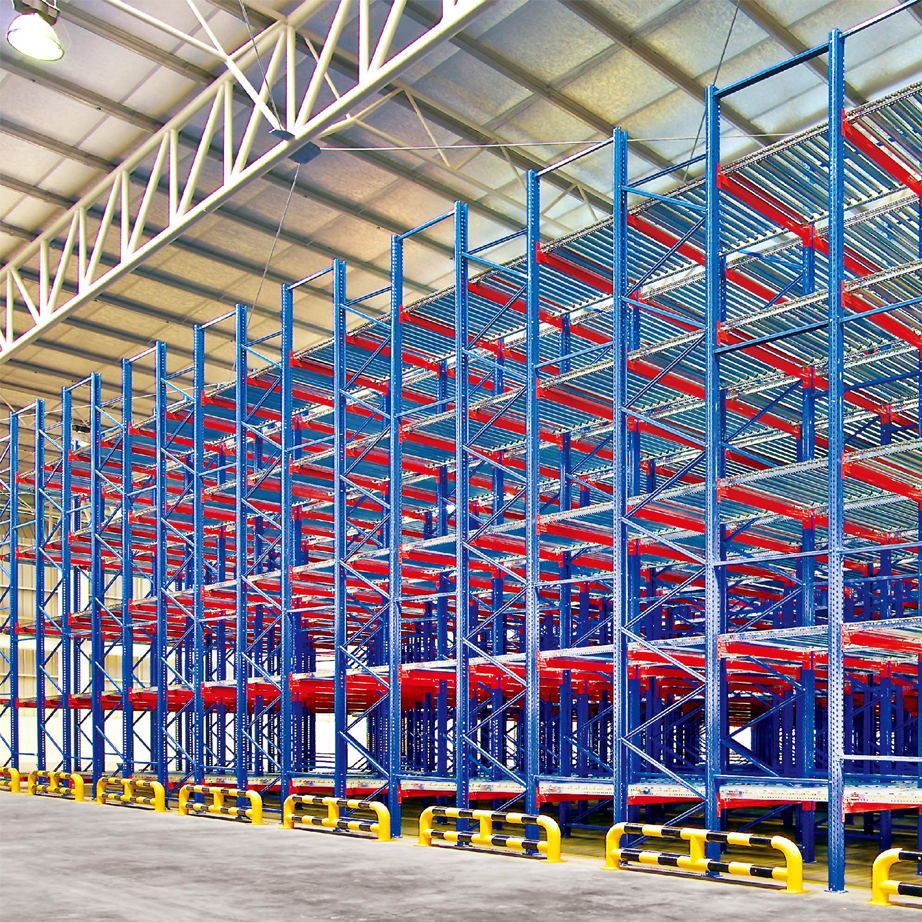

Industrial Steel Gravity Racking First in First Out Adjustable Roller Track Warehouse Storage Shelving Powder Coated High Duty
Product Description
Products Description
Gravity Racking

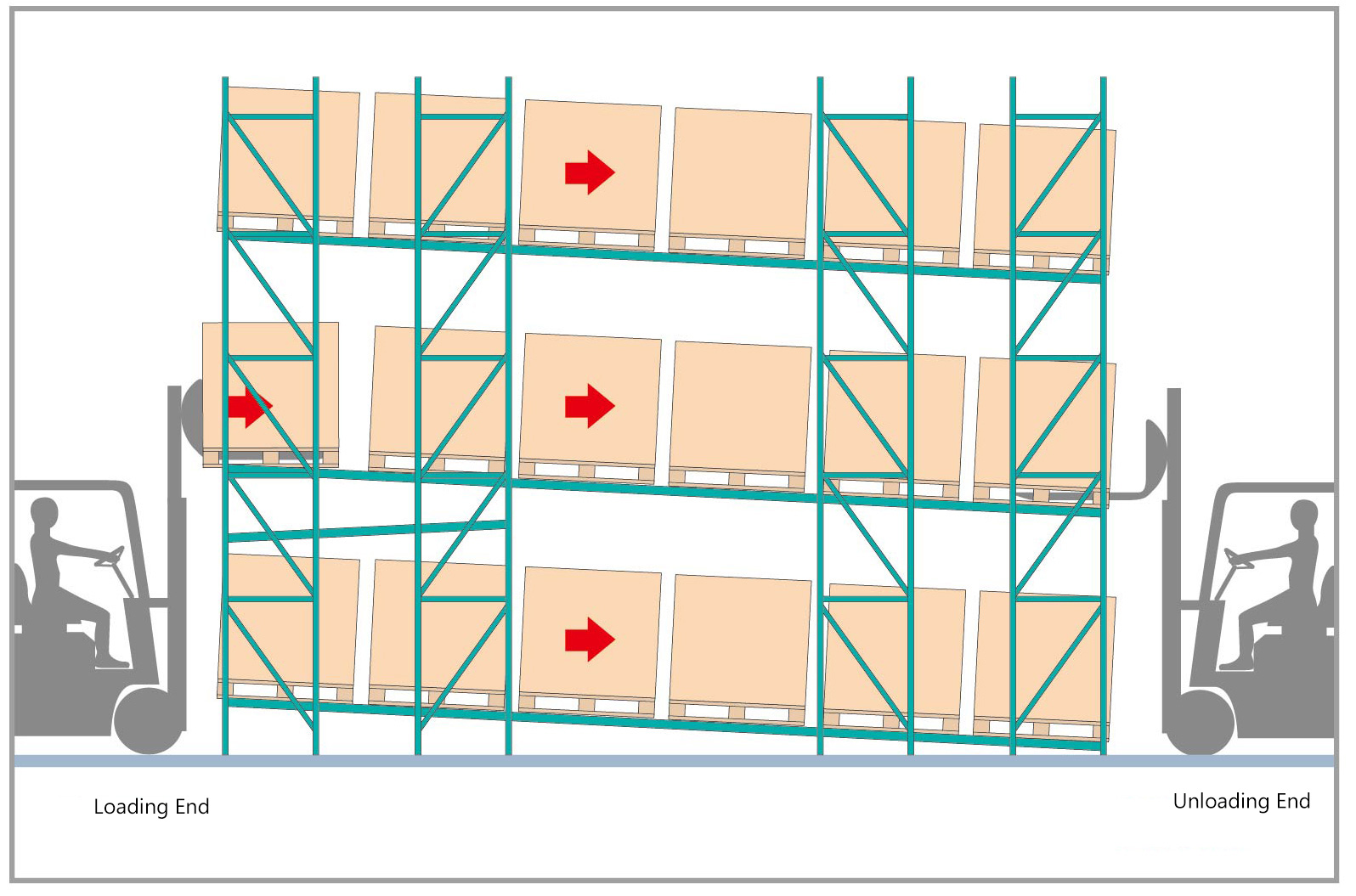

The roller lanes are fixed at an incline on the racking beams. Pallets are loaded at the higher end and slide down the rollers by gravity. To control the sliding speed and avoid impact, damping systems are installed at regular intervals along the roller lanes. A separation mechanism at the lower end separates adjacent pallets, allowing the front pallet to be retrieved smoothly.

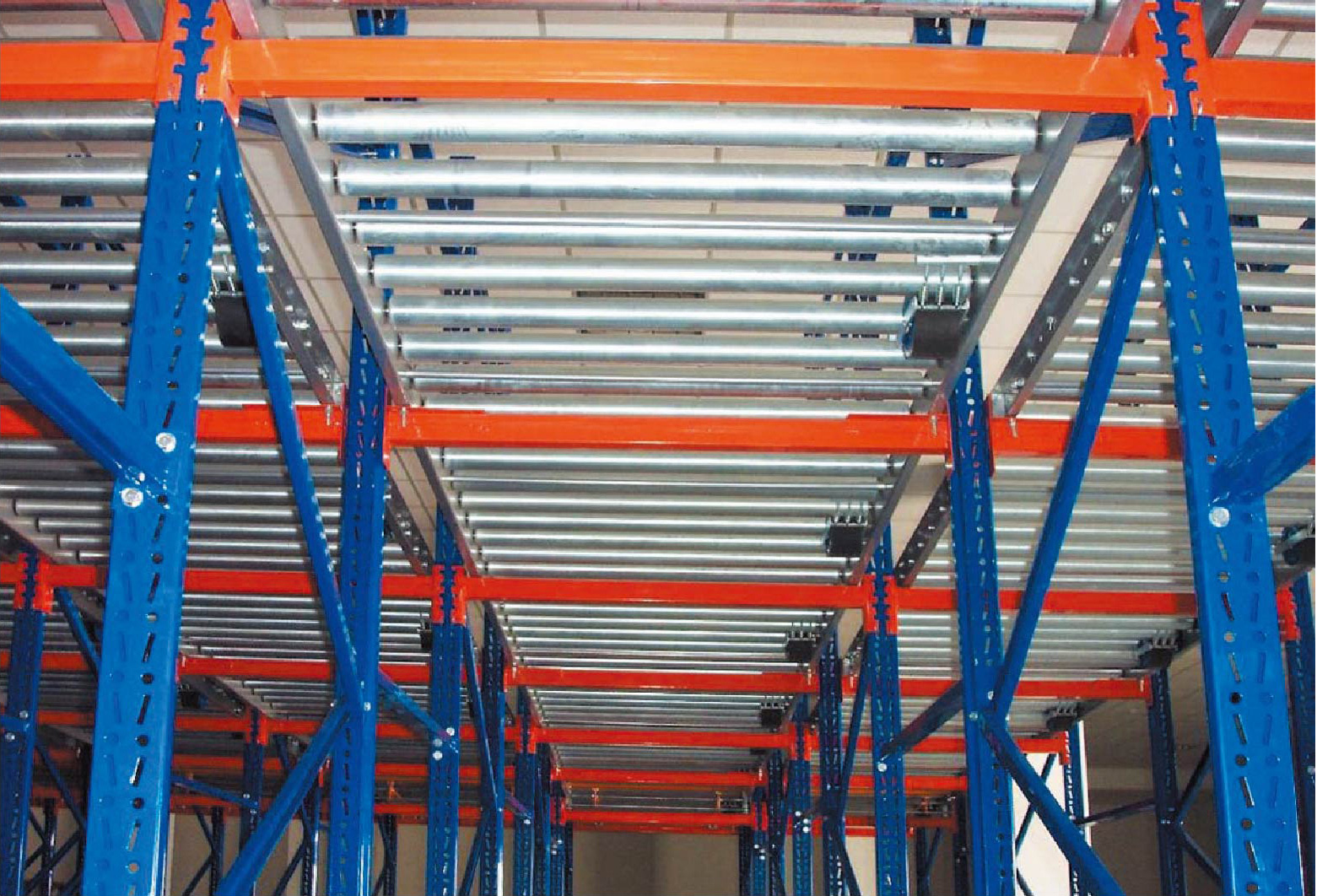

Gravity racking offers higher space utilization than push back racking and drive-in racking, and achieves true FIFO (First-In, First-Out) operation. Its safety and operational efficiency are comparable to selective pallet racking.
Specification
| Item | Specification |
|---|---|
| Product Name | Gravity Racking |
| Material | High Quality Q235 Steel |
| Load Capacity | 500kg-4000kg/Level (Customizable) |
| Height | 2000mm-12000mm (Customizable) |
| Span (Beam Length) | 1500mm-3600mm (Customizable) |
| Depth | 800mm-1200mm (Customizable) |
| Layer | 2-8 Layers (Customizable) |
| Surface Treatment | Powder Coated (Blue/Orange/Other Colors Available) |
| Applicable Industries | Manufacturing, Logistics, Electronics, Automotive, etc. |
| MOQ | 10 sets (Sample Order 1 Set Available) |
| Delivery Time | 7-15 Days (Customized orders Negotiable) |
| Accessories | Contact us for more detail. |

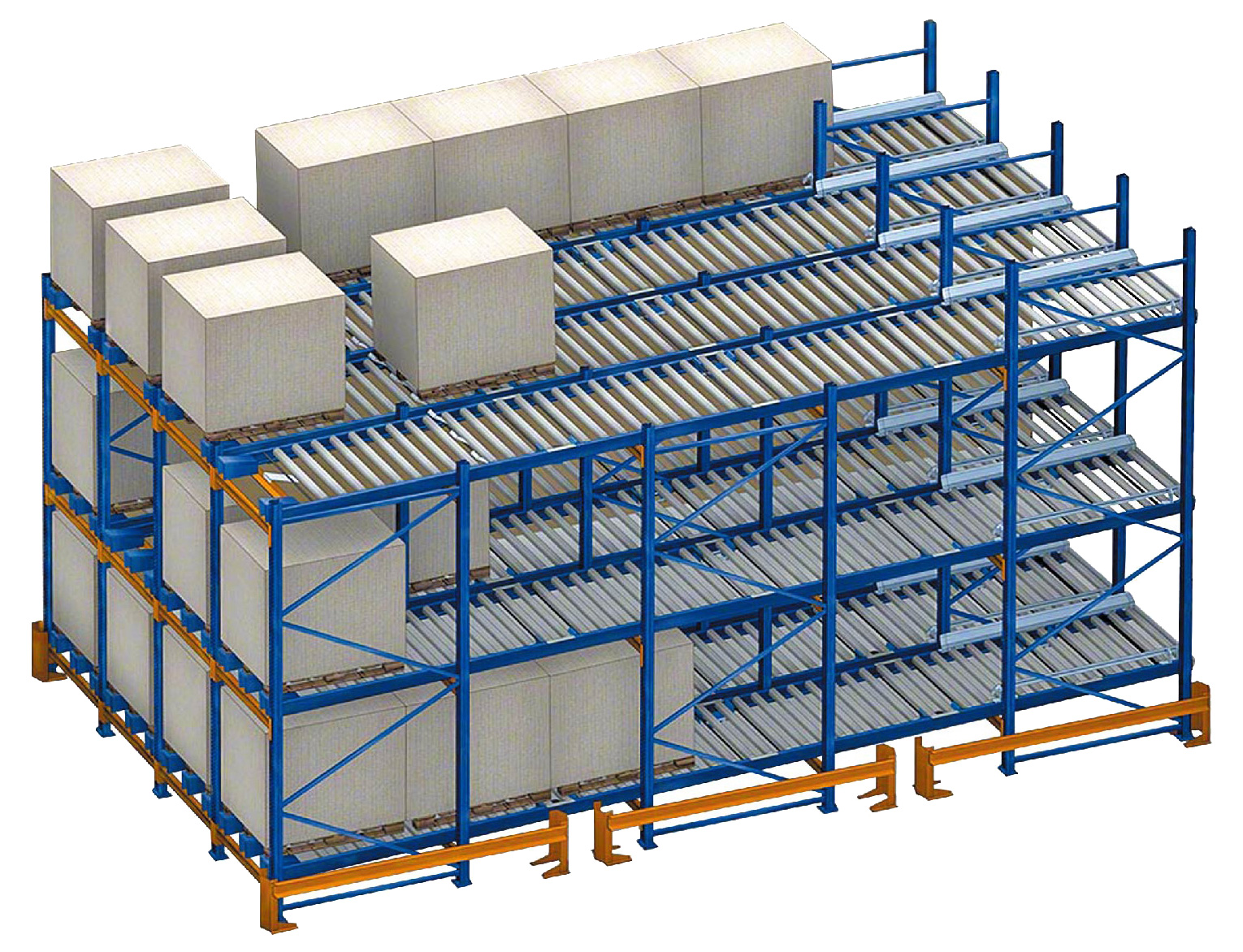

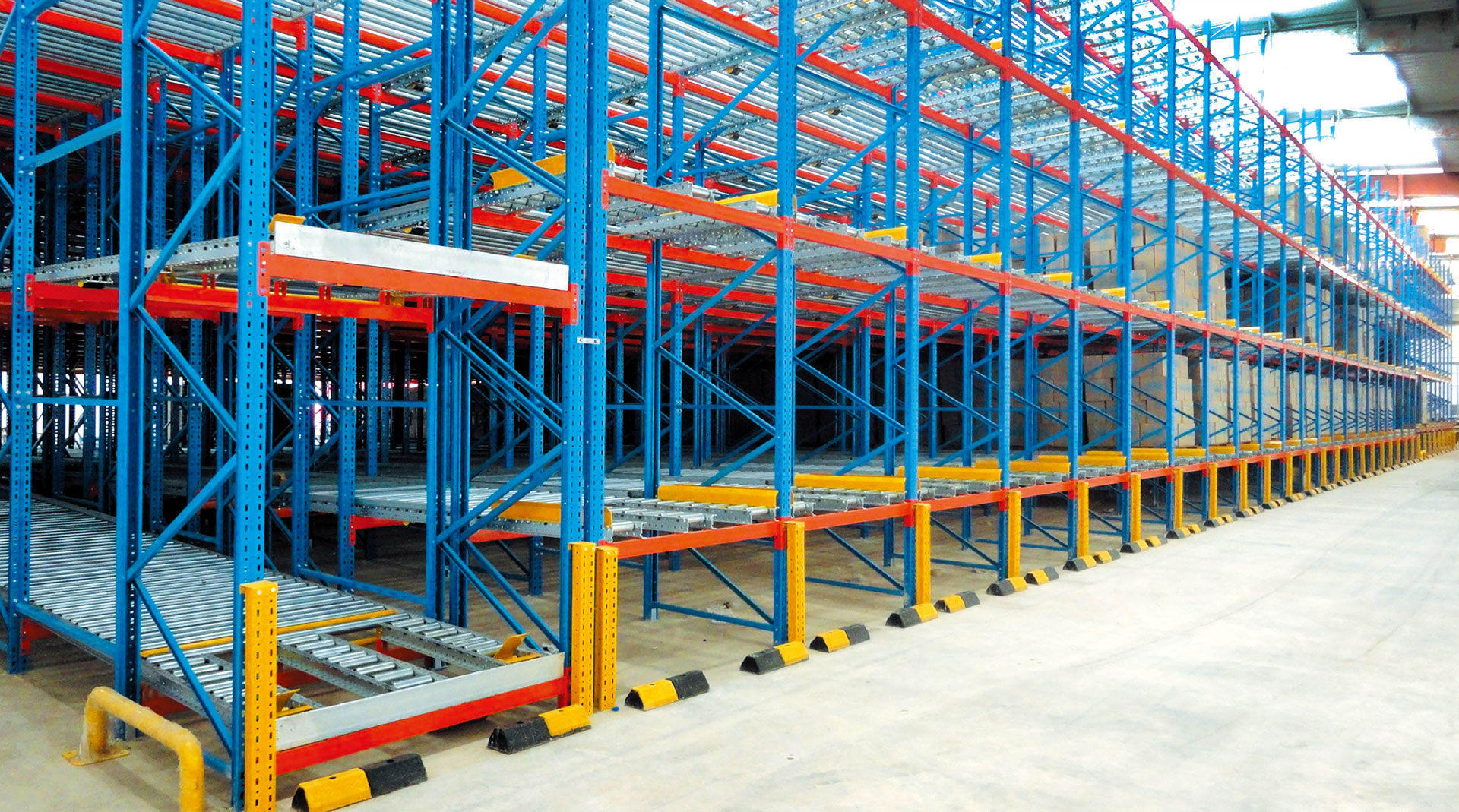

Efficient Warehouse Management & Maximum Space Utilization
Our Factory & Services
23,000 m² modern production base with over 20,000 tons annual output, ensuring fast on-time delivery for both small sample orders and bulk projects.
Rigorous full-process quality control, from raw material inspection, precision production to final testing, with certification to guarantee rack safety and long-term durability.
Dedicated sales & engineering team online around the clock, providing tailored rack solutions for manufacturing, logistics, automotive and other industries.
Frequently Asked Questions
Q1
What can we offer you?
Competitive pricing, more professional solutions, and superior product quality.
Q2
Do you provide installation guide or on-site installation service?
We offer detailed, step-by-step installation manuals and video guides for all our rack systems, which are easy to follow for your local installation team.
Q3
What is your delivery time?
For customized orders, the lead time is generally 7–15 working days, depending on the final quantity and specifications.
Q4
What’s your MOQ? Can I place a small trial order first?
We don’t have a strict MOQ. Small trial orders are totally welcome. But if the quantity is really low (like less than 10 sets), international shipping alone will be quite expensive, so we usually suggest combining it with other goods in a container to save cost.
Q5
What is the term of payment?
We accept T/T payment terms: 35% deposit to confirm the order, and the balance to be paid before shipment. For long-term cooperative customers, we can negotiate more flexible payment terms based on mutual trust.
