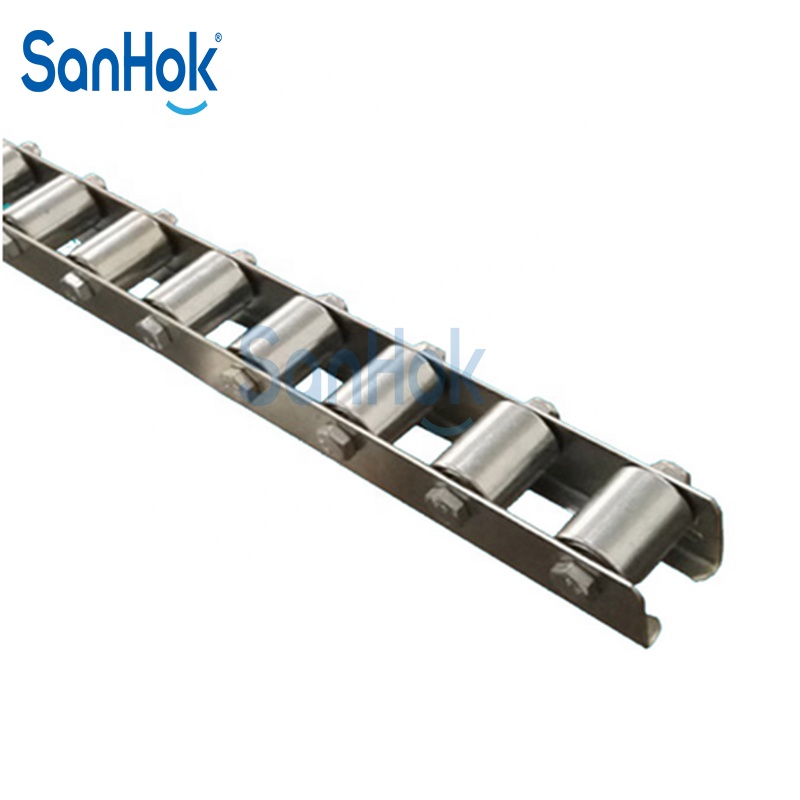

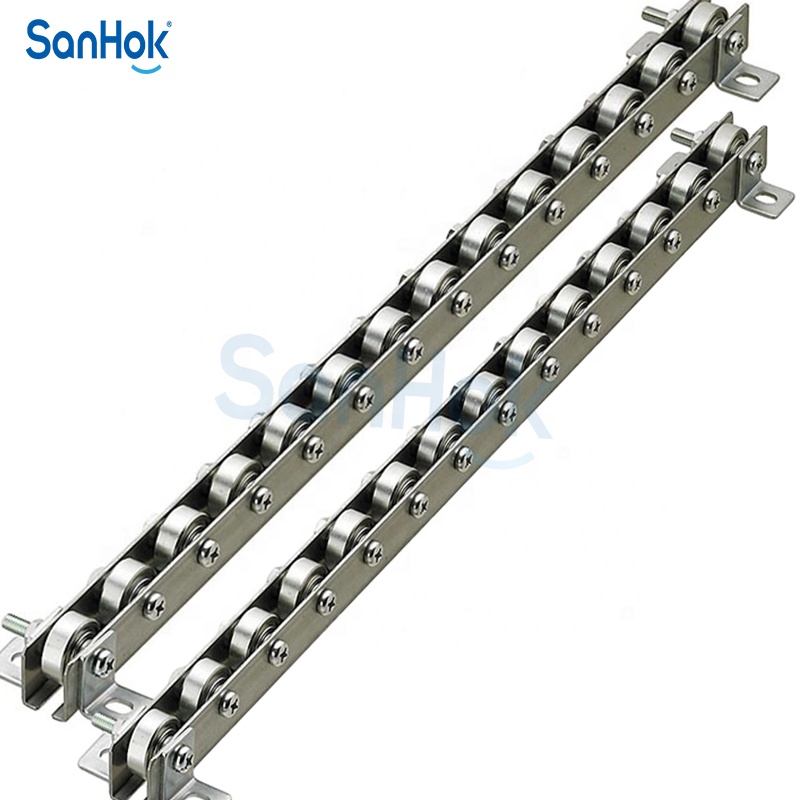

Industrial Customizable Stainless Steel Flow Rail Roller Track for Logistic/Sorting and Pallet Rack Shelving FIFO System
Product Description
Product Description

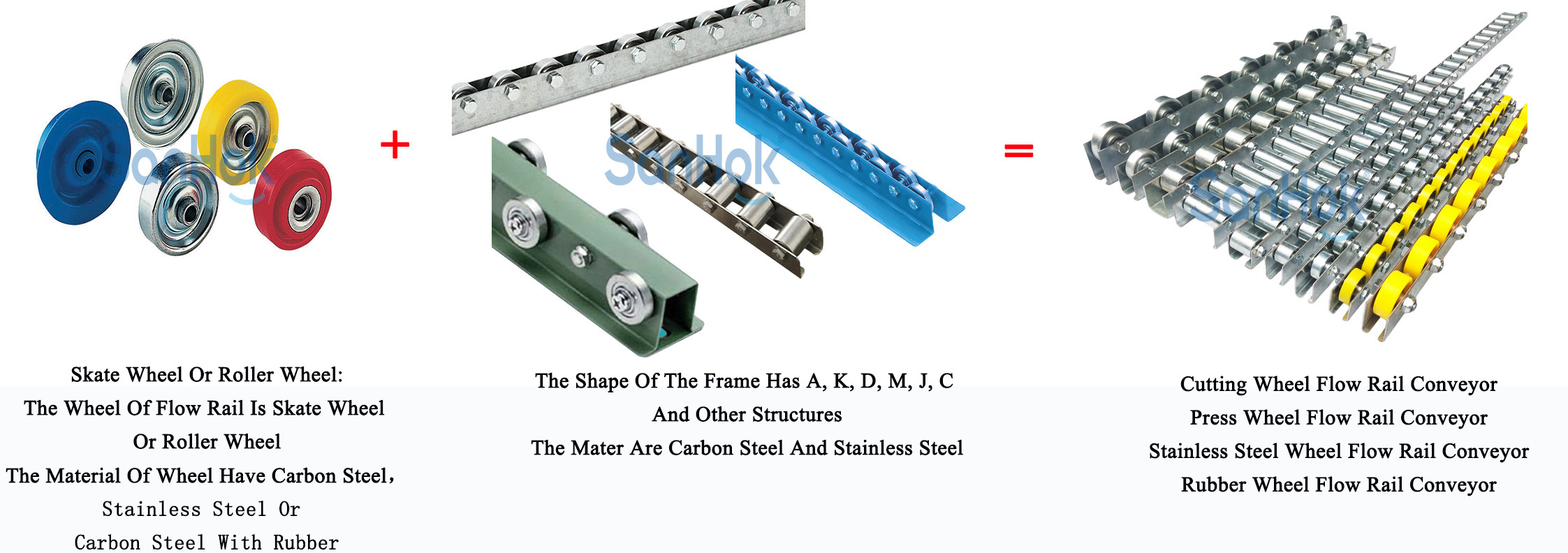

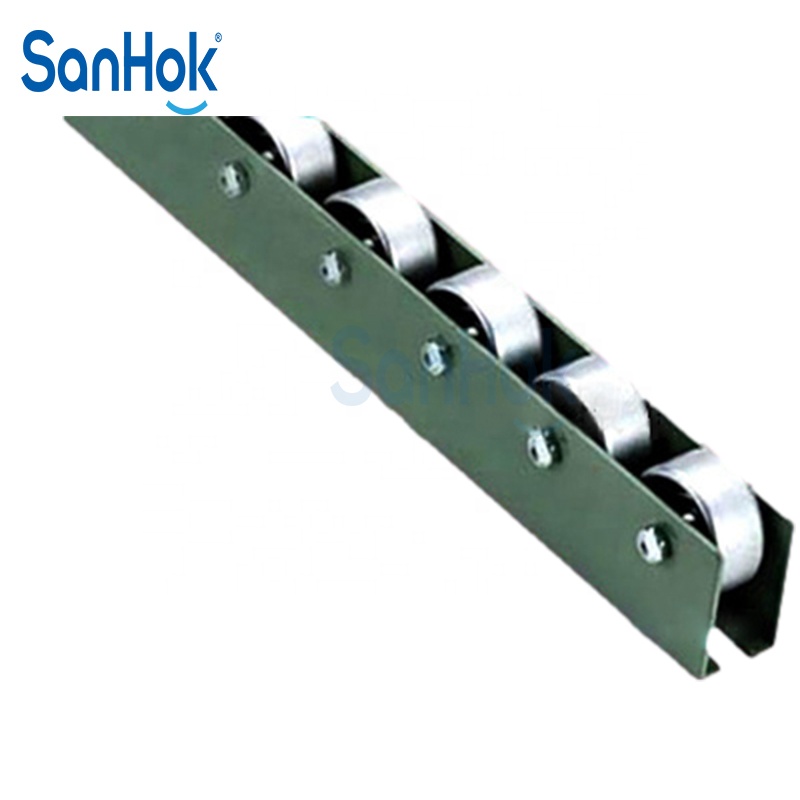

Flow rail is composed of skating wheels and a frame. The wheels of flow rail wheel are like skating wheels, so it is also called skating wheel flow rail.

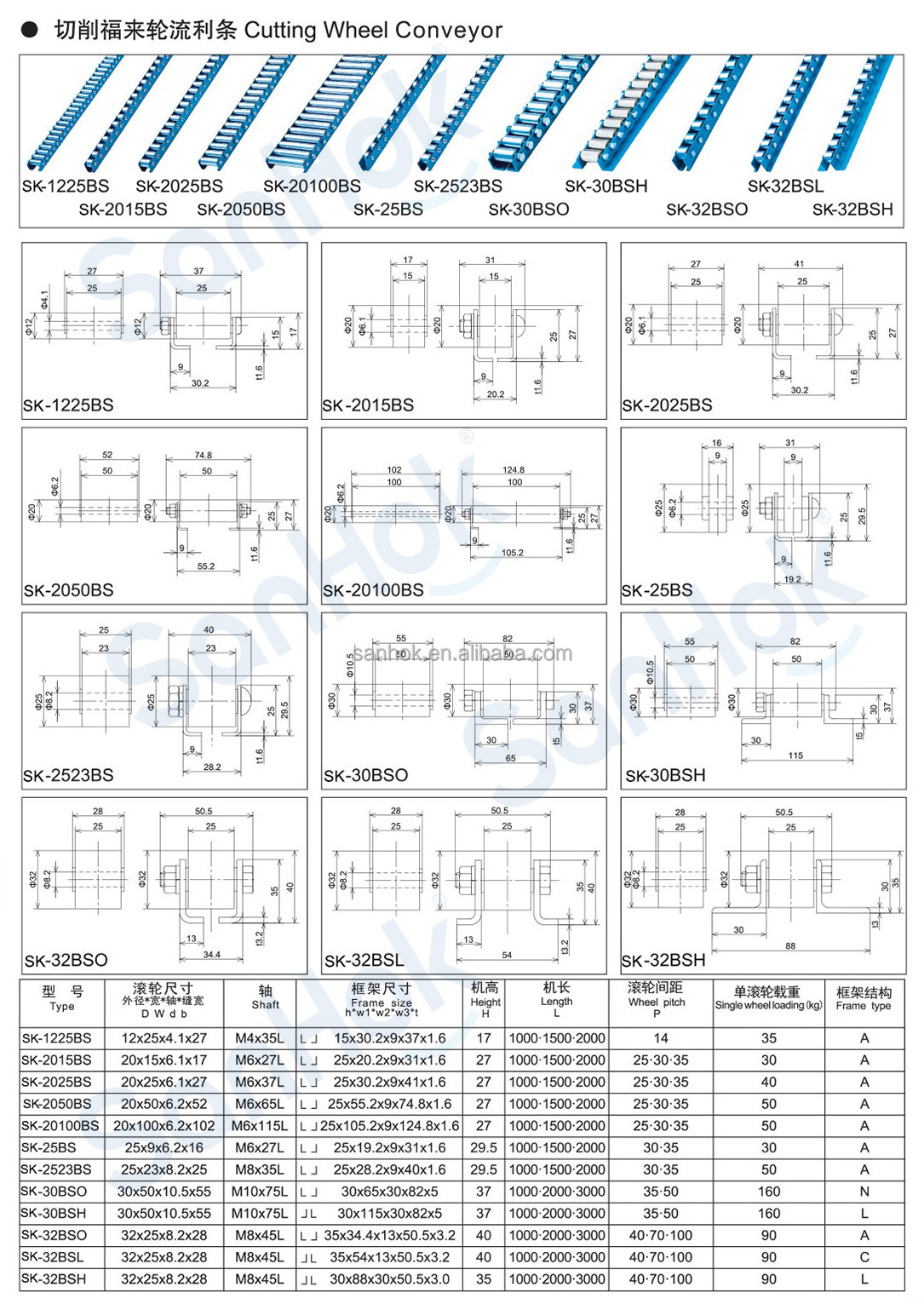

Cutting Wheel Conveyor Roller Track
Press Wheel Conveyor Roller Rail
Rubber Coated Wheel Conveyor Roller Guide Rail
SUS Wheel Conveyor Roller Slideway

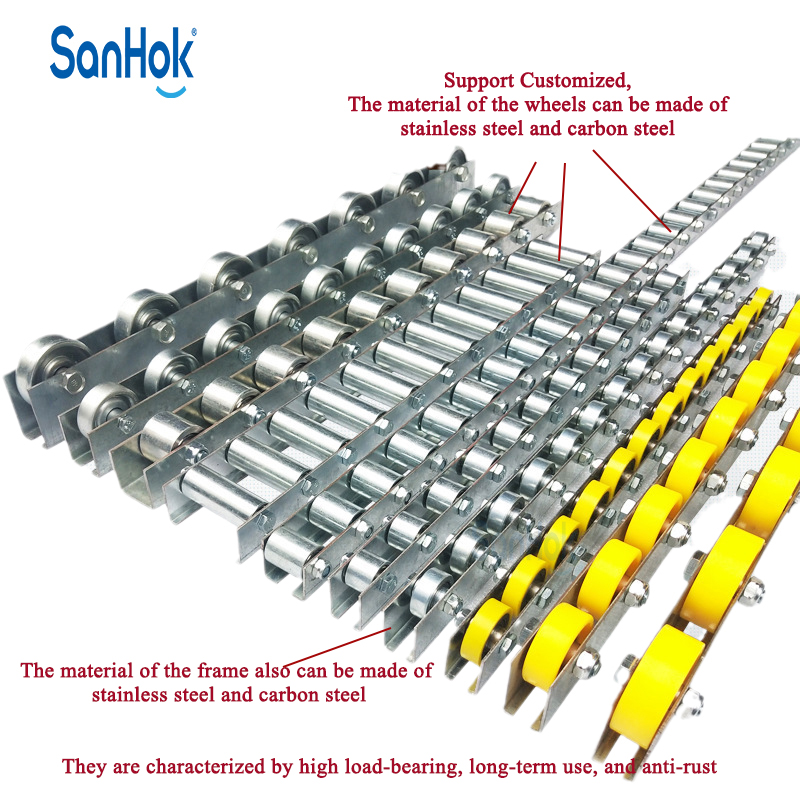

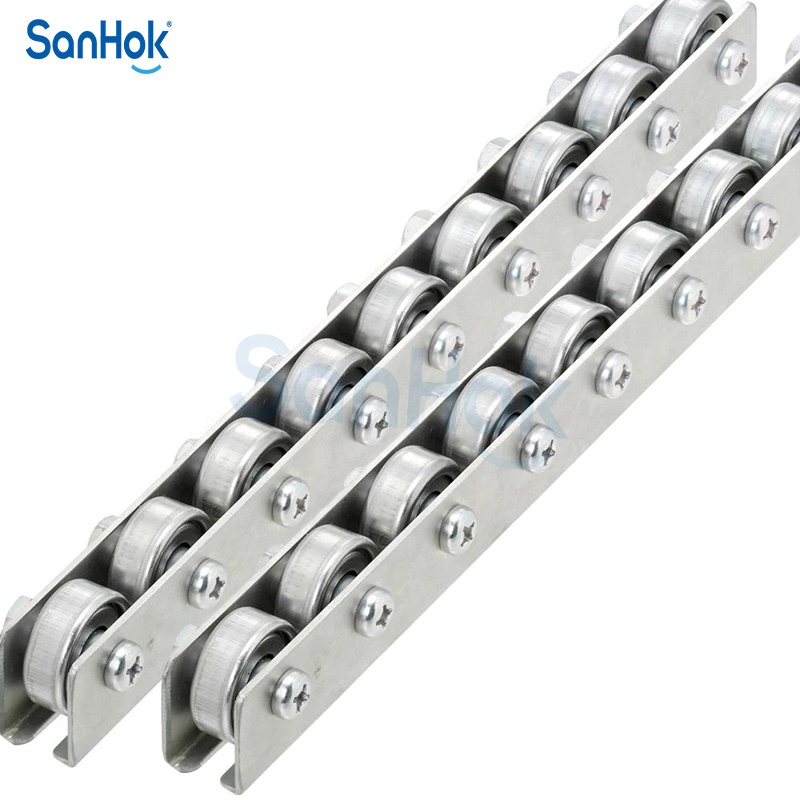

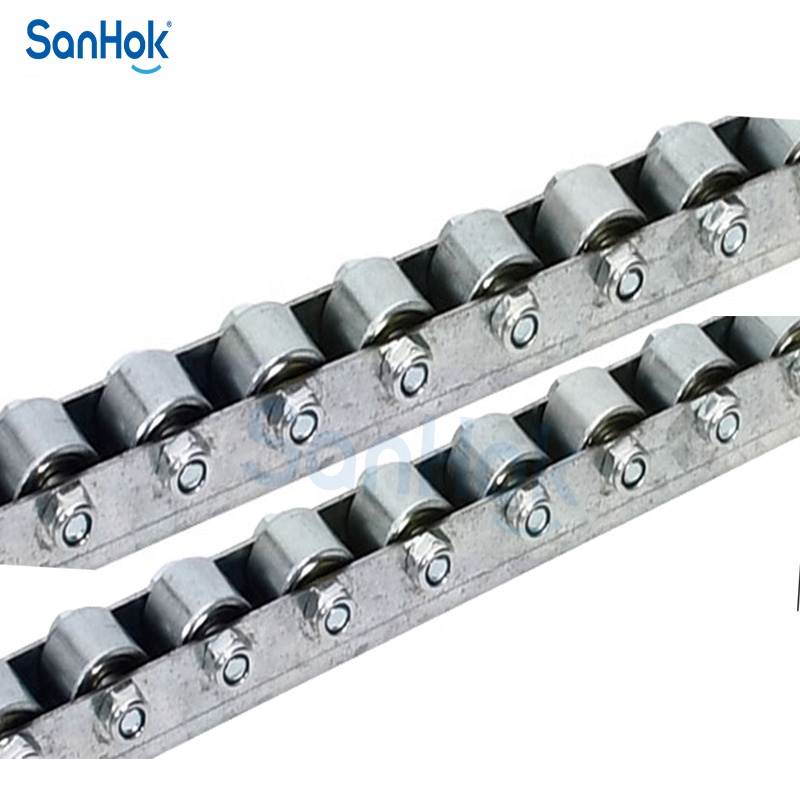

Flow Rail is composed of skateboard wheels and stainless steel or carbon steel frame. Because the skate wheel is made of stainless steel or carbon steel, its load-bearing capacity will be very high. So this is heavy duty roller track.
It is very popular in storage racks, warehouses, pallet conveyor lines, and assembly lines.

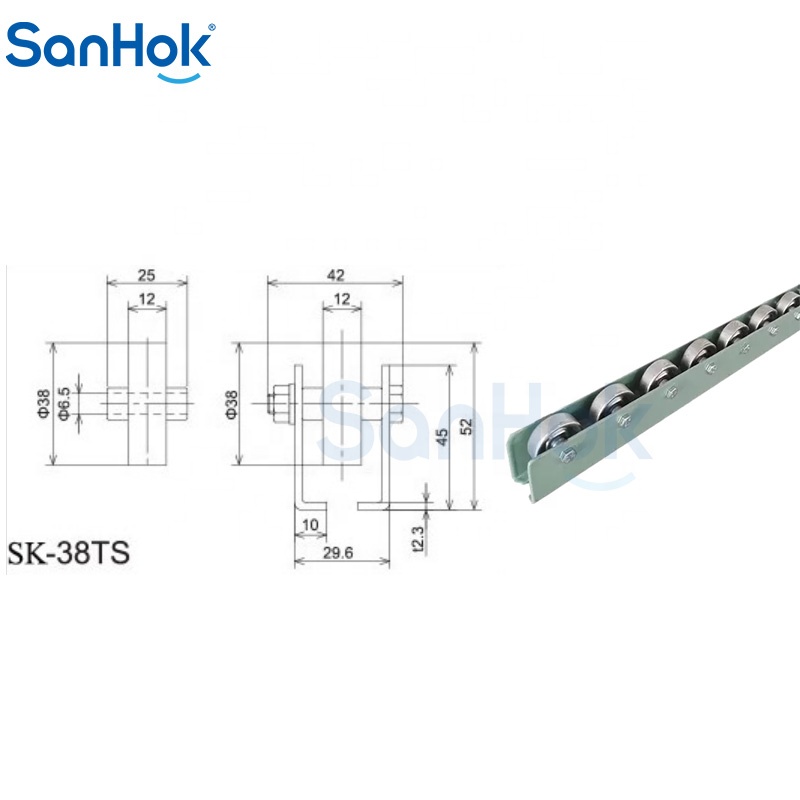

Specification
| Type | Diameter * Width * Shaft d * b | Shaft | The Size Of Frame (h*w1*w2*w3*t) | Height H | Length L | Wheel Pitch P | Single wheel Loading (kg) | Frame Type |
|---|---|---|---|---|---|---|---|---|
| SK-38TS | 38*12*6.5*25 | M6*38L | 45*29.6*10*42*2.3 | 52 | 1000 / 2000 / 3000 | 50 / 75 / 100 / 150 | 20 | A |

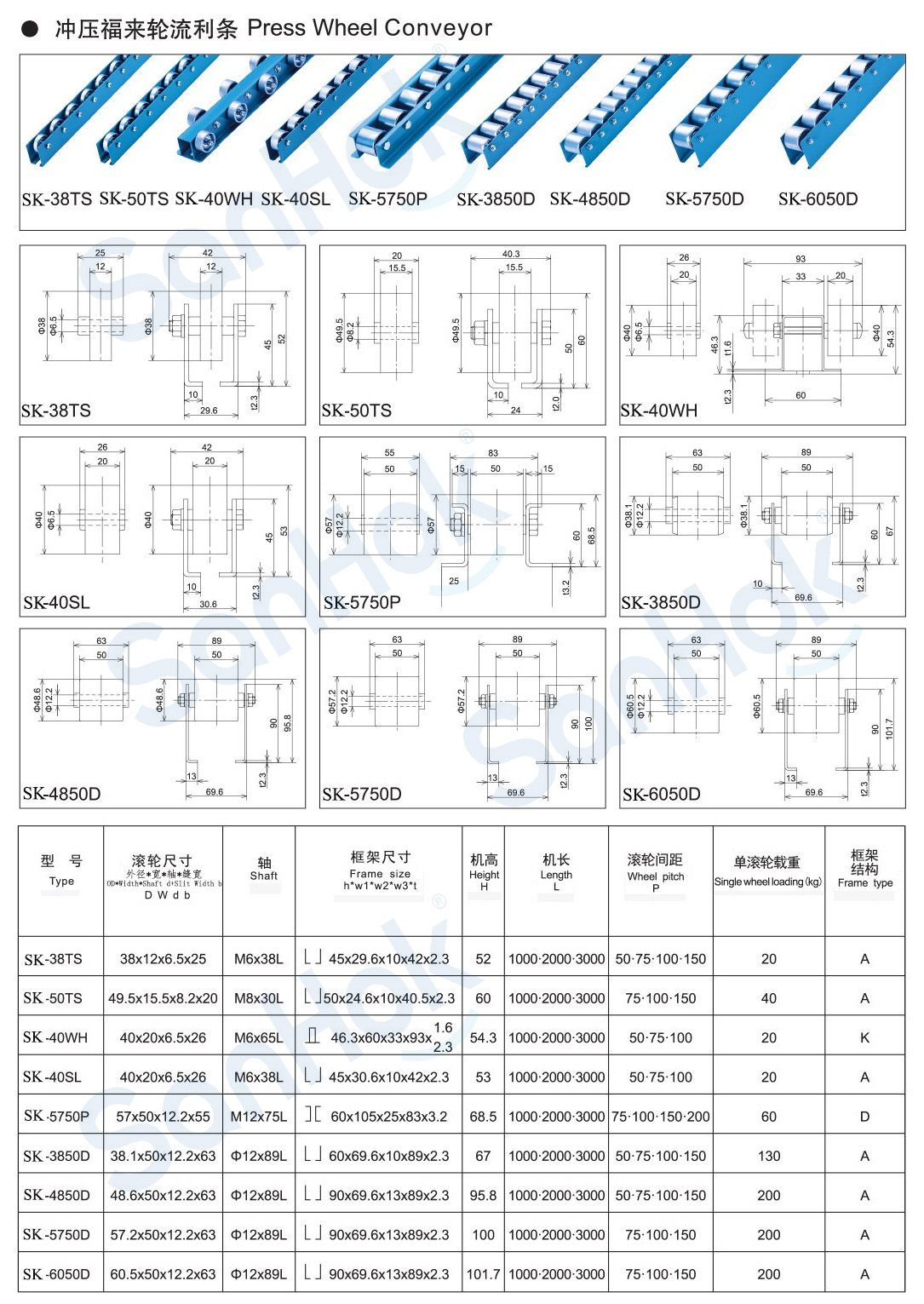

Other Types
Application

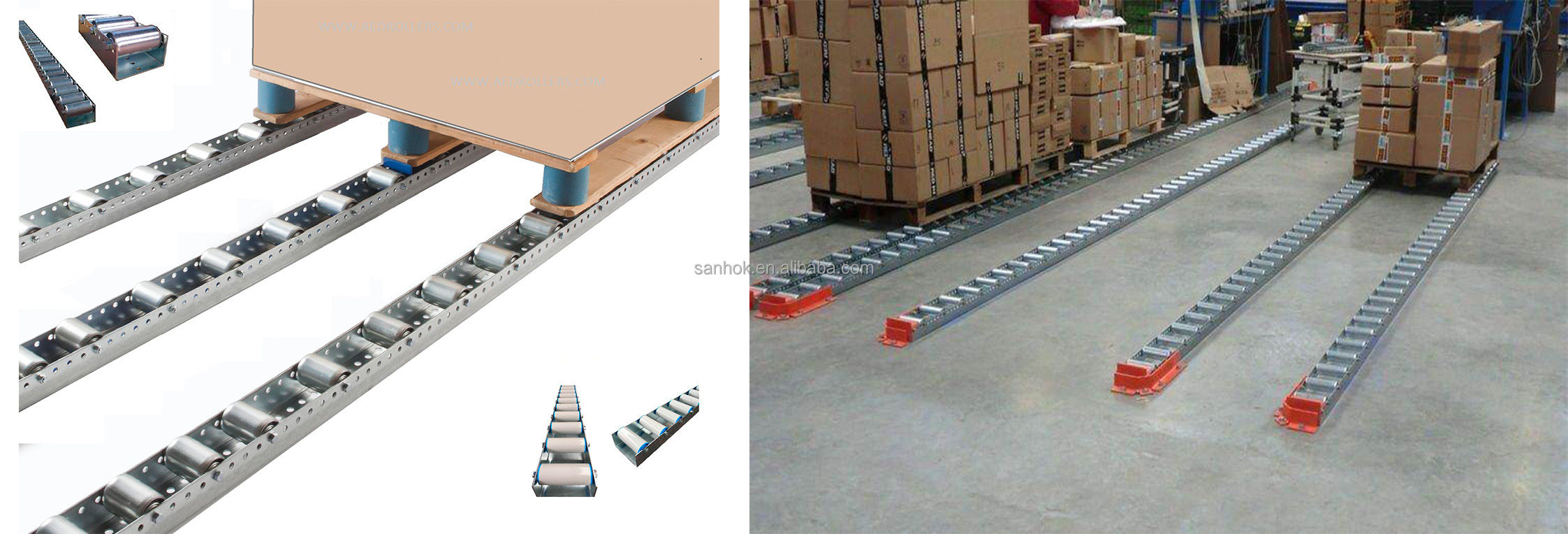

Flow Rail Conveyor For Pallet
With Heavy Duty Load Capacity And Wear-resistant Feature
Heavy Duty, Long-term using, Flexible

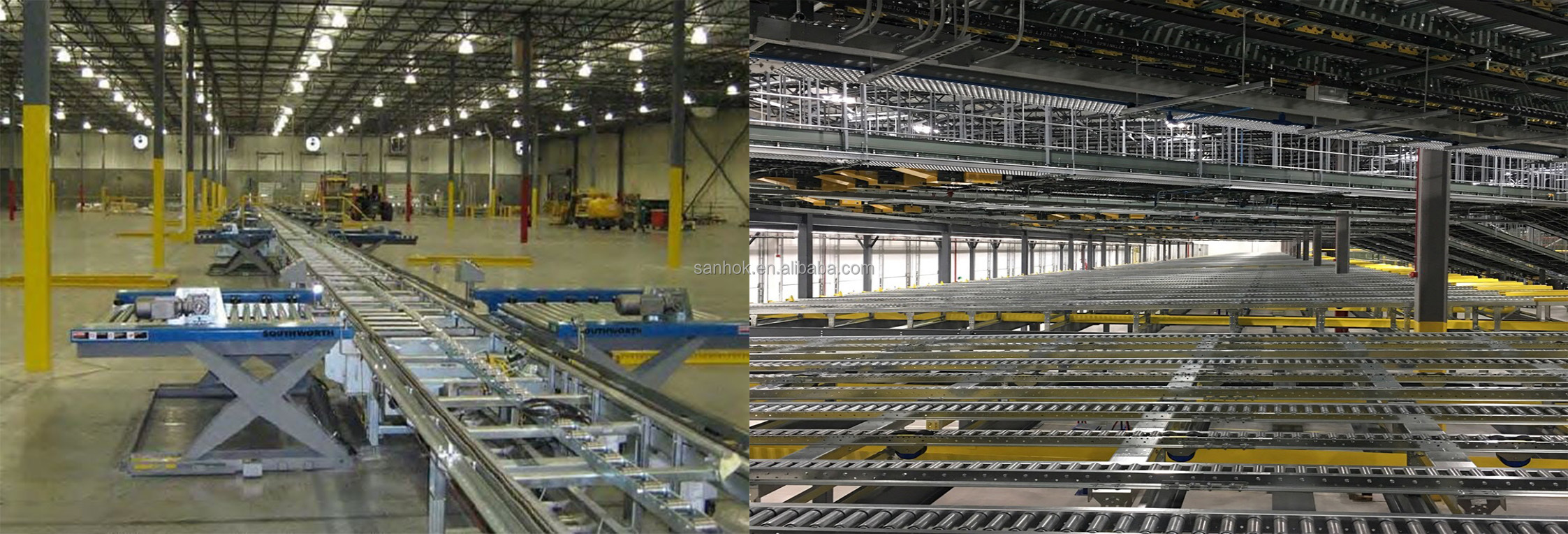

Flow Rail Track For Assembly Line
Such as furniture conveyor, electric blanket assembly line, etc.

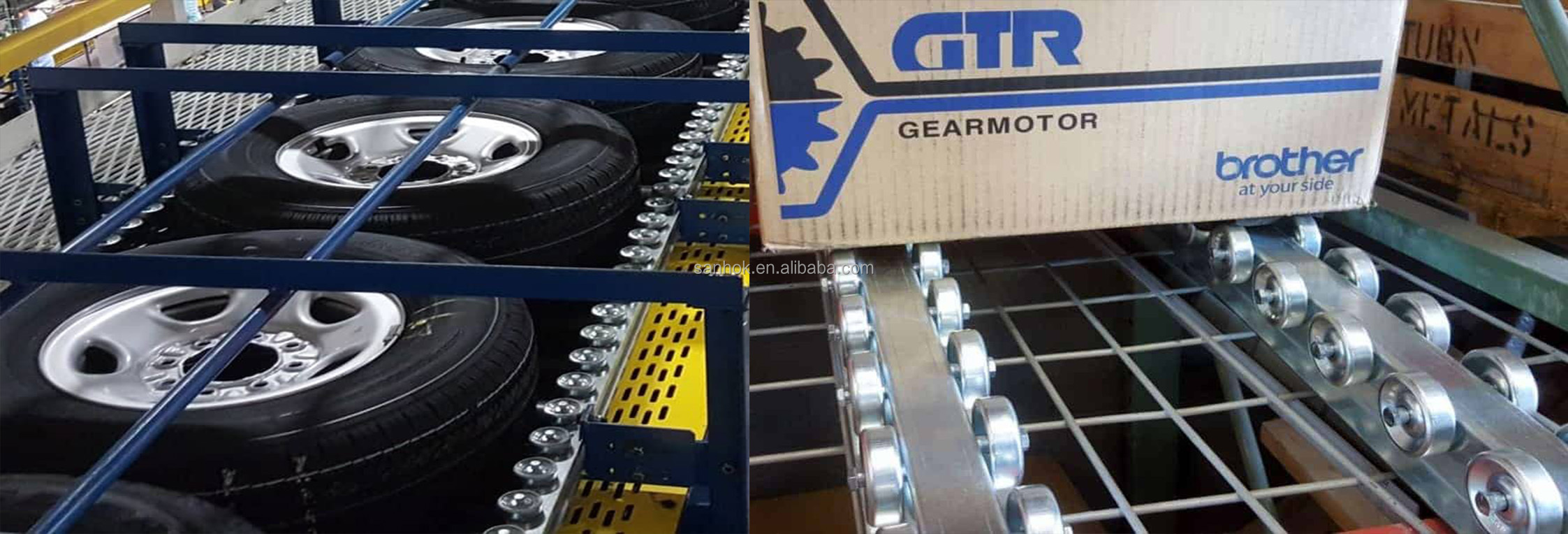

Flow Rail Track For Conveyor Line

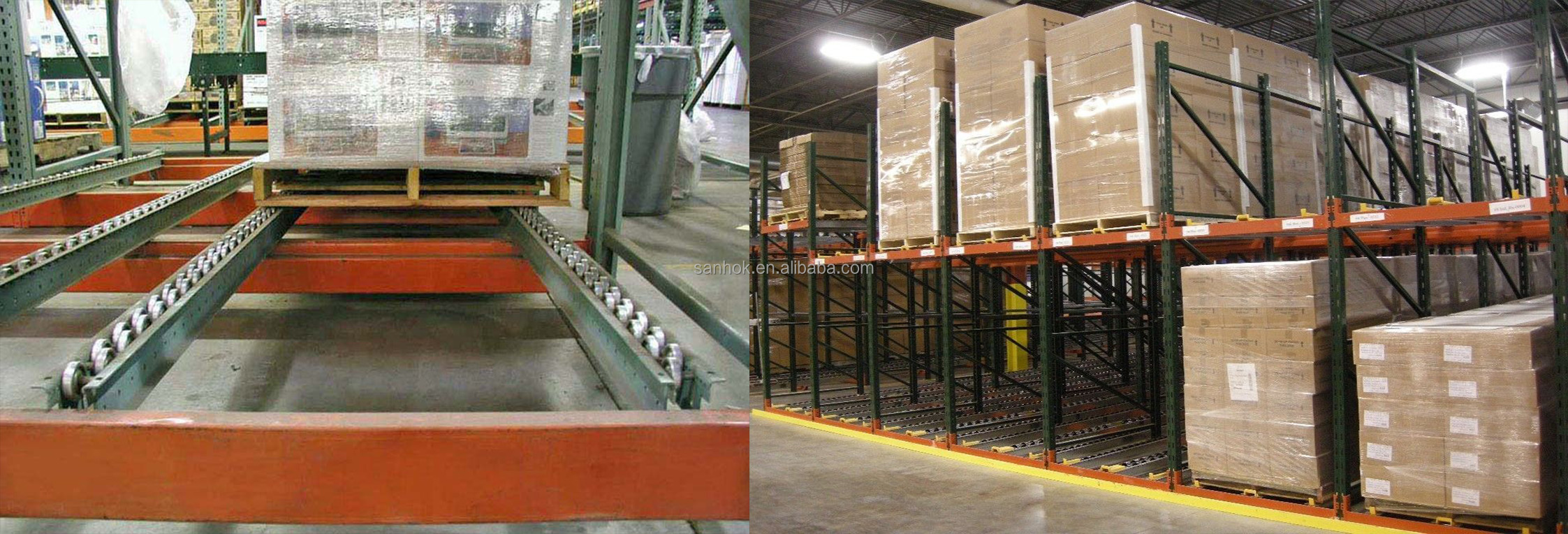

Flow Rail Track For Warehouse

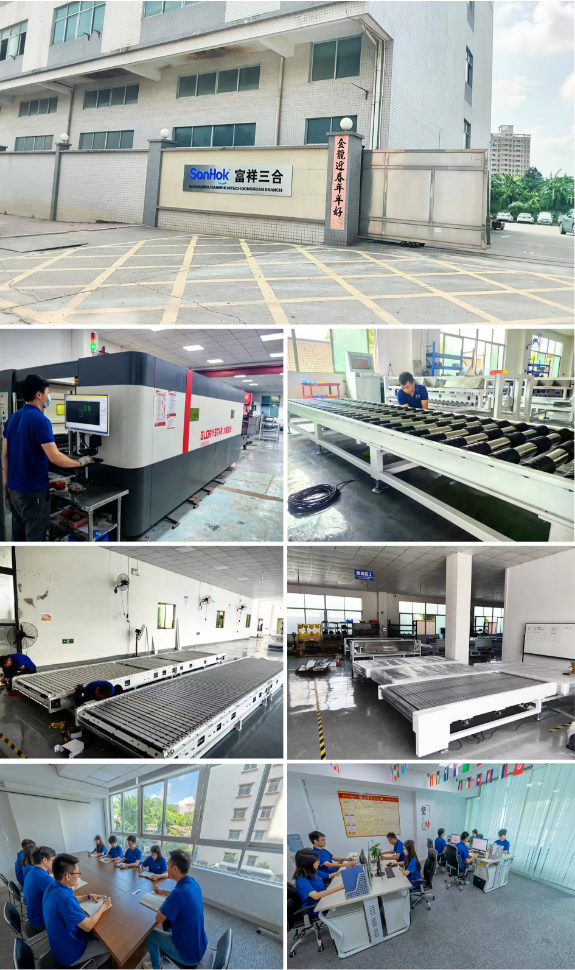

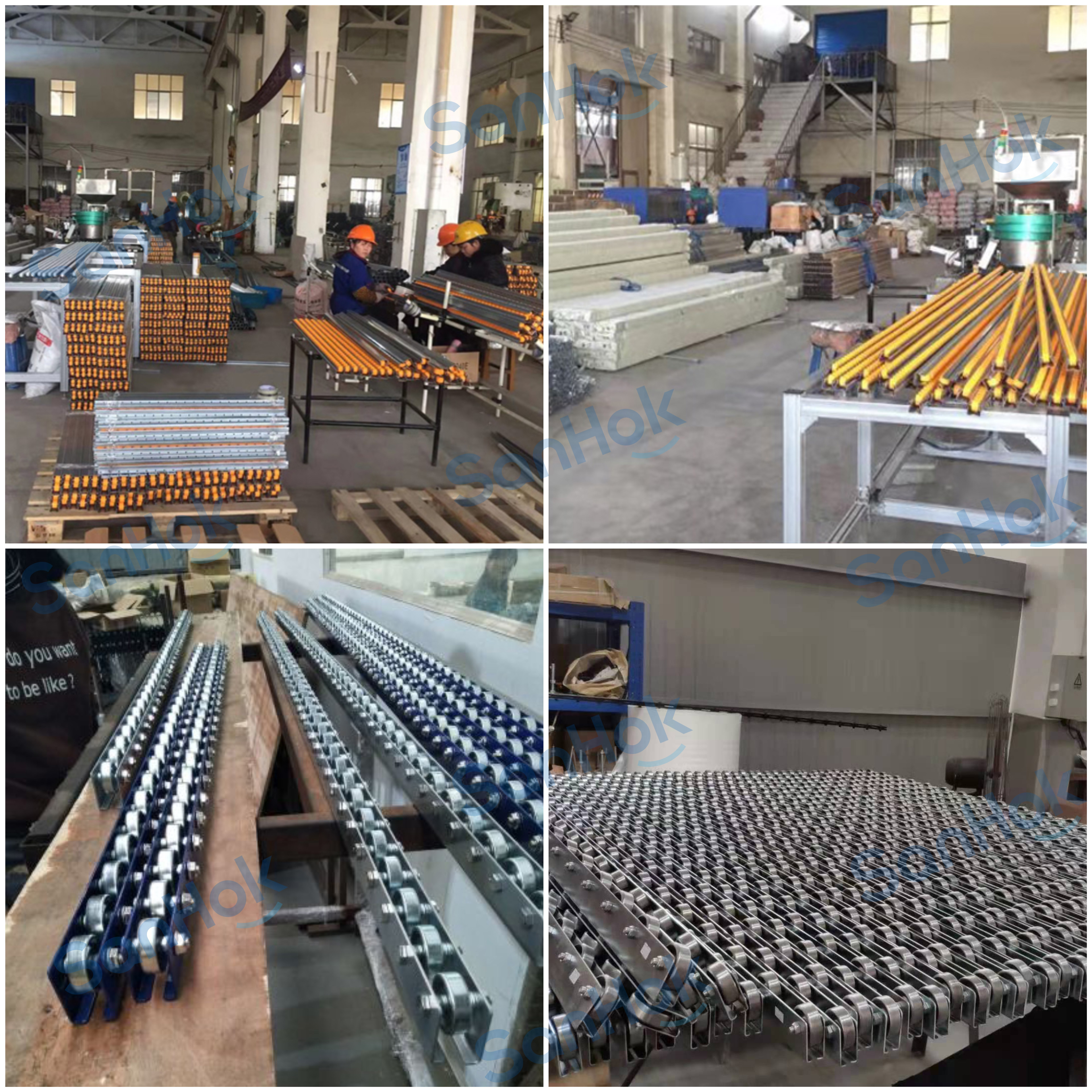

Our Workshop
Package and Delivery
Package Type: Wooden Case
Delivery Time: 7-15 days, within 30 days. (According to the quantity)
Company Introduction
With history of from the year of 2002, Sanhok group has 230+ employees in China (Among them, 47+ engineers are with 20+ years related industry experience, 23+ engineers are with 20+ years related industry experience). Sanhok branches are in Guangzhou, Dongguan, Foshan.
Its main products including conveyor, home appliances assembly line like tv assembly line, air conditioner assembly line, washing machine assembly line, mobile phone assembly line, led lamp assembly line etc, accessories like lean pipe joint system, convey roller, roller rail, aluminum, hollow plate, working table. It is mainly used in household appliance industry, lithium battery industry, warehousing and logistics industry, bathroom industry, electronic industry, LED lamp industry, catering industry, logistics equipment industry.
Sanhok products with huge quantity are selling to China and overseas including South East Asia, Middle East Europe, Africa, North America and South America. We sincerely hope that friends from all over the world will become our loyal partners and forge ahead.
Frequently Asked Questions (FAQ)
Q1
What are the materials for this Product?
This product material is made of carbon steel or stainless steel, ensuring high load-bearing capacity and heavy-duty performance.
Q2
Where can this product be used?
This can be used for assembly lines, warehouses, conveyor lines, pallet handling systems, and storage racks.
Q3
What lengths and wheel pitches are available for flow rail SK-38TS?
Standard lengths are available in 1000mm, 2000mm, and 3000mm, with selectable wheel pitch configurations of 50mm, 75mm, 100mm, and 150mm.
Q4
What is the single wheel loading capacity?
Each single skate wheel can sustain a loading capacity of up to 20 kg.
Q5
What packaging is used and what is the typical delivery schedule?
Products are securely packed in sturdy wooden cases. The standard delivery timeframe is 7-15 days, usually within 30 days depending on the final order quantity.
Q6
Can other flow rail configurations or surface treatments be customized?
Yes, various options such as cutting wheel, press wheel, rubber coated guide rails, and full SUS stainless steel configurations are available. Please reach out to our team for custom specifications.
