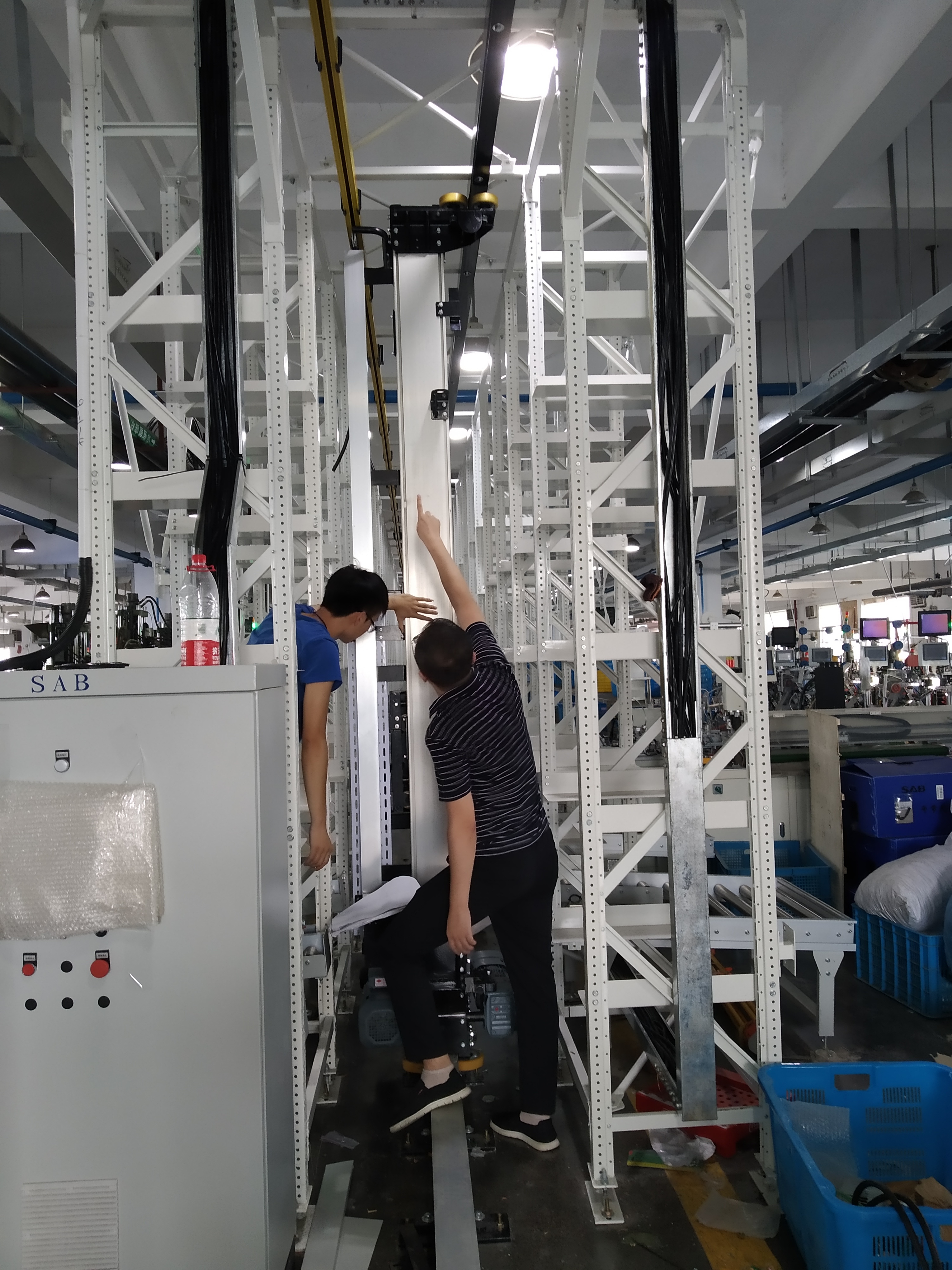

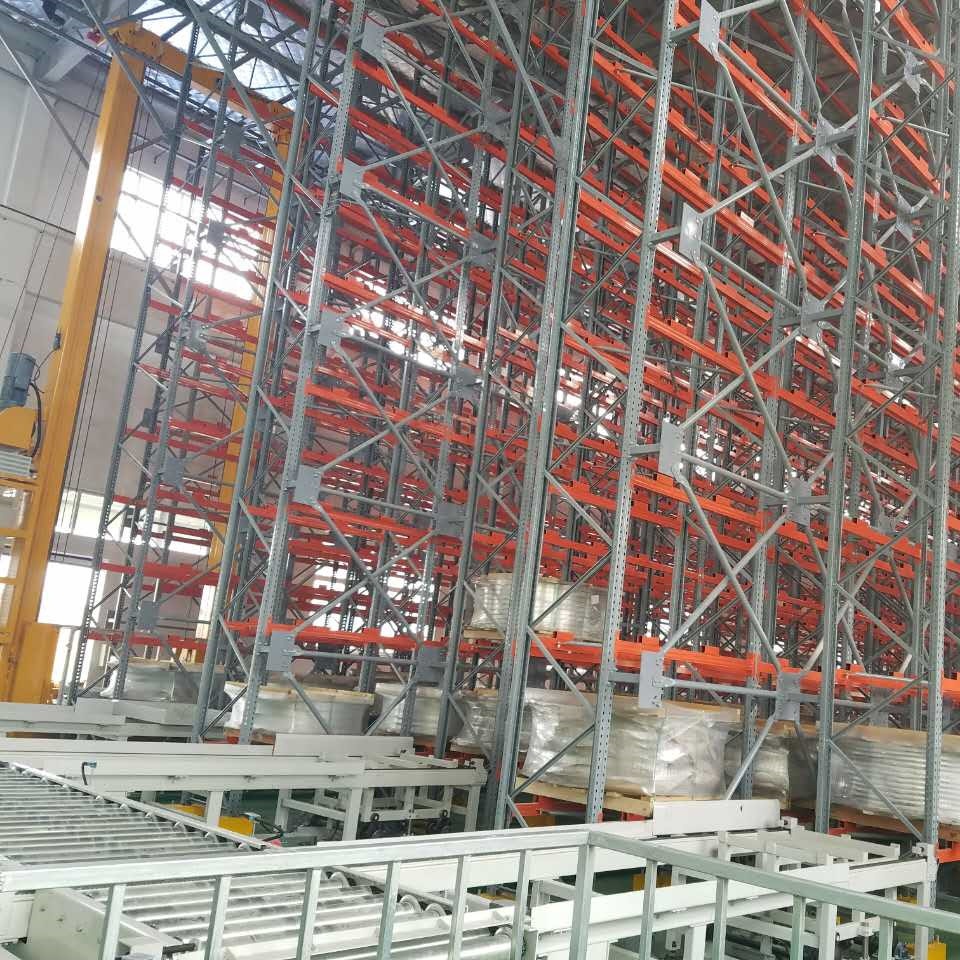

High Density Vertical Carousel Automatic Shelving Designing Rack AS/RS System
Product Description

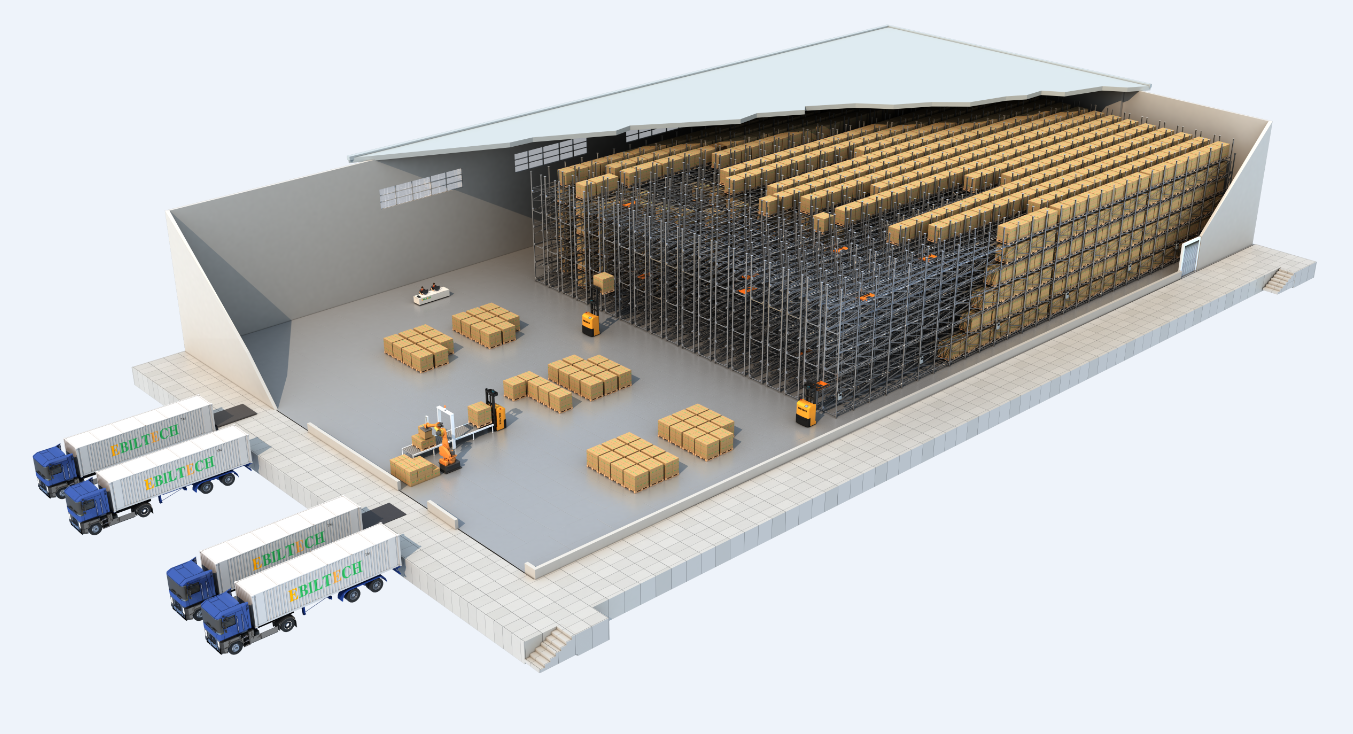

Radio Shuttle Racking Solution
- Increased volume ratio
- Higher warehouse-in/out efficiency than manual forklift
- Manual remote control, realizing semi-automatic warehouse in/out
- Out-of-stock mode: First in first out (FIFO) / first in last out (FILO)
Pallet size: L1200 x W1000 x H1150 mm; Weight: 1000kg/pallet
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Floor area of rack: 47m long x 23m wide x 9m high
Workshop floor area: 60m long x 26m wide x 11m high
Cargo space: 36 rows x 19 columns x 6 levels
Total storage: 4104 pallets
Floor area of rack: 47m long x 23m wide x 9m high
Workshop floor area: 60m long x 26m wide x 11m high
Stacker Crane + Pallet Runner System
Pallet size: L1200 x W1200 x H1000 mm; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long x 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long x 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high

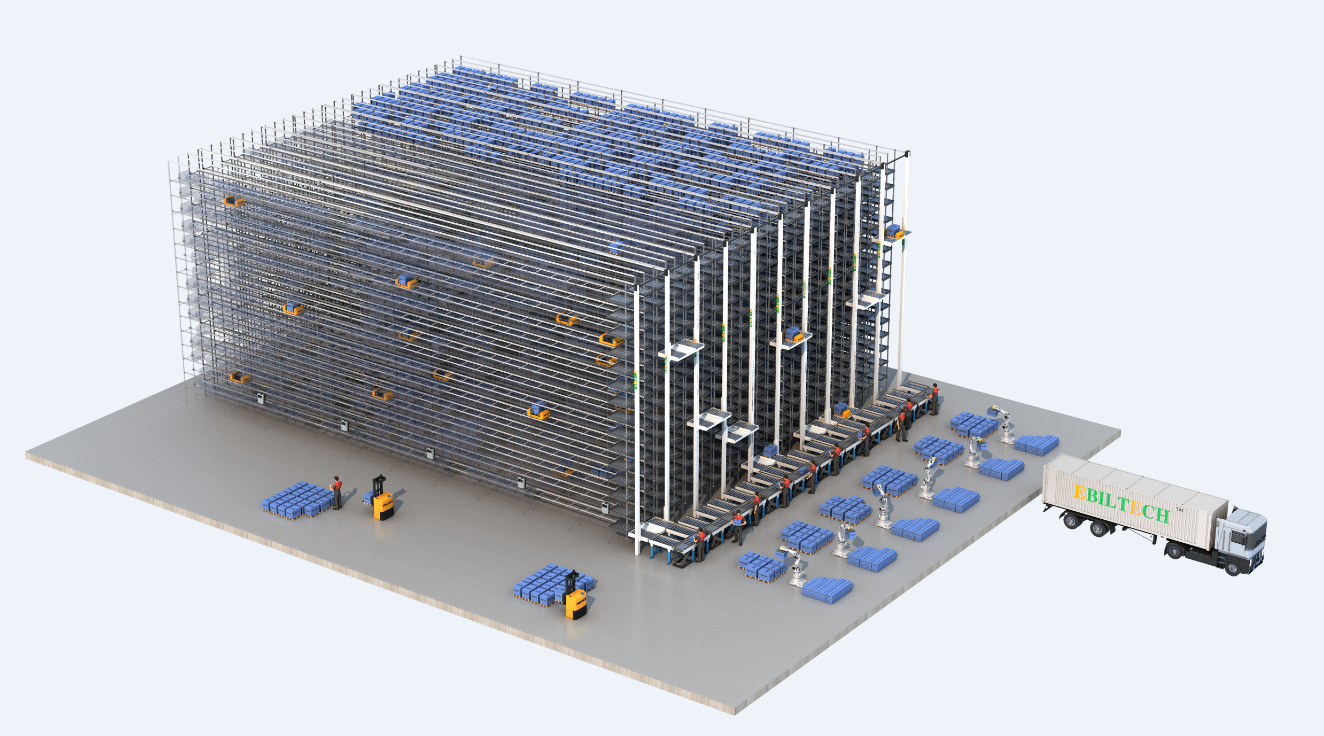

Multi Shuttle System Solution
Box size: L600 x W400 x H280 mm; Weight: 35kg/box
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Floor area of rack: 30m long x 14m wide x 10m high
Workshop floor area: 40m long x 26m wide x 12m high
Cargo space: 29 rows x 19 columns x 15 levels
Total Storage: 16530 boxes
Floor area of rack: 30m long x 14m wide x 10m high
Workshop floor area: 40m long x 26m wide x 12m high
Four-way Shuttle System Solution
- Line side library of smart factory workshop
- Frozen/fresh food warehouse
- Logistics transition center
- Unmanned dark warehouse

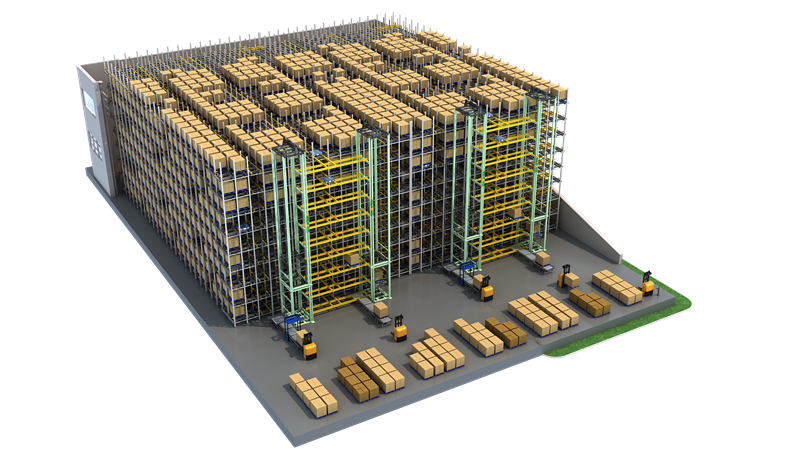

Stacker Crane System
Pallet size: L1200 x W1200 x H1200 mm; Weight: 1000kg/pallet
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Floor area of rack: 43m long x 45m wide x 19m high
Workshop floor area: 65m long x 55m wide x 20m high
Cargo space: 27 rows x 20 columns x 12 levels
Total storage: 6480 pallets
Floor area of rack: 43m long x 45m wide x 19m high
Workshop floor area: 65m long x 55m wide x 20m high
Primary-secondary Shuttle Carrier Solution
Pallet size: L1200 x W1200 x H1000 mm; Weight: 1000kg/pallet
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long x 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high
Cargo space: 22 rows x 31 columns x 9 levels
Total storage: 6138 pallets
Floor area of rack: 43.5m long x 30m wide x 13m high
Workshop floor area: 58.5m long x 38m wide x 14m high

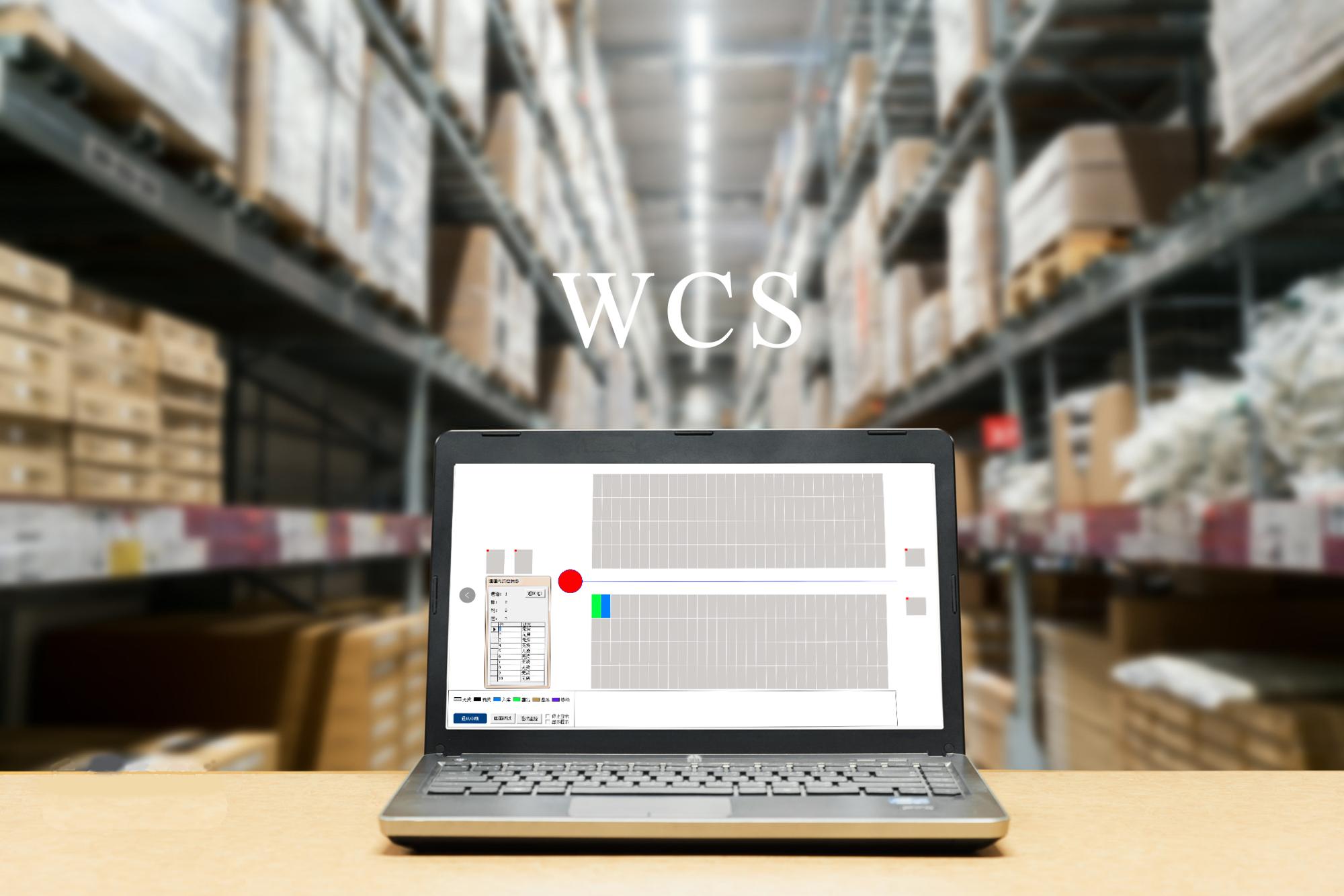

Warehouse Control System (WCS)
The Warehouse Control System (WCS) serves as a bridge between the Warehouse Management System (WMS) and a broad range of material handling equipment such as conveyor systems, automated storage and retrieval systems, carousels, sorters, palletizers and so on.
Acting as a "hub", the WCS is responsible for keeping everything running smoothly and maximizing the efficiency of material handling systems and subsystems.
Frequently Asked Questions
QAre you a distributor or manufacturer?
We are a professional and leading manufacturer for nearly 20 years. We produce and export high quality pallet racking, multi shuttle system, radio shuttle racking, and ASRS which have a very high reputation among our customers. Our annual production capacity is 100,000 tons of rack components and 1,000 units of shuttle cars.
QWhat makes you different from others?
1) We have more than 40 mechanical, electrical, and software engineers. EBILTECH attaches great importance to product innovation and R&D. We have our own R&D team, cooperate with well-known domestic research institutes, independently develop WMS and WCS systems, and hold more than 60 national patents.
2) Excellent Service: We promise to reply with a price within 24 hours - sometimes even within the hour. For immediate advice, call our export office at 0086-25-52757208.
3) Quick manufacturing time: For normal orders, we produce within 20-30 days and ensure delivery time according to formal contract.
2) Excellent Service: We promise to reply with a price within 24 hours - sometimes even within the hour. For immediate advice, call our export office at 0086-25-52757208.
3) Quick manufacturing time: For normal orders, we produce within 20-30 days and ensure delivery time according to formal contract.
QWhat installation and debugging services do you provide?
We have installation teams with rich overseas experience. For radio shuttle cars, we send engineers to the site for debugging and training. For racking systems, we can install via our own teams or appoint engineers to guide operations. We have completed numerous projects across Southeast Asia, America, and Europe.
QWhat is the minimum order quantity (MOQ)?
Normally the MOQ is one 20ft container, but larger quantities come with better prices.
QWhat are your acceptable payment terms?
We accept payment via T/T or L/C.
