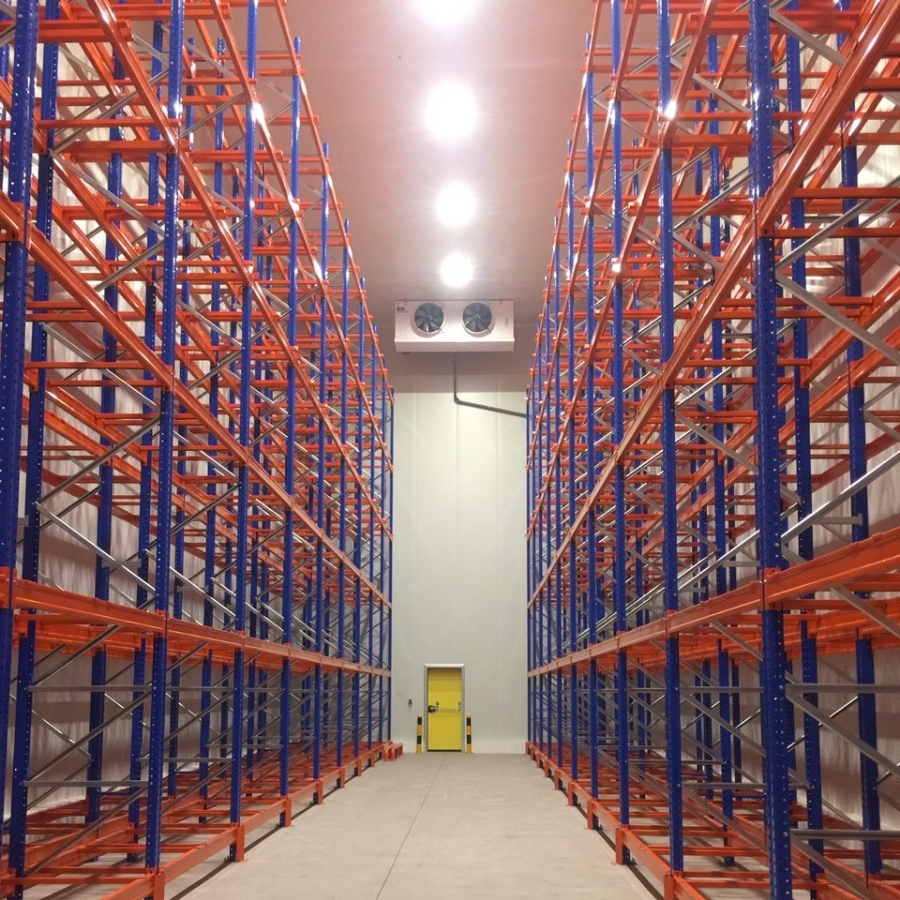

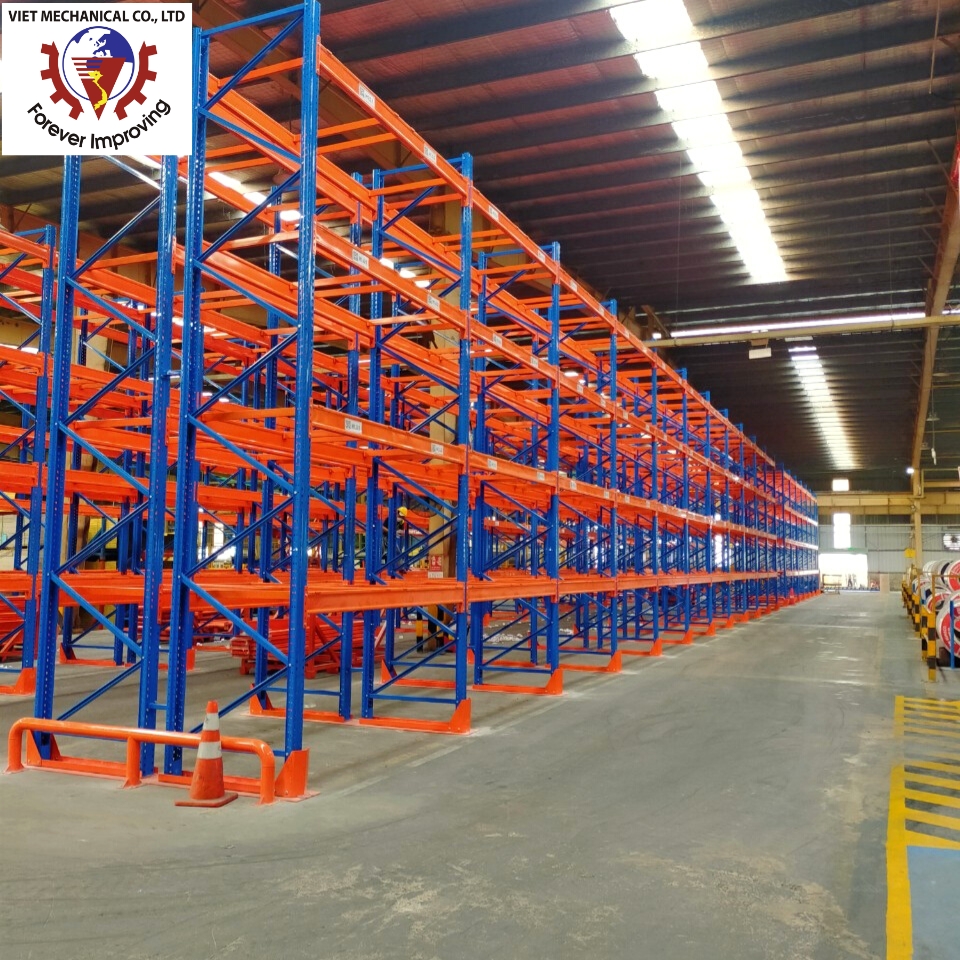

OEM Heavy Duty Steel Teardrop Selective Pallet Racking System Directly from Vietnam Factory for Warehouses
Product Description
Overview

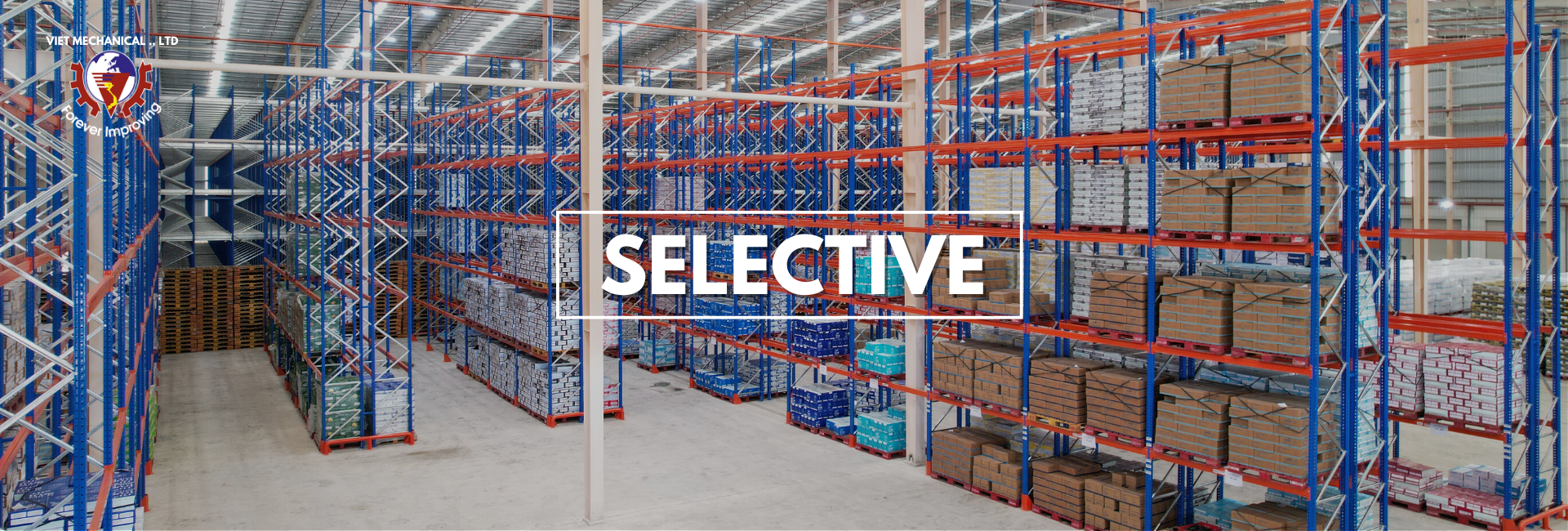

American Standard Teardrop Pallet Racking

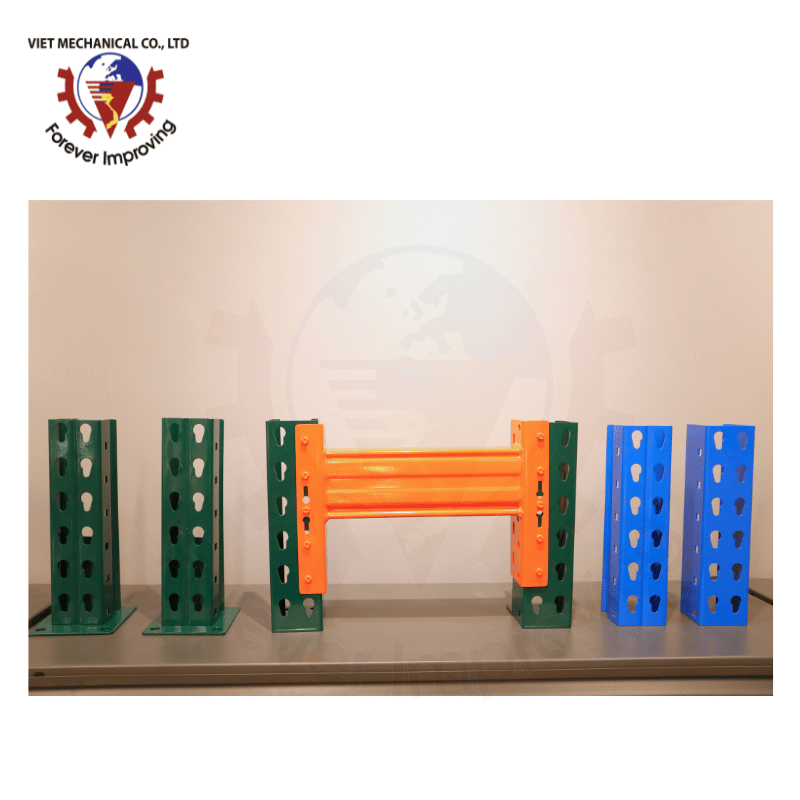

Teardrop pallet racking offers easy access to each pallet, enhancing inventory management and versatility. The upright frame is an essential part of the pallet rack structure. VietMechanical supplies upright frame columns in multiple sizes and thicknesses, catering to various load capacities to meet your specific needs. Our teardrop beam-to-column connection is designed to integrate smoothly with other widely used teardrop systems.
| Model Number | PALLET RACK TEARDROP | Frame Structure Type | 3"*3" (76.2 * 76.2 mm) Bolted Upright frame with Baseplate |
| Depth | 1.5 - 2.6mm - Customized 0.059" - 0.102" - Customized |
Beam Type | 100-110-120-130 ... 180mm Box beam (3.94" - 4.33" - 4.72" - 5.12" ... 7.09" Box beam) |
| Weight Capacity | 5.000 - 25.000kg (11023 - 11339lb) | Beam Connector Type | Safety Locker |
| Width | 800 mm-1m2 (31" - 47") | Surface finish | Powder coating & Galvanized |
| Height | 2 - 12m (78" - 472") | Frame Punch Whole Type | Pitch 2" ( 50.8mm ) |
Feature:
Easy beam installation with no special tools or training required.
Durable powder coating and baked enamel finishes ensure long life even under the most demanding conditions.
Beam and column locking system provides exceptional protection against damage, tampering, and accidental disengagement.

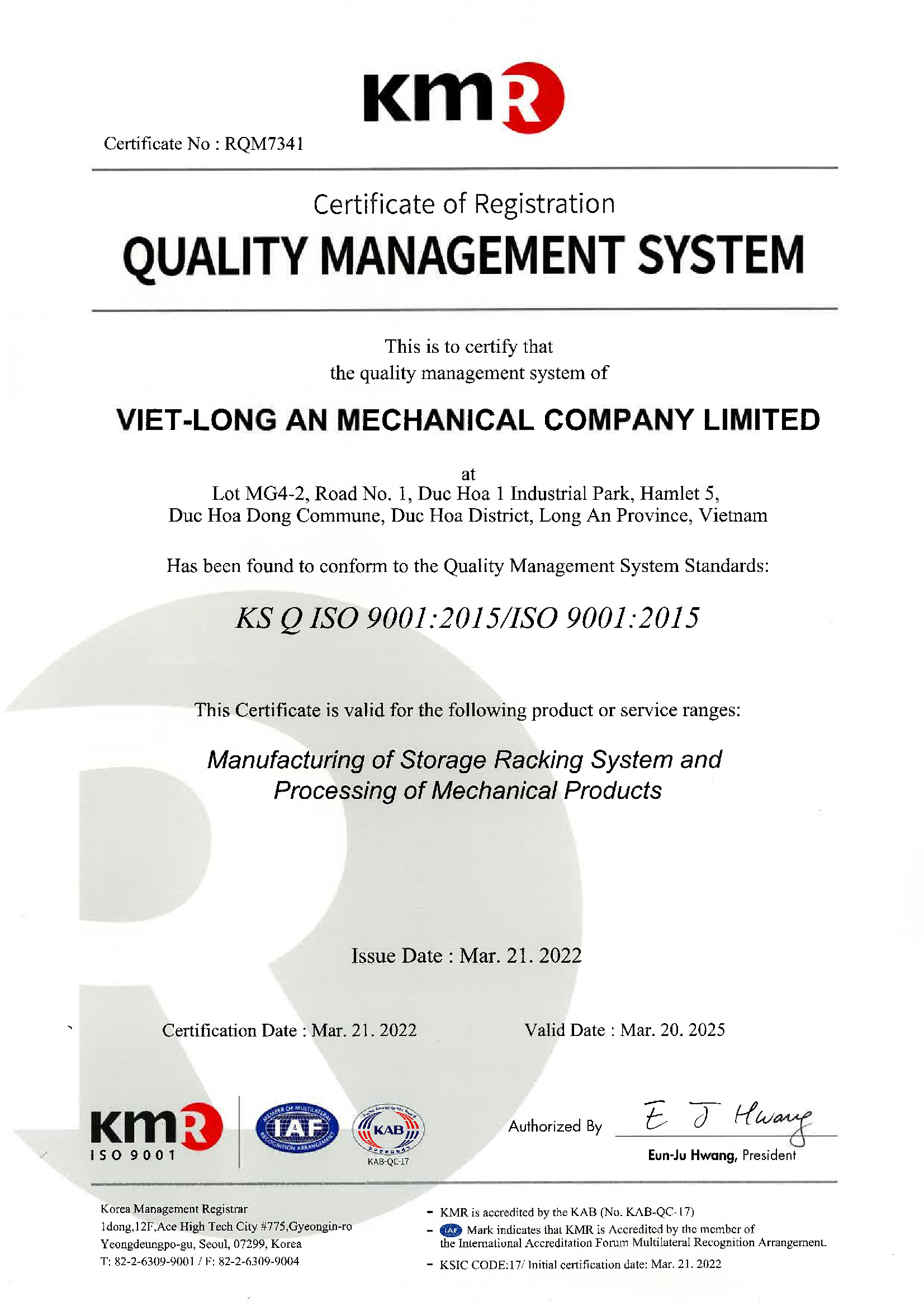

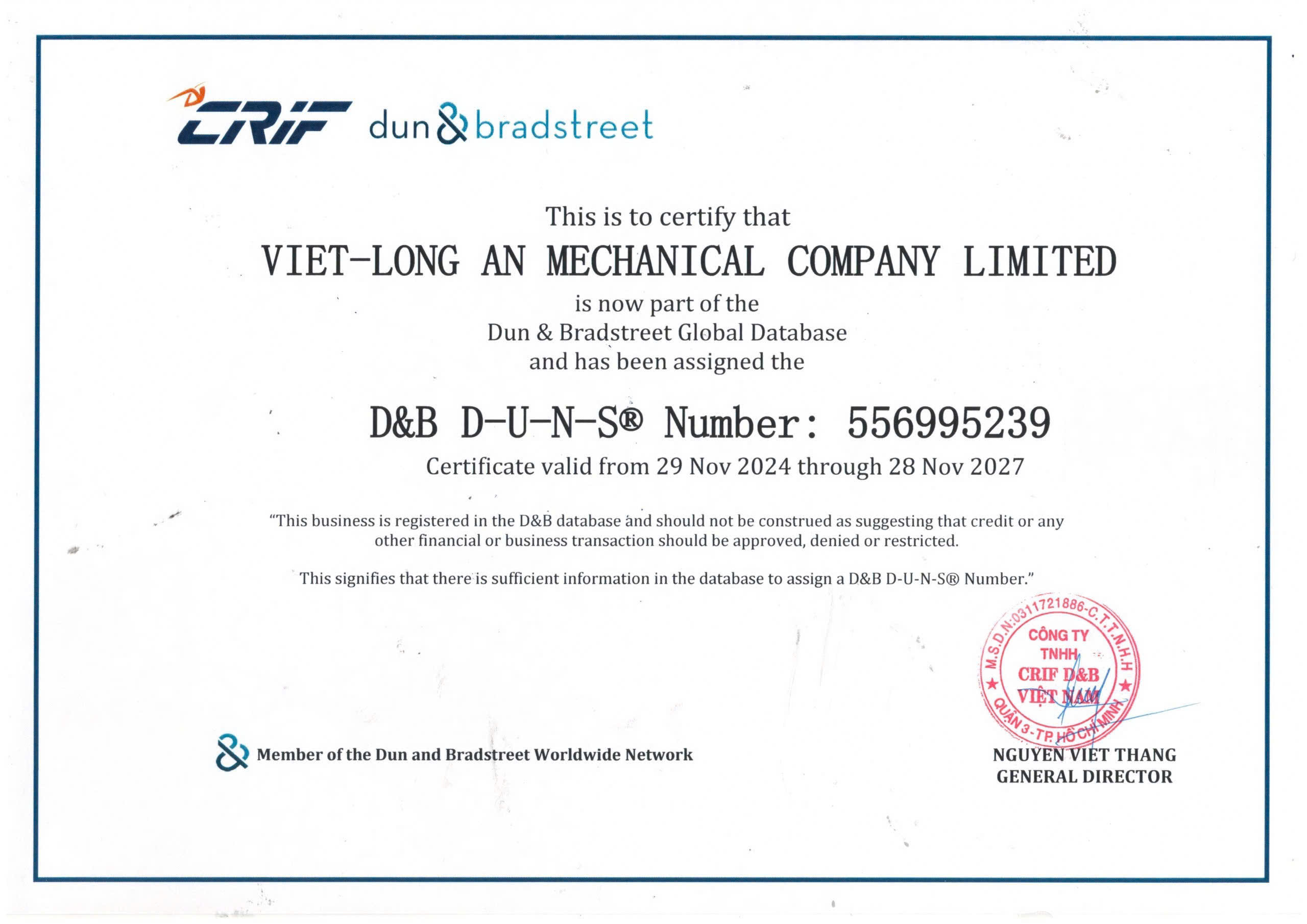

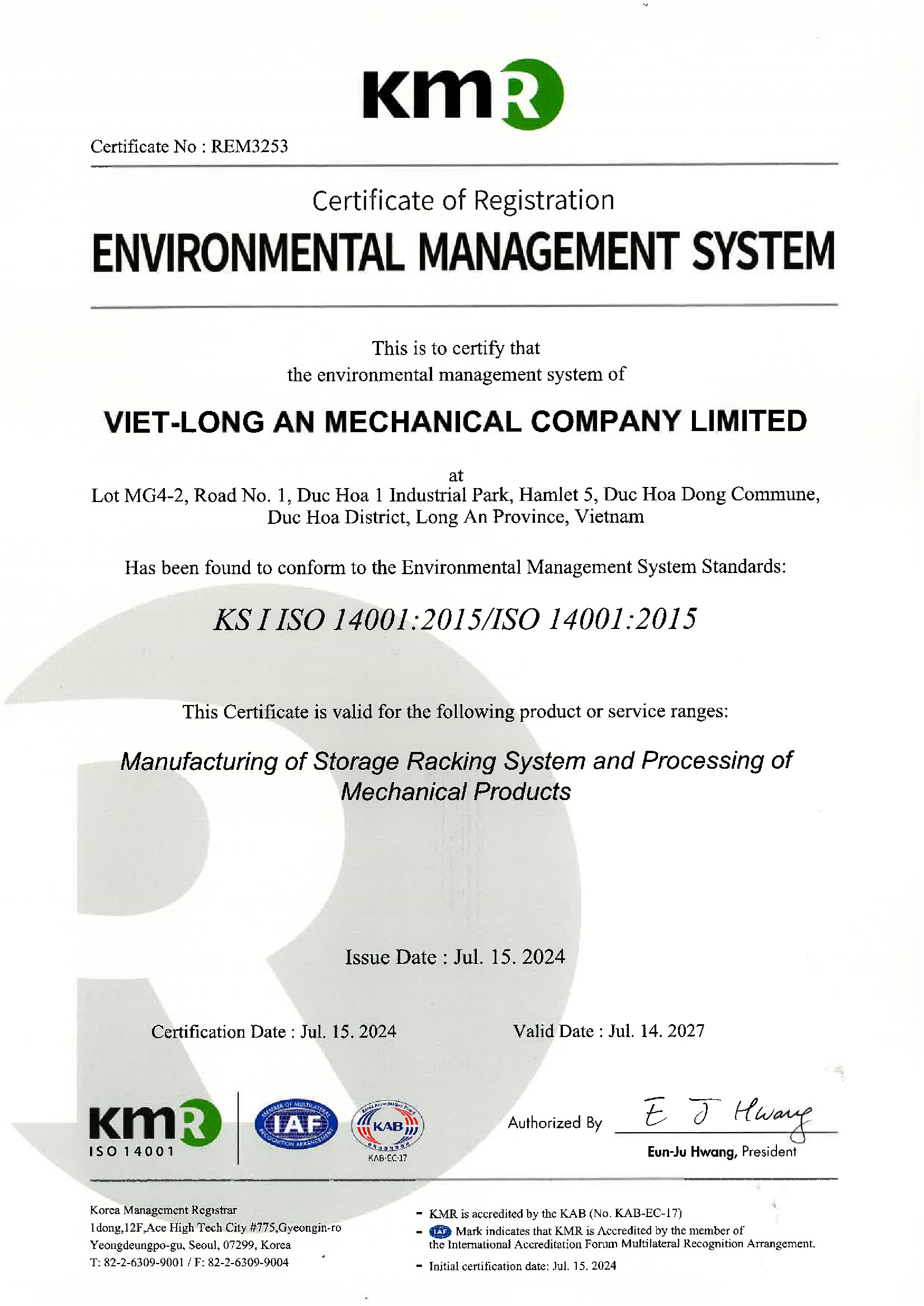

Certifications

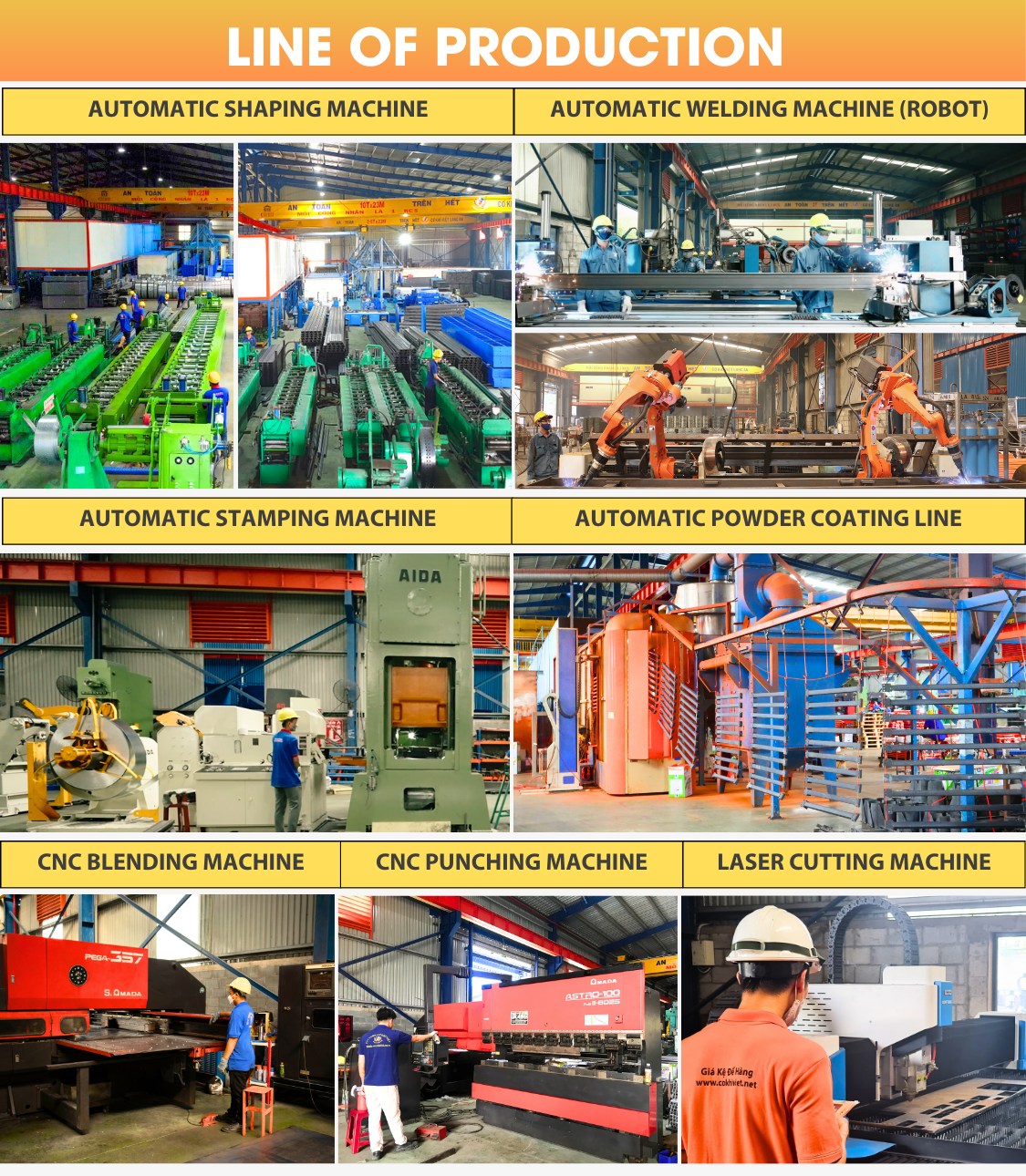

Production Standards
Human Resource

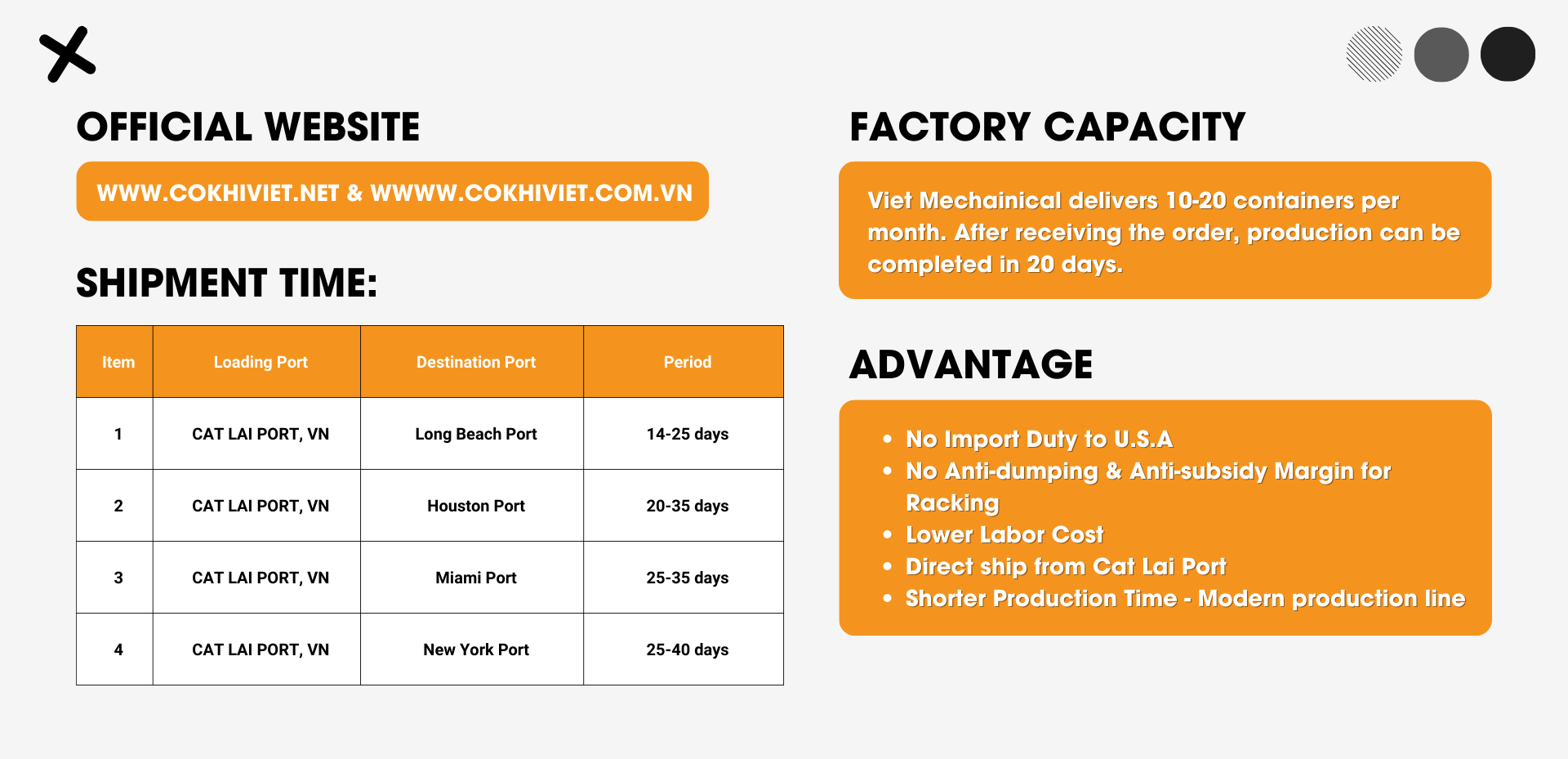

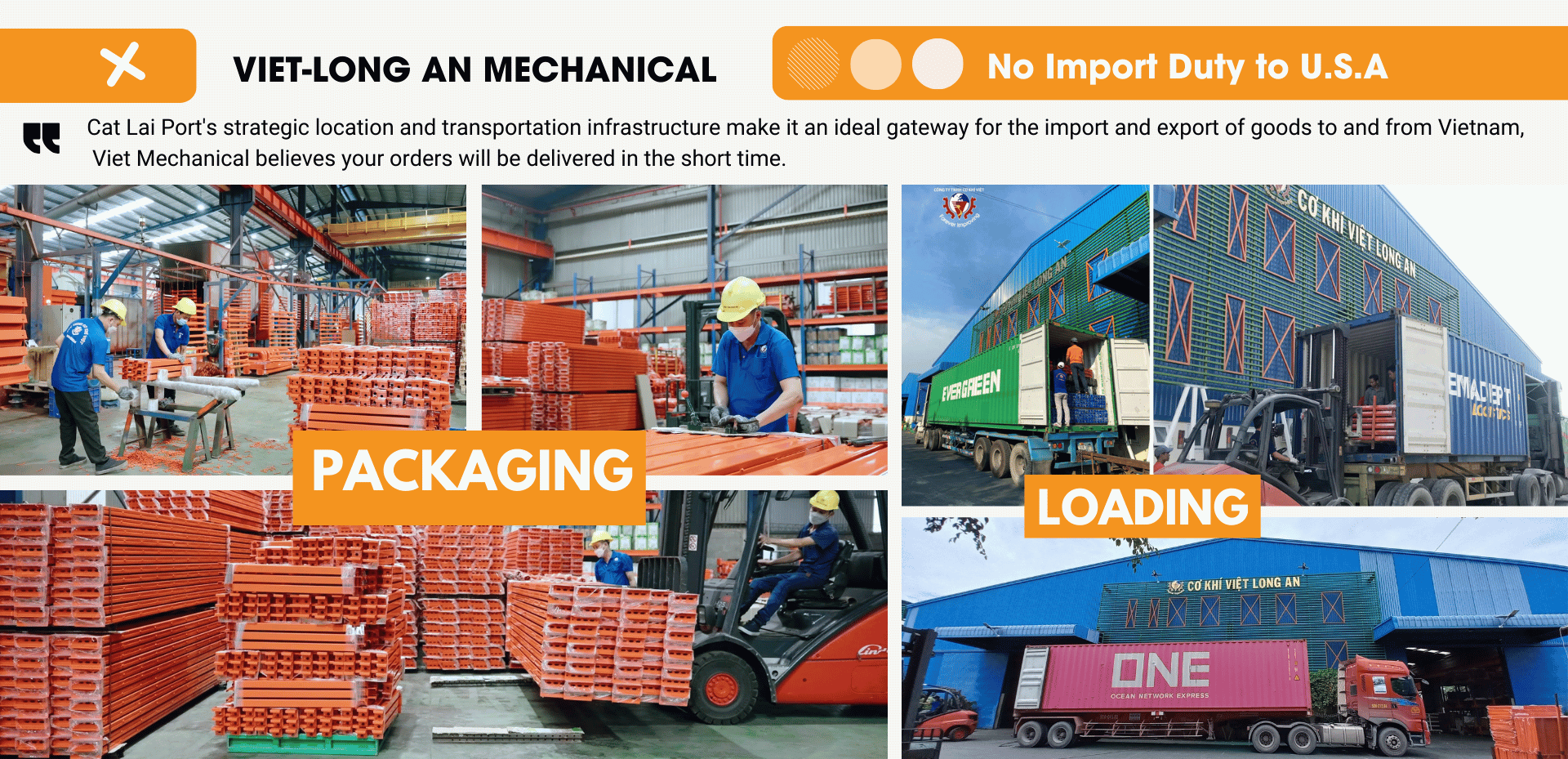

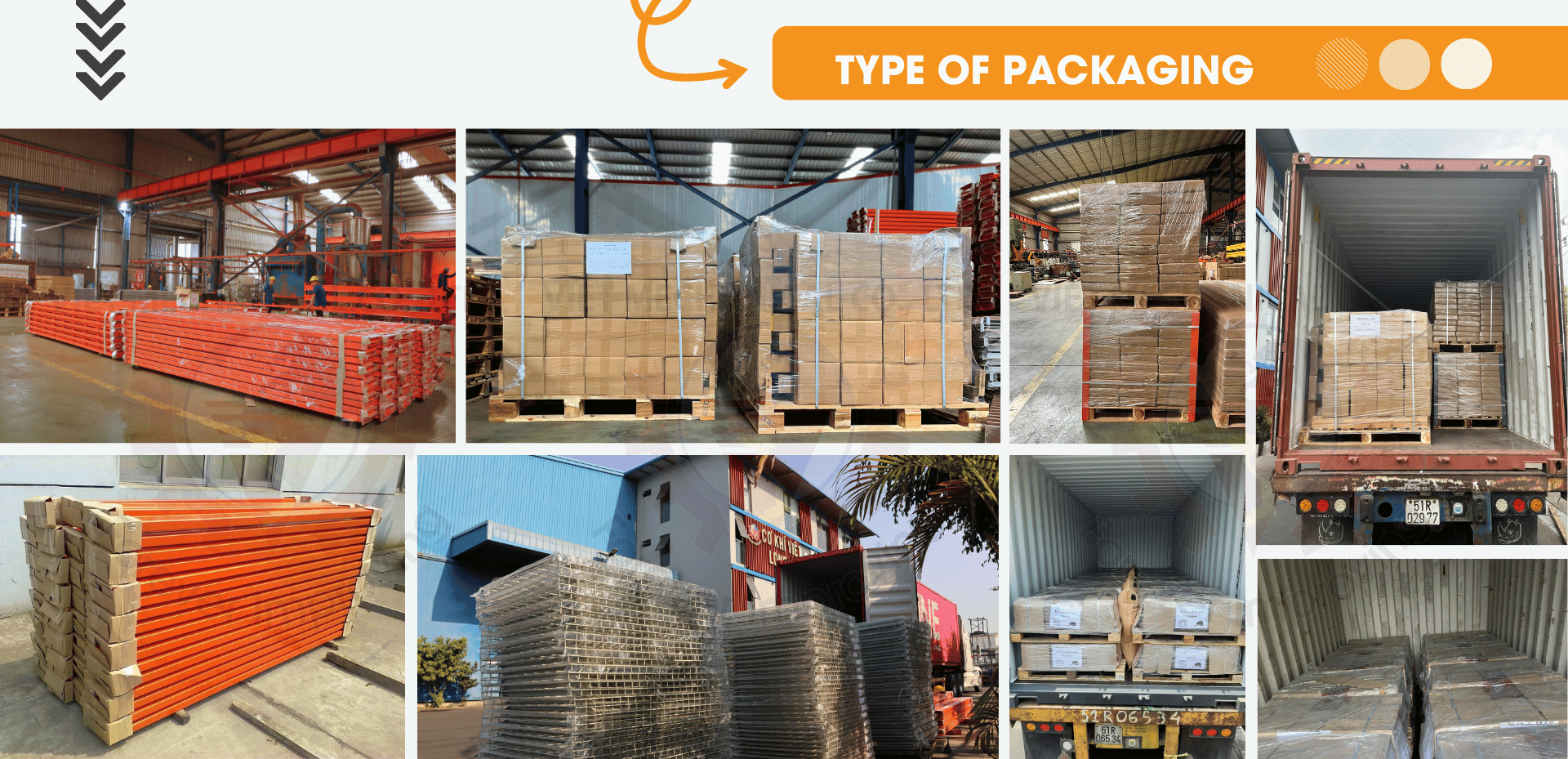

Packing & Delivery
Contact Us
Contact online customer service, Get the latest product catalog!
FAQ
Q: Are teardrop pallet rack components compatible with other manufacturers?
Yes, our teardrop pallet racking conforms to standard American teardrop specifications, allowing beams and uprights to seamlessly interchange and integrate with most industry-standard teardrop designs.
Q: What is the standard hole pitch on the upright frames?
The frames are designed with a standard 2-inch (50.8 mm) hole pitch, providing flexible adjustability for shelf levels according to your pallet load heights.
Q: What surface finishes are available for long-term corrosion protection?
We provide high-durability electrostatic powder coating and galvanized finishes, ensuring superior resistance to scratches, chemicals, and industrial warehouse environments.
Q: Are custom sizes and load capacities available?
Yes, upright heights can reach from 2m up to 12m, with customizable steel thicknesses (1.5mm to 2.6mm) and beam sizes to achieve load capacities from 5,000kg up to 25,000kg per bay.
Q: How does the beam-to-column safety locking mechanism work?
Each beam end is equipped with an integrated safety locker that automatically snaps into place upon installation, preventing accidental dislodgement from forklift impacts.
