High Density Customized Drive-In Racking System Steel Pallet Warehouse Racking For Cold Room Storage Cargo & Storage Equipment
Product Description
Product Description

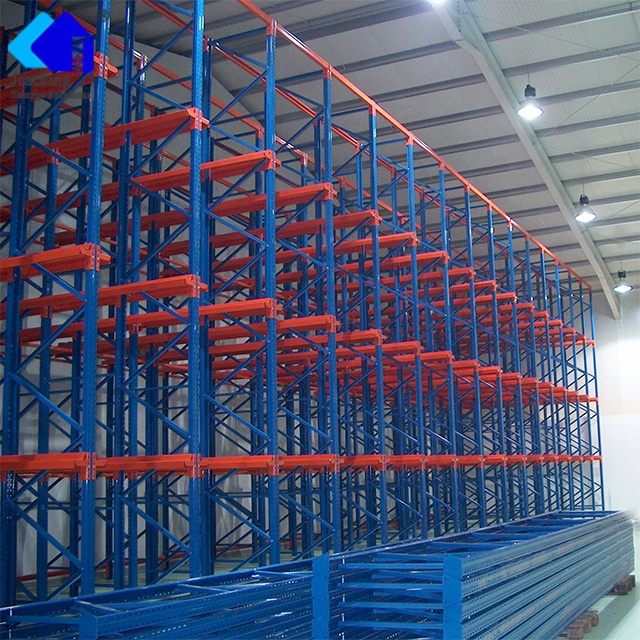

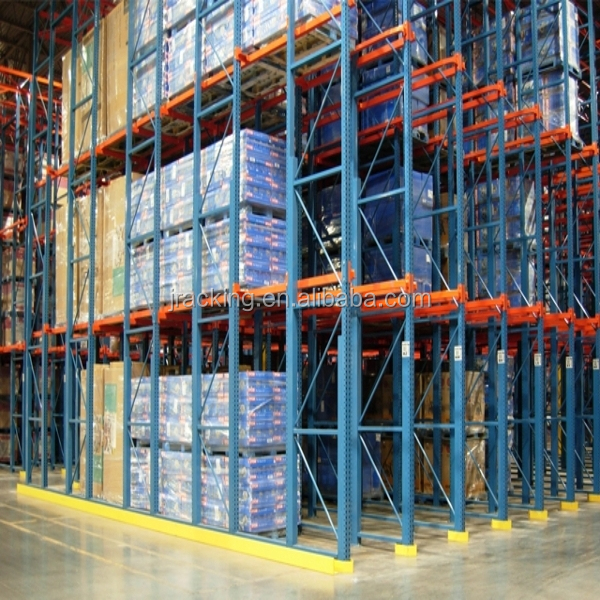

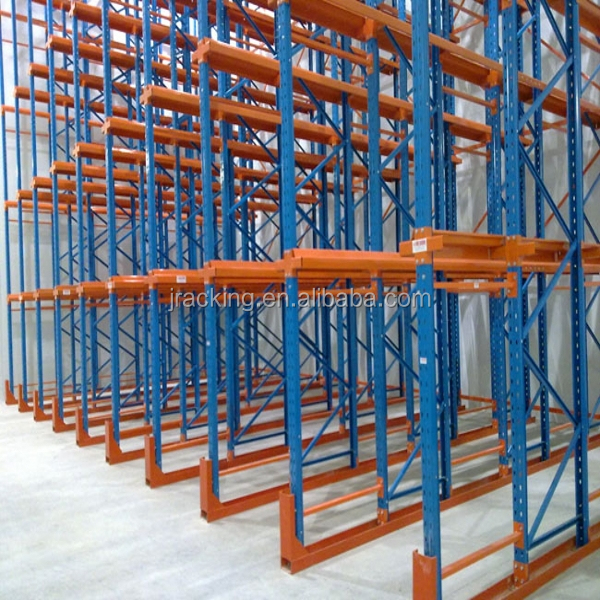

Drive In Racking

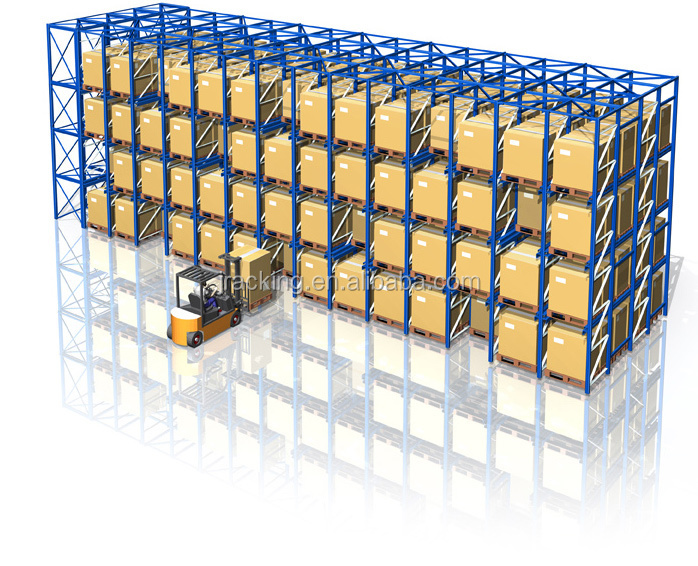

Warehouse storage drive in rack can be used for forklift to enter and access goods. It is suitable for storing goods with large quantity. In addition to the location near the channel, the forklift truck needs to enter the rack to store goods. Usually, no more than 7 location depths are recommended. In order to improve the running speed of the forklift, the configuration guide rail can be selected according to the actual needs, and the utilization rate of the storage space of the drive in rack can be increased by more than 30% compared with the normal rack.| Name | Drive in rack | Material | Steel |
| Dimension | Customized | Color | Selective |
| Depth | Customized | Weight Capacity | According to your needs |
| Width | Customized | Height | Customized |
| Finish | Powder coated/Galvanised | ||
| Weld | Weld for automatic welding | ||
| Rust | Surface antirust | ||
| Certification | CE, AS4084, ISO9001:2008 | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Product Display
Features:
✔
1. High density storage racking system.
✔
2. Operates with reach lift truck or stacker with FILO (first in last out) mode.
✔
3. Storing goods with less variety but large inventory flow.
✔
4. Especially used in cold room and food warehouse.
✔
5. Available space up to 90%, available ground space up to 60%.
✔
6. Narrow aisle improves space utilization.
| Loading | Thickness |
|---|---|
| Within 1t | 131*70*2.0 |
| 1-1.2t | 131*70*2.3 |
| Over 1.2t | 131*70*2.5 |
For more information or any help, please reach out to us and we will reply immediately.
Product Categories
Company Profile
Certifications
Production Process
Frequently Asked Questions
QWhat type of inventory is best suited for Drive In Racking?
Drive-in racking is ideal for storing large quantities of homogeneous goods with low turnover variety, especially suitable for cold chain logistics, food and beverage warehouses, and bulk industrial storage.
QWhat storage management method does this racking system use?
The system operates primarily on a First-In-Last-Out (FILO) inventory management method using reach forklifts or counterbalanced lift trucks.
QHow does Drive In Racking improve warehouse space utilization?
By eliminating multiple access aisles and allowing forklifts to enter directly into the storage lanes, it can increase storage space utilization by more than 30% to 90% compared to standard pallet racks.
QWhat is the recommended storage depth for a drive-in lane?
For structural efficiency and operational safety, a depth of no more than 7 pallet locations per lane is generally recommended.
QAre custom dimensions and finishes available?
Yes, dimensions, heights, depth, and loading capacities are completely customized based on warehouse height, pallet specifications, and load requirements, with options for powder coating or galvanization.
QWhat certifications do your racking systems comply with?
All storage racking products are certified according to international quality and safety benchmarks, including CE, AS4084, and ISO9001:2008 standards.
