Jracking Industrial Shelving Warehouse Racks Heavy Duty Steel Cantilever Storage Rack System for Steel Pipe Storage
Product Description
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI / CE / ISO / TUV / AS4084-2012 | ||
| MOQ | One 20ft / 40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Step 1
Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.
Step 2

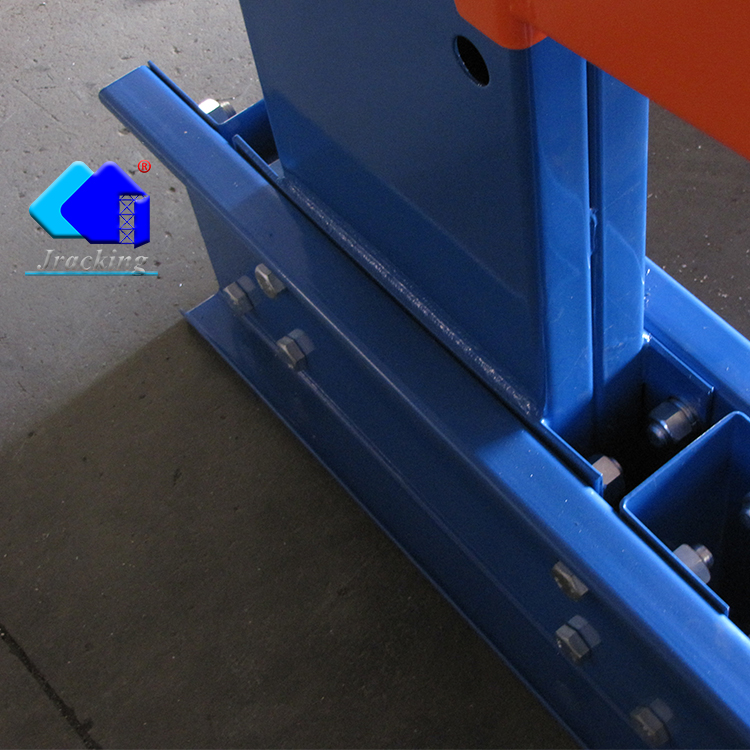

Position the column (1) vertically into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fastening the other M20x40 bolts (7) on the base. Recommended torque: 86~103N.M
Step 3
The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.
Step 4
The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor use a 014 bit and drill a hole with a minimum depth of 100 mm. Remove the drilling remains and carefully hammer in the fastening M10x160 anchors (11). Firmly bolt the fastening plate in place. Recommended torque: 50 MN
Step 5

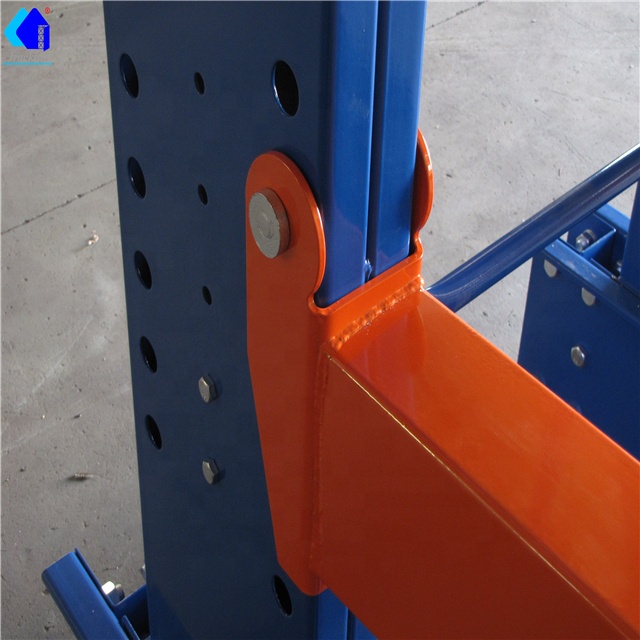

The arm (12) is fastened to the column (1) using safety pins Φ29x140 (13). Fit the arms (11) according to the heights and distribution shown on the corresponding project drawing, where applicable.
Step 6

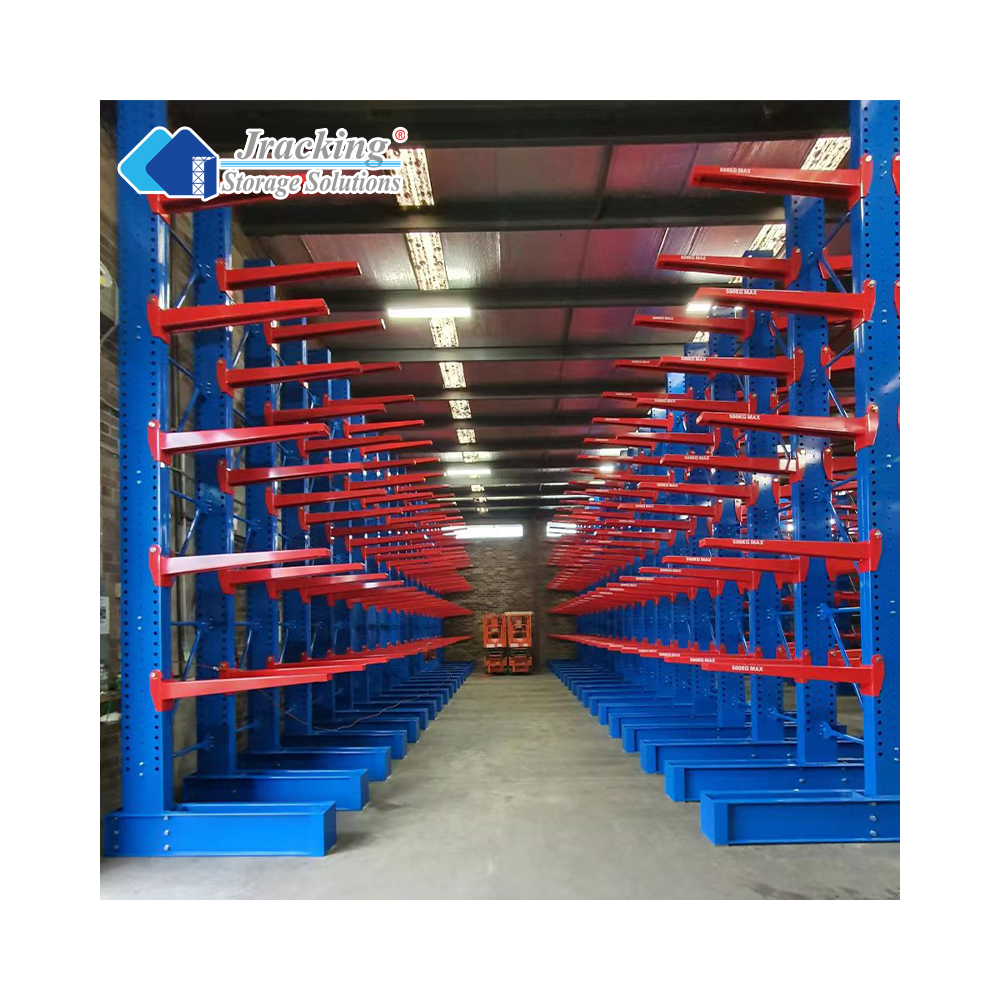

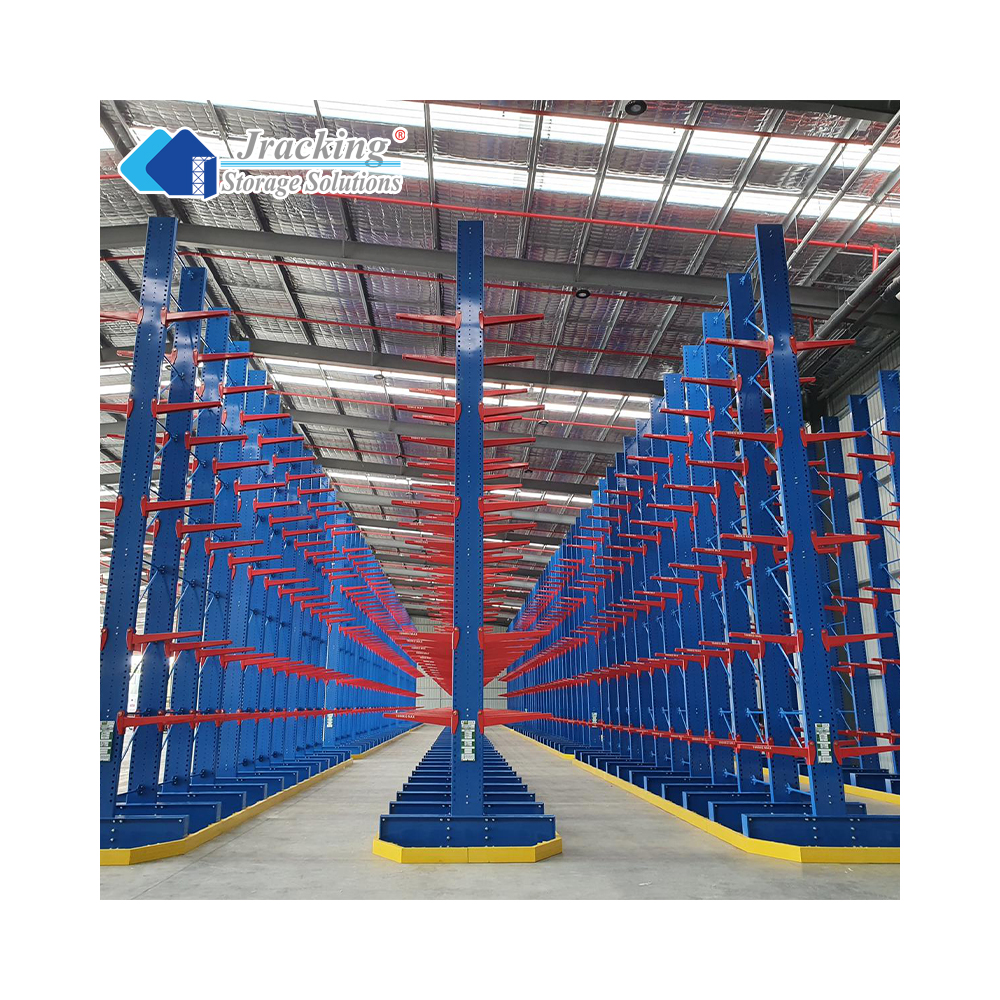

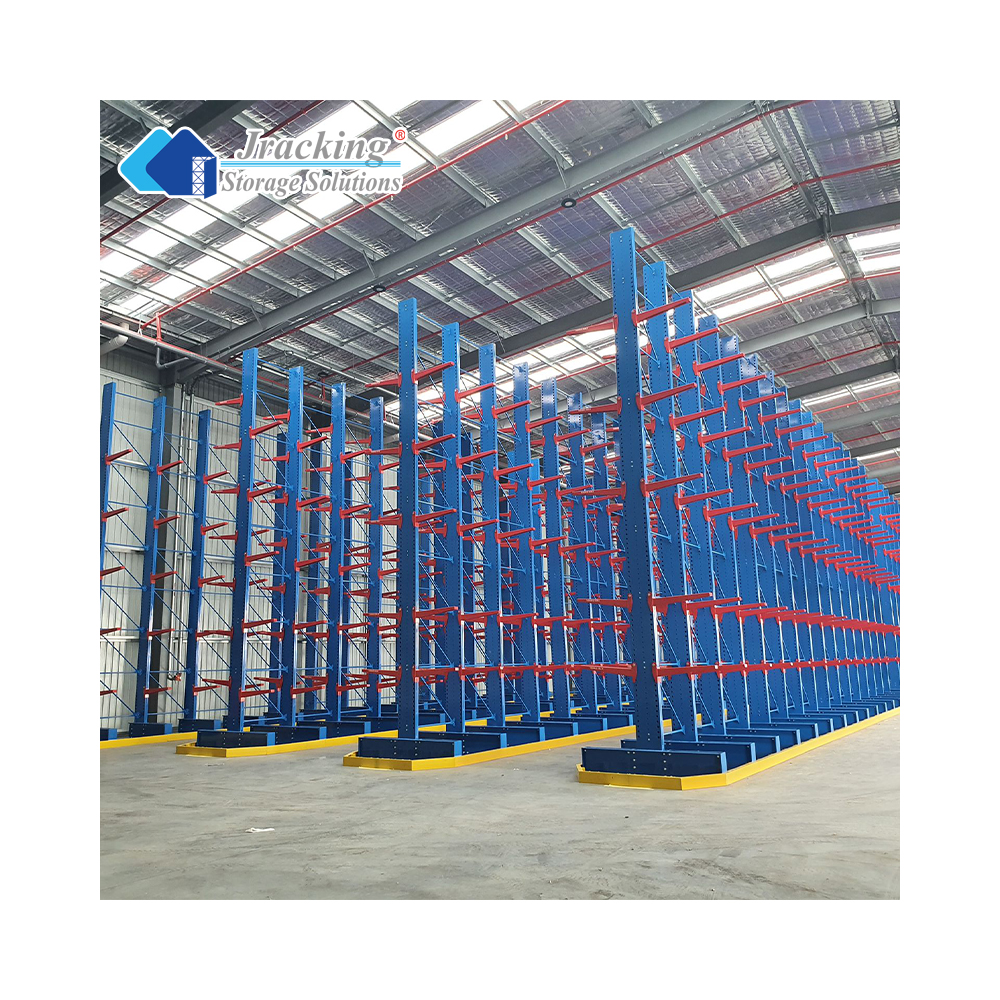

Finally, the completed structure should look like the illustration.
❓ Frequently Asked Questions (FAQ)
What’s your trading terms?
- Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A also available.
- Lead time: Normally in 20-25 days after deposit received.
- Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
- Shipping port: Shanghai / Nanjing China.
- Discounts: We offer good discount for large quantity.
How can I delivery my goods?
- Sea freight: We will update sea freight once we know your sea port where goods will be delivered.
- Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
What is your service?
- Your inquiry related to our products or price will be replied in 12 hours.
- Well-trained and experienced staffs to answer all your inquiries in fluent English.
- OEM & ODM, any your customized racking we can help you to design product.
- We have very experienced professional engineers to make best solutions.
What is the process to purchase your product?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping
What’s your advantage?
- Payment: We can do O/A 40-60 days.
- Lead time: Rush order we can fast delivery.
- Factory price: Factory direct sale competitive price.
- Warranty: Two years warranty, the broken parts will be replaced and sent to you.
Does Jracking have MOQ (minimum order quantity) limitation?
No, but good quantity comes with good price. We recommend the order quantity for regular products of Jracking to fit at least one 20ft container, which is about 15 tons.
