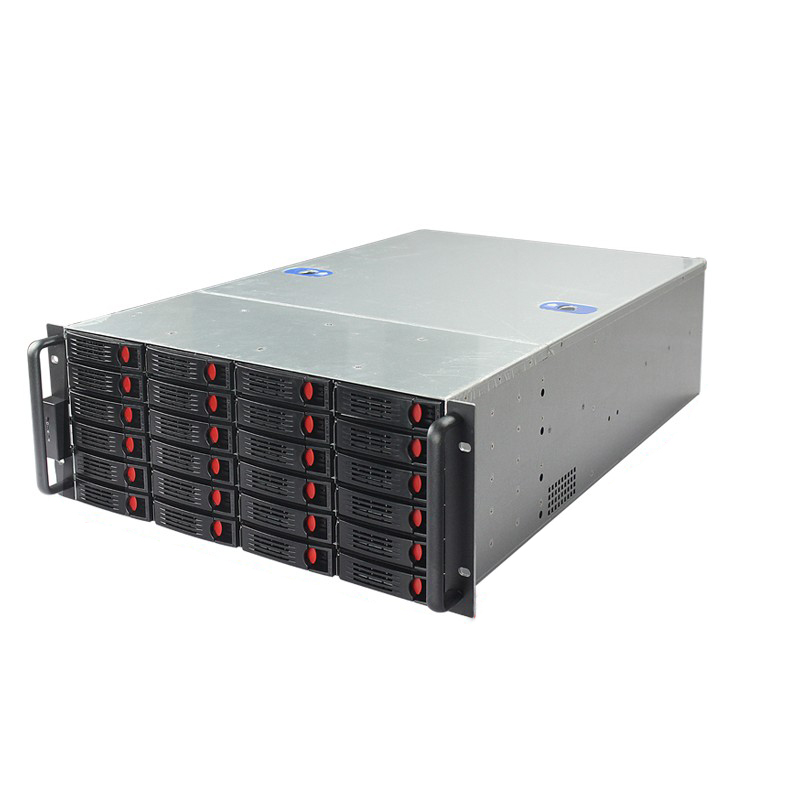

Hot Swap 4U 24-Bay Server Case High Storage Rackmount Chassis 3.5\" HDD ATX Horizontal Style Plastic Form Factor Fan for IPFS
Product Description
Product Description
4U 24 Bays Hot swap Server Case High Storage Rackmount Server Chassis 4U with 3.5" HDD for IPFS

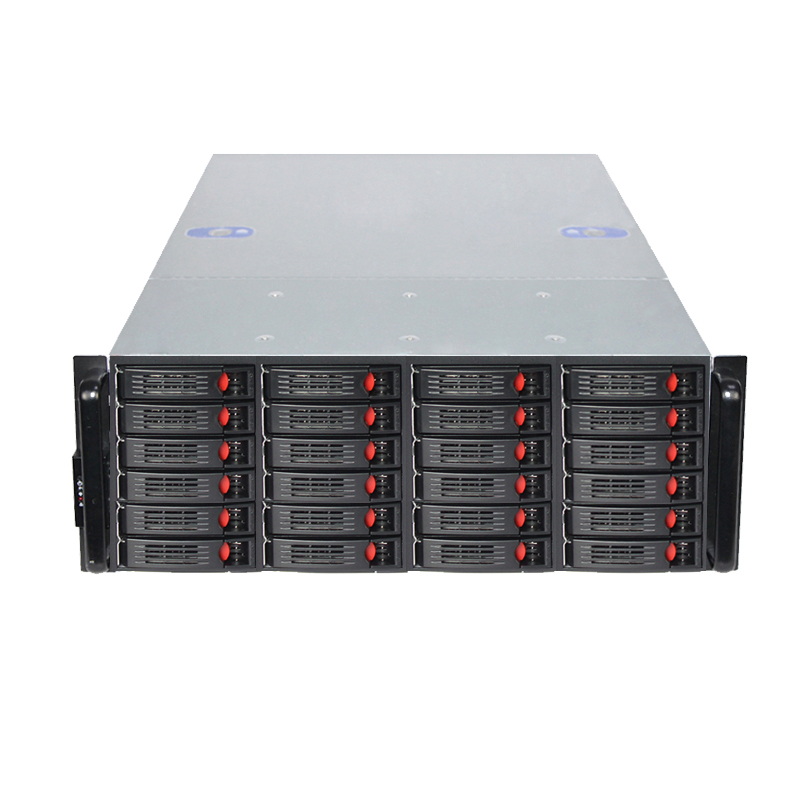

24 Bay Rackmount Hot Swap 4U Server Case
The 4U 24 bays chassis server takes away optical drives, drive cages and other clutter and leave a big open platform allowing for creative modification.
It's Strong, with no wobble , It's ideal for many applications where old style chassis no longer make sense.
Feature
✔
24 x hot-swappable SATA/SAS interfaces, twenty-four 3.5" OS drive brackets for maximum configuration flexibility., also 2-24 bays are alternative.
✔
Support mainboard up to 12" * 9.6" (305*245MM), compatible with ATX, MATX, ITX mainboard.
✔

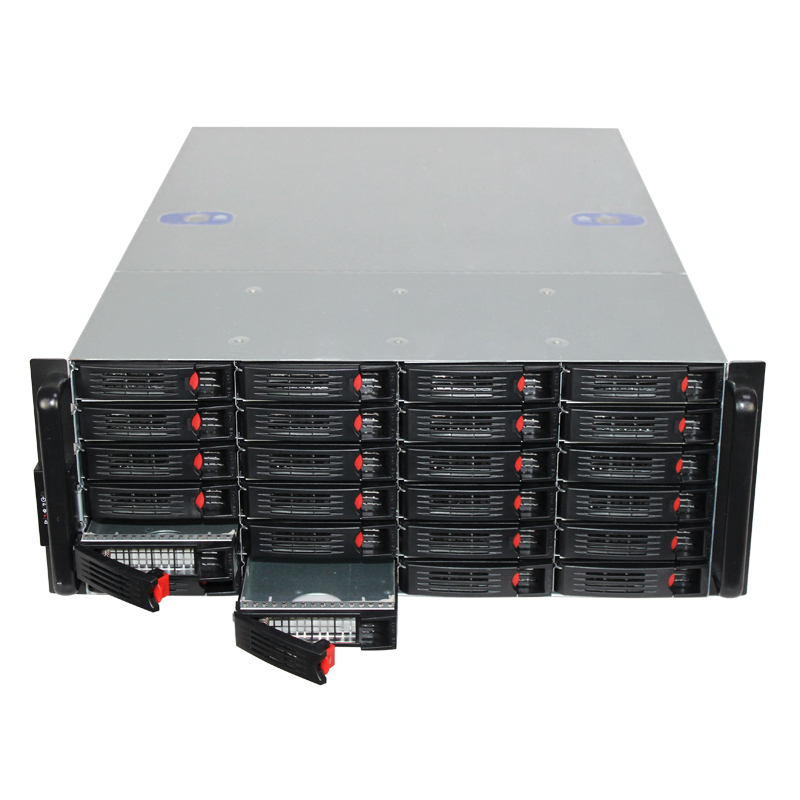

Support twenty-four hot swap SAS/SATA III drives
✔

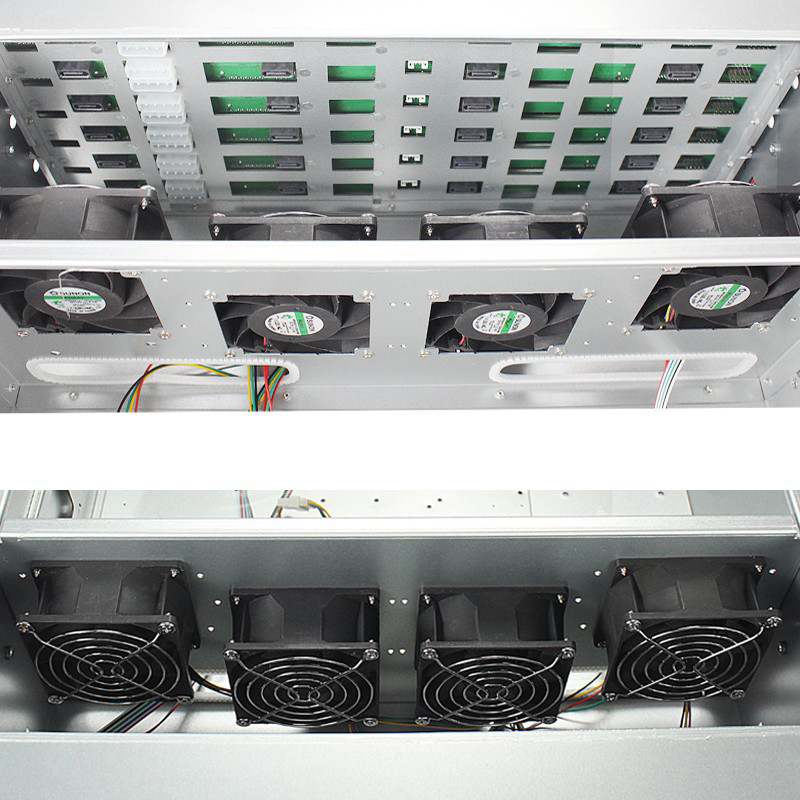

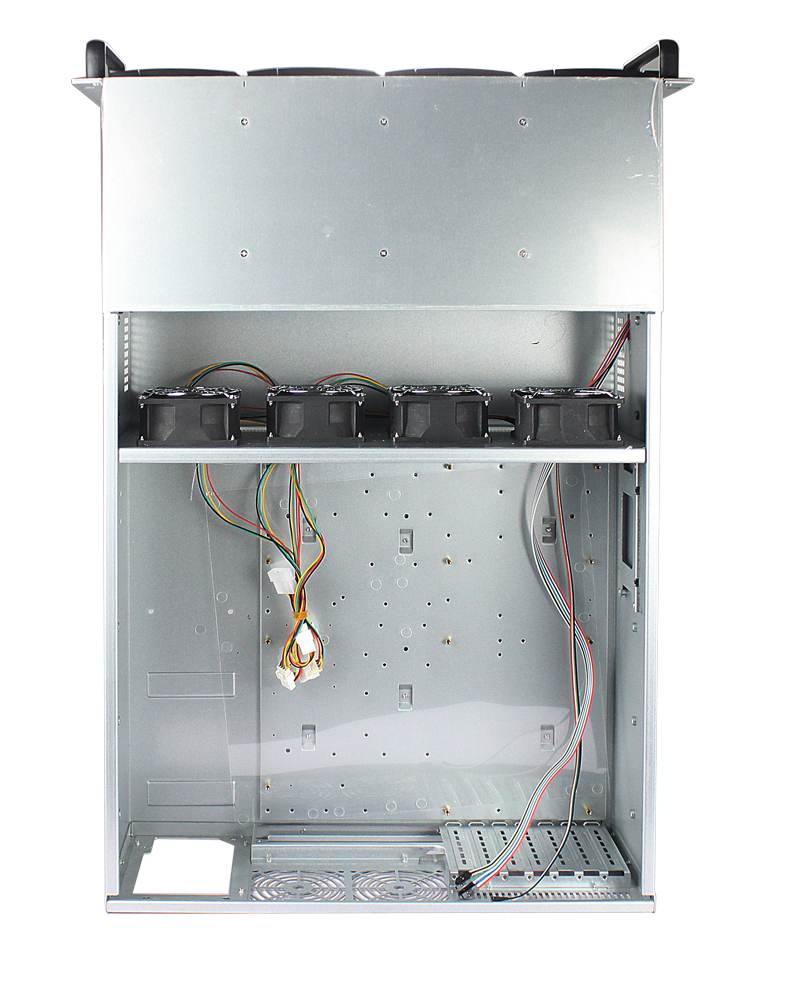

Come with four standard 80mm fans and pre-installed two rear 60mm fans for superior airflow
✔
User friendly design on lifting handle (stand-alone)
✔
Truly isolated anti-vibration design on internal HDD and drive cages
✔
Support ATX power supply and redunt PS2 PSU
✔

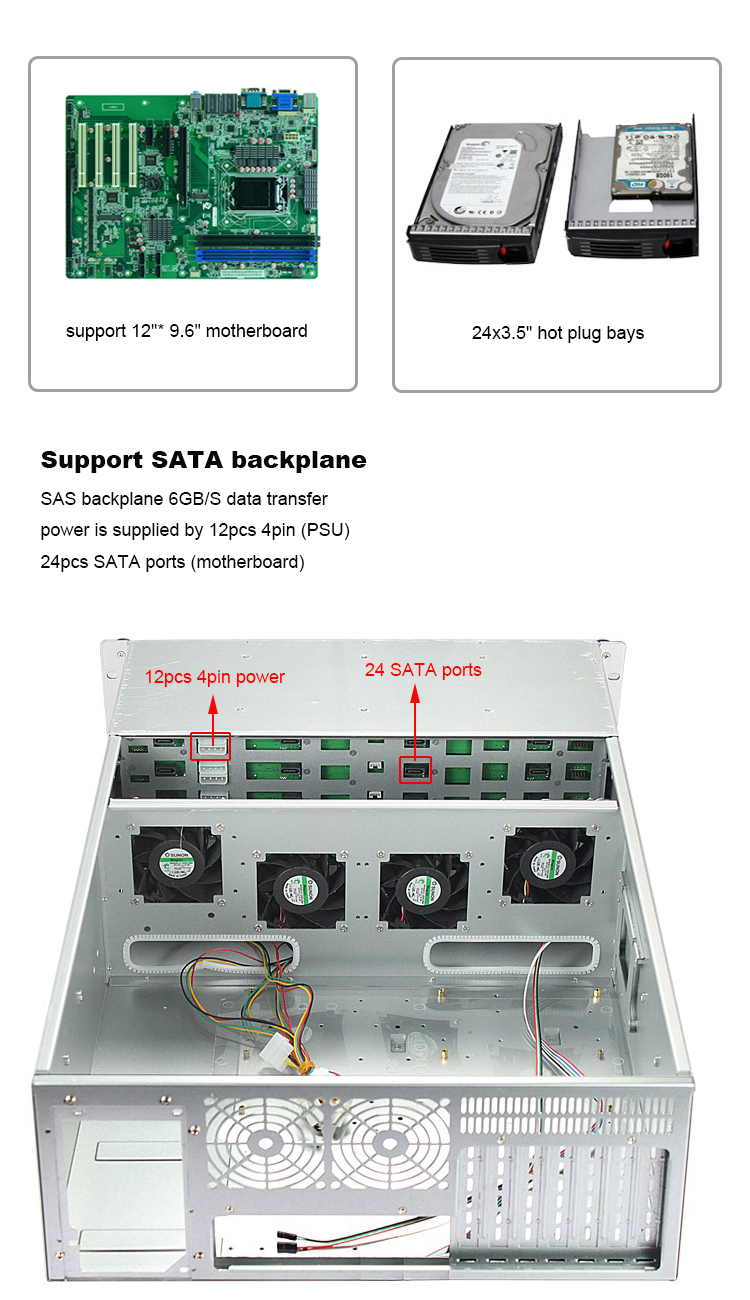

Come with SATA backplane
✔
Front two USB2.0 ports
✔
Card retainers to hold seven full height and vertical add-on cards
✔
Support all operating systems
✔
CE, RoHS Compliant
Application
All typical industrial market segments:
➤
1. Data acquisition for Gauging, Statistical Process Control and automatic machine tool control applications
➤
2. Stand-alone or networked controller for data collection
➤
3. Handling equipment, motion control
➤
4. Manufacturing, cell controllers
➤
5. General automation and factory applications
Technical Details
| Model | R466-24 |

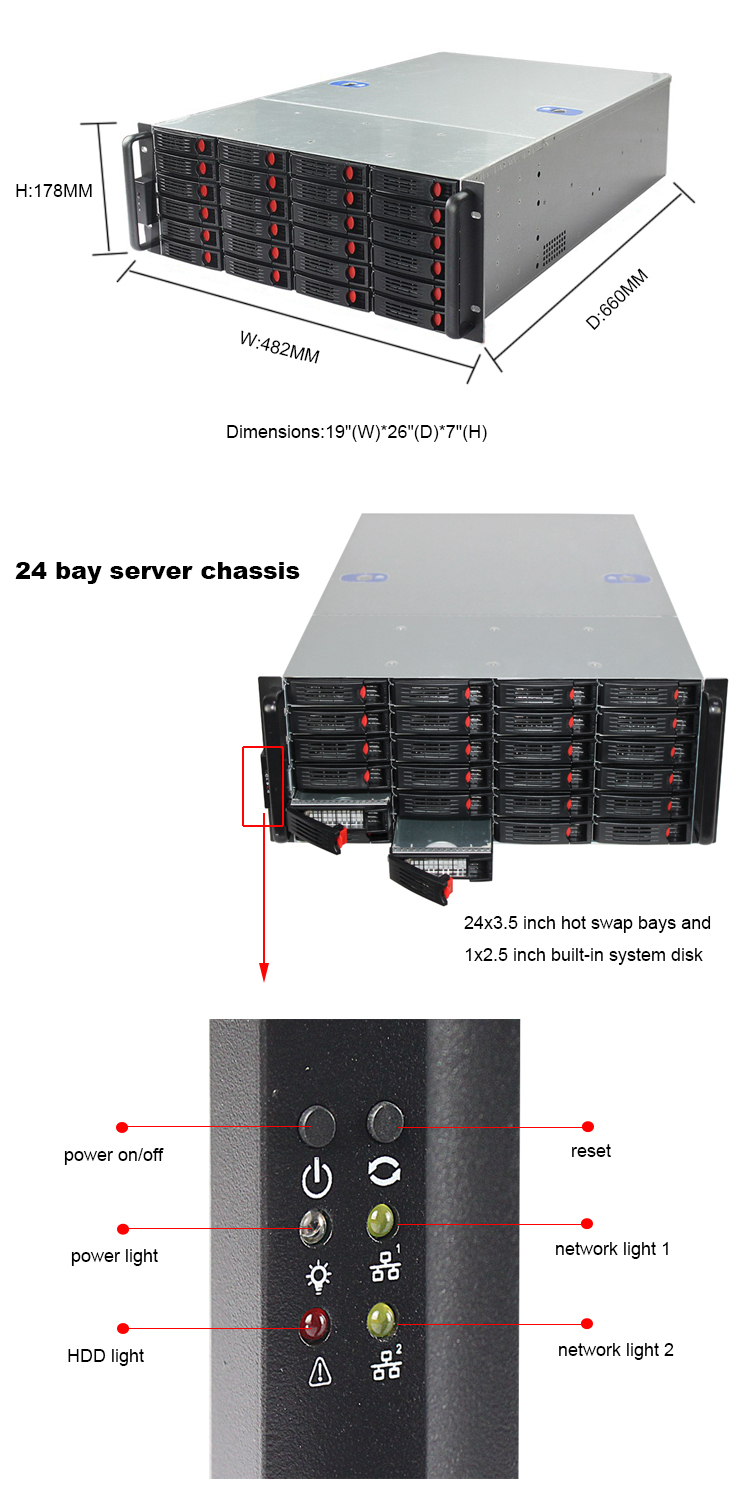

| Dimensions | 482(W)*660(D)*178mm(H) |
| Main Board | 12"* 9.6"(305*245MM) |
| Hard Disk | 24*3.5-inch Hot Swap Hard Disks + 1*built-in 2.5in system disk |
| CD-ROM | No |

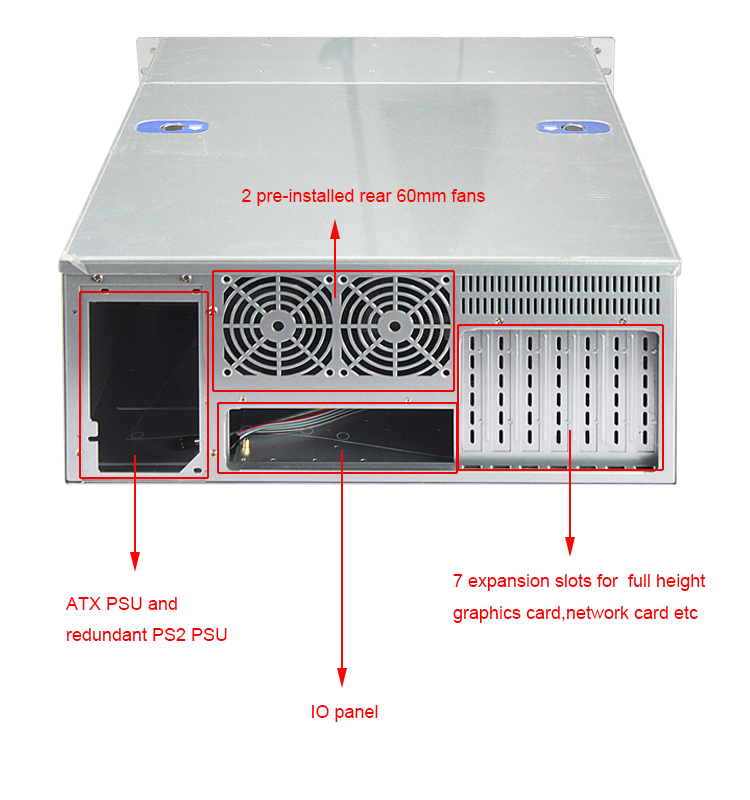

| Power | ATX power supply and redunt PS2 PSU |
| Fan | 4*8038 cooling fan + 2 pre-installed rear 60mm fans |
| Expansion Slot | 7 full height and vertical expansion slots |
| Panel Setting | 1 Power button, 1 reset button, 1 hard disk light, 1 power light, 2 network light |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 85*60*31cm |
| G.W | 16kg |
| N.W | 15.68kg |

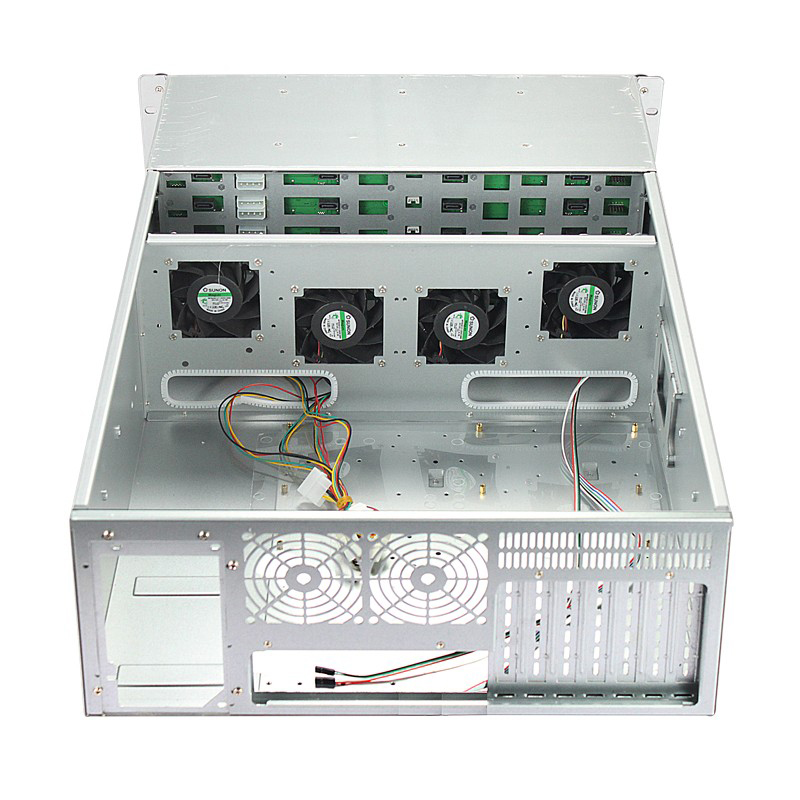

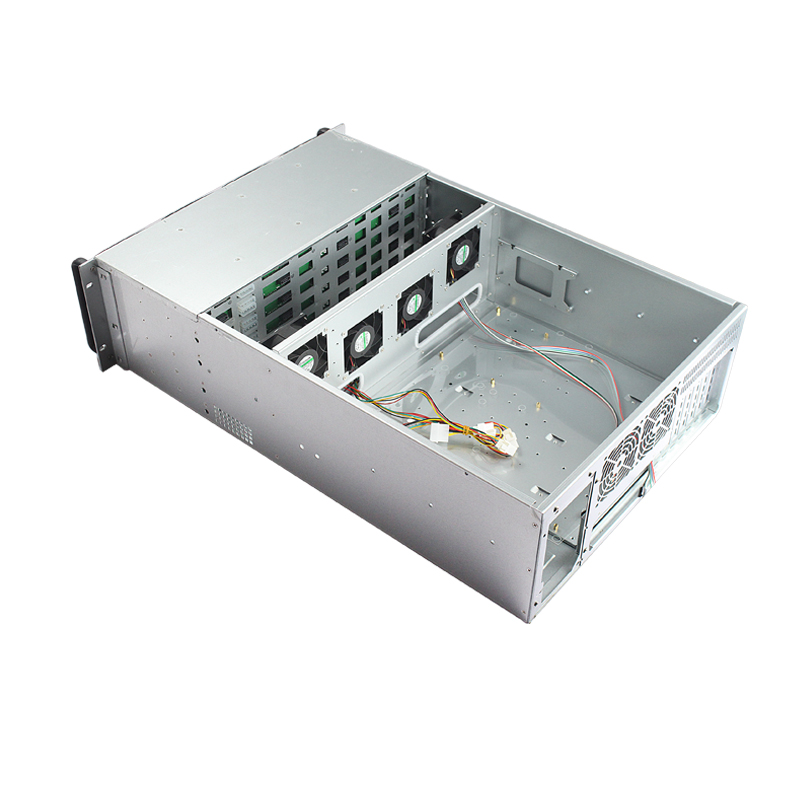

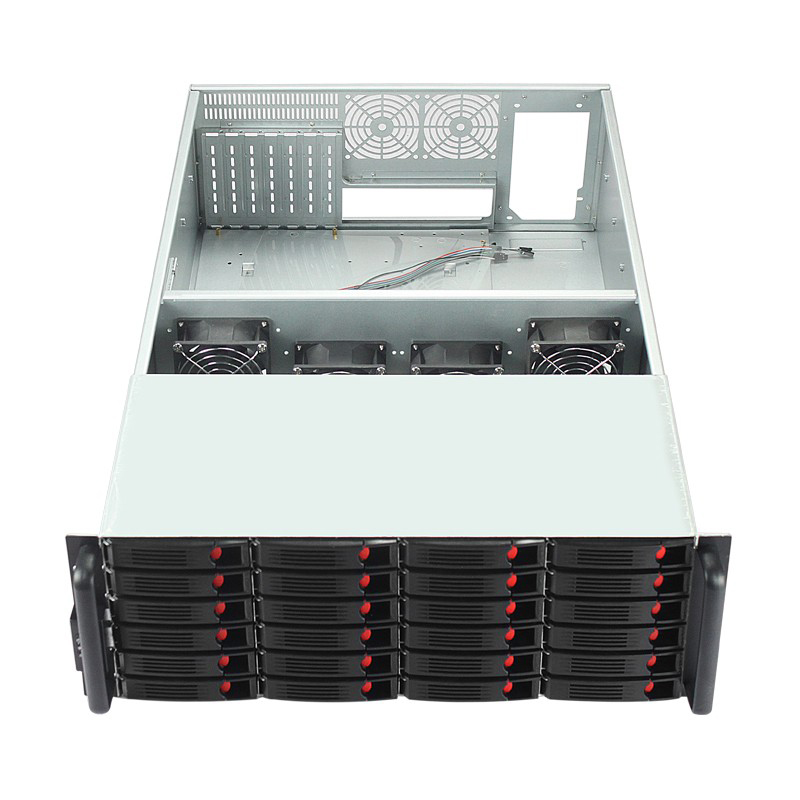

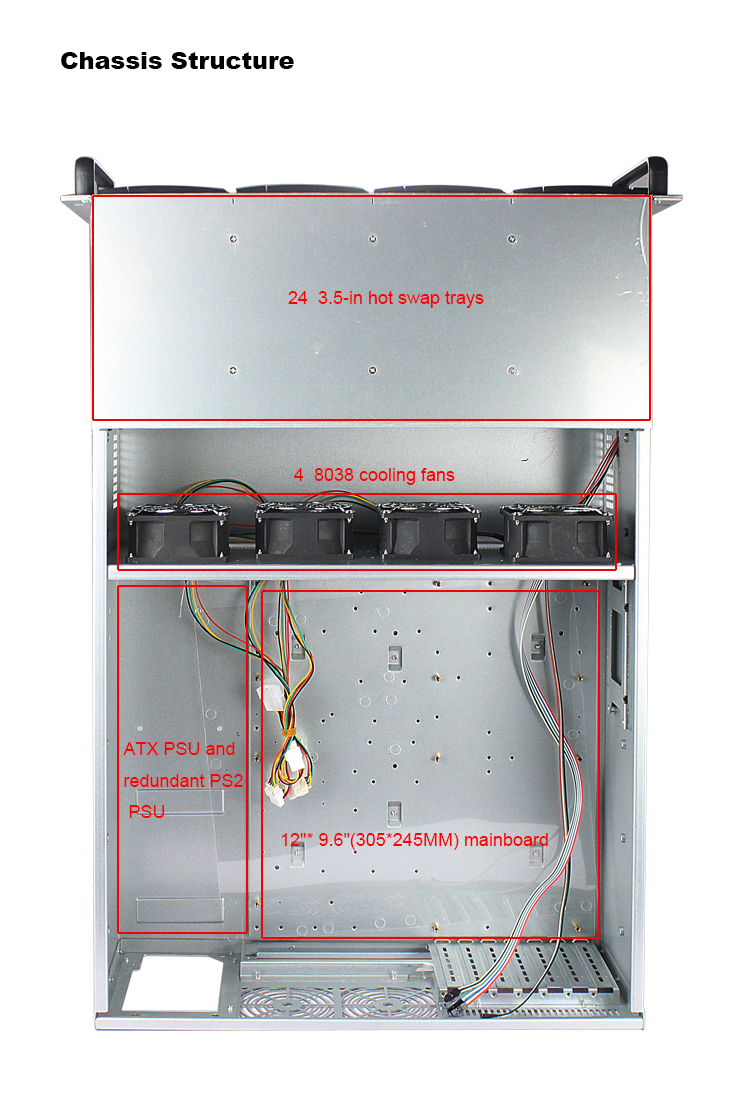

Detailed Images
Related Products

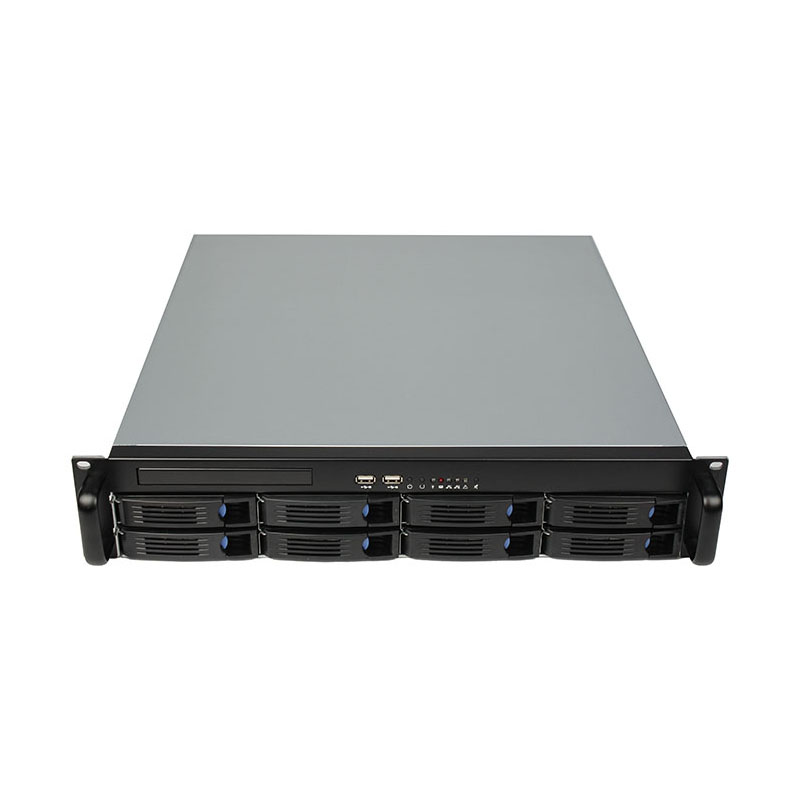

R248-8
8 Bays Hot Swap Server Case

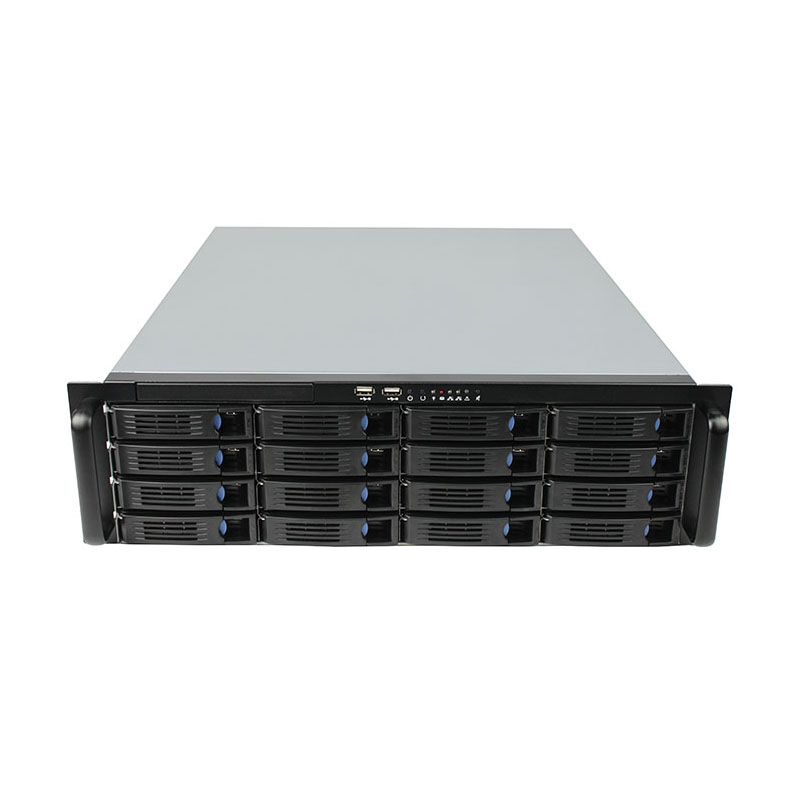

R355-16
16 Bays Hot Swap Server Case

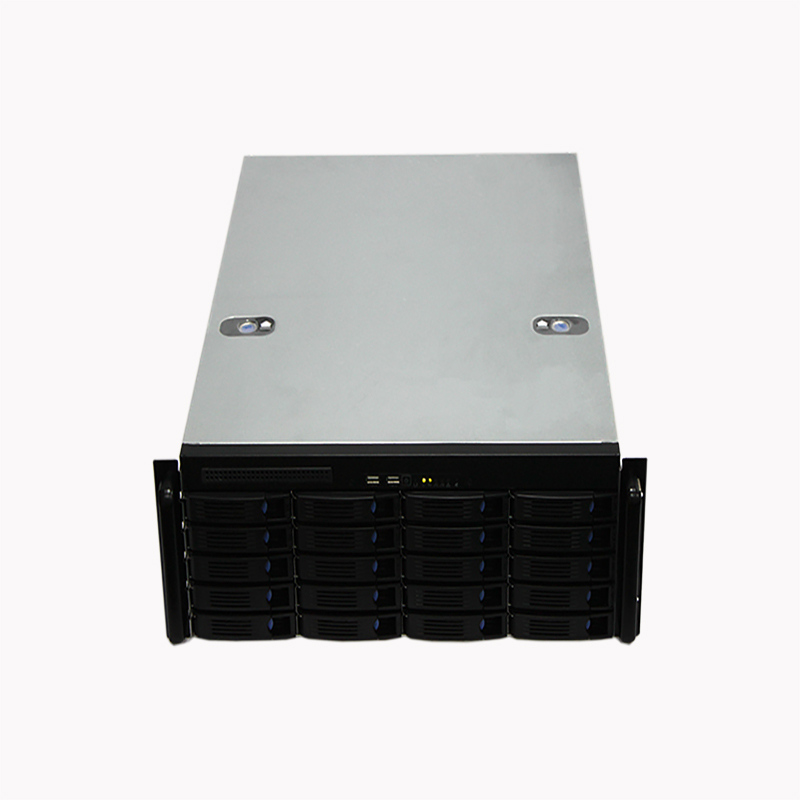

R466-20
20 Bays Hot Swap Server Case
Packing & Delivery

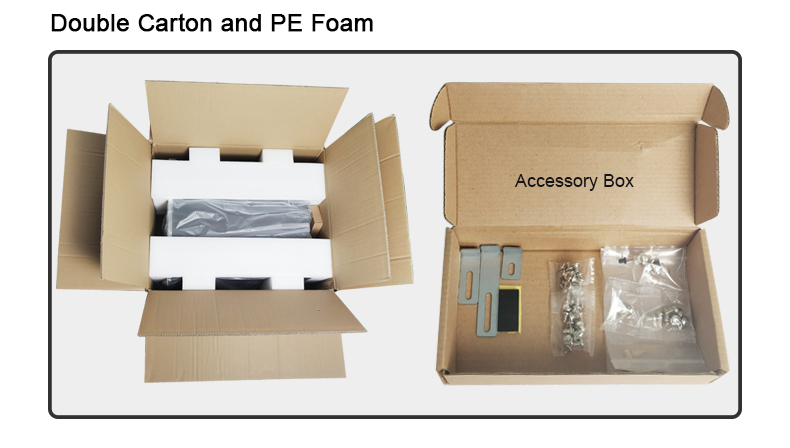

Packing Materials: Double carton and PE foam
Packing Size: 85*60*31cm
Weight: 16KG
Delivery: 3-7 days after payment via DHL, FedEx, UPS or your forwarder.
OEM Service
MOQ: 1Set standard product for sample checking is available. OEM products MOQ is 50Set.
OEM Process:
1st. Let us know your requirements or application and your planning QTY.
2nd. My sale engineer give the best solution and quote according to your requirements.
3rd. Sign a sample contract and pay the payment.
4th. Make a sample and Confirm it. Satisfy or modify some parts.
5th. Place a mass order. Return the sample cost. Pay the payment.
6th. We arrange the production. Delivery goods as agreed date.
FAQ
Q1: Can you get better price? Or discount?
Yes. We can give you discount, but it's based on quantity, bigger quantity, more attractive price.
Q2: OEM/ODM?
Yes, we accept OEM and ODM, send us 2D/3D drawing please if you have.
Q3: How about the payment terms?
T/T, Trade Assurance, Money Gram, WU, paypal etc before shipment.
Q4: Can you be responsible for shipment?
We will organize and arrange all transportation after finishing production, and the freight will be paid by yourself in general. Our all products ships by air (usually via FedEx UPS and DHL, or your own forwarder), which ensures you can receive the goods within 7-10 days, also can be shipped by sea, just according to your demand.
Q5: Lead time for bulk order?
If we have enough stock, 3-7 work days after payment.
Q6: What is your warranty period?
Warranty is 1 years, not include man-made damage.
