Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Product Description
Product Description

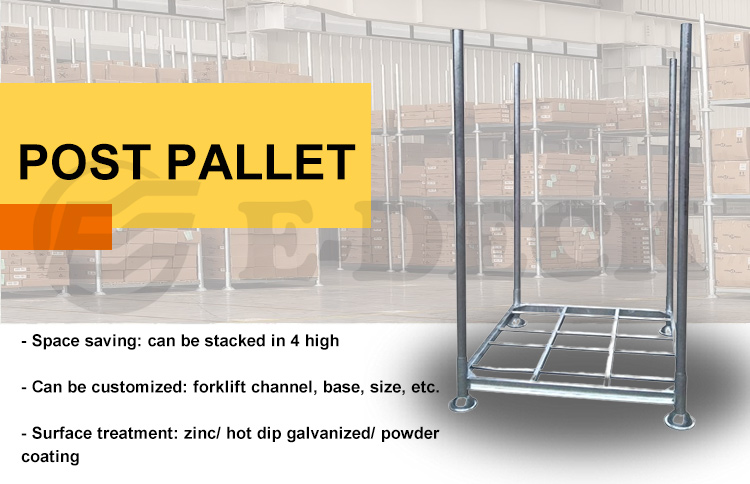

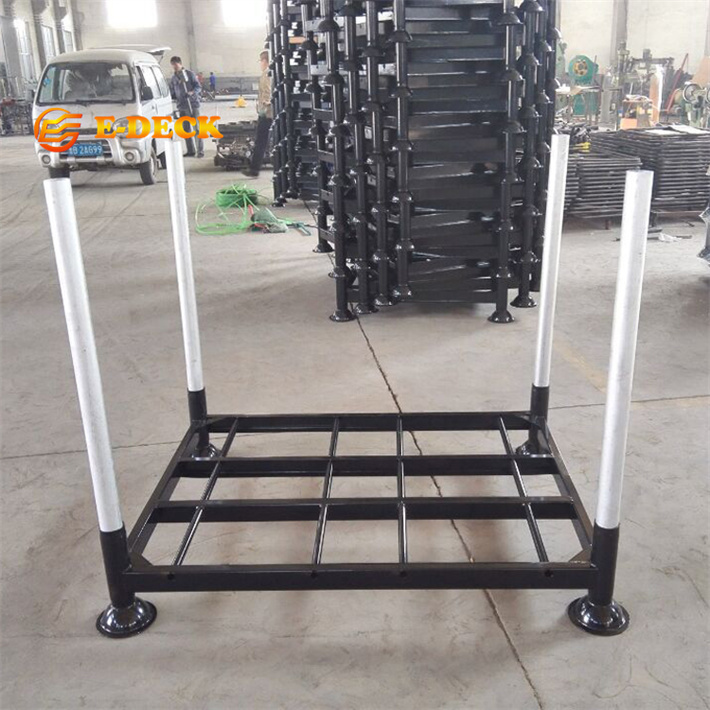

Specification of Storage Post Pallet
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total Container |
|---|---|---|---|---|---|
| L×W×H (mm) | kg | Type | Sets | ||
| EDT1-Base | 1395×1060×310 | 1500 | Zinc | 250 | 1×40'HQ |
| EDT1-Post | 1200×60×2.5 | Zinc | 1000 | ||
| EDT2-Base | 1875×1060×310 | 2000 | Zinc | 150 | 1×40'HQ |
| EDT2-Post | 1200×60×2.5 | Zinc | 600 | ||
| EDT4-Base | 1545×1050×310 | 1000 | Powder coating | 247 | 1×40'HQ |
| EDT4-Post | 1510×60×2.5 | Zinc | 988 | ||
| EDT5-Base | 1200×1000×310 | 1500 | Zinc | 250 | 1×40'HQ |
| EDT5-Post | 2000×60×2.5 | Zinc | 1000 | ||
| EDT6-Base | 950×950×310 | 1000 | Zinc | 160 | 1×40'HQ |
| EDT6-Post | 1200×60×2.5 | Zinc | 640 | ||
| Material | Mild steel Q235 | ||||

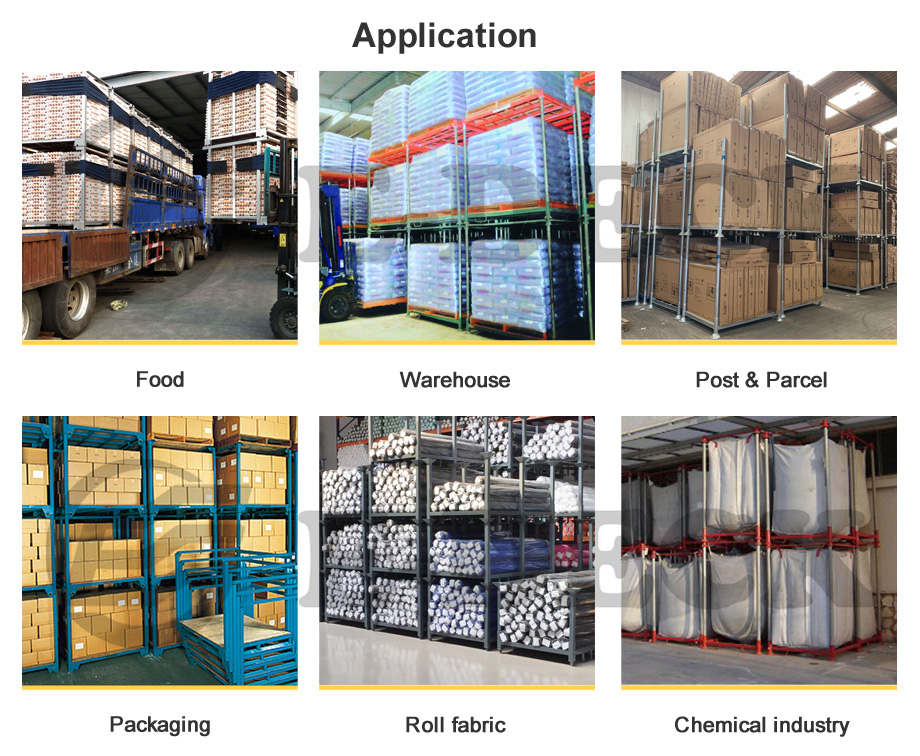

| Application Area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Customized or OEM support | ||||

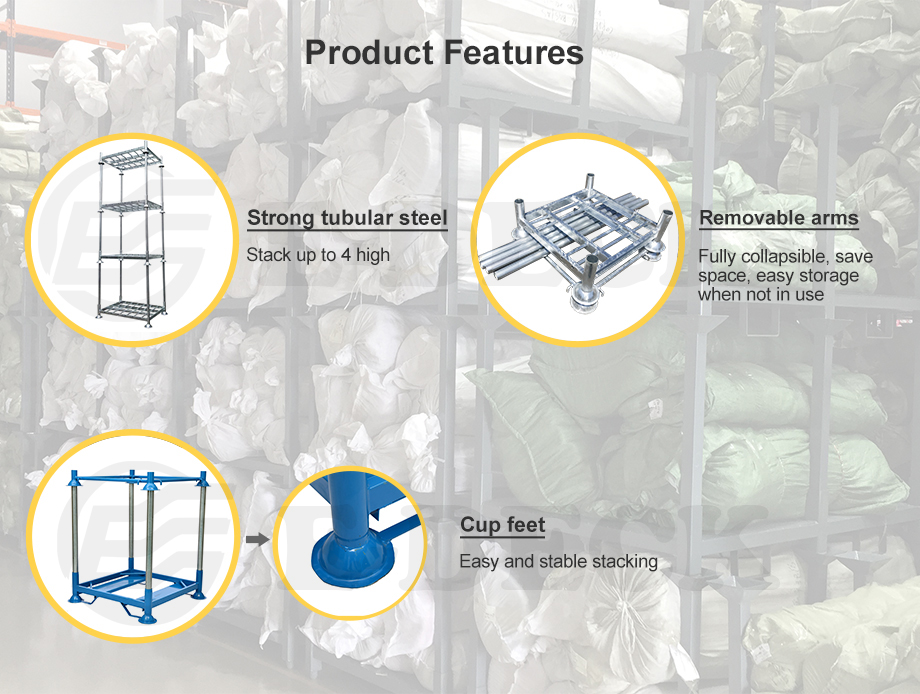

| Key Features |
|
||||

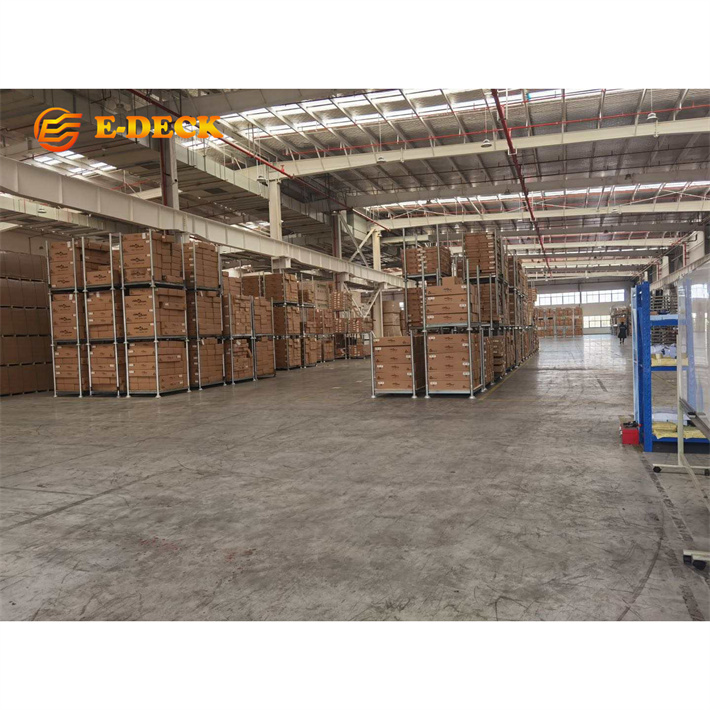

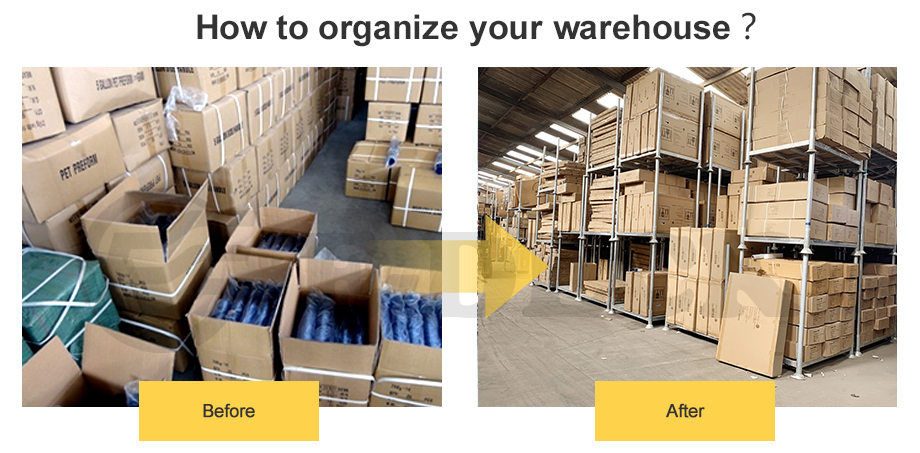

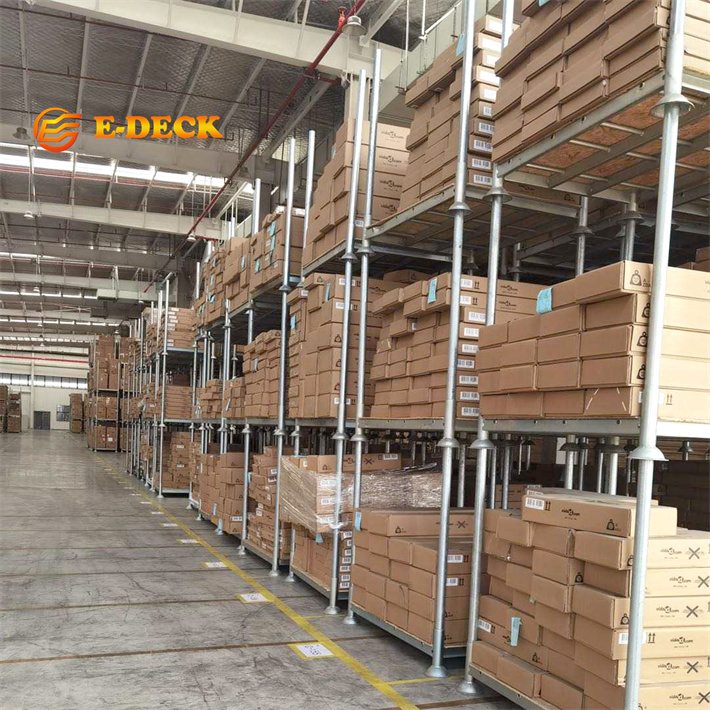

Product Uses
Packaging & Shipping

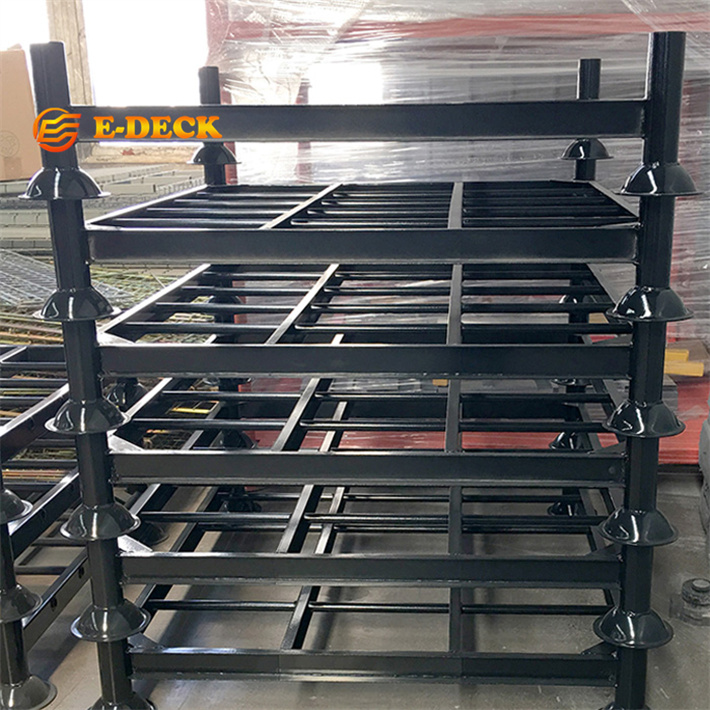

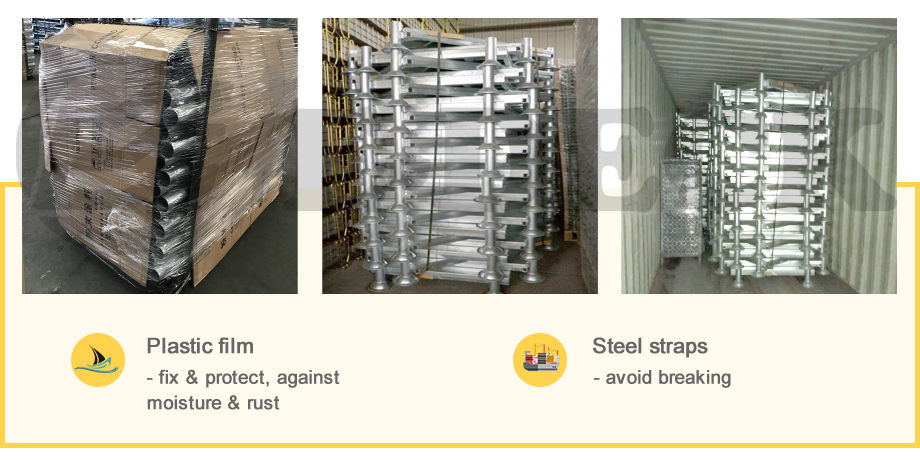

Packing Details
- Plastic banding with wooden pallet
- Stretch film wrapped for optimum transit protection
Delivery Time
- 30 days for Storage Post Pallet after receiving 30% deposit
Payment Methods
- T/T: 3-5 Working Days to Account
- Western Union: 1-24 Hours to Account
- MoneyGram: 1-24 Hours to Account
- PayPal: Immediately to Account
Company Information

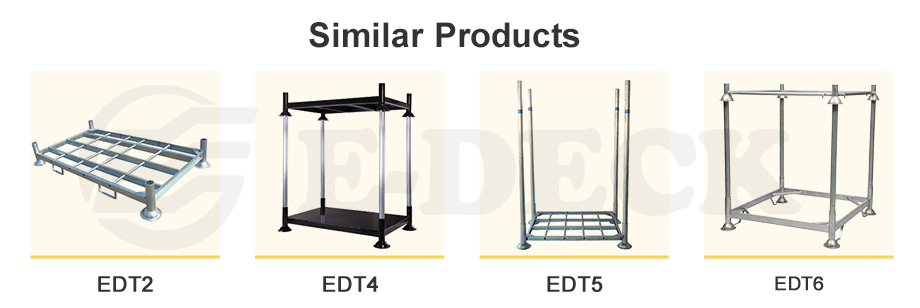

Main Products
If you have other needs, check more E-Deck product information:
Our Services
Frequently Asked Questions
Q1 What material is used for the Storage Post Pallets?
We use high-quality mild steel Q235, which delivers strong durability and structural reliability for heavy industrial warehouse stacking.
Q2 What surface finishes do you provide, and which is suitable for outdoor use?
We provide Electro-galvanized (zinc plated) for indoor storage, Powder Coating for varied environments, and Hot-dip Galvanized for corrosion resistance in outdoor and cold storage applications.
Q3 What are the available loading capacities?
Options include light duty (100–300 kg), medium duty (400–800 kg), and heavy duty (1000–1700 kg/2000 kg), engineered according to your specific storage demands.
Q4 Can you design or customize dimensions without an existing drawing?

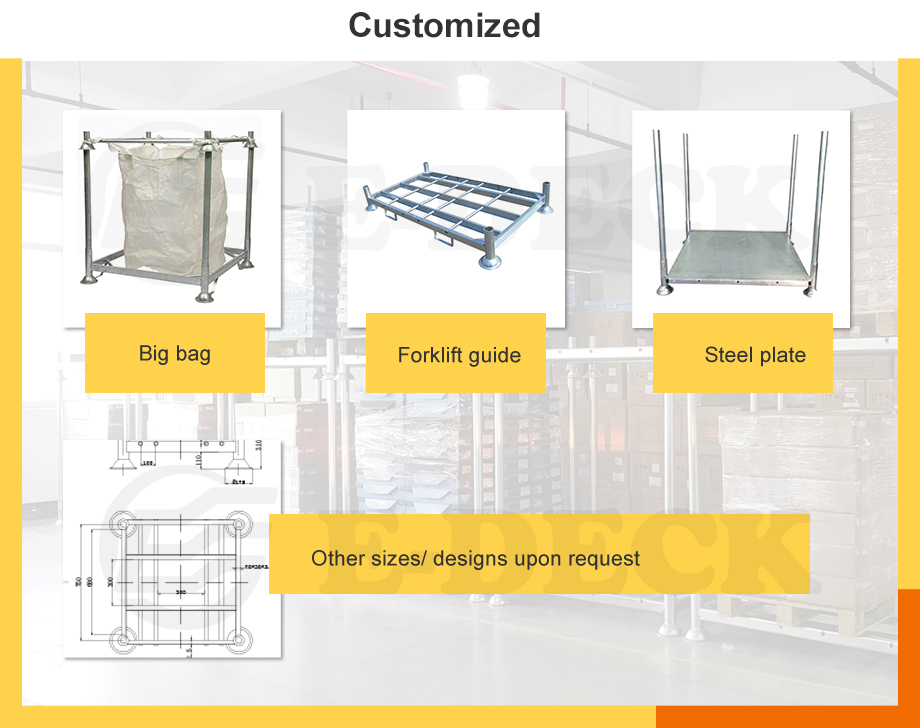

Yes, we provide full OEM and custom design support. We will create suitable drawings based on your dimension requirements, loading capacity, stacking limits, and operating environment.
Q5 What is your MOQ and average production lead time?
The minimum order quantity is typically 1x20'GP container (exact units depend on post pallet size), and the average lead time is 2-3 weeks upon receipt of the deposit.
Q6 What warranty conditions are provided?
A 3 to 10-year warranty is provided given proper handling during forklift operations, avoiding overloading, and adhering to normal environmental conditions.
