High Load Capacity 8-Layer Anti-Rust Powder Coated Steel Rack Heavy Duty Warehouse Storage System for Industrial Pallet Use
Product Description
Product Highlights
- High load capacity: Supports heavy industrial pallets for efficient storage.
- Heavy-duty: Designed to withstand harsh warehouse environments.
- Steel structure: Robust and long-lasting to ensure reliability.
- Modular design: Customizable to meet various storage requirements.
- Ergonomic placement: Easy to install, enabling quick and efficient sorting.
Product Specifications
| Product Name | Hand Crank Drawer Sheet Rack | Upright Material | Standard 3015mm, 6030mm, extra-large sheets customizable |
| Applicable Materials | Steel sheet, aluminum sheet, stainless steel plate, stone slab, plastic panel, decorative board | Standard Drawer Layers | 4 - 7 layers, adjustable layers |
| Drive Mode | Electric motor drive, one-key independent extension for single drawer | Control System | Electric control buttons, emergency stop, automatic power-off limit switch |
| Single Drawer Load | 2 - 5 Ton optional customizable | Installation Method | Fixed with anchor bolts, suitable for hardened cement floor |

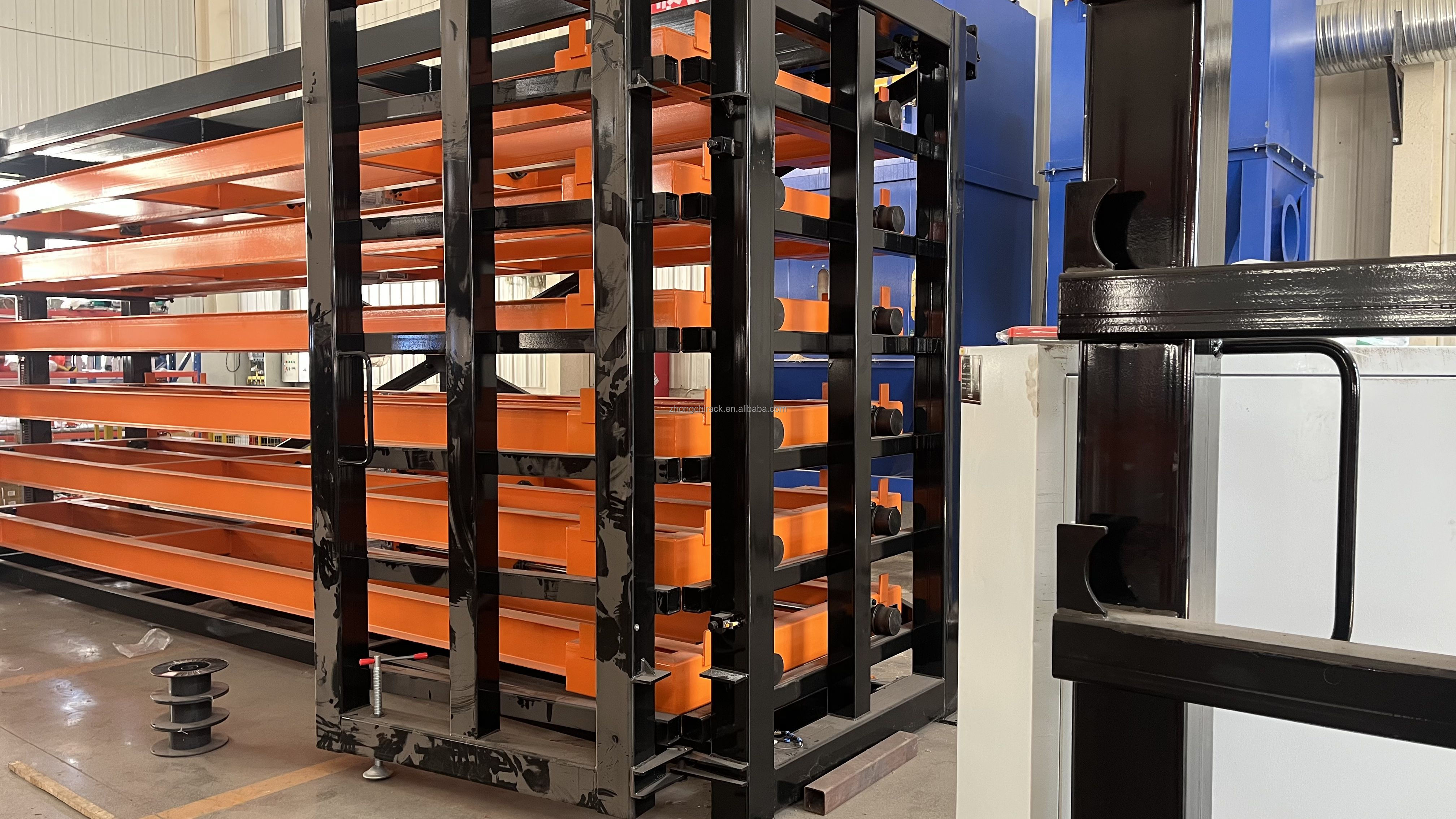

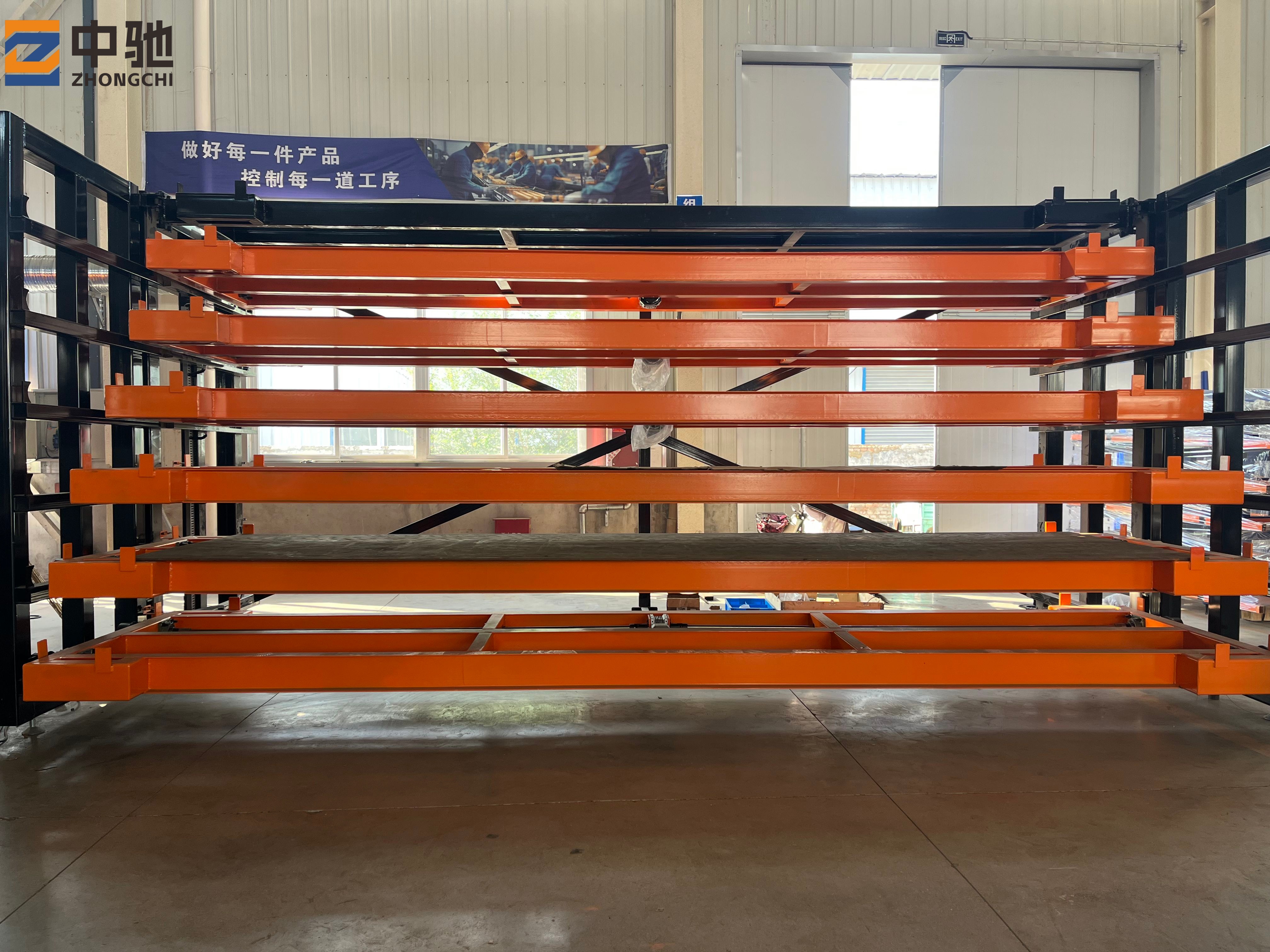

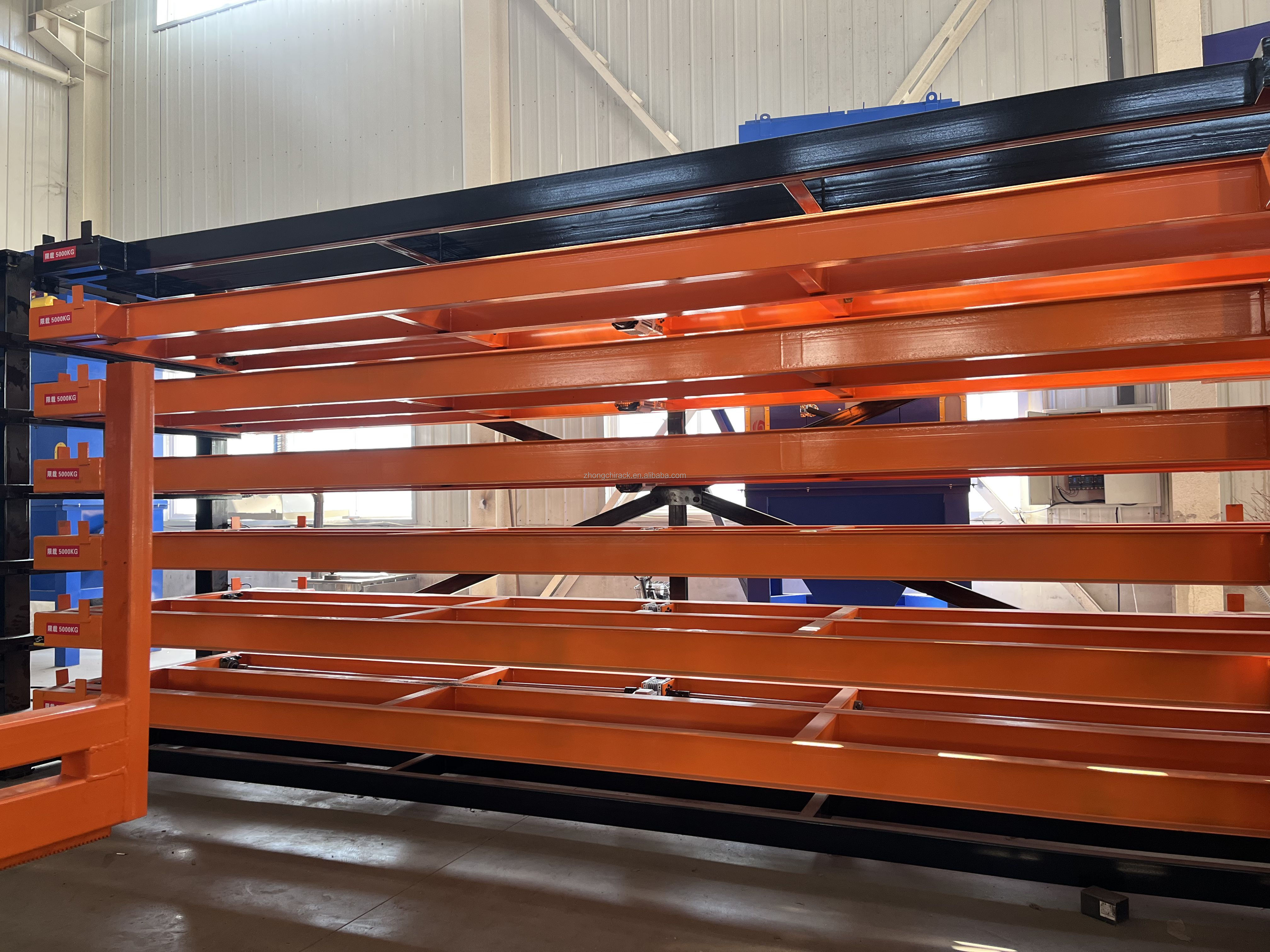

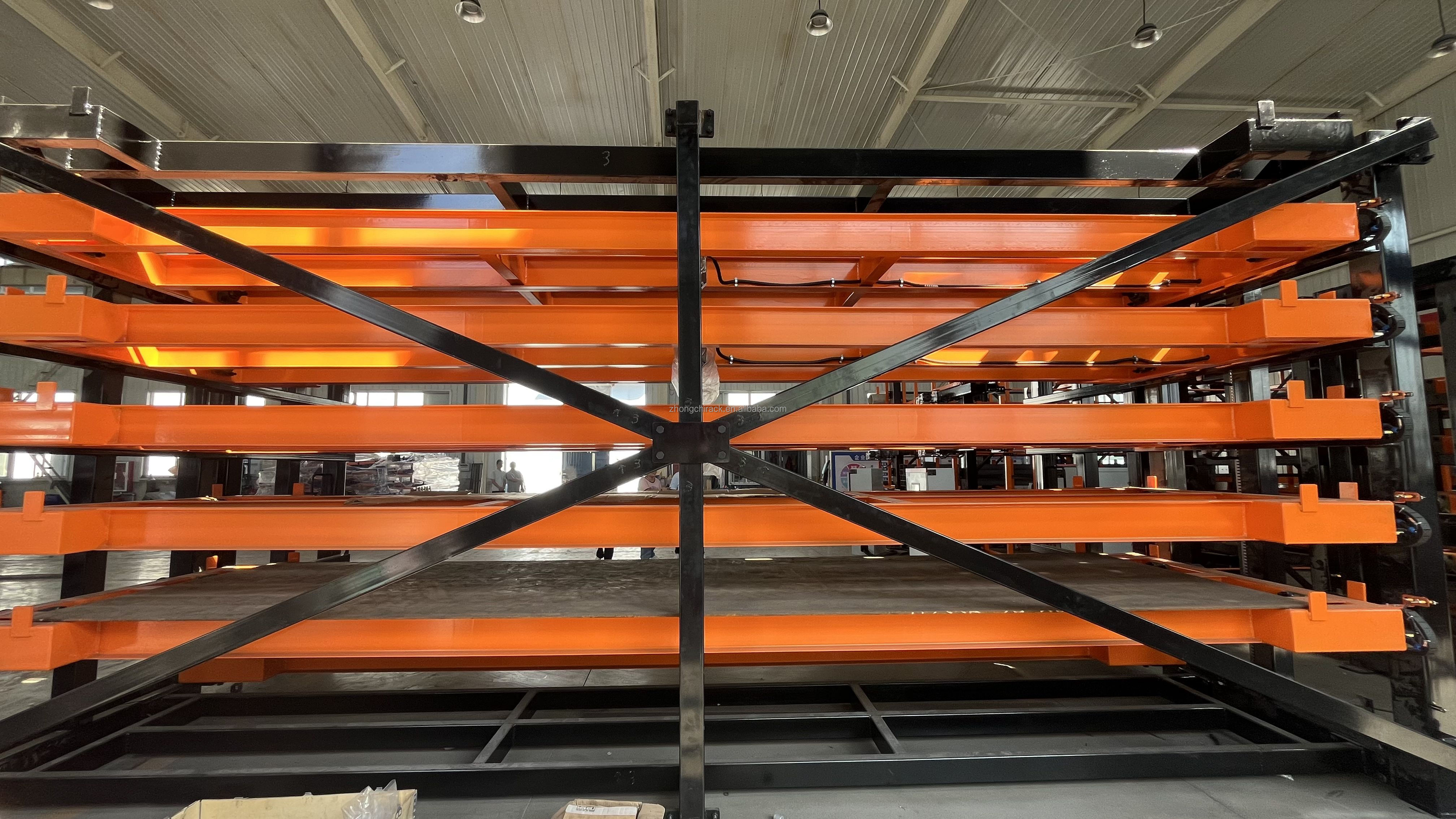

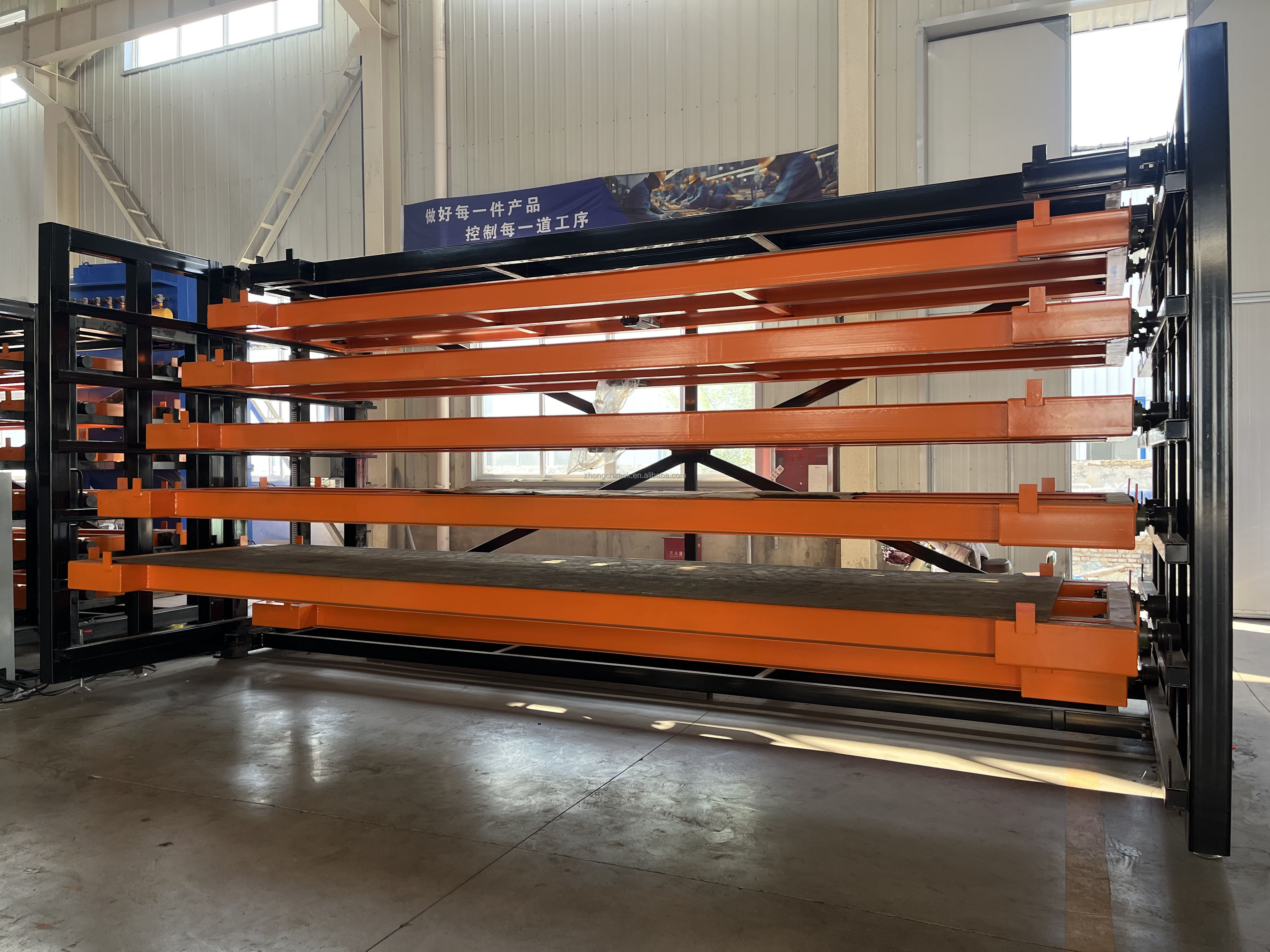

Scene Image
Specifications Overview

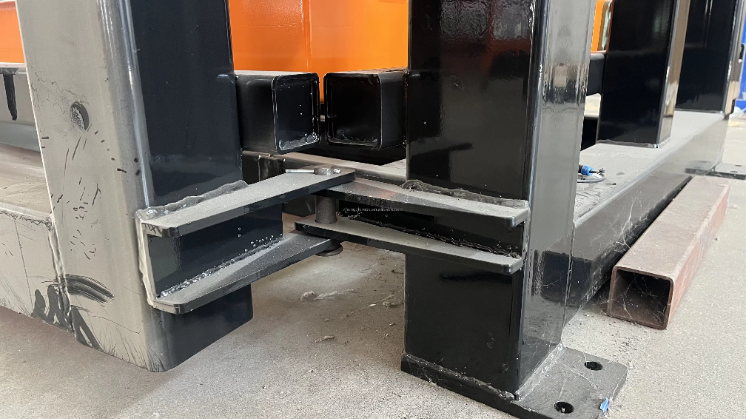

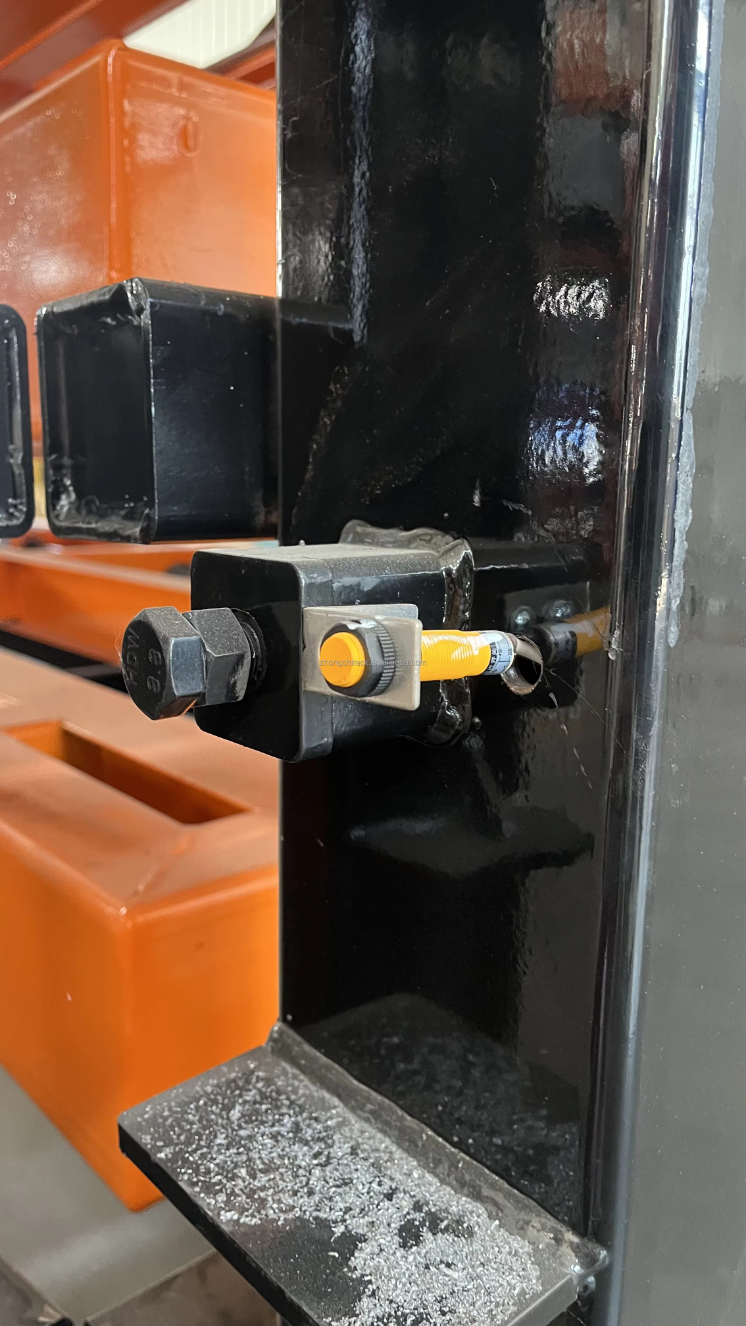

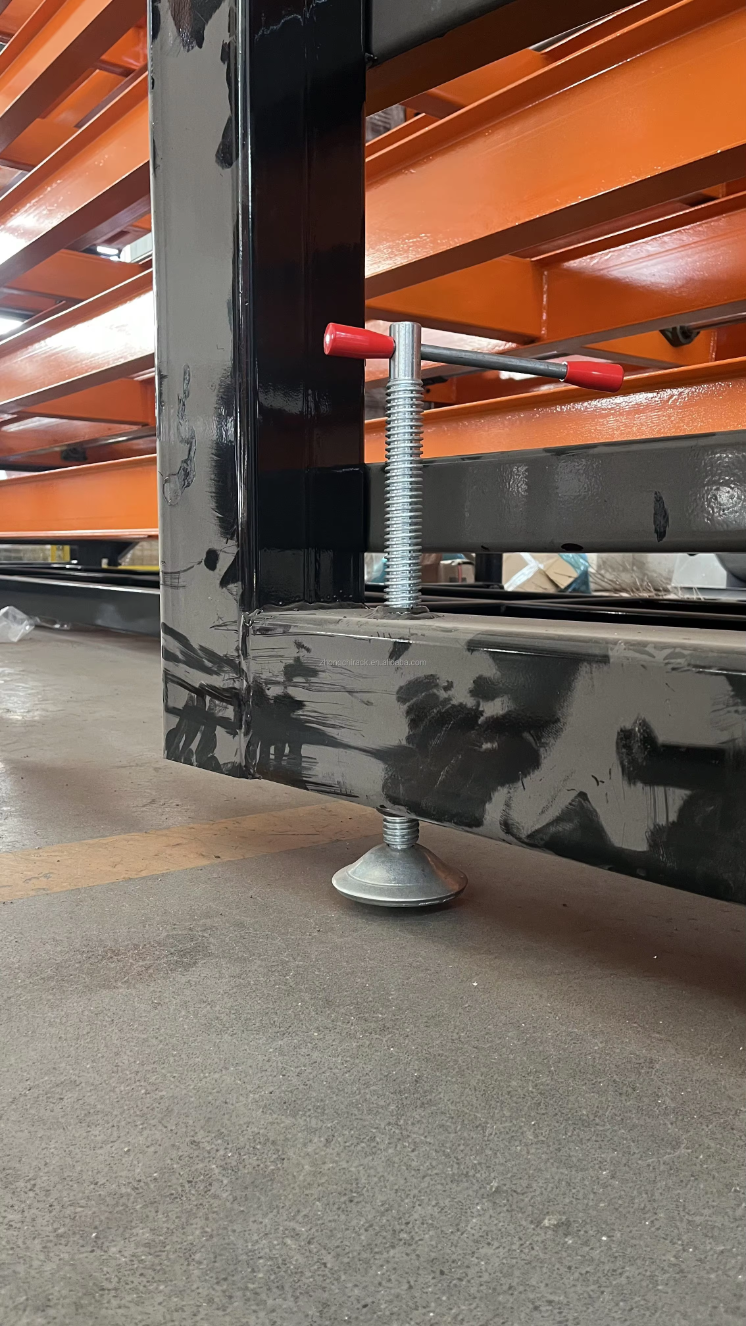

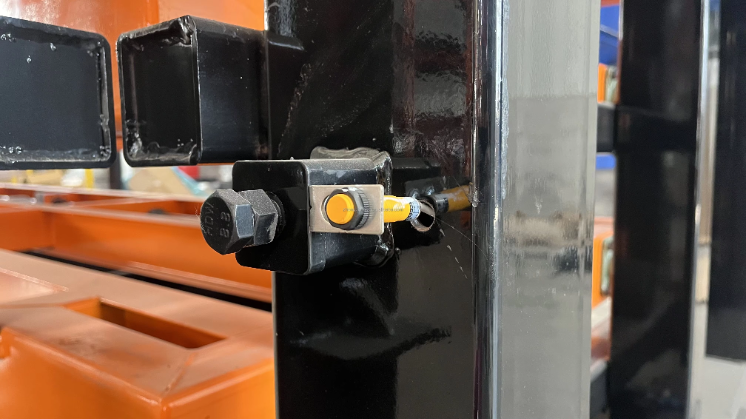

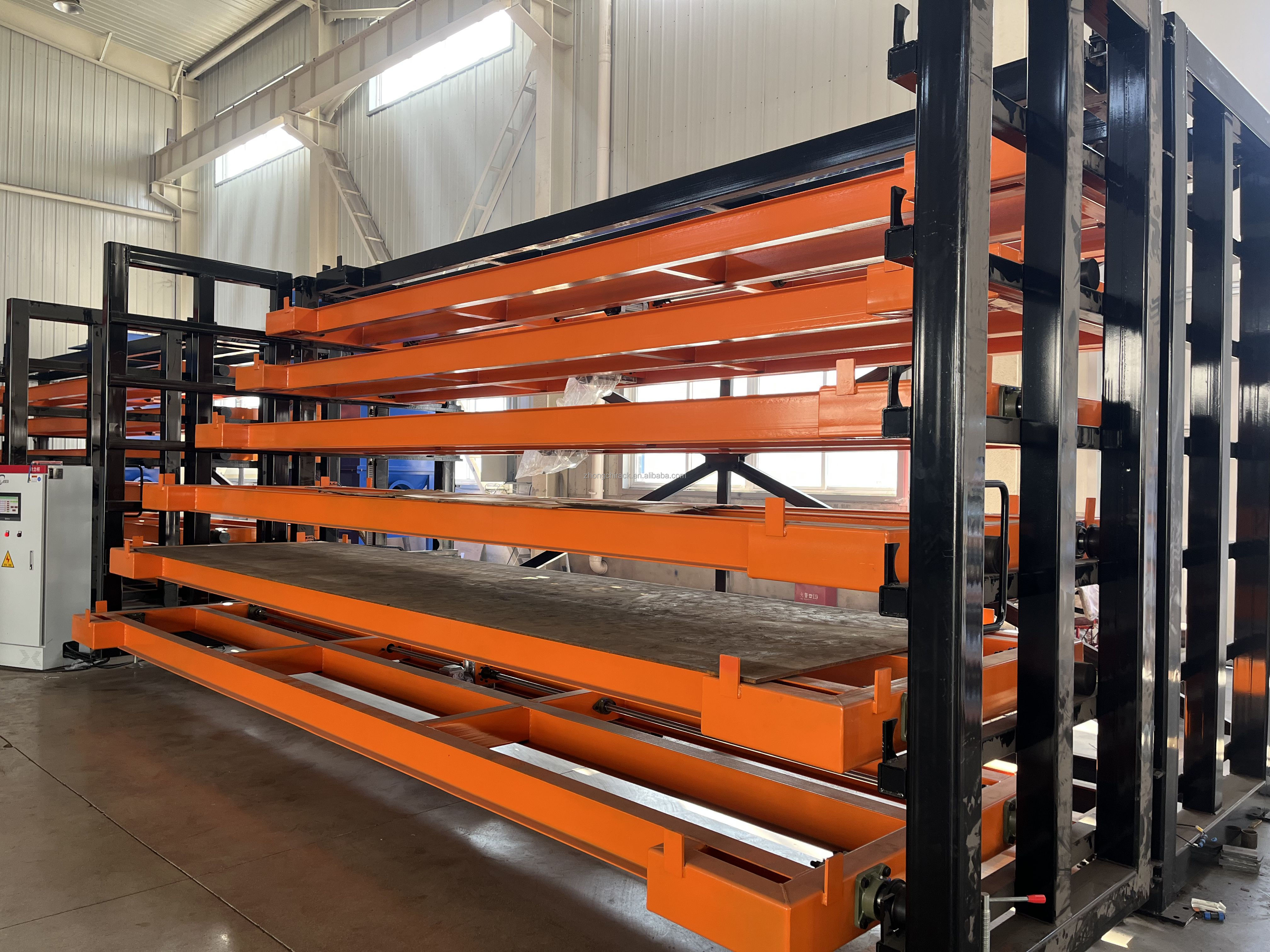

Detail Shot
About The Supplier
Manufacturer Background: Zhongchi Machinery is a professional heavy-duty storage rack manufacturer based in Jinan, Shandong Province. We integrate independent R&D, mass production and customized sales into one complete business system.
Main Product Range: We focus on industrial raw material storage equipment. Our core products include telescopic cantilever racks, drawer sheet racks, beam pallet racks and intelligent automated stereoscopic warehouse systems.
Production Strength: Our factory owns standardized large workshops and fully automatic production lines. We have powerful production capacity and offer flexible one-stop customization solutions for various warehouse storage needs.
Strict Quality Control: All racks are made of national standard thickened Q235 steel. Each product goes through multi-rigorous inspections, electrostatic anti-corrosion spraying and professional load-bearing tests to guarantee stable and long service life.
Global Supply Service: We provide direct factory supply for warehouse clients from domestic market and all over the world, with reliable product quality and comprehensive after-sales support.
Company Overview
Factory Profile
Packaging & Shipping Specifications
Production Workflow
Frequently Asked Questions
Q1 What kinds of sheets can the electric drawer sheet rack store?
It is suitable for all flat panels including steel sheets, stainless steel sheets, aluminum sheets, copper sheets, acrylic sheets, plastic sheets, sheet metal blanks and laser cutting raw materials. Widely applied in sheet metal factories, laser processing plants, hardware workshops, building material warehouses, mold workshops and stainless steel trading warehouses. It can store bundled long, thin and thick sheets horizontally.
Q2 What are the advantages of electric drawer racks compared with traditional cantilever racks?
1. Space-saving aisle: No large turning space for forklifts required. Racks can be placed close to machine tools and columns, improving warehouse utilization by over 50%. 2. Single-person operation: One-click electric drawer extension, sheets can be lifted with vacuum suction cups without manual lifting by multiple workers. 3. Separated storage: Independent drawer for each layer, sheets stored separately without digging through stacks to avoid surface scratches. 4. Stable load capacity: Uniform structure and high safety margin.
Q3 Can single-layer load capacity, layer quantity and overall dimensions be customized?
Fully non-standard customized. Standard single-layer load options: 1/2/3/5 tons; heavy-duty versions up to 8-10 tons available. Layer quantity from 3 to 12 as required. Drawer length and width customized according to maximum sheet size (fits 1.5m/2m/3m/4m/6m long sheets) with adjustable layer height.
Q4 What are the requirements for warehouse floor? Can it be installed on the second floor workshop?
Flat cement floor with bearing capacity matching the total full load of the rack is required. The rack shall be fixed with expansion bolts on the ground floor. For second floor or mezzanine installation, floor load-bearing data shall be provided for our safety load calculation. Reinforcement work is needed before installation if the floor bearing capacity is insufficient.
Q5 What is the minimum aisle width required for operation?
Only sheet length plus 0.8m operating space is needed, no forklift turning aisle required. Matched with overhead crane and vacuum suction cups, 1.8-2.5m wide aisle is enough, much narrower than the 4-5m aisle required for cantilever racks.
Q6 Can the electric rack work during power outages?
Equipped with dual electric & manual crank system. Switch to manual crank to pull drawers out when power cuts off without production delay. Motors with built-in brakes lock drawers automatically to prevent sliding out freely when stopped.
