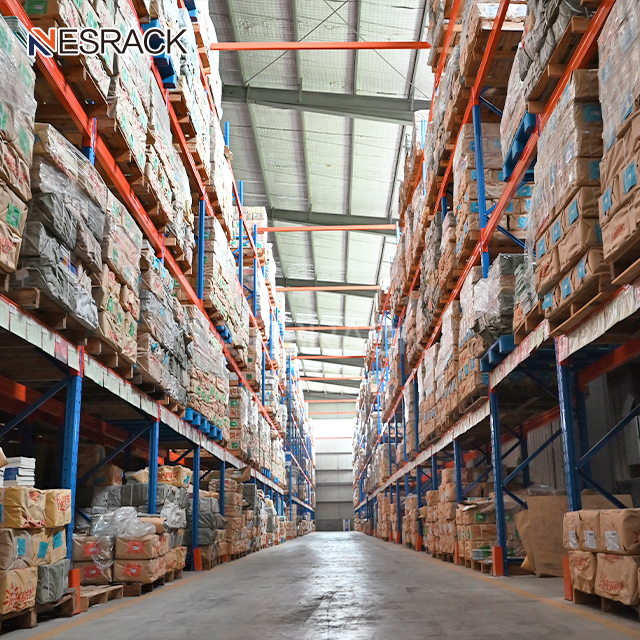

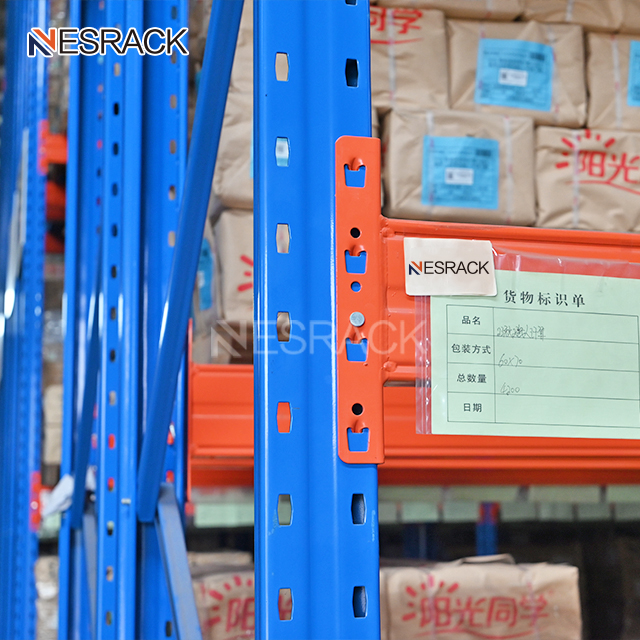

Popular Low Price Commercial Warehouse Rack Storage Shelf Metal Stacking Shelf Warehouse Storage Rack for Sale
Product Description
Warehouse Storage Boltless Rack Heavy Duty Pallet Racking System Garage Storage Warehouse Racking System
Selective pallet racking systems deliver direct access to all pallets with high cost efficiency. Tailor-made by NESRACK to optimize storage capacity for goods of various weights and dimensions.
Specification
| Item | value | Product Name | Heavy Duty Warehouse Shelves Racks |
| Place of Origin | China, Shandong | Usage | Warehouse Storage |
| Brand Name | NESRACK | Color | Blue, Orange |
| Type | Selective Pallet Rack | Application | Goods Storage |
| Material | Steel | Surface Treatment | Powder Coating |
| Feature | Corrosion Protection | Size | Customer Size |
| Use | Warehouse Rack | Packing | Customize |
| Weight Capacity | 2000-5000kg/layer | Certification | ISO9001/CE |
| Width | 60/80 cm or customize | Structure | Assembled |
| Height | max12000mm | OEM&ODM | OEM&ODM |
| Name | Euro Pallet Rack | Material | Steel |
| Size | Customized Size | Color | Customized |
| Depth | Customized | Weight Capacity | 500-5000KG |
| Width | Customized | Height | Customized |
| Pitch holes | 50.8mm | ||
| Surface finish | Electrostatic Powder Coating | ||
| Usage | Warehouse Storage System | ||
| Application | Widely Used | ||
| Certification | CE / ISO / RMI | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Product Description

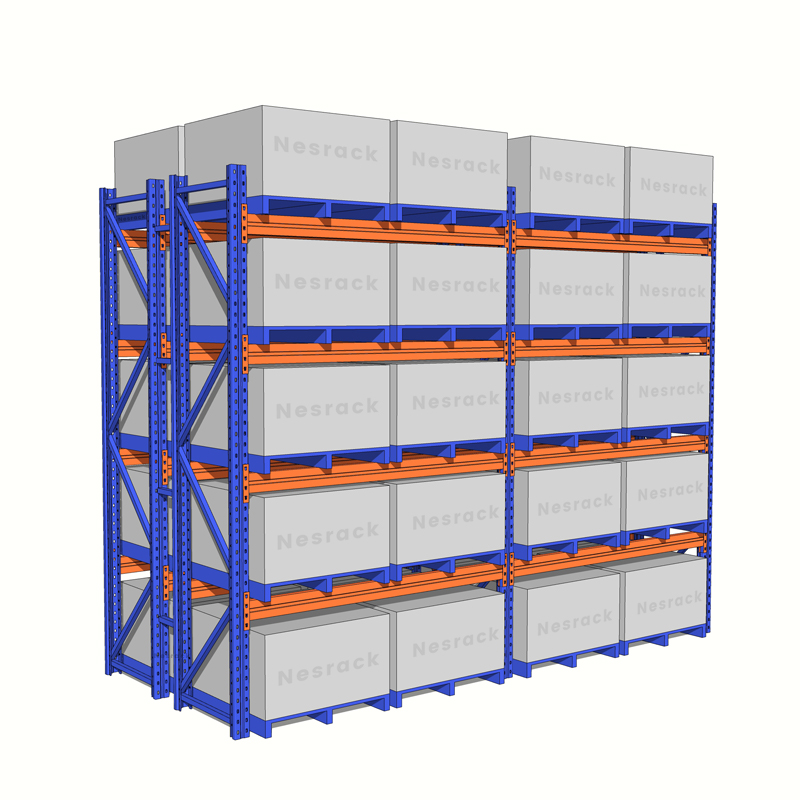

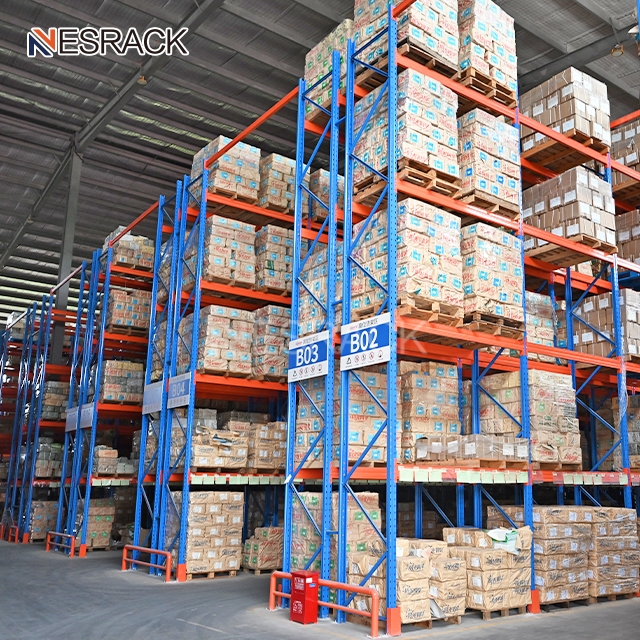

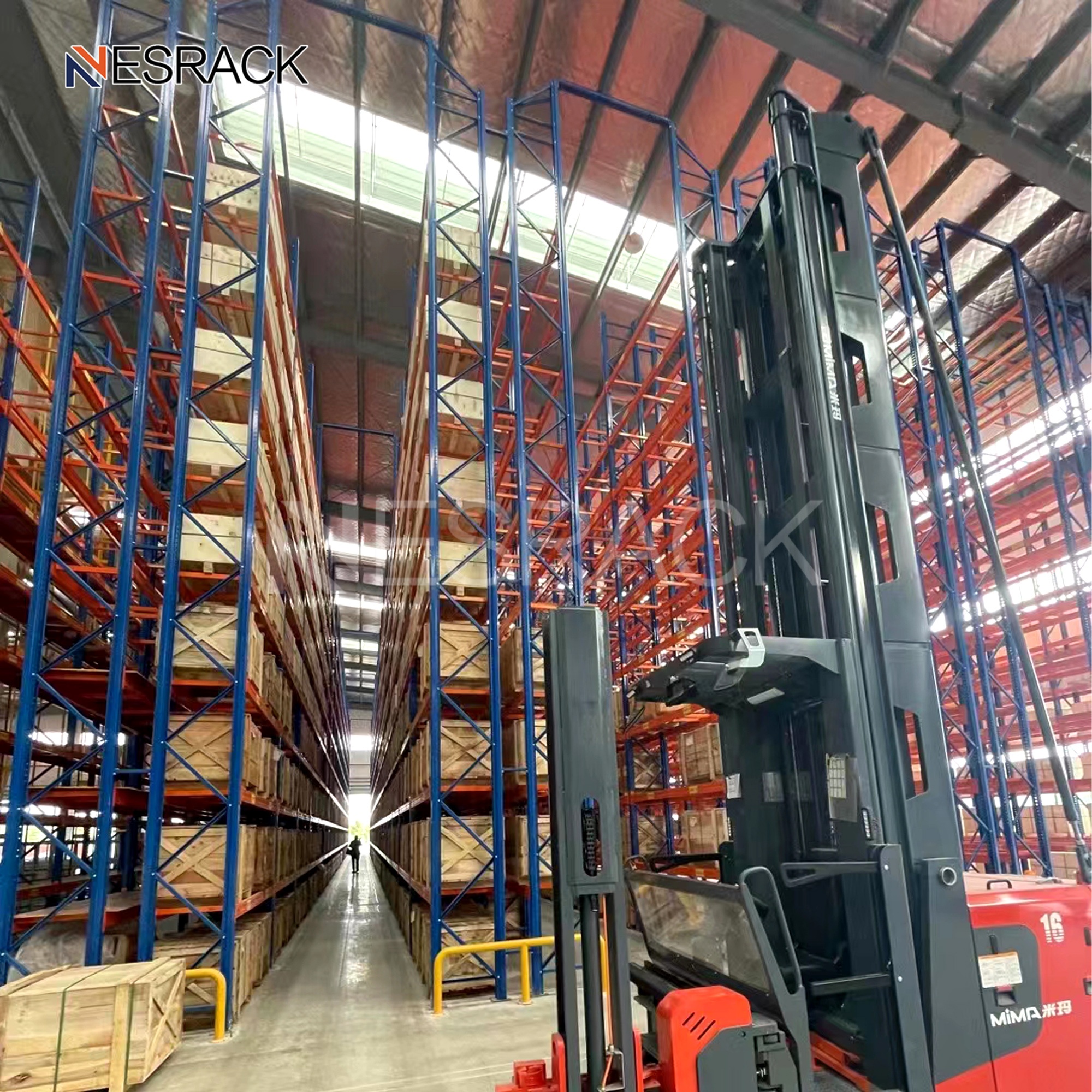

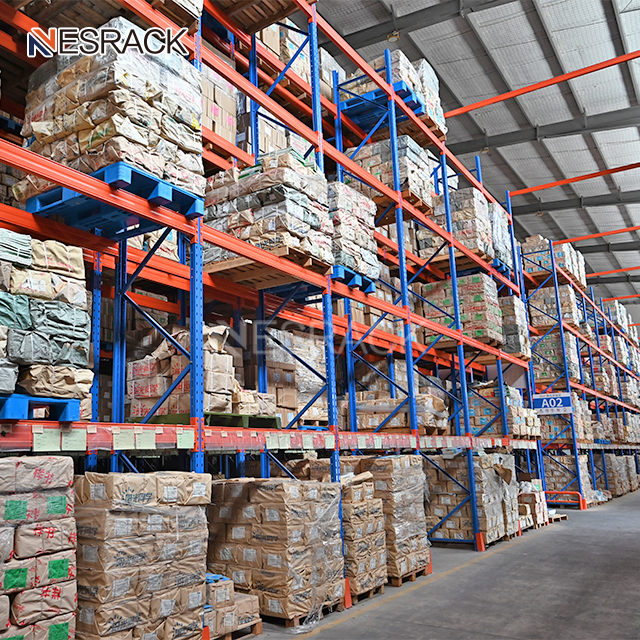

Pallet Racking
Pallet racking systems provide direct access to all pallets and represent the most economical choice in terms of cost. It is composed of upright frames and beams, engineered to optimize the storage of goods across diverse dimensions and weight classes.
With a comprehensive selection of components and accessories, NESRACK tailors systems to exact operating requirements. The durable design ensures versatile application across diverse working environments, while remaining easy to install and dismantle.

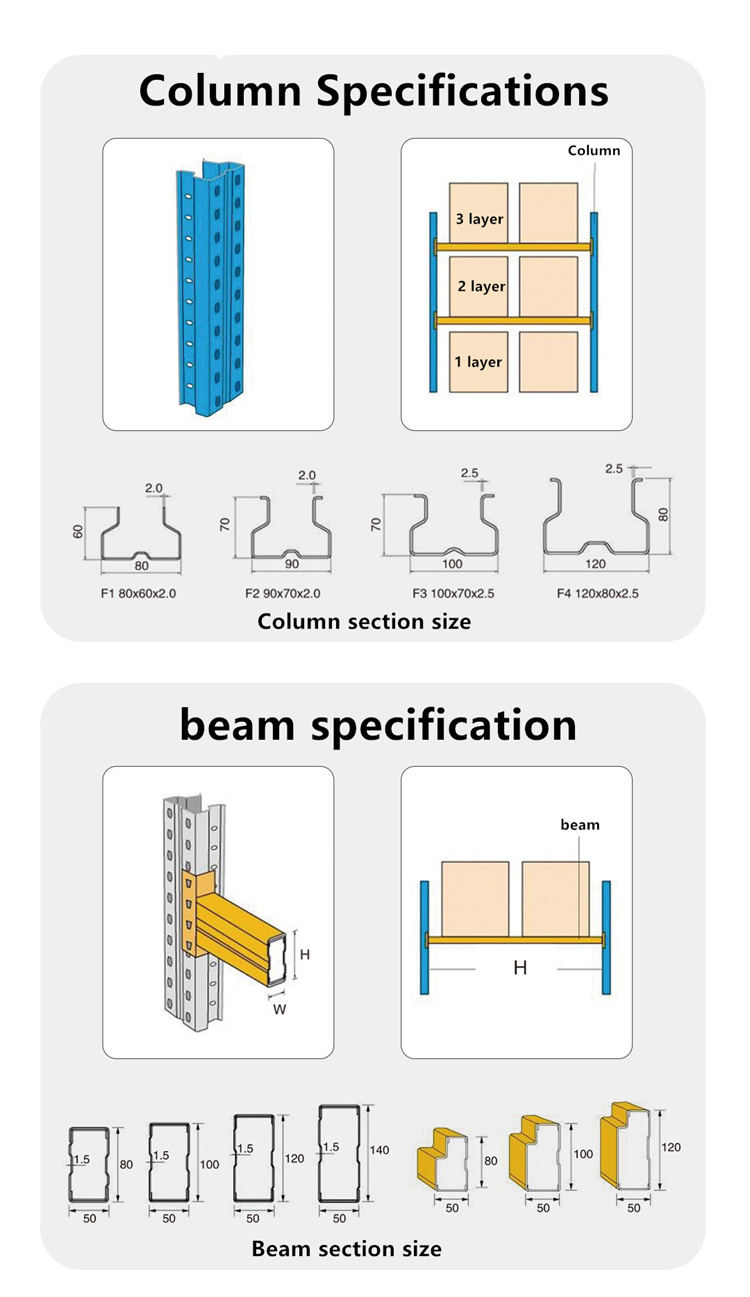

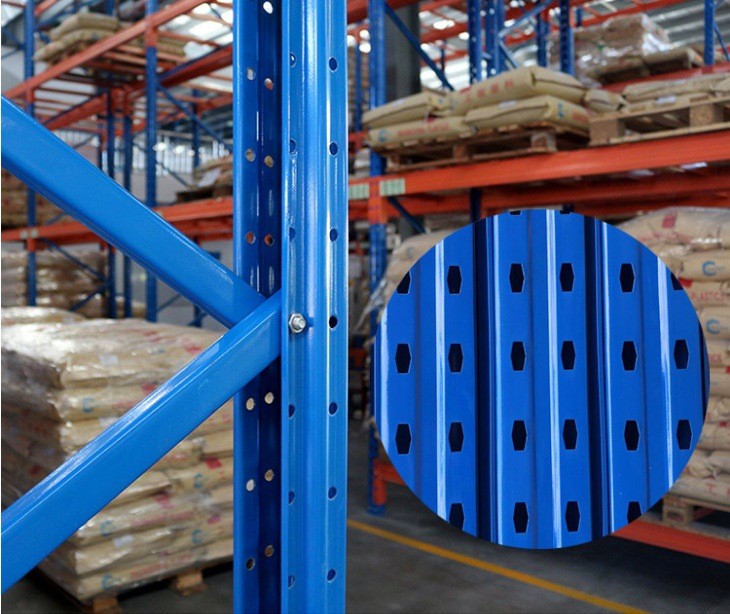

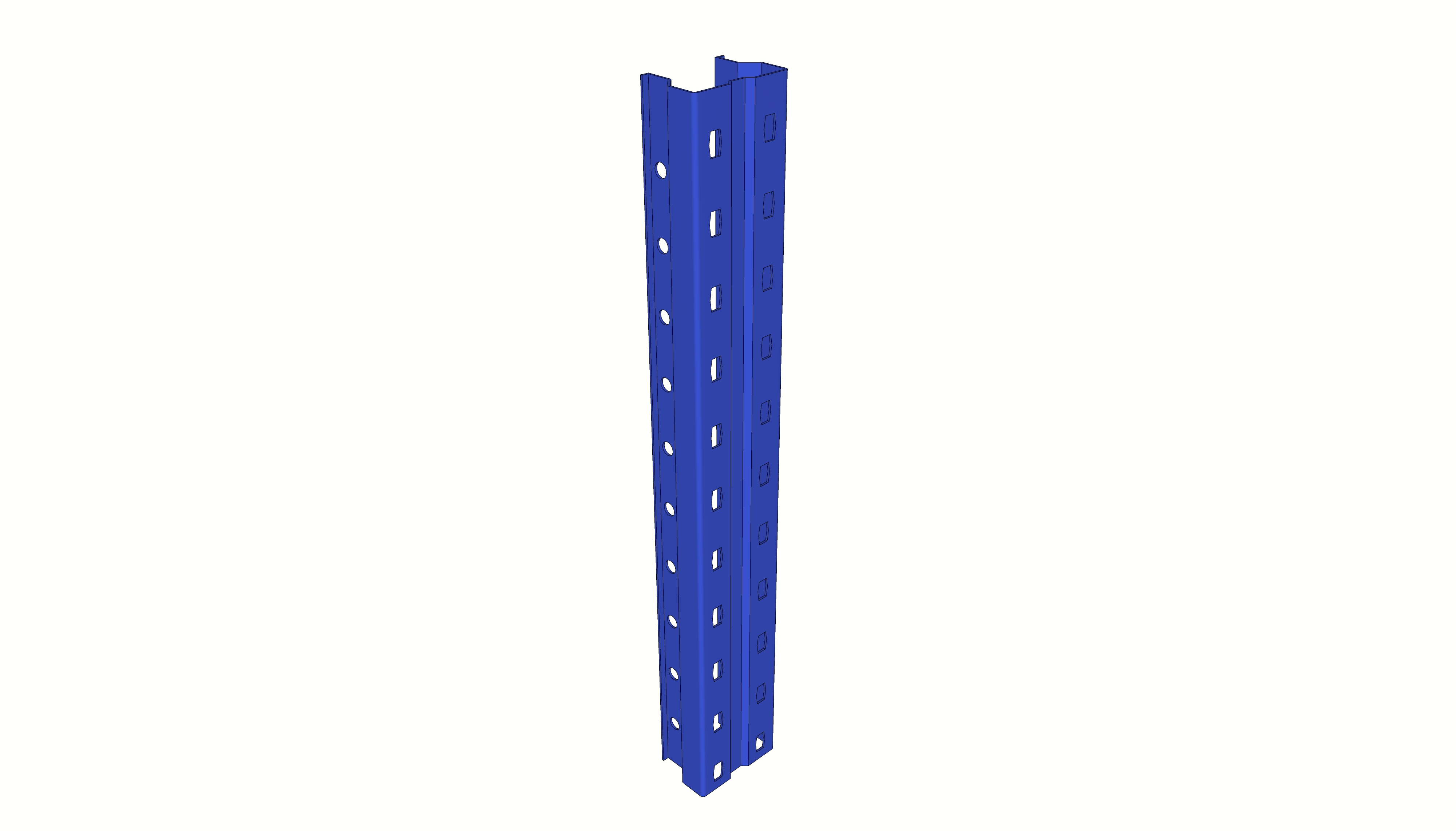

Column Specification and Bearing Capacity
01
Easy installation and reasonable structure.
02
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03

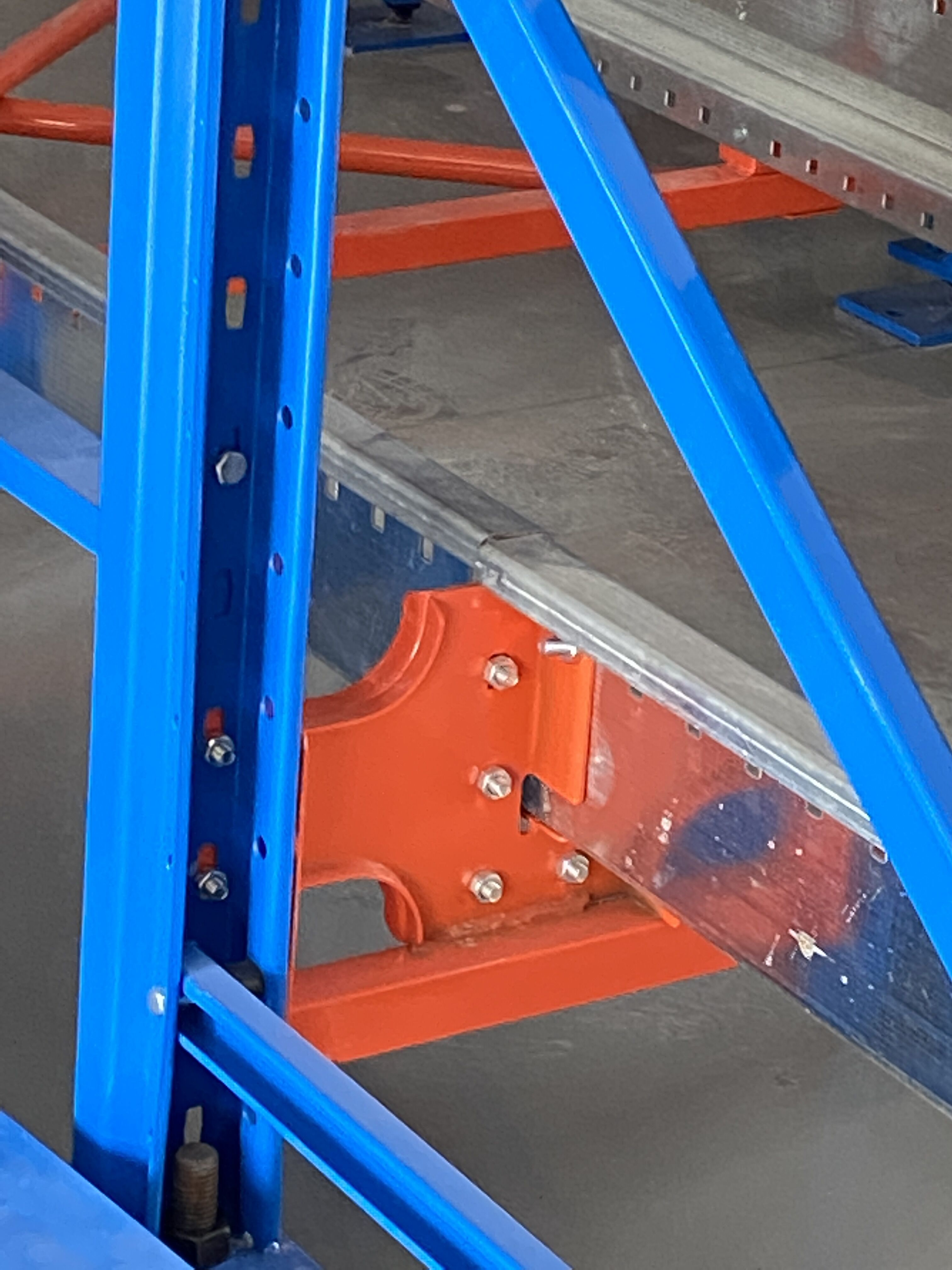

Fix the columns and beams securely to prevent the beams from falling due to improper operation.
04
Increase the shelf load and adapt seamlessly to more types of pallets.
| Column height | 3 layers beam | 4 layers beam | 5 layers beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |

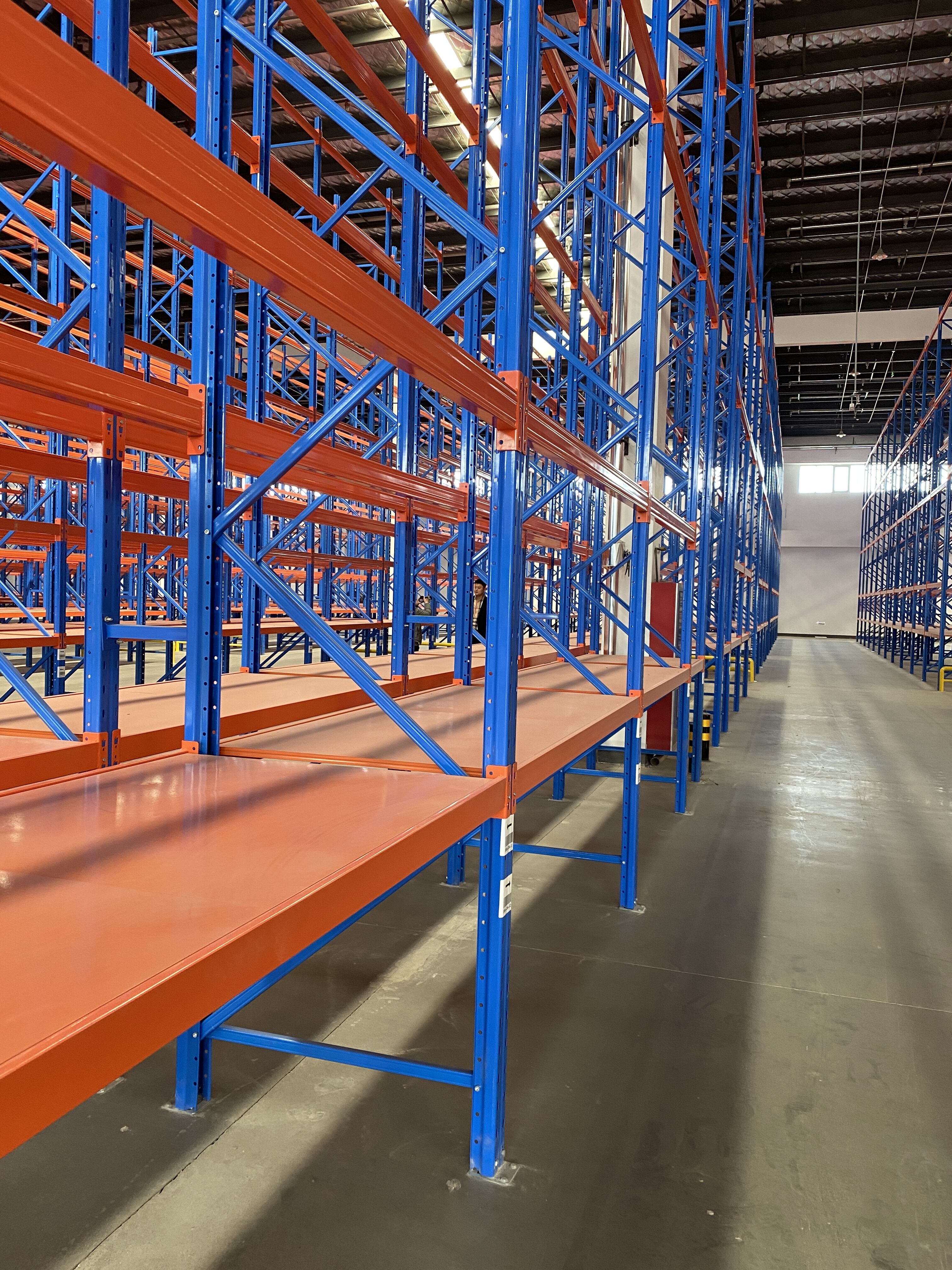

Main Components

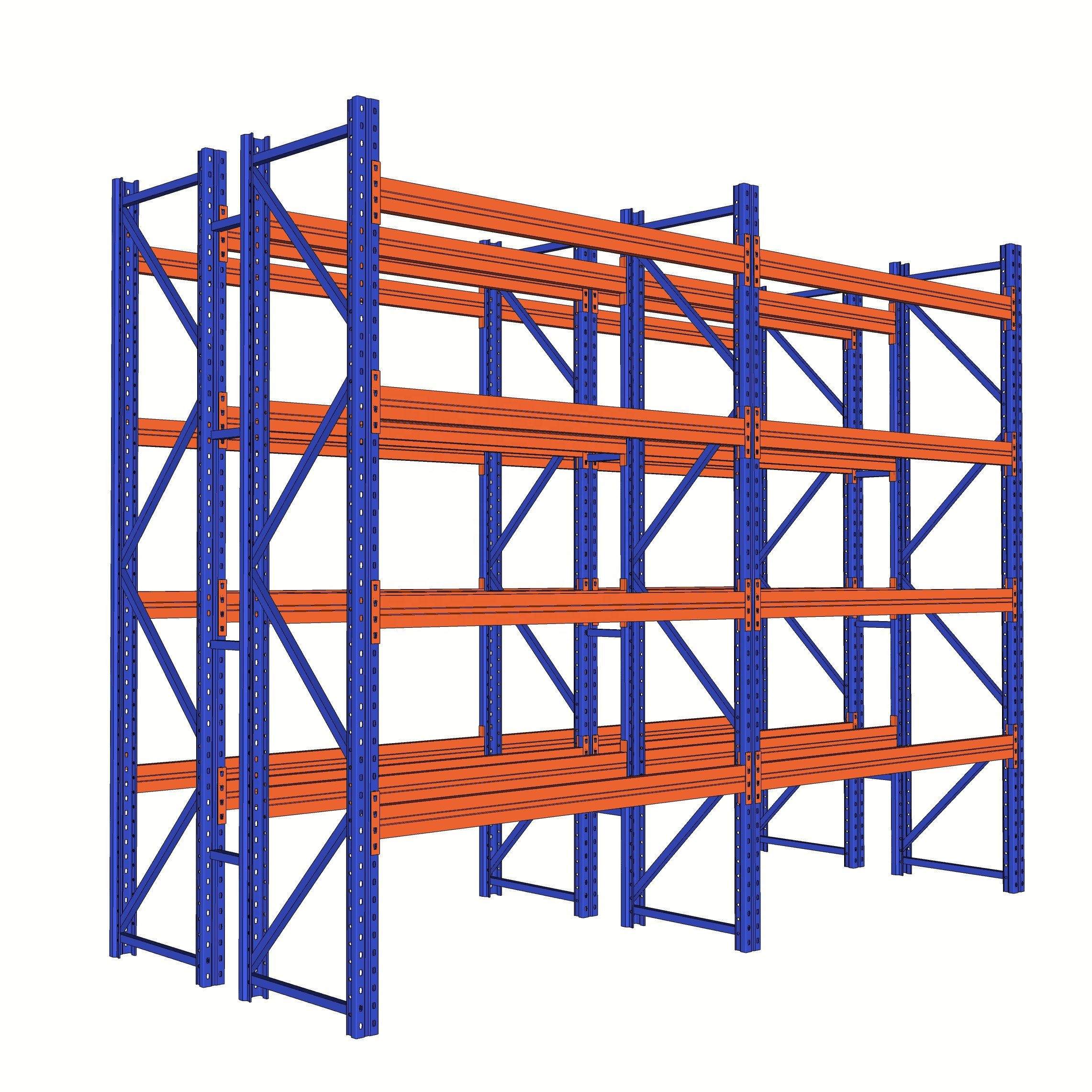

Frame
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates, and screws.
Upright
H-bracing and D-bracing
Base plates

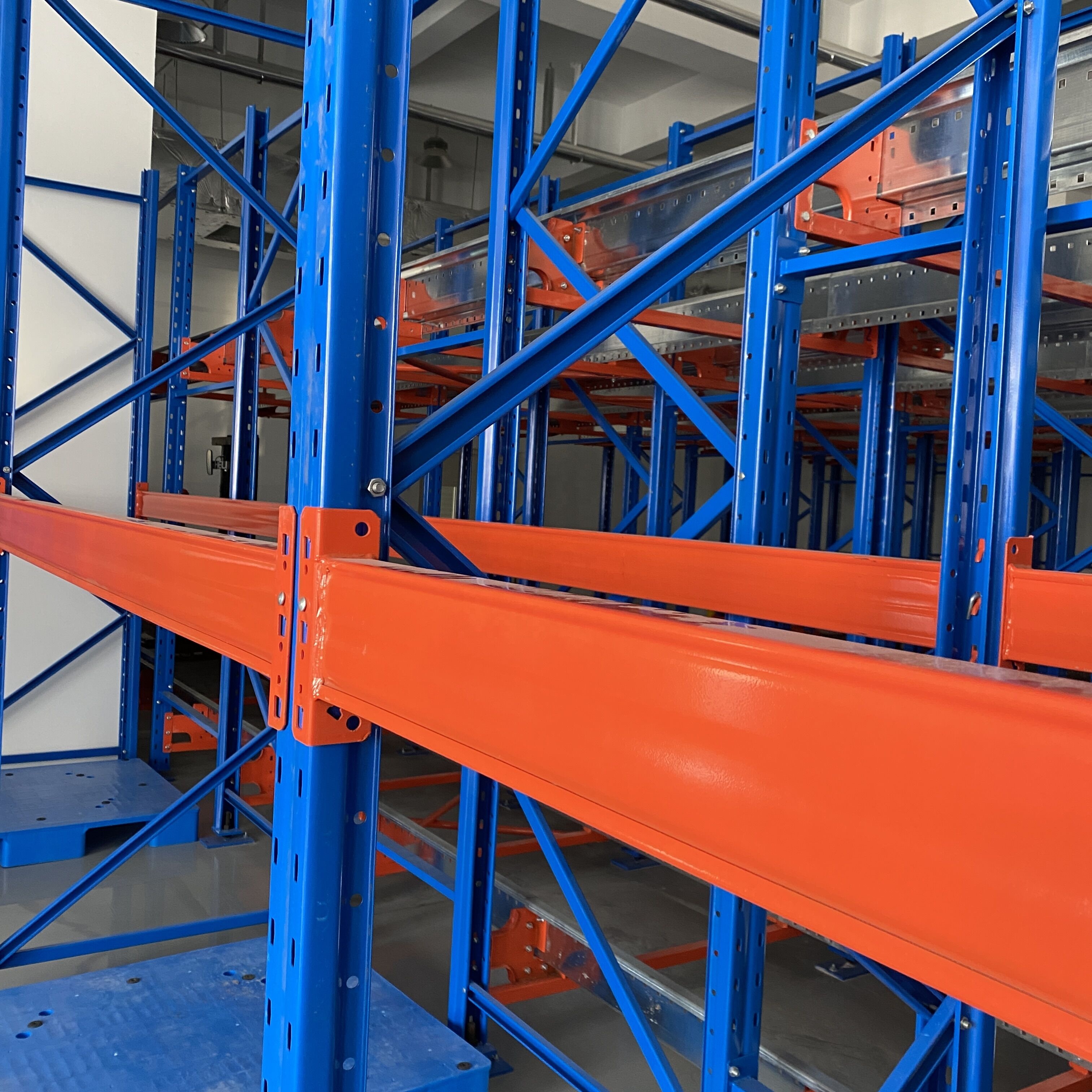

Beam
The longest beam can be 4.5m, and the max loading capacity reaches up to 4000kg per level. Additional specifications are available upon request.

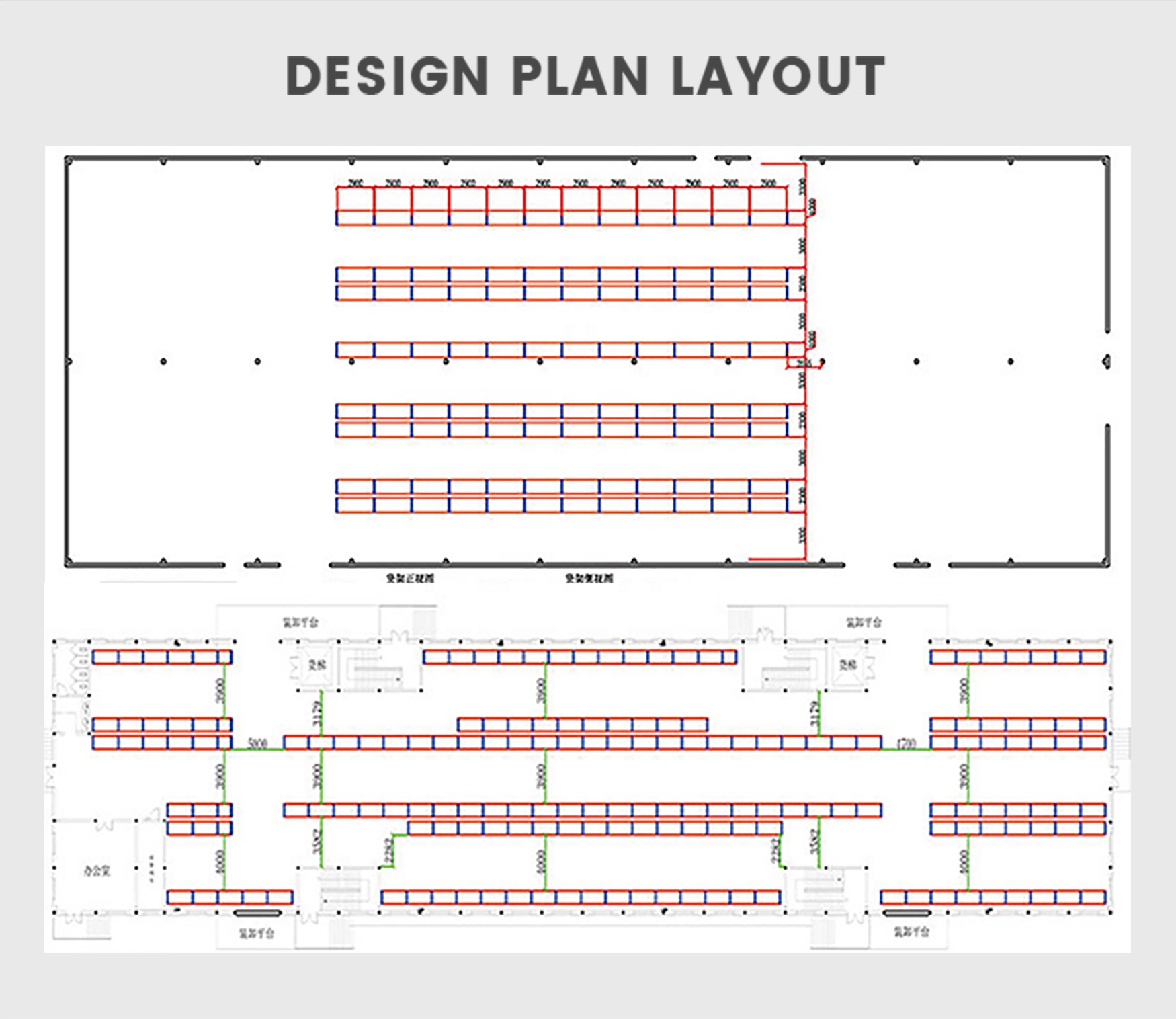

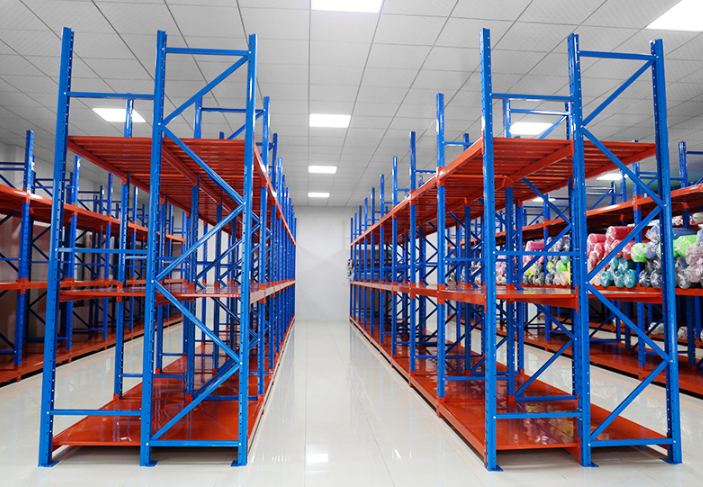

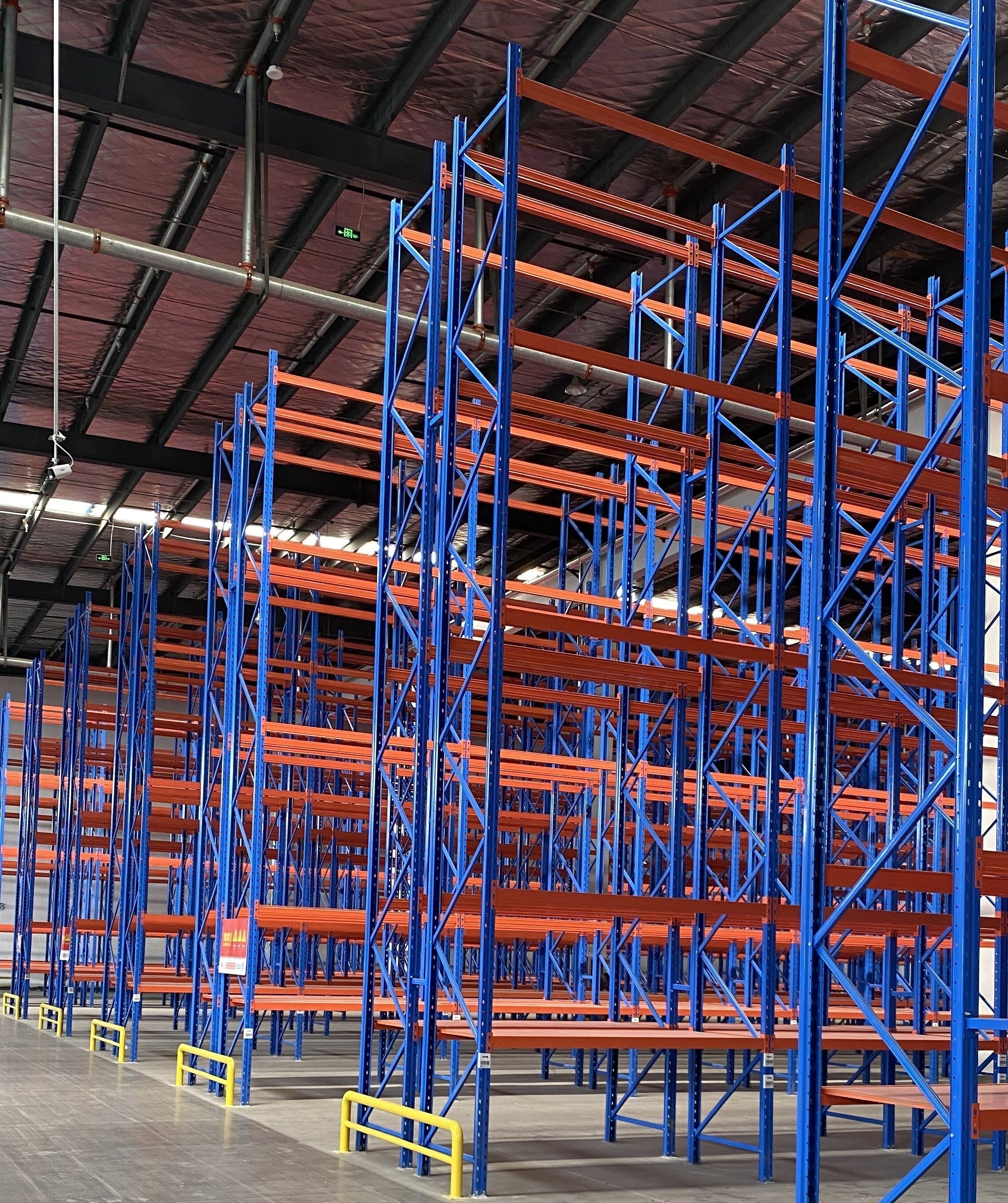

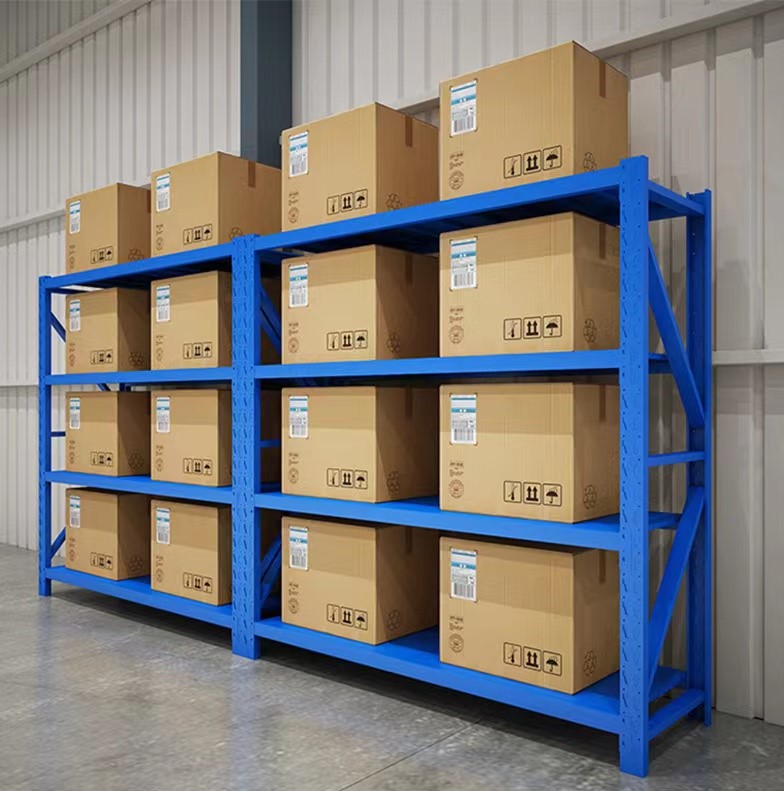

Success Case

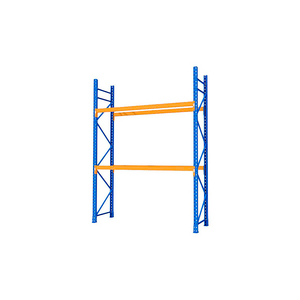

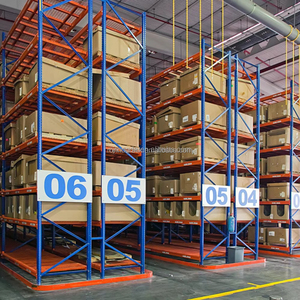

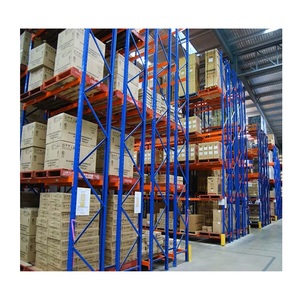

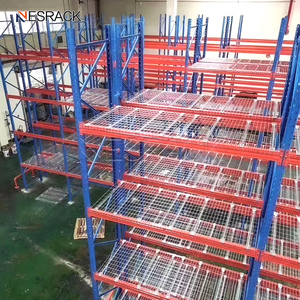

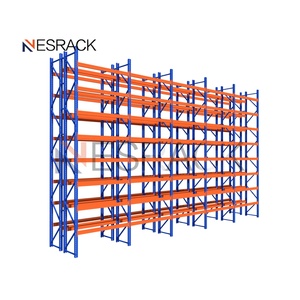

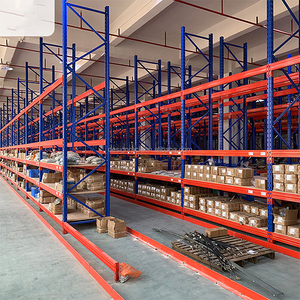

Recommend Products
Company Profile
Design Team
Professional warehouse designers deliver dedicated custom engineering solutions daily.

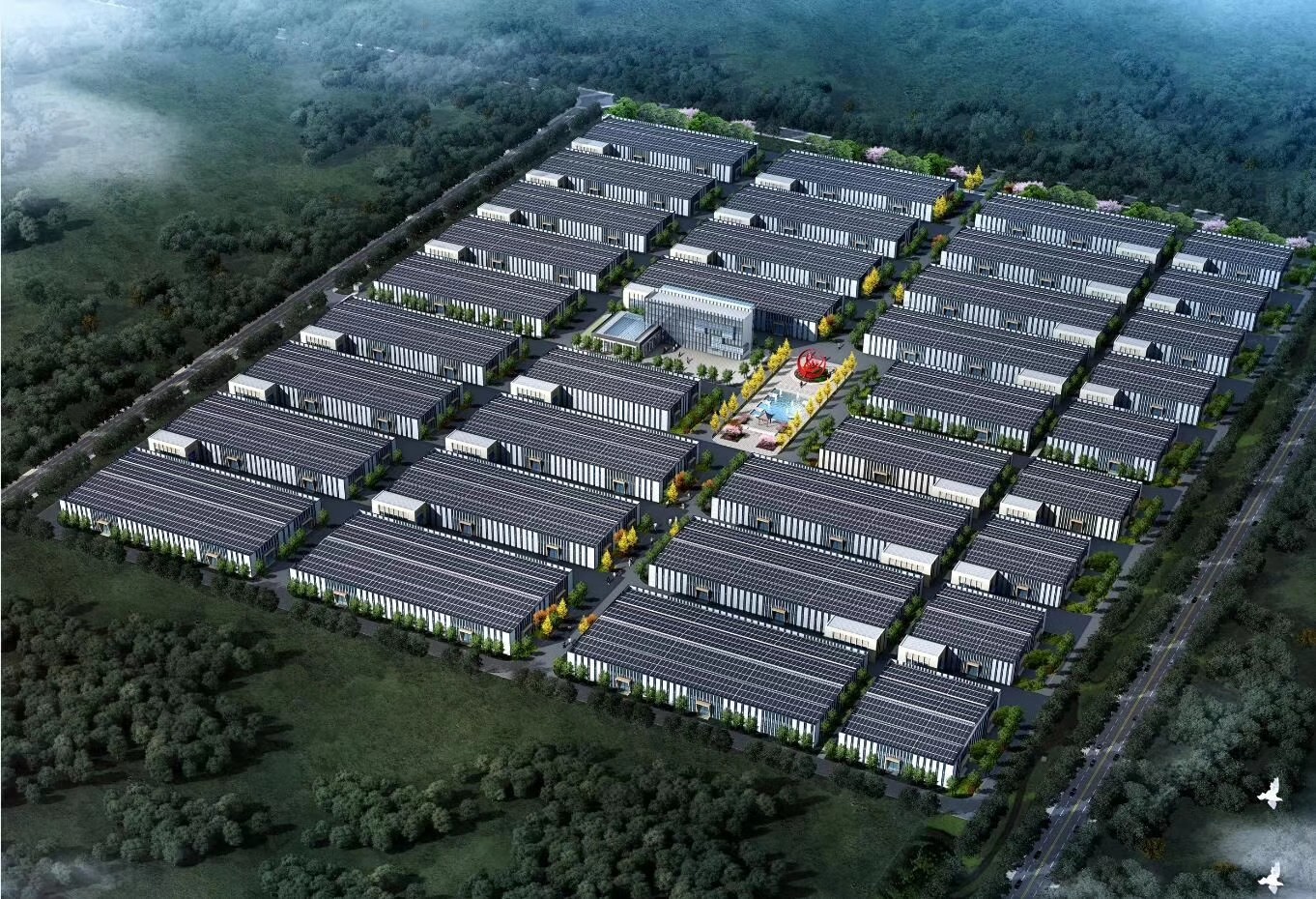

Factory One-Stop Service
Our physical manufacturing base ensures premium raw materials and rigorous quality control.

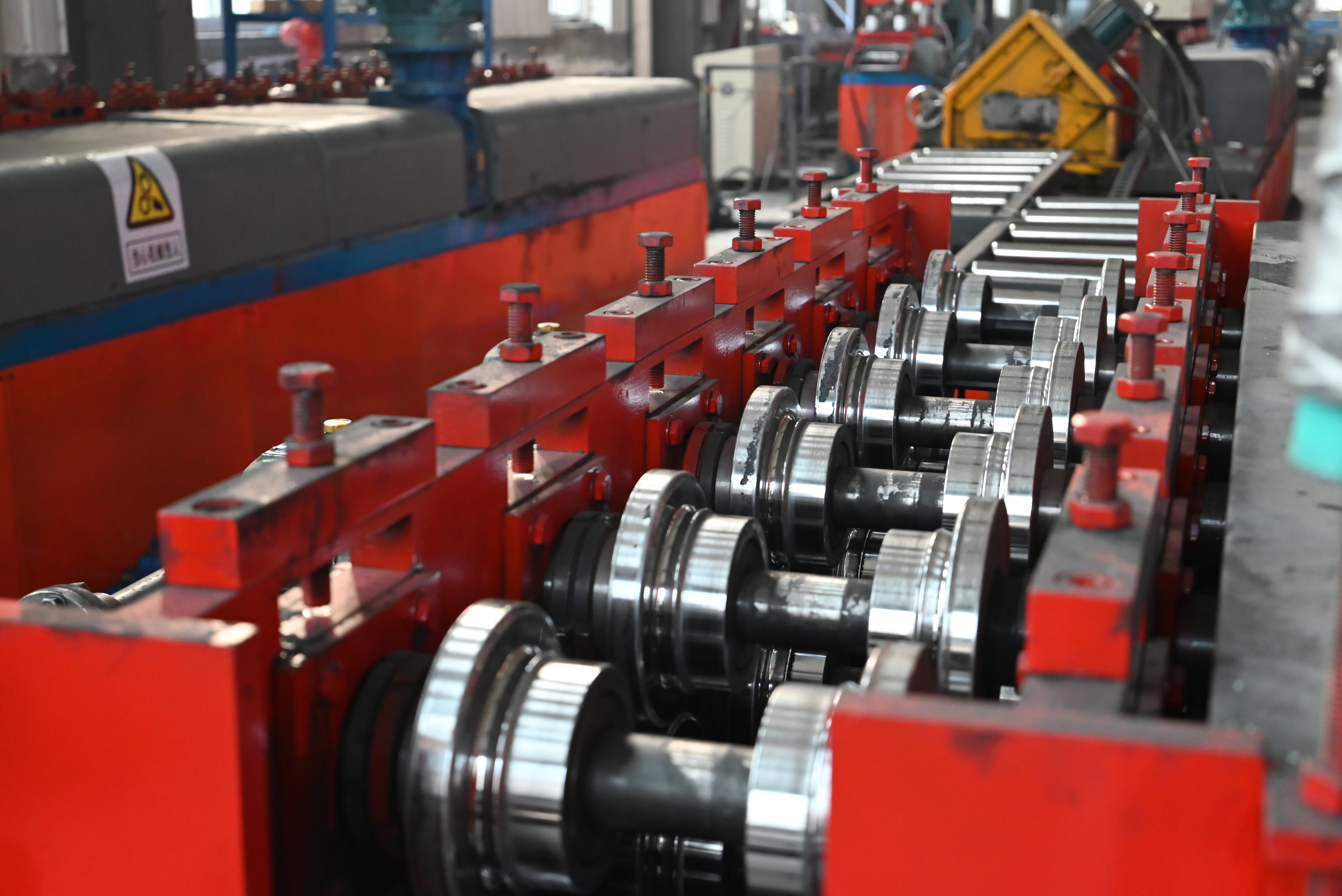

Professional Equipment
Advanced production lines and strict manufacturing tolerances deliver high-end industrial products.
Our Partner
Packing & Delivery
Frequently Asked Questions
Q
Why choose us?
We offer a professional design team, robust production capacity, ISO and CE certification, and full compliance with AS4084, RMI, and FEM standards.
Q
What is the material used in your products?
The primary steel grades used for our racking systems are high-quality Q235 and Q345 certified steel.
Q

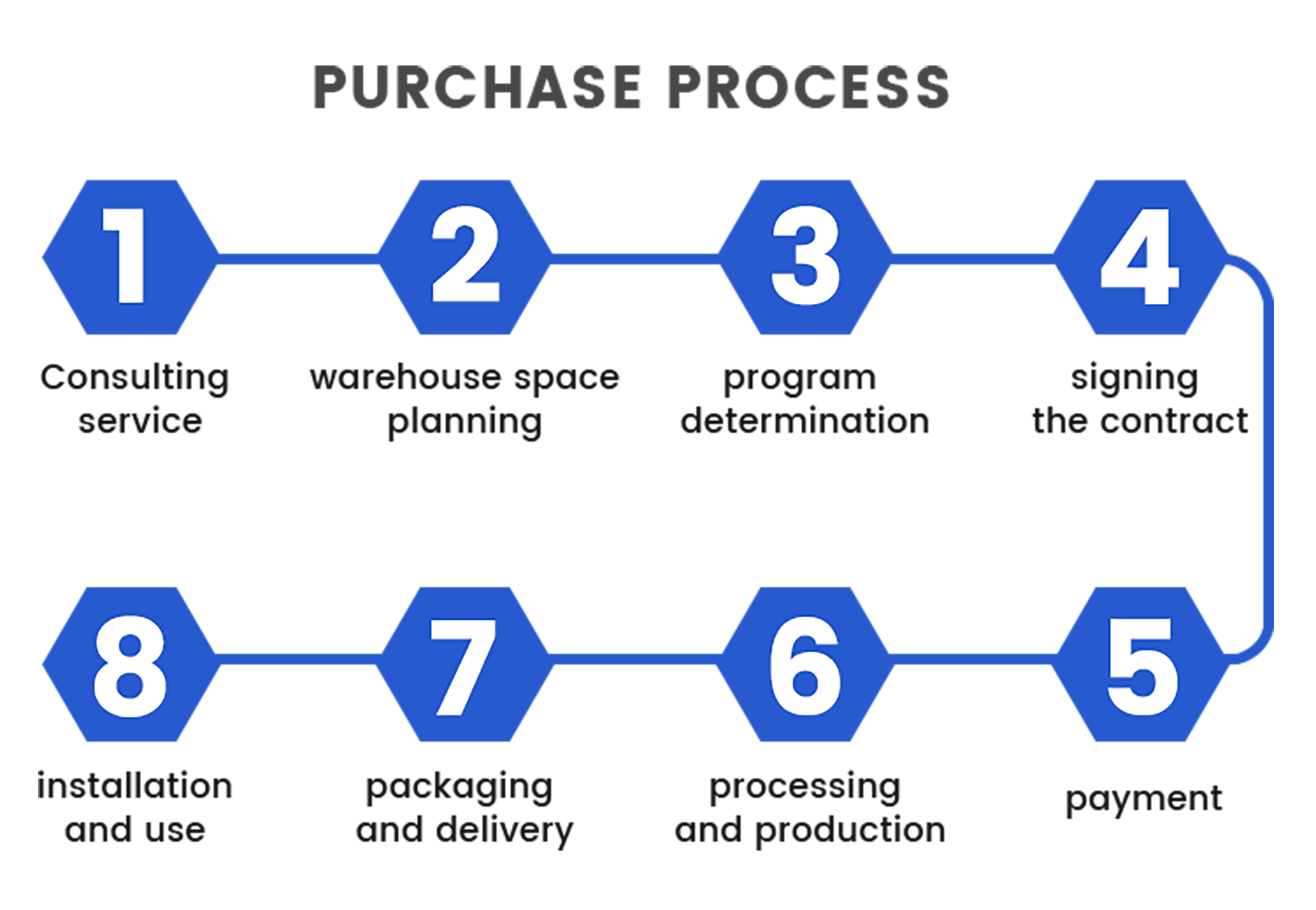

What is the purchasing and order process?
Design drawing → Confirm drawing → Quotation → PI issuance → Confirm PI → Arrange 30% deposit → Manufacturing → QC inspection → Pay balance → Shipping.
Q
What is the packaging of the products?
Standard export packaging: all components are securely strapped with steel belts and covered with protective film for safe transit.
Q
What is the minimum order quantity (MOQ)?
Normally, the minimum order is one 20ft container, which can also be tailored depending on the specific dimensions of your products.
Q
What are your payment terms and delivery time?
We accept T/T or L/C at sight. The typical delivery timeline is 3–4 weeks after receipt of the initial deposit.
