Custom roll-formed and structural steel storage architectures manufactured in our 30,000 m² production facility to satisfy rigorous seismic, capacity, and spatial throughput criteria.
Universal 2-inch pitch teardrop punched uprights offering boltless, slide-in beam locking. Engineered with high-yield cold-rolled steel for distribution centers requiring rapid reconfigurability.
Equipped with precision aluminium alloy roller tracks for gravity-fed FIFO piece-picking. Drastically minimizes material handling transit times in lean manufacturing and automotive assembly lines.
Continuous lane design eliminating dedicated operating aisles to increase cubic capacity by up to 75%. Tailor-made for uniform cold-storage SKUs and batch manufacturing facilities.

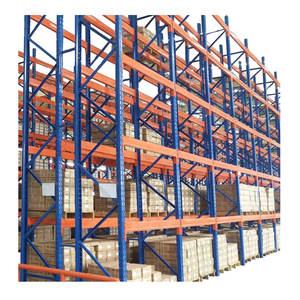

Modular selective racking systems supporting up to 5,000 kg per beam tier. Incorporates safety locking pins and custom-welded beam connectors for zero-deflection structural performance.
Toolless butterfly hole interlock design supporting 200 kg per shelf level. Finished with high-durability epoxy electrostatic powder coating to resist scratching, corrosion, and industrial wear.
Optimized for standard counterbalance forklifts and multi-SKU logistics operations. Provides unrestricted access to every unit load without shifting adjacent inventory bays.
Modular post-and-cradle inverted stacking frame allowing dynamic vertical tiering without permanent floor anchor points. Collapsible footprint saves reverse freight during off-peak logistics cycles.
Tailored high-bay racking engineered for severe seismic zones and heavy industrial tooling. Custom profile stamping, column footplate anchors, and heavy-gauge diagonal bracing bars.
Founded in 2001, Guangzhou HEDA Shelves Co., Ltd. is an internationally certified enterprise delivering precision-engineered industrial warehouse storage, multi-tier mezzanines, and automated racking systems globally.
Full vertical manufacturing integration: raw coil slitting, CNC roll-forming lines, automated laser beam welding, and multi-stage automated pre-treatment and powder-coating booths.
Fully compliant with CE standards (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and strict European RoHS metallurgical non-toxicity directives.
Based in South China, offering short 2–10 day ocean transit to ASEAN logistics hubs (Port Klang, Tanjung Priok, Laem Chabang, Manila, Singapore) alongside steady global container dispatch.
Comprehensive pre-sales engineering verification: finite element analysis (FEA), floor slab load calculations, seismic anchor evaluation, and full warehouse 3D simulations rendered free of charge.
Modern industrial supply chains demand warehouse storage systems that achieve exceptional volumetric efficiency without compromising structural safety margins. High-rack systems—commonly defined as vertical racking installations extending beyond 8 meters up to 40 meters in automated crane-served configurations—introduce complex structural loads that standard light-duty shelving cannot withstand. As an OEM manufacturer, Guangzhou HEDA Shelves engineers each system using finite element structural analysis (FEA) calibrated to cold-formed thin-walled steel standards (such as EN 15512, RMI MH16.1, and AS 4084).
The structural load-carrying capacity of an upright frame begins with the metallurgy of the structural coil. HEDA Shelves utilizes certified Q235B and high-yield Q355B cold-rolled structural steel coils. Under compressive vertical loadings, the cross-sectional geometry of the vertical columns features multiple continuous longitudinal stiffening ribs. By strategically locating these cold-bent bends, the radius of gyration is dramatically increased, effectively guarding against local torsional buckling and Euler column buckling under rated load conditions of 15 to 30 metric tons per frame.
OEM Engineering Standard: Upright profiles are roll-formed in single-piece lengths exceeding 12 meters to eliminate mid-height splice joints whenever building clearances allow, thus preserving continuous moment distribution under severe seismic or operational impacts.
For installations in active seismic zones (such as Indonesia, the Philippines, the US West Coast, and Japan), static gravity calculations are insufficient. Dynamic seismic analysis must calculate the overturning moments induced by ground motion spectra. Rack beam-to-column connections are critical moment-resisting elements. Our proprietary heavy-duty connectors use 3-hook, 4-hook, or 5-hook cold-stamped claws welded via automated multi-axis robot arms to box beams or roll-formed step beams. These interlocks generate a tight rotational stiffness factor (kni) that resists high cycle lateral racking sway (P-Delta effects) during seismic excitations.
Warehouse structures situated throughout maritime and tropical corridors encounter ambient relative humidity levels persistently exceeding 80%, compounded by coastal salt-mist airborne chloride ions. Paint delamination and subsurface ferrous oxide formation lead directly to catastrophic structural frame fatigue. To address this challenge, all HEDA Shelves structural profiles pass through an automated 9-stage pre-treatment pipeline prior to powder application:
1. Heavy alkaline hot degreasing; 2. Industrial acid wash pickling to strip mill scale; 3. Triple cascade clear-water rinsing; 4. High-density zinc-iron phosphating micro-crystalline conversion coating; 5. Thermal passivation drying; 6. Automated electrostatic spray application of pure thermosetting polyester TGIC-free epoxy powder (dry film thickness 60–90 μm); 7. High-temperature curing at 180°C–200°C. For sub-zero blast freezer conditions (-30°C) and exposed chemical yards, hot-dip galvanizing per ISO 1461 is deployed, achieving zinc alloy coatings of 80–120 μm thickness for maintenance-free lifespans spanning over 25 years.
| System Architecture | Typical Height Range | Operating Aisle Width | Pallet Space Efficiency | Stock Rotation Scheme | Primary Material Handling Equipment |
|---|---|---|---|---|---|
| Standard Selective Rack | 3m – 12m | 3,000mm – 3,500mm | 40% – 50% | 100% Direct (FIFO/LIFO) | Standard Counterbalance / Reach Truck |
| Very Narrow Aisle (VNA) | 8m – 18m | 1,600mm – 1,900mm | 60% – 70% | 100% Direct Selective | VNA Turret Truck / Wire-Guided Stacker |
| Drive-In / Drive-Thru | 4m – 12m | Dedicated Drive-In Lanes | 70% – 85% | LIFO (Drive-In) / FIFO (Thru) | Counterbalance / Specially Guarded Reach |
| Radio Shuttle High Rack | 4m – 24m | Single Access Aisle | 80% – 90% | Software Configurable FIFO/LIFO | Semi-Automated Pallet Shuttle Runner + Forklift |
| Automated AS/RS High-Bay | 12m – 40m | 1,400mm – 1,600mm | 90% – 95% | Fully Automated WMS/WCS Controlled | Automated Stacker Cranes (SRM) / High-Bay Hoists |
How global supply chain volatility, land cost escalation, automated robotics, and carbon-neutral policies are fundamentally altering high rack warehouse equipment procurement.
Procurement is pivoting from static manual racks to robotics-compatible structural tolerances. Factory-drilled runner guide paths, tighter deflections (<1/500 of clear span), and integrated power-bus bar mountings are now mandatory OEM requirements to accommodate dynamic floor robots and mother-daughter shuttles.
Global logistics REITs and multinational 3PL operators increasingly mandate Scope 1, 2, and 3 carbon disclosures for warehouse construction materials. Procuring racks produced via clean electric arc furnaces (EAF) and zero-VOC, low-temperature curing powder coatings is rapidly evolving from a bonus into a hard tender requirement.
Driven by skyrocketing urban land valuation, high-rack engineering is transitioning toward rack-clad buildings (silo structures). In this design, the steel racking matrix itself forms the internal support framing for building exterior wall panels and roof skins, entirely eliminating separate structural steel columns and maximizing usable footprint.
Direct answers to the most common engineering, commercial, and operational questions asked by warehouse managers, EPC contractors, and purchasing agents.
Connect directly with Guangzhou HEDA Shelves' senior intralogistics engineers. We deliver comprehensive CAD layouts, 3D structural simulations, and detailed containerized FOB/CIF quotations within 24 hours.
