Featured Industrial Heavy-Duty Storage Configurations
Certified for seismic resilience, precision rack-to-robot tolerances, and demanding cold-storage environments across global manufacturing, 3PL, retail, and pharmaceutical hubs.

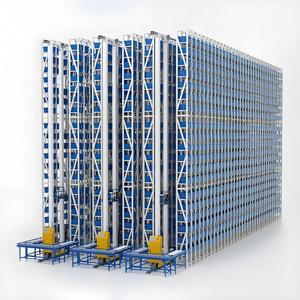

Automated VAN
Automated Heavy-Duty Shuttle Pallet Racking
5-layer high-bay automated shuttle stacking with precision rail integration for high-density bulk warehousing.

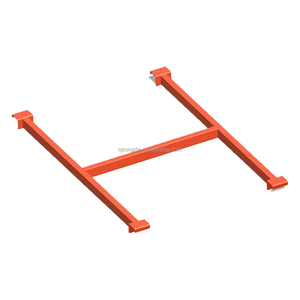

Corrosion Guard
Heavy Duty Corrosion-Resistant Rack Cross Beam
High-tensile interlocking cross beams with multi-claw connectors engineered to resist flexure under extreme point loading.
Automatic FIFO
Heavy Duty Pallet Gravity Roller Flow Racks
Gravity roller beds with magnetic braking separators designed for rapid inventory rotation in temperature-controlled facilities.
Multi-Tier Vertical
Warehouse Industrial Mezzanine Platform Rack
Multi-tier structural mezzanines multiplying usable floor area up to 300% without structural warehouse modifications.

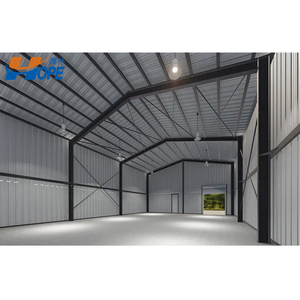

Turnkey Prefab
Steel Structure Prefab Warehouse Building
Precision-engineered portal frame industrial steel buildings designed in tandem with high-density internal racking architectures.
100% Selectivity
Heavy Duty Very Narrow Aisle (VNA) Pallet Rack
High-bay space maximization with aisle widths compressed down to 1.6 meters for guide-wire and turret truck operations.

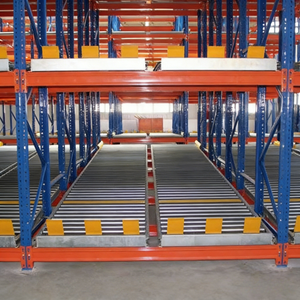

Continuous Flow
Custom Gravity Flow Pallet Roller Rack
Modular dynamic roller channel system engineered with anti-crush dampers, zero-pressure accumulation, and quick-dock rails.

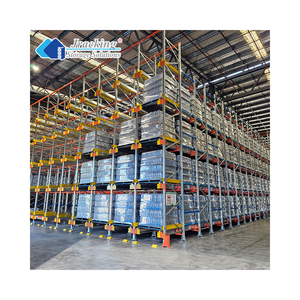

Ultra High-Density
High-End Radio Shuttle Storage Racking System
Smart semi-automated deep-lane pallet shuttling equipped with obstacle detection, remote Wi-Fi control, and PLC automation.
The Volumetric High-Density Paradigm: Eliminating Phantom Square Footage
Global distribution centers and mega-manufacturing sites are experiencing unprecedented land costs, demanding unprecedented cubic volumetric optimization. Conventional selective pallet racking systems dedicate up to 60% of prime indoor real estate to forklift operating lanes. In contrast, heavy-duty high-density systems engineered by tier-1 Chinese manufacturers compress or completely eliminate unproductive operational aisles, elevating warehouse volumetric storage efficiency from a meager 35-40% to over 80-85%.
Achieving this level of physical density requires extraordinary metallurgy and cold-formed profile tolerances. Chinese heavy-duty rack manufacturing utilizes certified structural carbon steels (Q235B and high-yield Q355B) rolled through 18-to-24 station continuous roll-forming mills. Upright columns undergo computerized, high-precision hydraulic stamping to maintain millimeter-accurate pitch uniformity over vertical heights exceeding 18 meters.
Furthermore, under strict finite element analysis (FEA) compliant with EN 15512, RMI MH16.1, and AS 4084 protocols, high-density structures are evaluated for local buckling, torsional twisting, and global sway deflections. By shifting warehouse architecture toward deep-lane configurations such as radio shuttles, push-back carts, and gravity flow channels, global supply chain executives substantially compress footprint capital expenditures while accelerating daily inventory throughput.
Structural Integrity Safeguards: High-density installations must account for cumulative live loads exceeding 200 metric tons per bay. Dynamic deceleration forces generated by pallet-runner shuttles and gravity rollers are countered through structural box-channel tie-beams, reinforced diagonal bracings, and seismic-dissipative baseplate anchors.
Comparative System Selection & Operational Matrix
Comprehensive benchmark comparison of high-density pallet racking topologies to guide international tender design.
| Racking Architecture | Volumetric Efficiency | Selectivity Profile | Stock Rotation | Floor Footprint Index | Forklift Damage Risk | Optimal Industry Application |
|---|---|---|---|---|---|---|
| Radio Shuttle System | Ultra-High (85-90%) | Lane Dependent (1 SKU/Lane) | FIFO or LIFO | Minimum (Zero Internal Aisles) | Near Zero (Cart Stays in Lane) | Cold Storage, FMCG, Beverage, Pharma |
| Gravity Flow Racking | Very High (75-85%) | High per Lane | Strict FIFO | Low (Dedicated Input/Output) | Low (Protected Roller Guide) | Fast-Moving Perishables, High-Turnover 3PL |
| Very Narrow Aisle (VNA) | High (60-70%) | 100% Direct Access | Universal | Moderate (1.6m-1.8m Aisle) | Low (Wire/Rail Guided Turret) | High-SKU Multi-Item Fulfilment, E-Commerce |
| Push-Back Racking | Moderate-High (70%) | 2 to 6 Pallets Deep | Strict LIFO | Moderate (Single Loading Face) | Moderate (External Reach Only) | Medium Batch Storage, Automotive Components |
| Rack-Supported Mezzanine | Vertical Max (200-300%) | Segmented Selective | Hybrid Manual/Auto | Zero Additional Ground Area | Negligible (Protected Uprights) | Garment, Electronics, Retail Kitting Centers |
Future Procurement & Technological Trends
As automated intralogistics accelerates, Chinese racking manufacturers are pioneering intelligent physical-digital architectures that reshape global warehousing.
4D Shuttle & AMR Integration
Transitioning from simple single-lane 2D shuttles to omnidirectional 4D robotic carriers and autonomous mobile robots (AMRs). Racking columns are now engineered with micro-millimeter tolerance tolerances, magnetic positioning grids, and structural elevators for high-speed automated vertical transfers.
Extreme Sub-Zero Metallurgy
Global cold-chain food security is prompting aggressive procurement of sub-zero automated racks capable of operating continuously at -30°C. Standard steels become brittle at low temperatures; modern procurement demands micro-alloyed carbon steel with specified Charpy V-notch impact toughness to prevent catastrophic structural fracture.
Seismic Dissipative Topology
Logistics corridors throughout the Pacific Rim, ASEAN, and Southern Europe sit along major seismic fault zones. High-density racking procurement mandates site-specific dynamic spectral response modeling, heavy-duty gusseted baseplates, and ductile shear-pin connectors designed to absorb seismic energy without collapse.
Modular Embodied-Carbon Design
Driven by corporate ESG benchmarks, global EPCs favor structural rack systems utilizing high-strength low-alloy (HSLA) steels. By lowering total steel mass by 12-18% without reducing carrying capacity, buyers achieve significant reductions in ocean freight shipping volume and project embodied carbon footprints.
Guangzhou Heda Manufacturing Capabilities & Strengths
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. combines heavy industrial engineering, ISO-certified fabrication, and global export infrastructure.
25+ Years Racking Heritage
Over a quarter-century of focused engineering. Having completed over 10,000 major intralogistics projects across 120 countries, our veteran engineering department solves complex layout and structural loading challenges before production commences.
Complimentary CAD & 3D Modeling
Send us your warehouse architectural drawings. Within 24-48 hours, our structural engineering team generates complete 2D CAD spatial plans, 3D photorealistic renderings, pallet coordinate layouts, and load calculation sheets free of charge.
Tropical-Grade Pre-Treatment
Every component undergoes a 4-stage automated chemical immersion: acid pickling, degreasing, rust stripping, and zinc phosphating. This guarantees exceptional epoxy-polyester powder adhesion resisting 80%+ humidity and coastal salt-mist environments.
30,000t Monthly Output Capacity
Operating across 30,000 m² of modern workshops with 300+ technical specialists, automated roll-forming lines, and robotic welding stations, our facility delivers high-volume international tenders with unbeatable factory pricing and prompt ocean dispatch.
10-Stage Industrial Production & Quality Control
From raw prime steel coil inspection through automated robotic fabrication to certified export packing, every single component is controlled under CE & ISO 9001 protocols.
Frequently Asked Technical & Sourcing Questions
Clear, authoritative technical insights covering international standards, structural calculations, environmental coatings, shipping, and installation.
