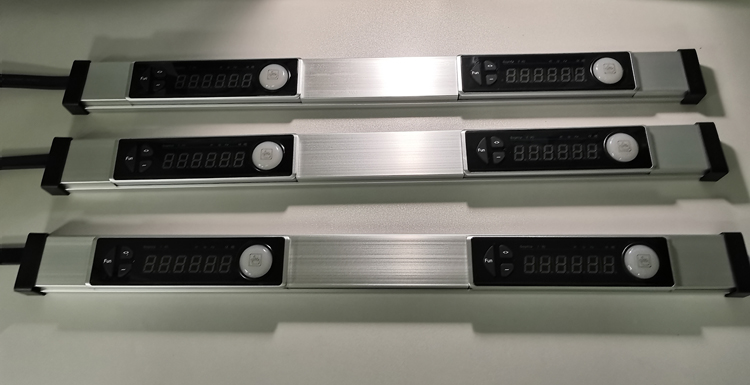

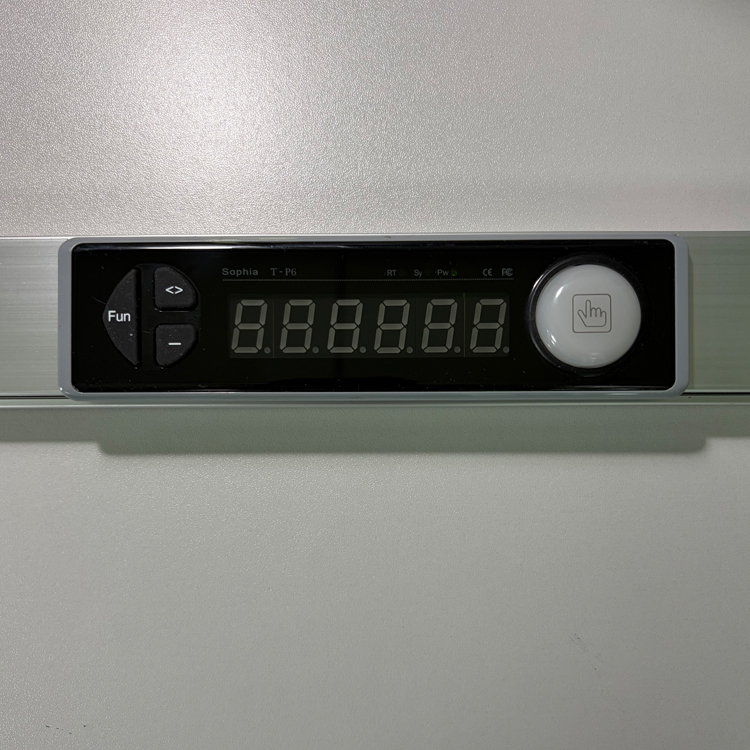

Sophia 6 Digit Display Pick to Light Picking Tag Electronic TagT- P6 for Warehouse Rack
Product Description
►

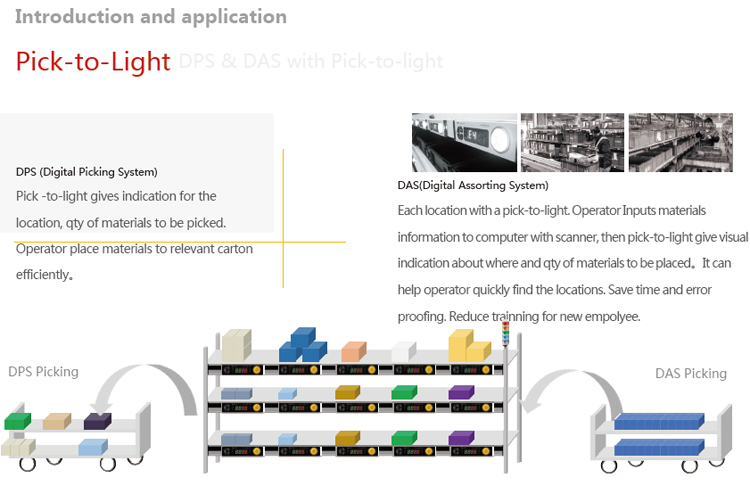

Sophia 6 Digits Pick to Light & Put to Light System

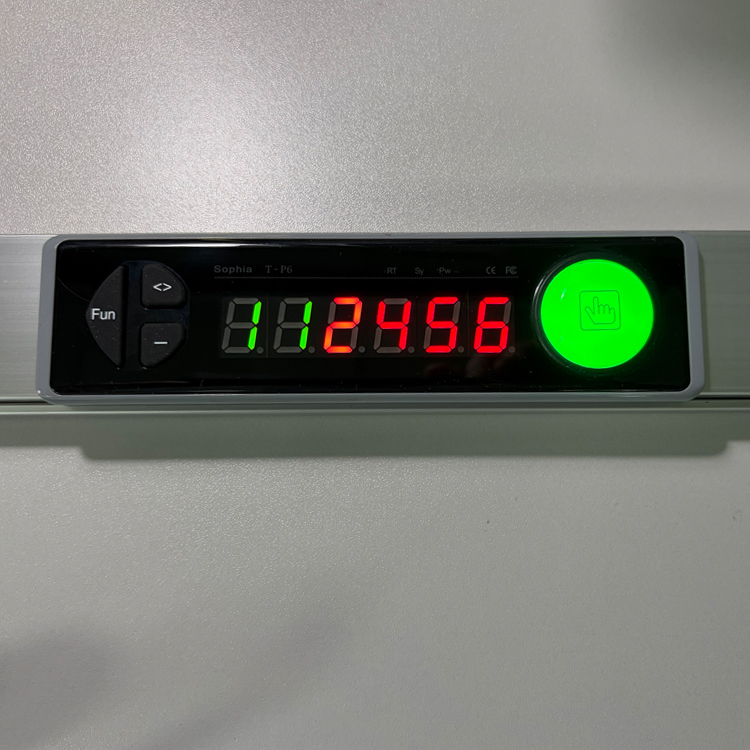

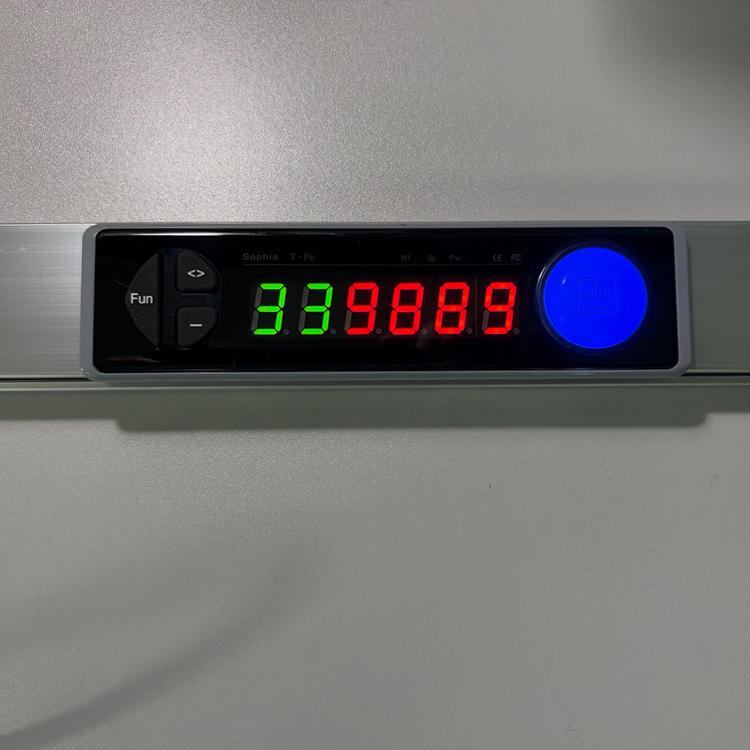

- ✓ 6 Digits Display (Solid Red or 2 Green + 4 Red)

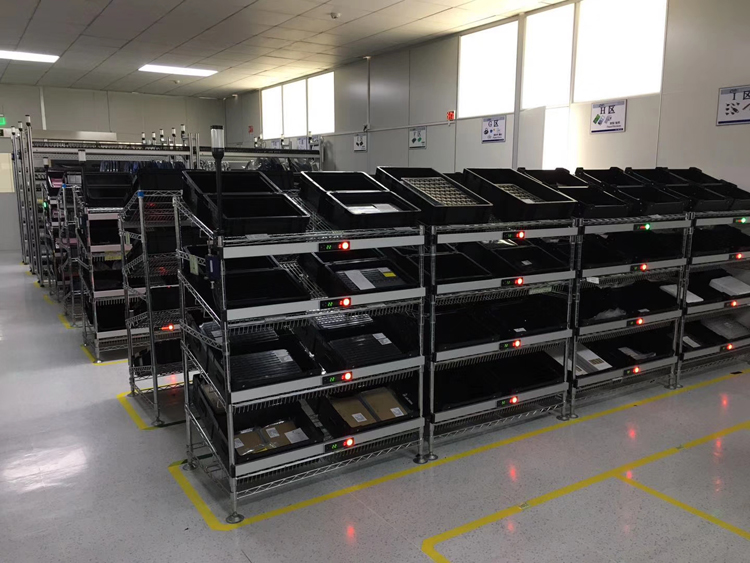

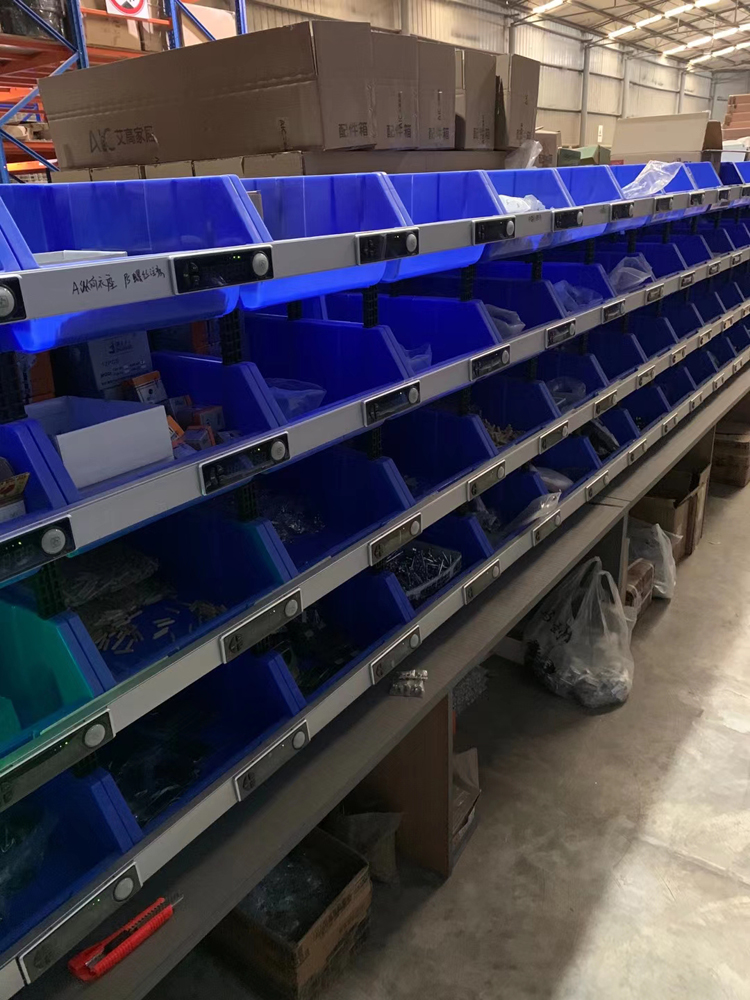

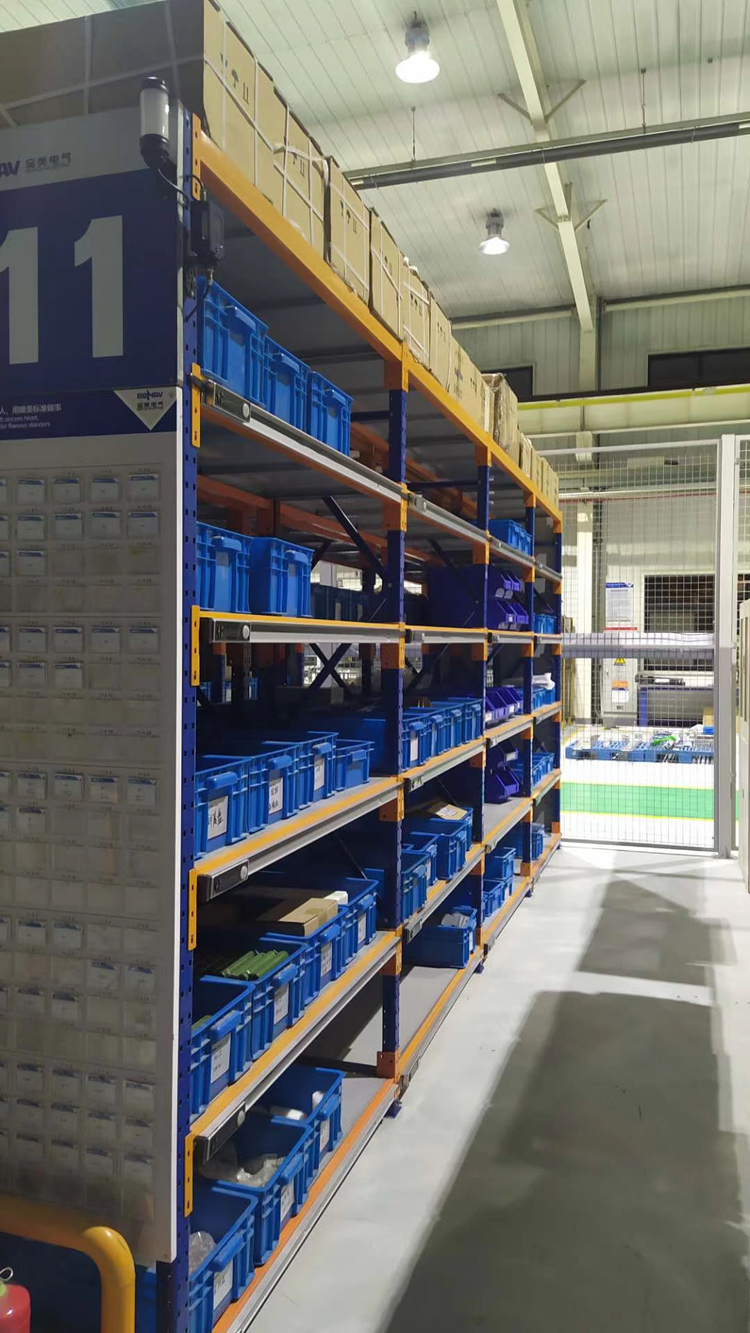

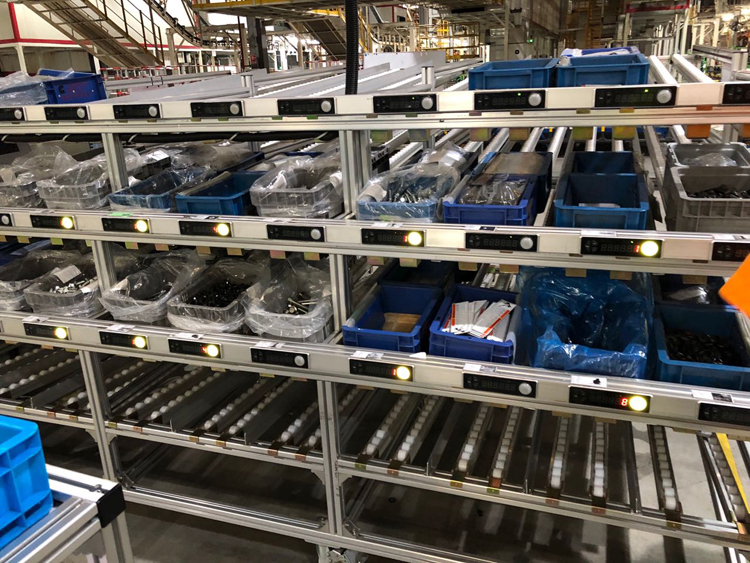

- ✓ High-Efficiency Warehouse Racking & Sorting
- ✓ Electronic Picking Shelf System Optimization
⚙

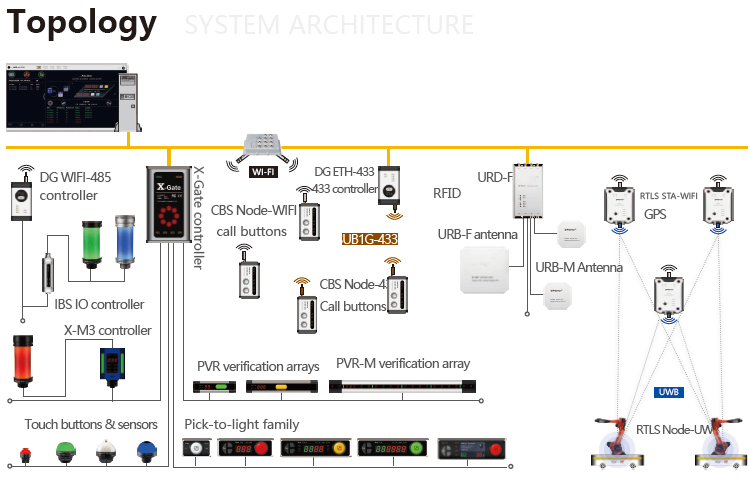

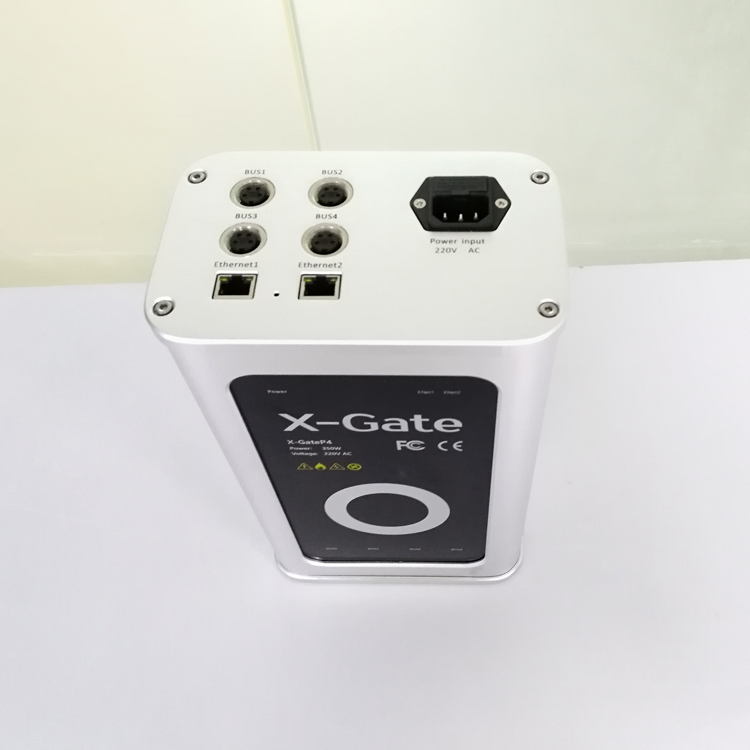

X Gate Controller Infrastructure
- ● Architecture: Four Bus Ports & Two Ethernet Ports
- ● System Power: 350W Heavy Duty Capacity
- ● Load Capacity: Can Load 200 Pick Tags
- ● Output: 24V Regulated Supply
- ● Transmission: 200 Meters Communication Range
☰
Technical Specifications
| Model | P6 |
| Indicator Color | Red, Yellow, Green, Blue, 7 colors |
| Address | 1-247 |
| Power Supply | 12-30Vdc |
| Consumption Power | Less than 2W |
| Control Style | Private controller or PLC |
| Communication | RS485 |
| Dimension | 168 x 44.5 mm |
| Lifetime | More than 1,000,000 cycles |
| IP Rating | IP54 |
| Material | Aluminum Alloy |
✦
Similar Products & Variants
?
Frequently Asked Questions (FAQ)
Q What communication interface does the P6 Pick to Light tag utilize?
The system utilizes standard RS485 communication with configurable address ranges from 1 to 247 for robust industrial data transmission.
Q How many Pick tags can the X Gate controller support?
A single X Gate controller features 4 Bus Ports and 2 Ethernet Ports, supporting up to 200 pick tags over a communication distance of up to 200 meters.

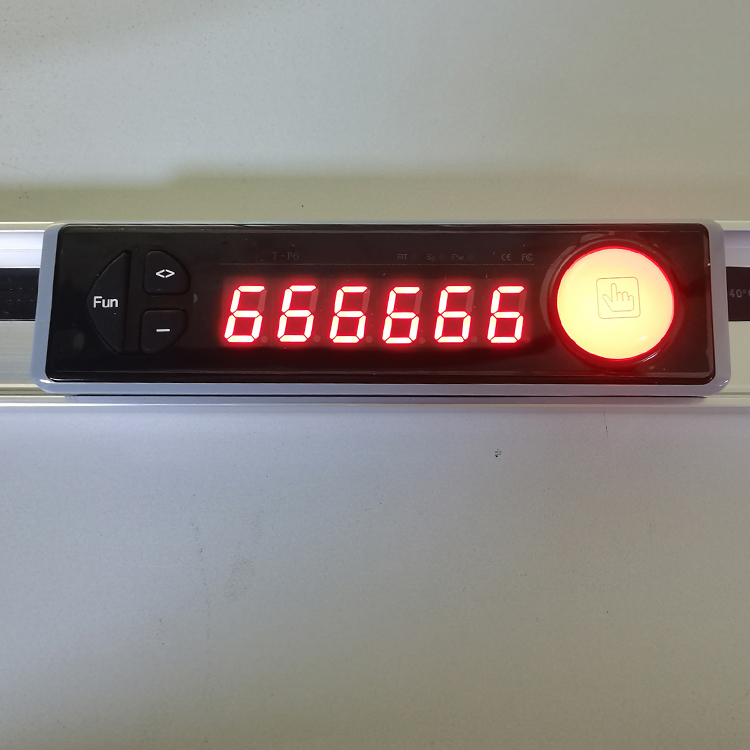

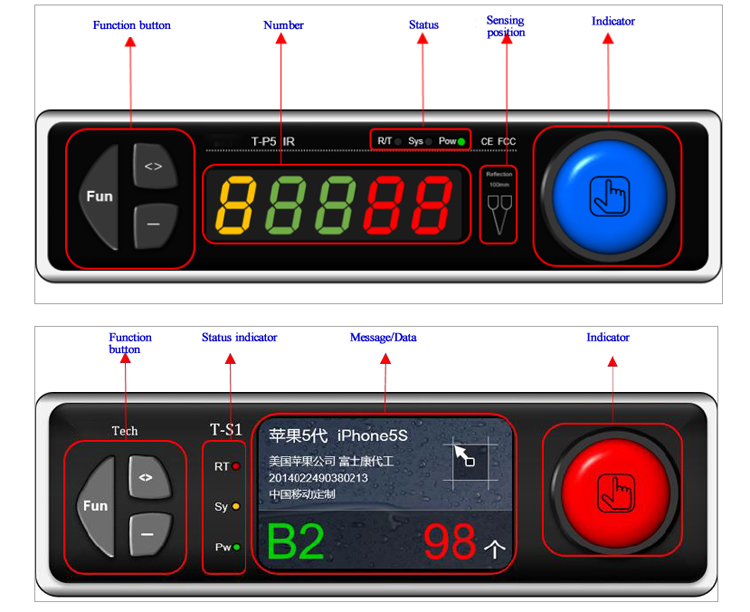

Q What display configurations and LED indicator colors are available?

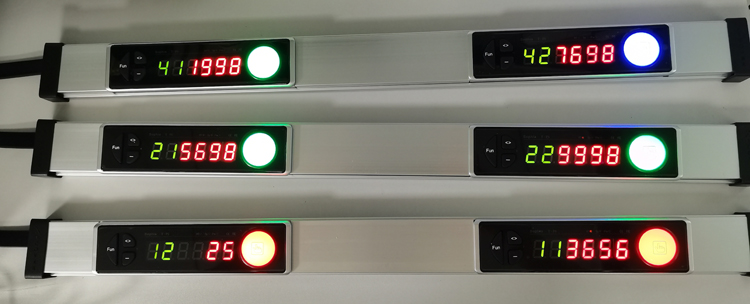

The unit provides a 6-digit numeric display available either in all red or split into 2 green and 4 red digits. The indicator lamp supports multi-color signaling including Red, Yellow, Green, Blue, and up to 7 distinct colors.
Q Can this system integrate directly with a PLC?
Yes, the tags are fully compatible with both proprietary dedicated controllers and standard industrial PLCs.
Q What is the ingress protection and operational lifespan of the tag?
The P6 module features an IP54-rated aluminum alloy housing and is engineered for an operating lifetime exceeding 1 million cycles.
Q What are the power requirements for the picking tags?
Each tag operates on a 12-30Vdc power supply with low power consumption of less than 2W.
