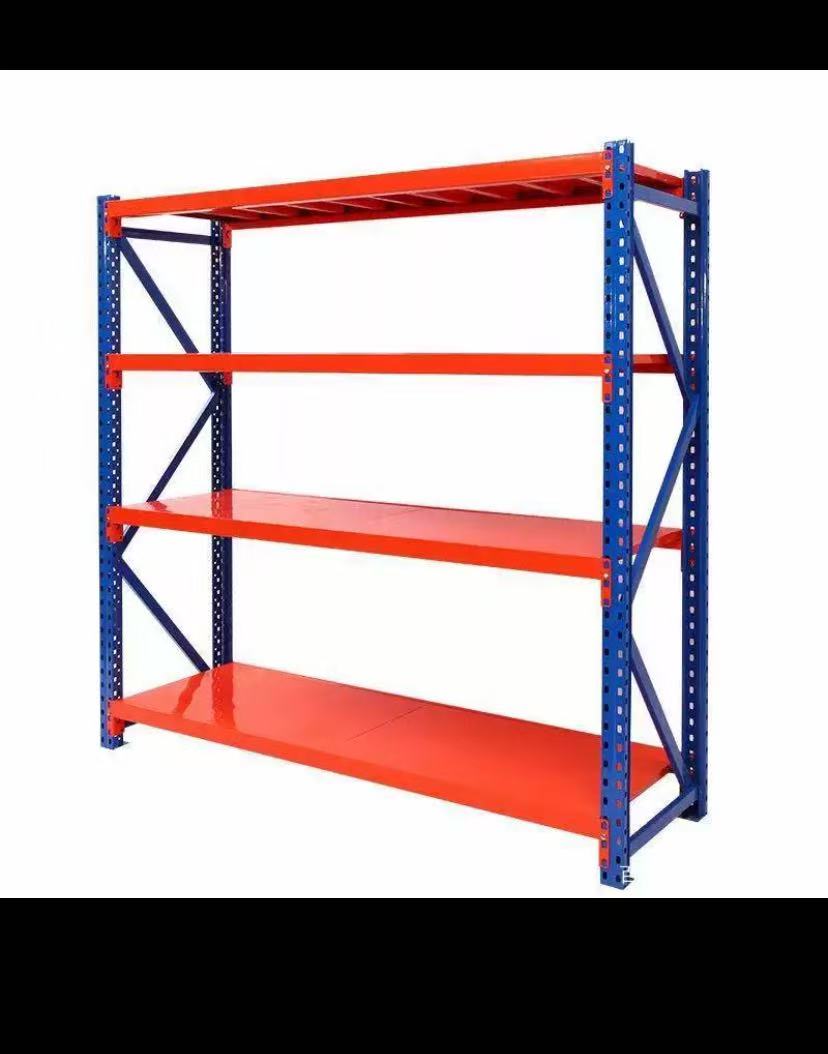

Mracking Medium Duty Rack Storage Racking Metal Shelving Rack Light Duty Rack Boltless Racking
Product Description
Product Description

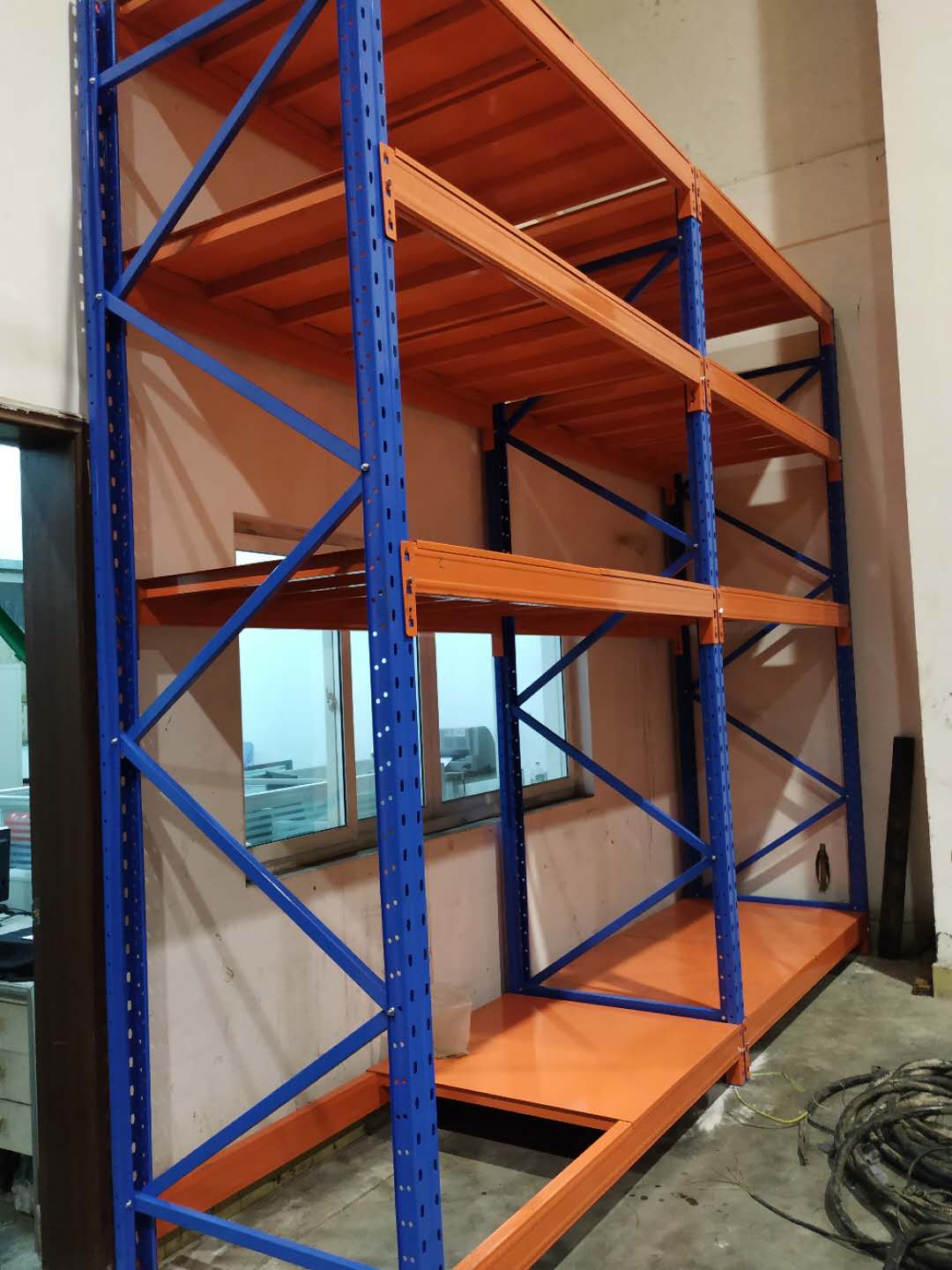

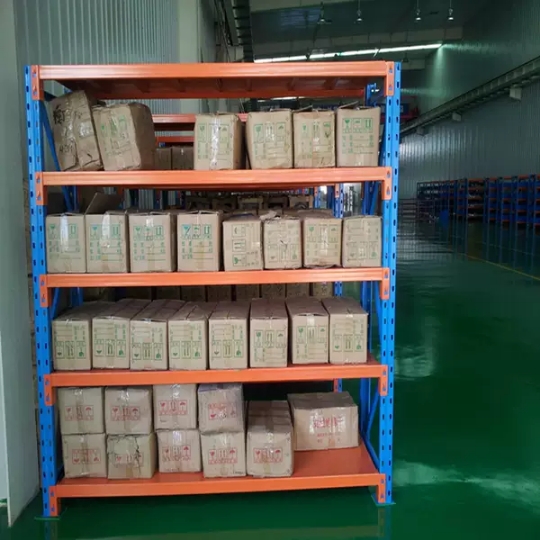

Medium Duty Rack:
Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack / Shelf |
| Material | High-Quality Q235 Cold-Rolled Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm | Beam: 60*40 / 80*40*1.0, 1.2, 1.5mm | Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: blue, Beam: orange, Steel: gray white. (Can be customized to any color) |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
- Long span shelving rack is very convenient for installation.
- The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts, and plastic footing.
- The surface is electrostatically sprayed and the color is selectable. It has good ability of corrosion protection and rust protection.
- It is widely used in families, stores, supermarkets, company storages, and public institutions. It is the most updated product line.

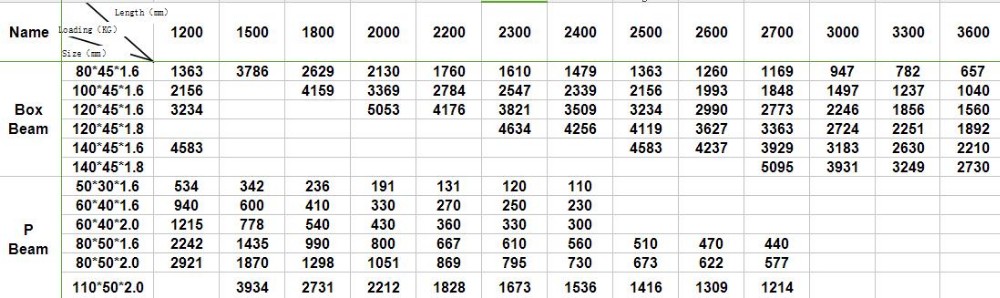

Beam Loading Capacity & Size

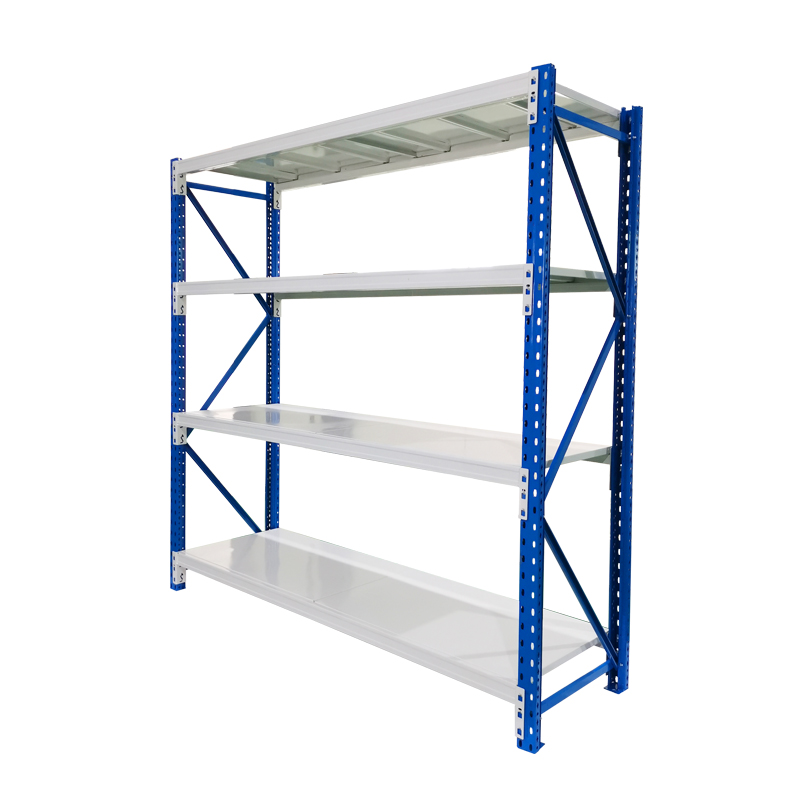

Detailed Images
| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is blue, beam and steel is gray white |
| Packaging Term | Air bubble |
| Surface Treatment | Powder Coating |

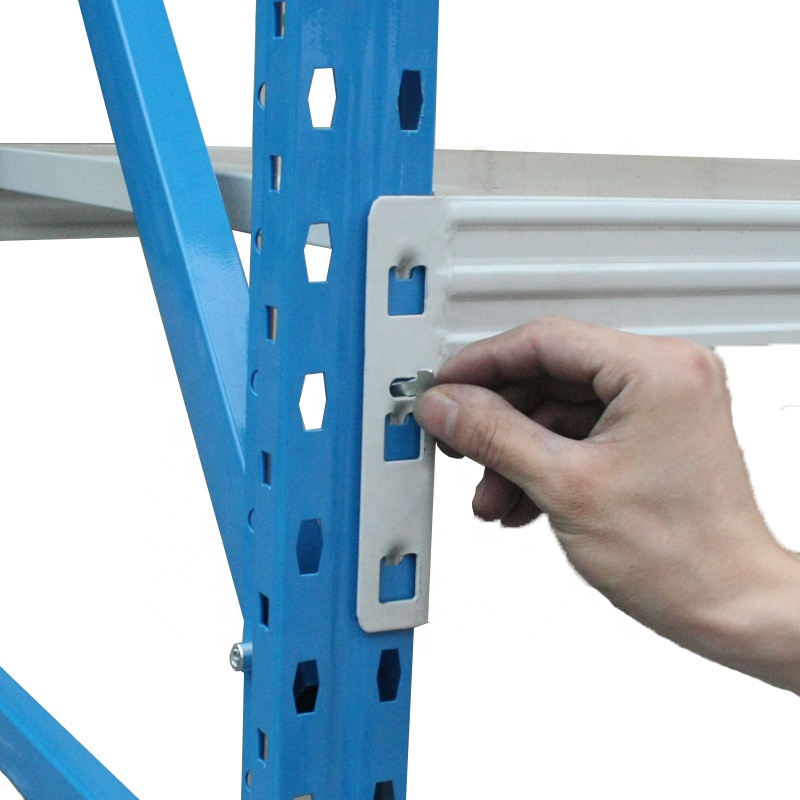

Beam & Upright Connect
Diagonal & Horizontal Bracing Installed

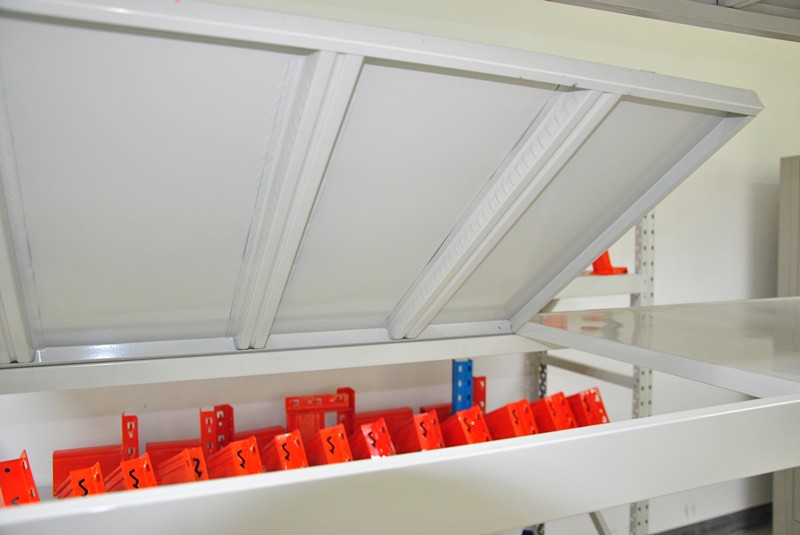

Steel Board Section
Product Overviews
Hot Sale
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
QAre you a manufacturer or trading company?
We are a professional racking manufacturer in Dongguan, Guangdong.
QWhat is the material used for the racks?
Our material is high-quality Q235B cold-rolled steel.
QWhat is the delivery time?
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
QWhat is the term of payment?
30% T/T down payment and 70% T/T before delivery.
QHow can I get a quick quotation on my racking project?
For a quick quotation, please provide: 1) The size of rack (Length * Depth * Height); 2) Layers per set; 3) Load capacity per beam layer; 4) Racking quantity.
QAre samples available?
We accept sending you free samples with freight collect.
