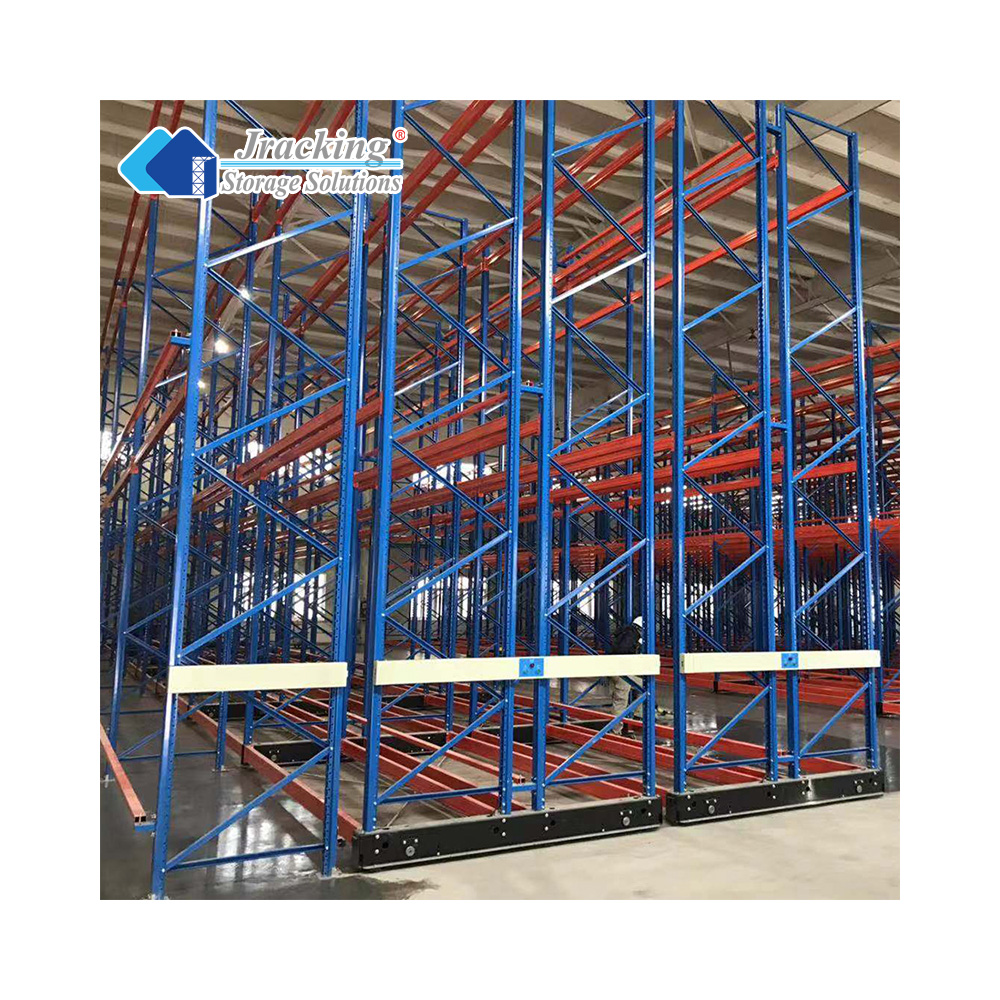

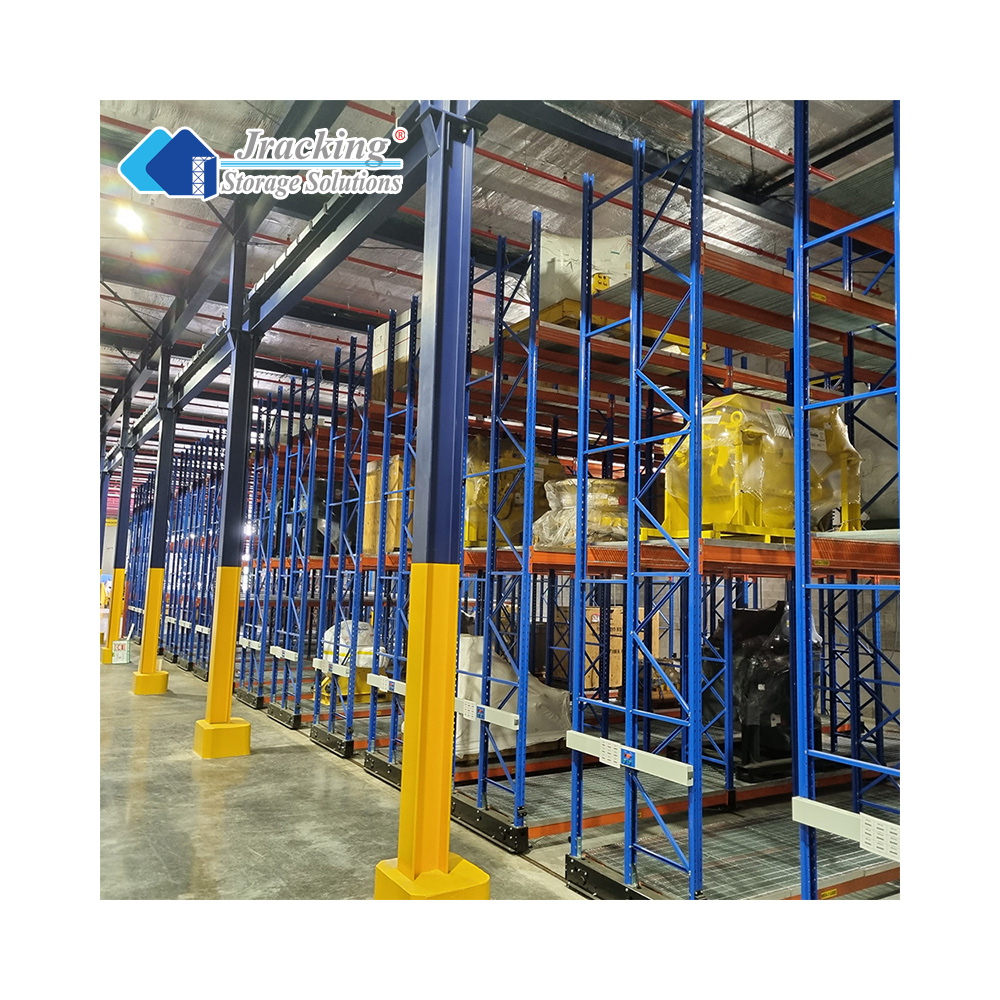

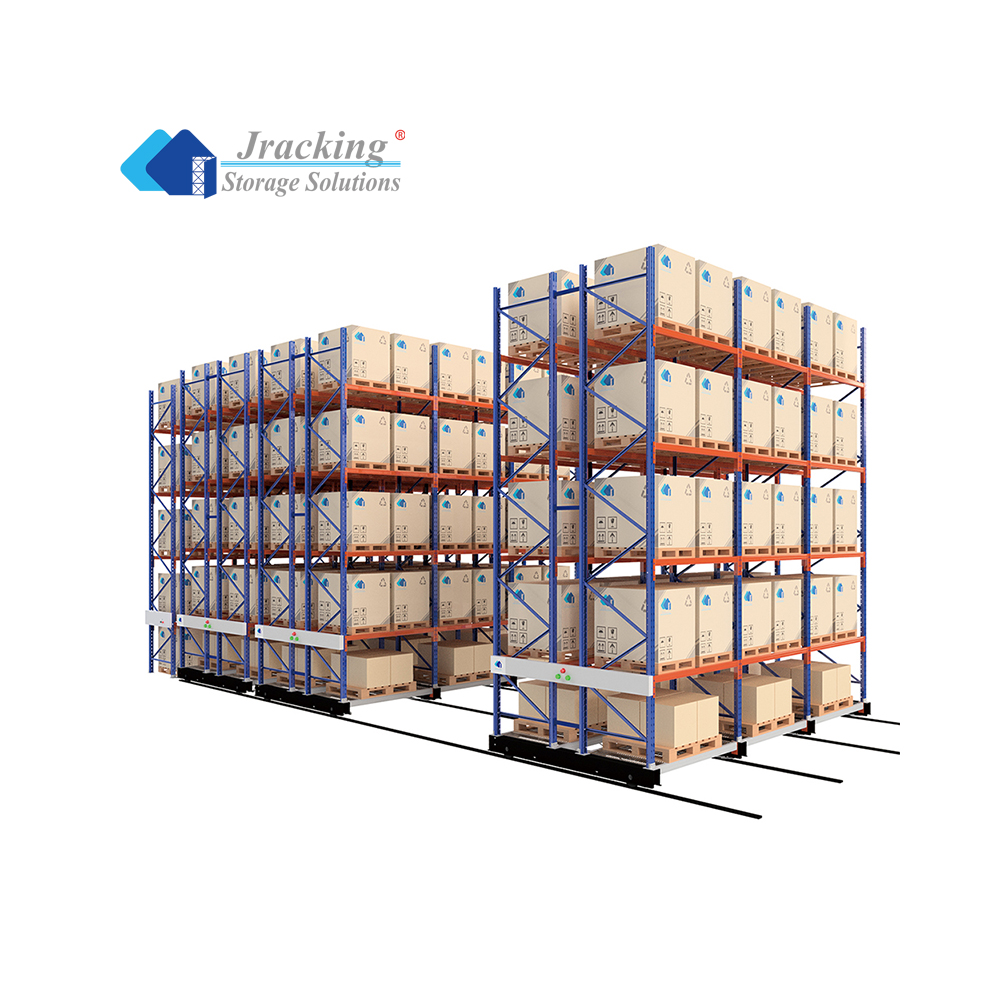

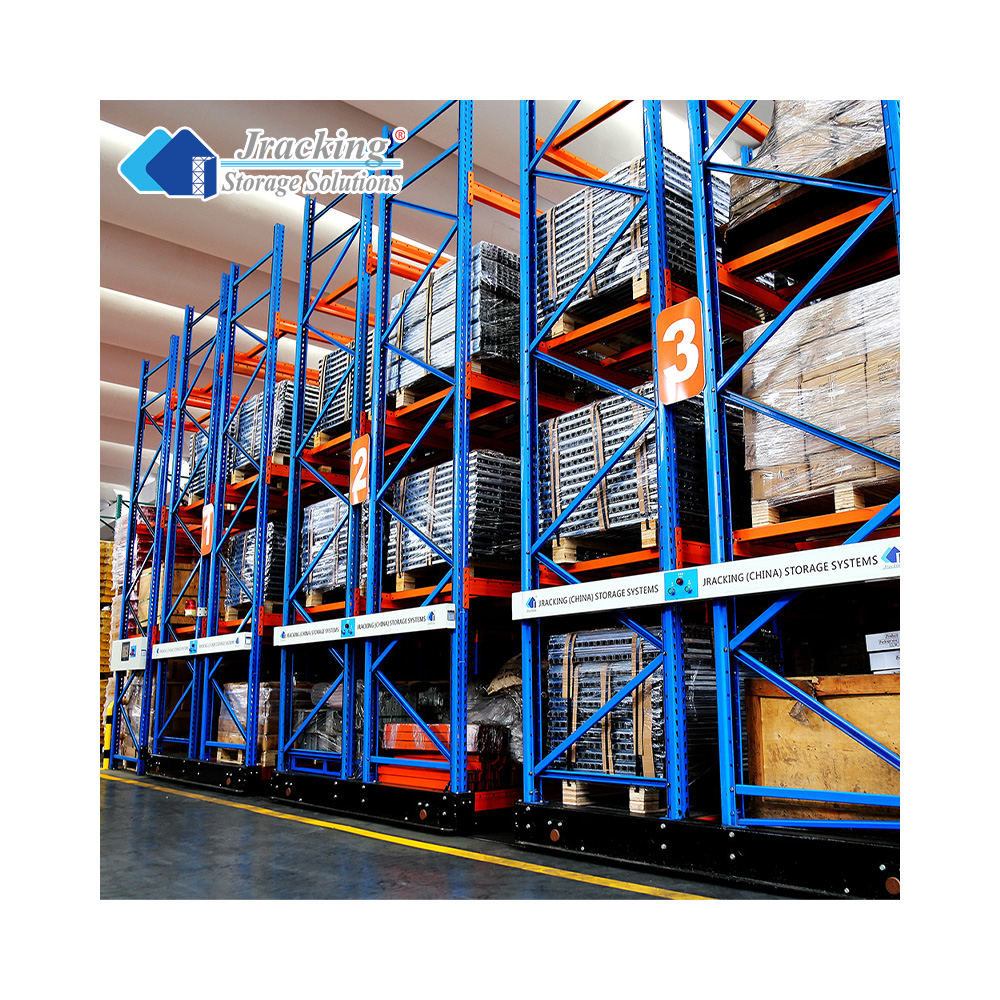

Jracking Automated Storage System Heavy Duty Electric Mobile Pallet Racking
Product Description
Product Description
Electric Mobile Racking
Electric mobile rack takes full advantage of the warehouse space, delivering 3 times the space utilization rate of general shelves. Each unit can be moved separately on the guide rail. It is easy to operate: simply press a button to drive a unit. Every rack has its own transmission equipment linked to an electromotor and is equipped with safety devices. It is mostly applied in refrigerated or anti-explosion warehouses and provides 100% access to load and retrieve goods.
| Name | Electric Mobile Rack | Material | Steel |
| Dimension | Different sizes are available | Color | Selective |
| Depth | Customized | Weight Capacity | Customized |
| Width | Customized | Height | Customized |
| Finish | Powder coated / Galvanised | ||
| Weld | Weld for automatic welding | ||
| Rust | Surface antirust | ||
| Usage | Warehouse Storage System | ||
| Function | Cold Warehouse | ||
| Certification | CE, ISO9001:2008 | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

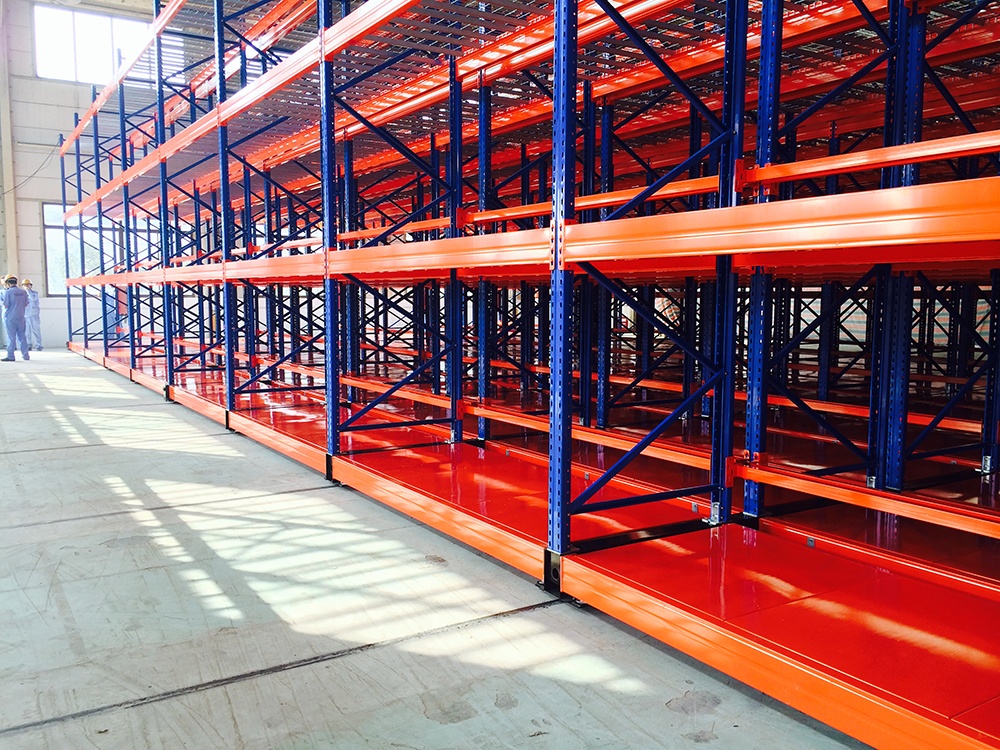

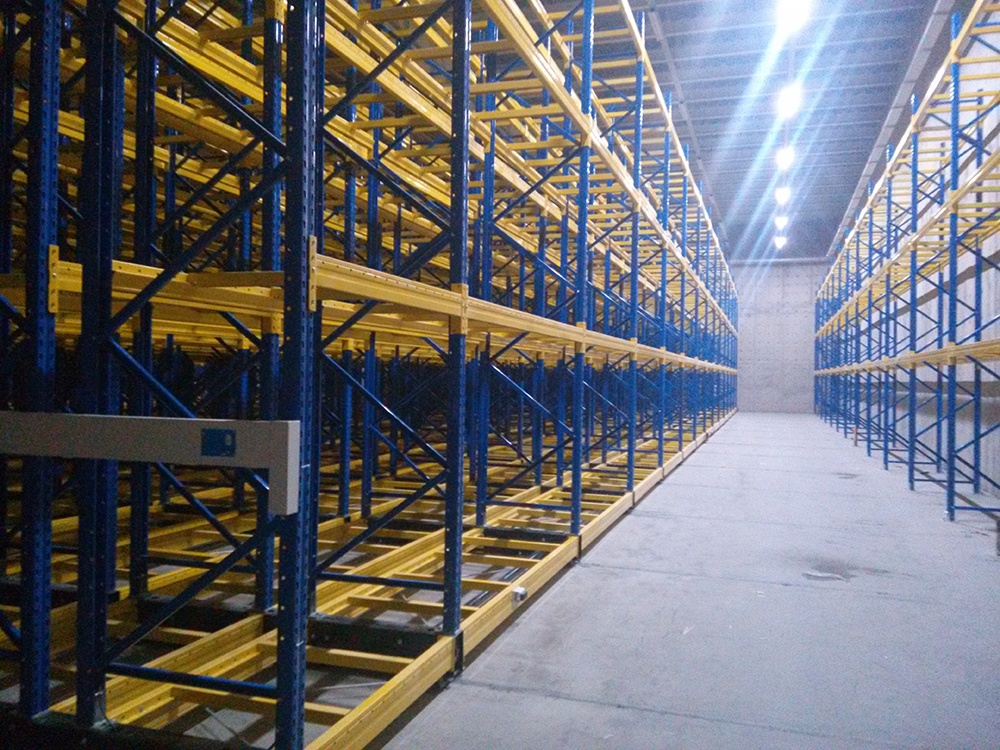

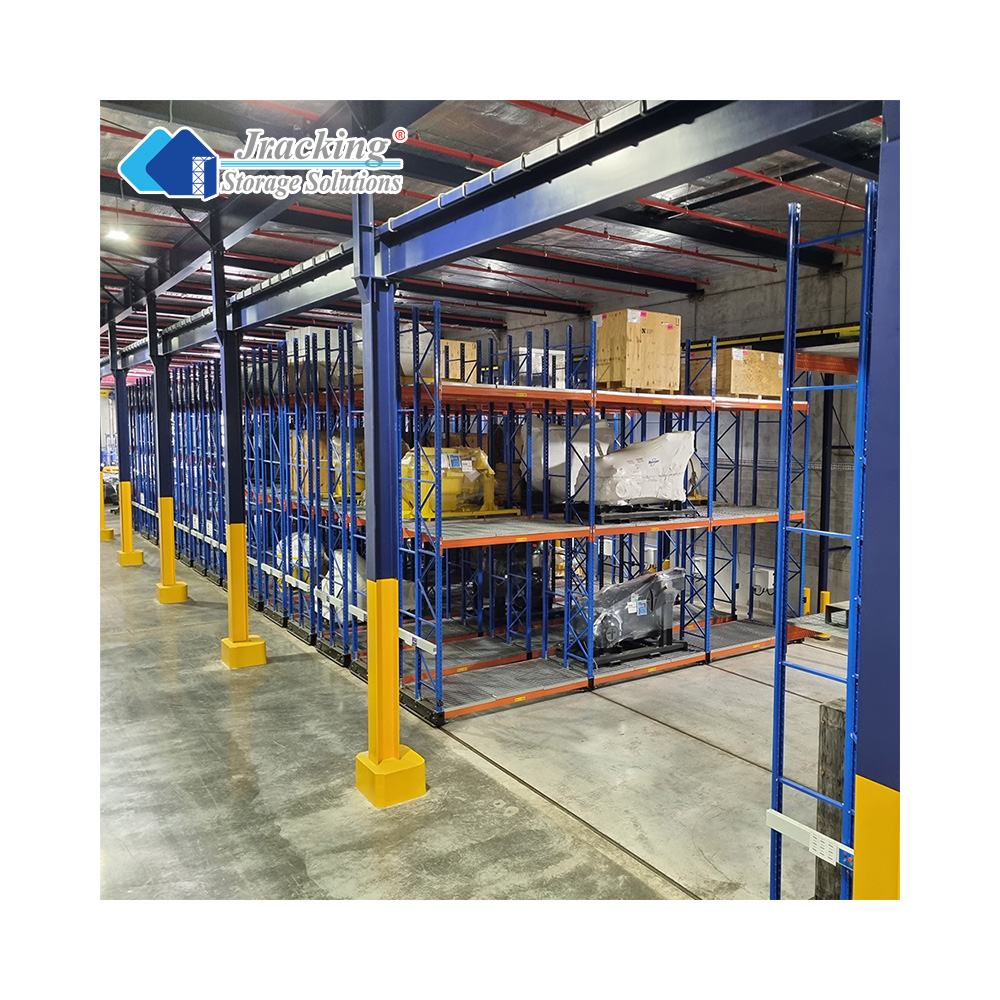

Product Display
Brief Introduction

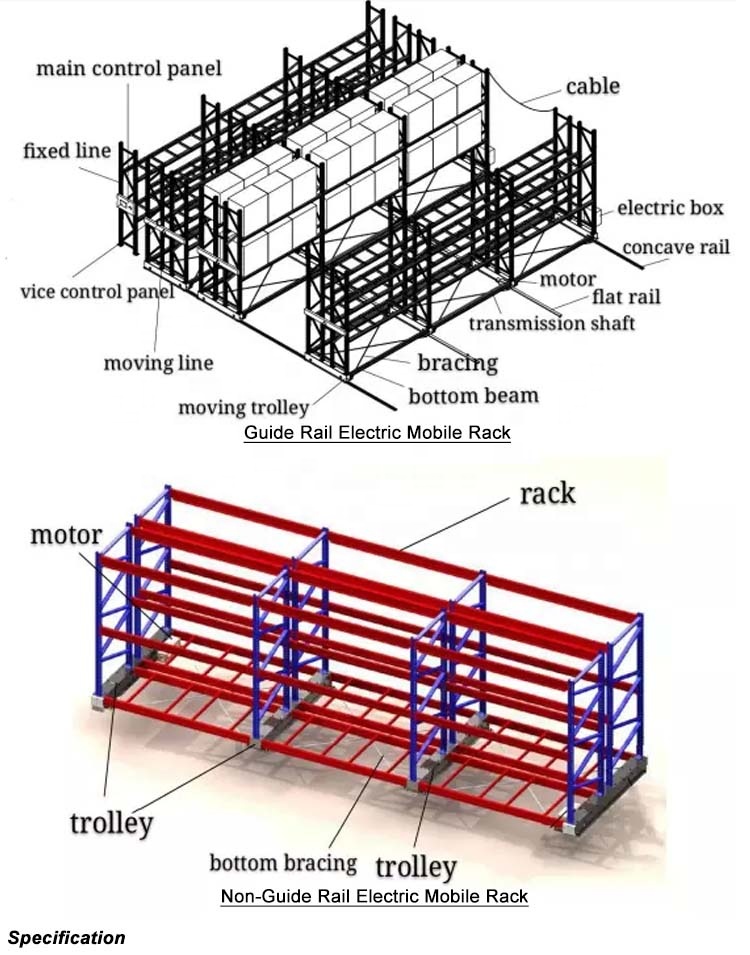

Electric Mobile Rack is the most common form of density storage, with the aid of forklifts to access the goods. Its space utilization rate can reach more than 85%. The electric mobile rack is made up of track (or guide device), trolley (walking device), motor, rack, detection device, operation panel, and software control system. According to the rail style, it is divided into guide rail type and non-guide rail type.
| Specification | Guide Rail | Non-Guide Rail |
|---|---|---|
| Loading Capacity | 32 tons/unit | 16 tons/unit |
| Wheel Material | Cast Iron | Polyurethane |
| Width of Trolley | 210 / 226 mm | 300 mm |
| Cost | Normal | High |
| Running Speed | Max 10m/min | |
| Notch | Need | No Need |
| Guice | Rail Guice | Mechanical Guice |
| Power of Motor | 0.4KW, 0.75KW | |
Features and Advantages
- 1Increases storage capacity by more than 85%.
- 2Reduced operating and real estate costs through outstanding space utilization (surface area utilization of more than 80%).
- 3Suitable for multiple types of goods with small quantity requirements.
- 4Direct access to pallet slots prevents unnecessary and time-consuming relocations.
- 5Simple structure, easy to operate.
- 6Application: Earthquake-proof design, deep-freeze warehouses, manufacturing industry, food and drug industry, new energy industry.

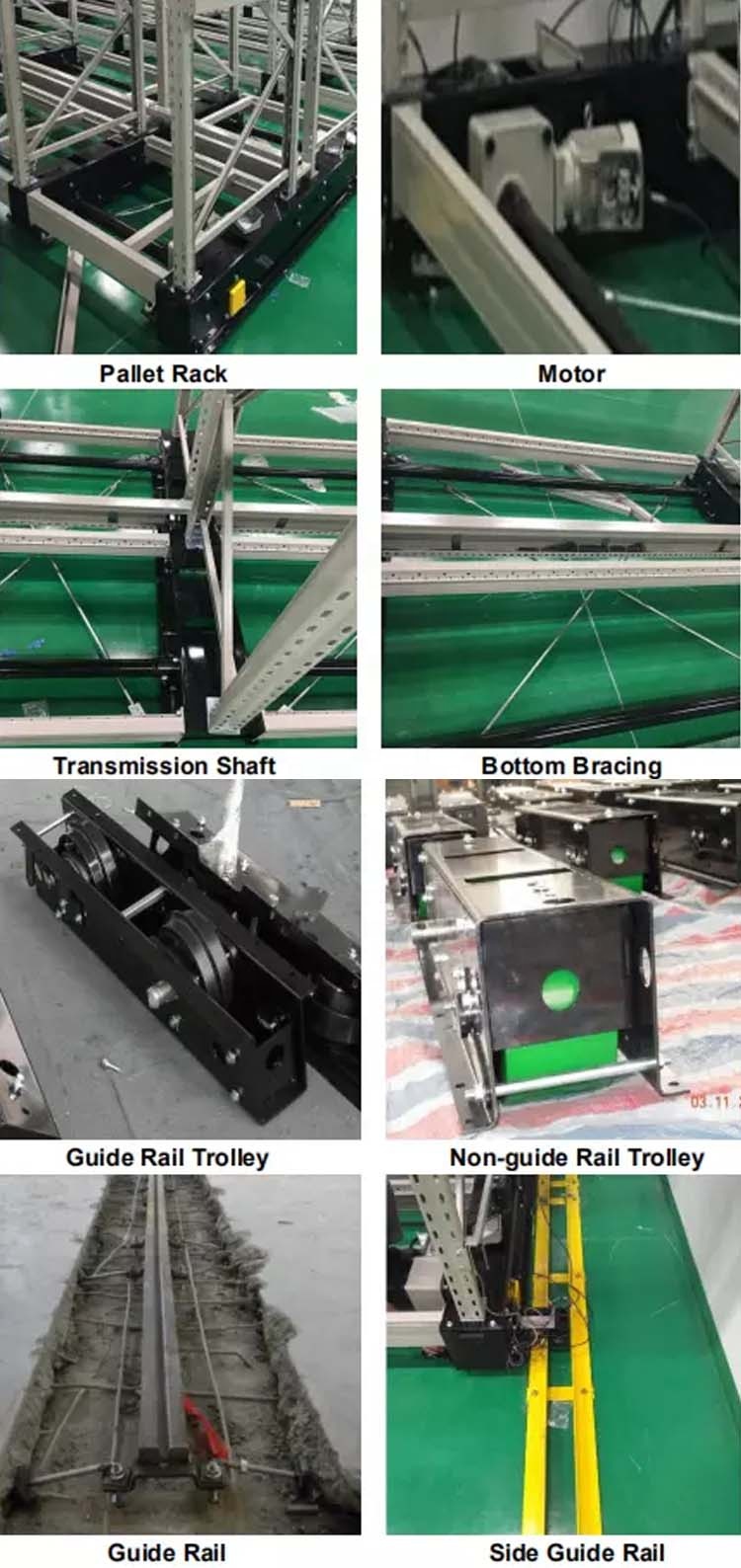

Components
| Rack Part | Pallet Rack |
| Transmission Part | Bottom bracing, Trolley, Motor, Transmission shaft |
| Control Part | Control system, Software |
| Guide Part | Guide rail or side guide rail |

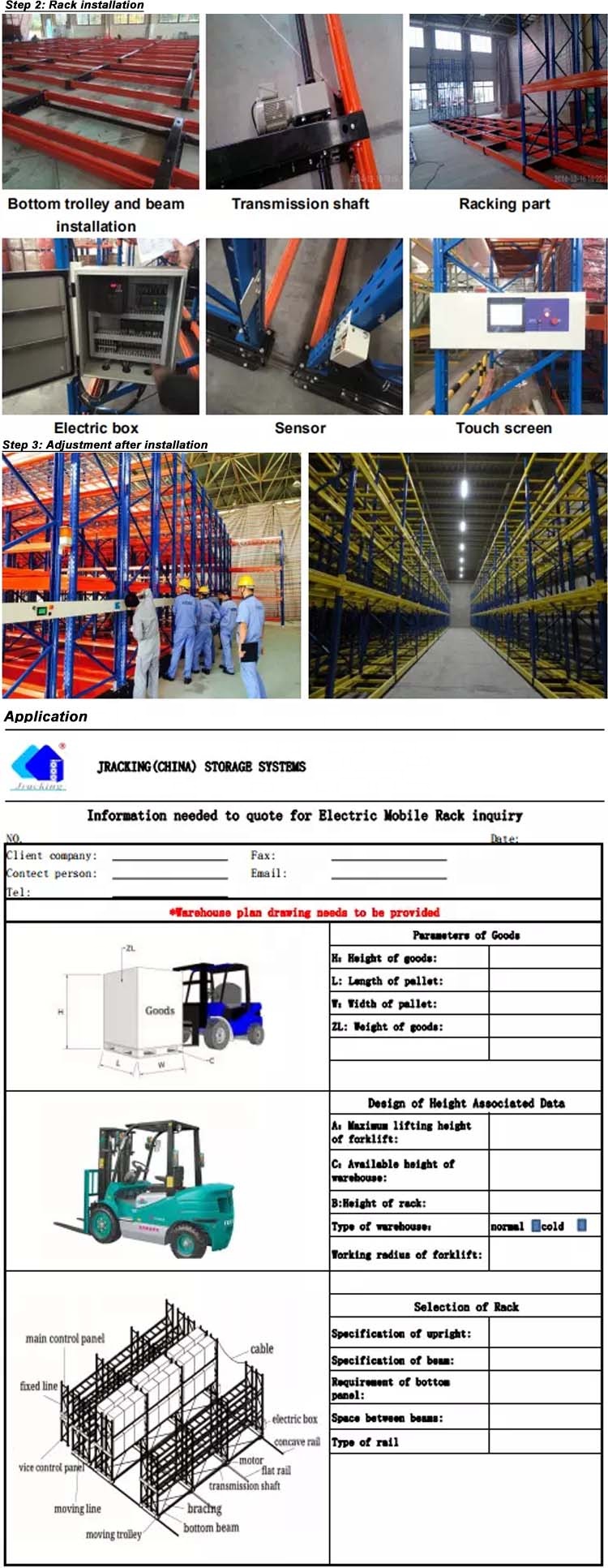

Construction Process
Step 1: Guide rail construction
| Guide rail | Non-guide rail |
|---|---|
| Guide rail electric mobile rack needs notching, rail laying, pouring and rail maintenance. It is suitable for a warehouse with large load capacity and slotting on the ground. | Non-guide rail electric mobile rack does not need notching. It is suitable for a warehouse with smaller loading requirements and no slotting on the ground. |
Get more information here >>
Product Categories
Company Profile
Certifications
Production Process
FAQ
Q1: How much space can an electric mobile rack save compared to traditional shelving?
A: Electric mobile racking maximizes warehouse space by offering up to 3 times the storage space efficiency of standard racking systems, increasing overall capacity by over 85%.
Q2: What is the main difference between guide rail and non-guide rail systems?
A: Guide rail racks require floor notching, have a higher capacity (32 tons/unit), and use cast iron wheels. Non-guide rail racks need no ground notching, have a capacity of 16 tons/unit, and use polyurethane wheels.
Q3: What industries are best suited for electric mobile racking?
A: It is ideal for cold storage and deep-freeze facilities, anti-explosion warehouses, pharmaceuticals, food industries, new energy sectors, and earthquake-prone environments.
Q4: Are customization and OEM options available?
A: Yes, dimensions (depth, width, height), load capacity, colors, and finishings (powder coated or galvanized) are fully customizable. OEM manufacturing is supported.
Q5: What are the main components of this storage system?
A: The system consists of the rack structure (pallet rack), the transmission system (bottom bracing, trolley, motor, drive shaft), the guide components, and the electronic control software/panel.
Q6: What certifications do your electric mobile racks hold?
A: Our electric mobile racking systems comply with international quality and safety benchmarks, certified under CE and ISO9001:2008 standards.
