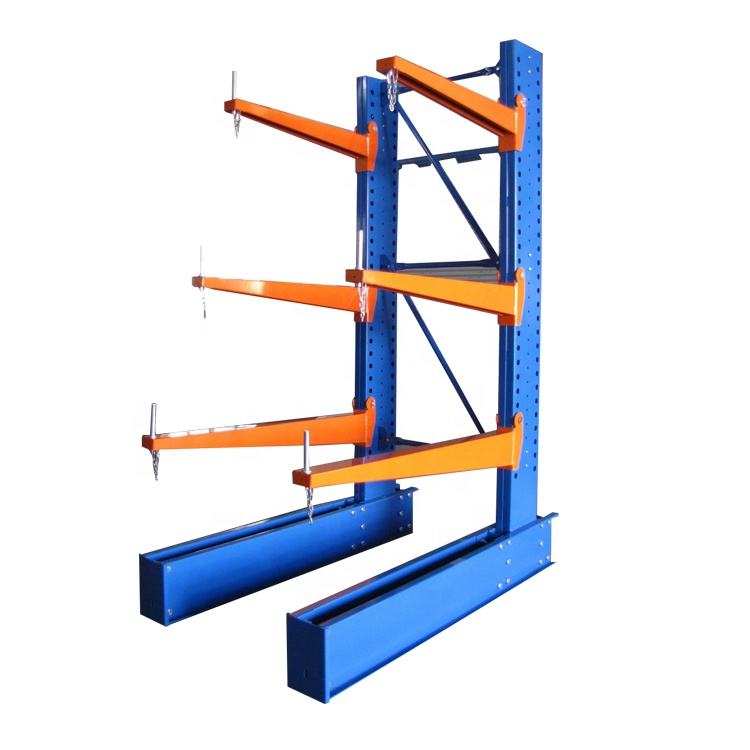

Warehouse Equipment Industrial Heavy Duty Cantilever Beam Racking For Steel Tube
Product Description
Product Description
Cantilever Racking
Jracking Cantilever Racking provides an excellent solution to store irregular or long items, such as furniture, tubing, lumber etc. This is achieved by eliminating blocks in front of the racking and providing a clear opening in front of the rack. Jracking cantilever racking is used around the world. We can tailor-make systems according to goods size and warehouse space. We provide various column heights, arm lengths, and base lengths (single or double-sided) to ensure an ideal solution for your warehouse.
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI / CE / ISO / TUV / AS4084-2012 | ||
| MOQ | One 20ft / 40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||

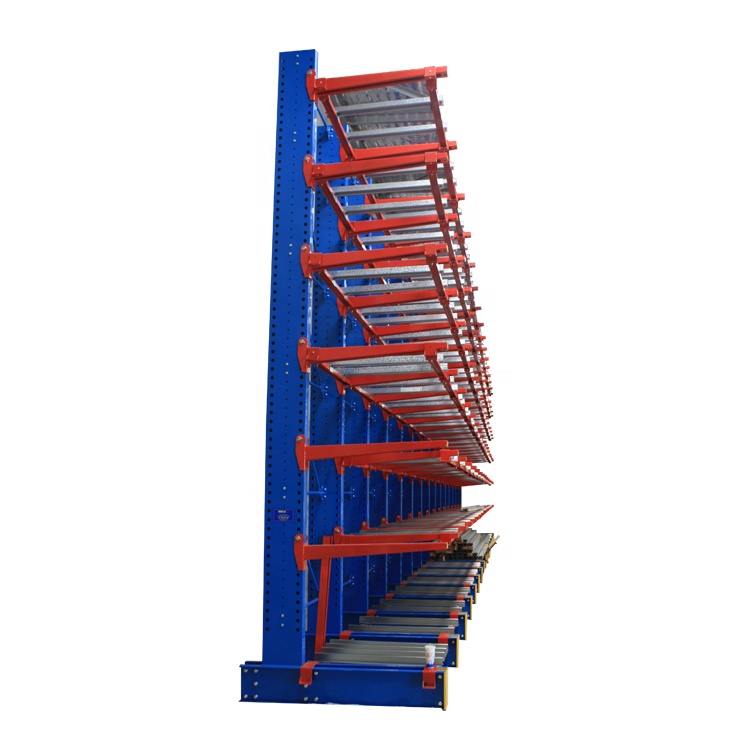

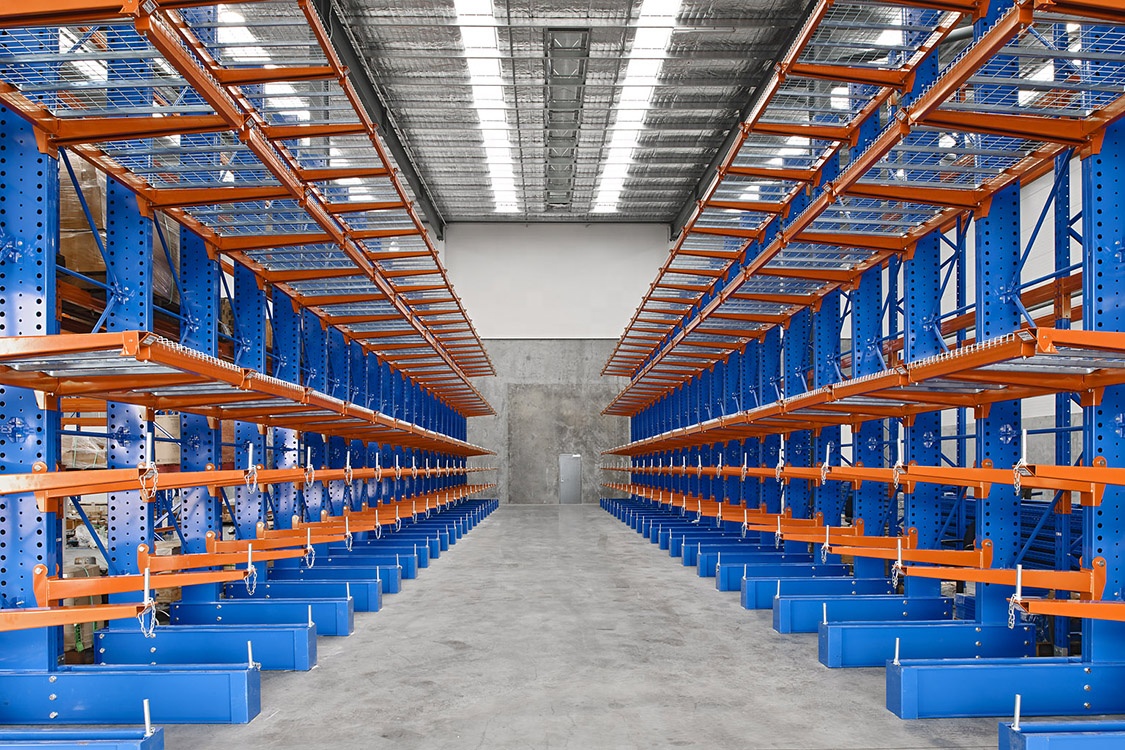

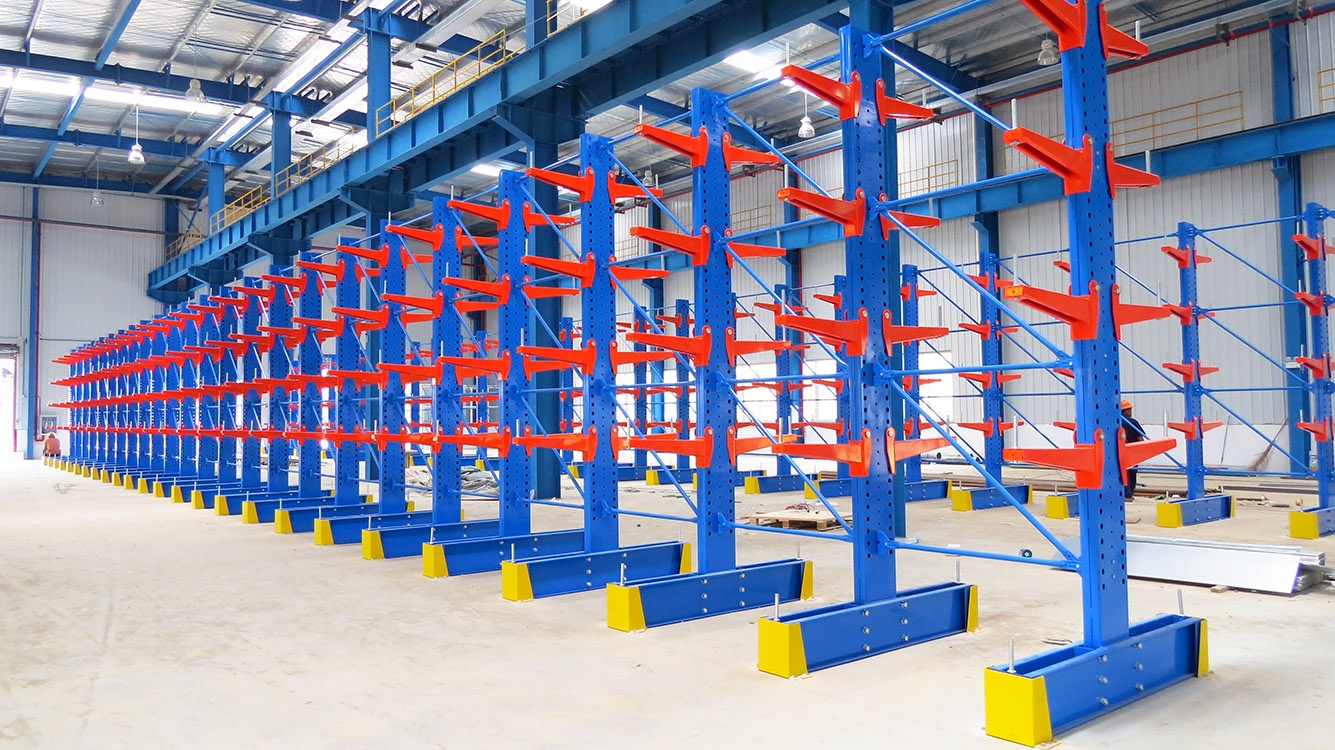

Product Display
Brief Introduction

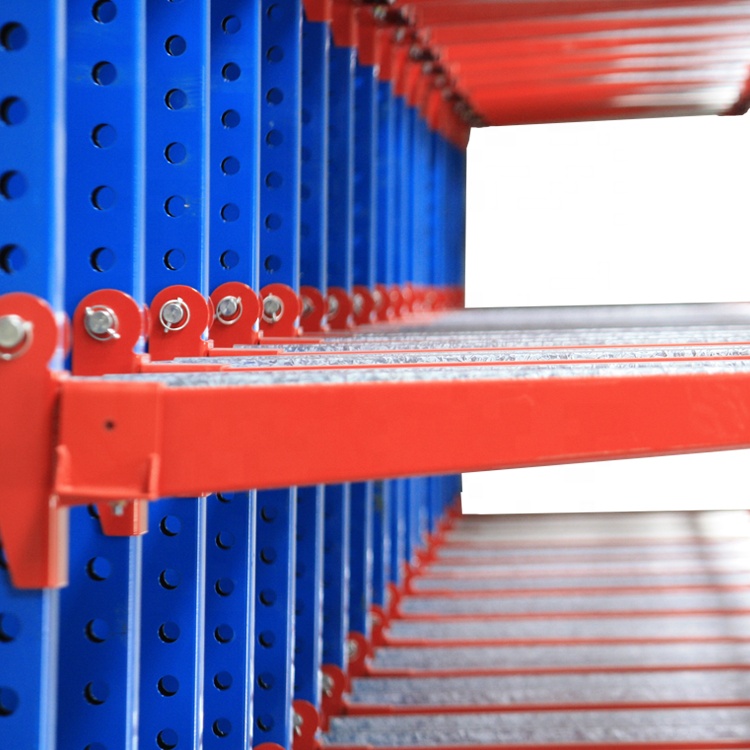

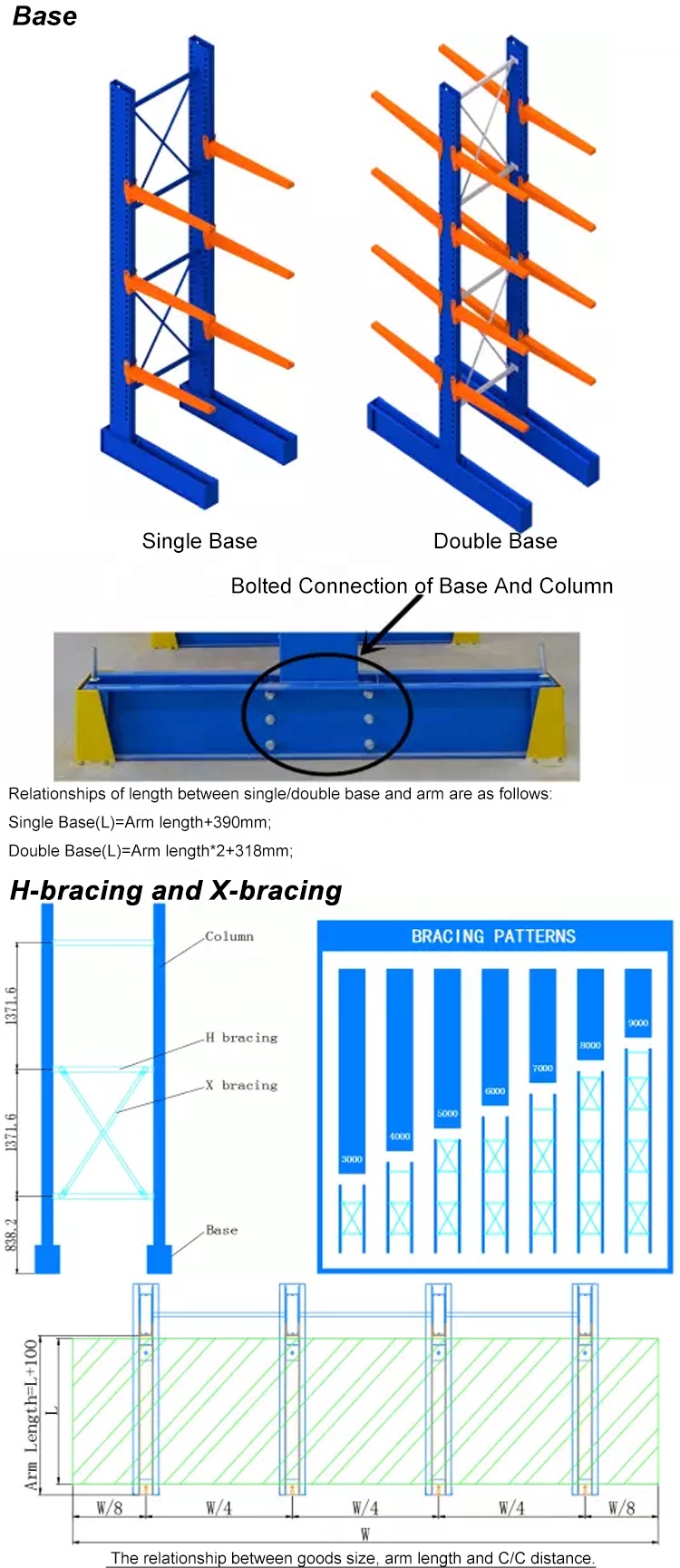

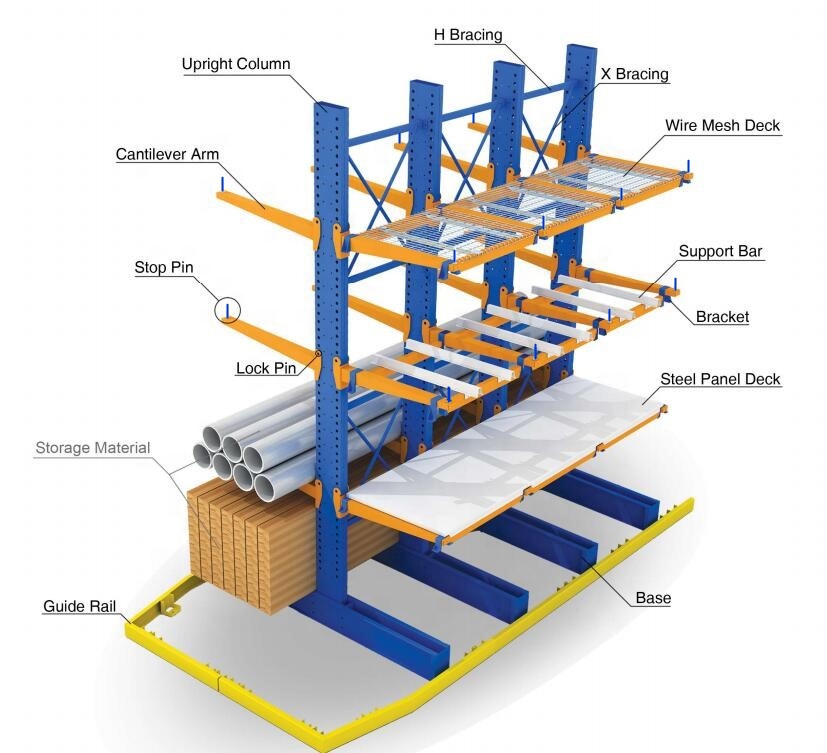

Jracking Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug. The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar are designed to improve the whole stability. Both single-side and double-side bases are available to meet different storage requirements.
Advantages
Exceeding 6m height is available; the highest column is able to reach 10.5m.
Heavy loading capacity; loading of a single-arm can reach up to 1500kg.
Continuously exported to the Australia market for more than 10 years.
Optimized specifically for storing long and irregular material goods.
Arm features a 2° uptilt to ensure arms will not tilt downward under load.
Custom engineered arm lengths available, extending up to 3m beyond regular sizes.

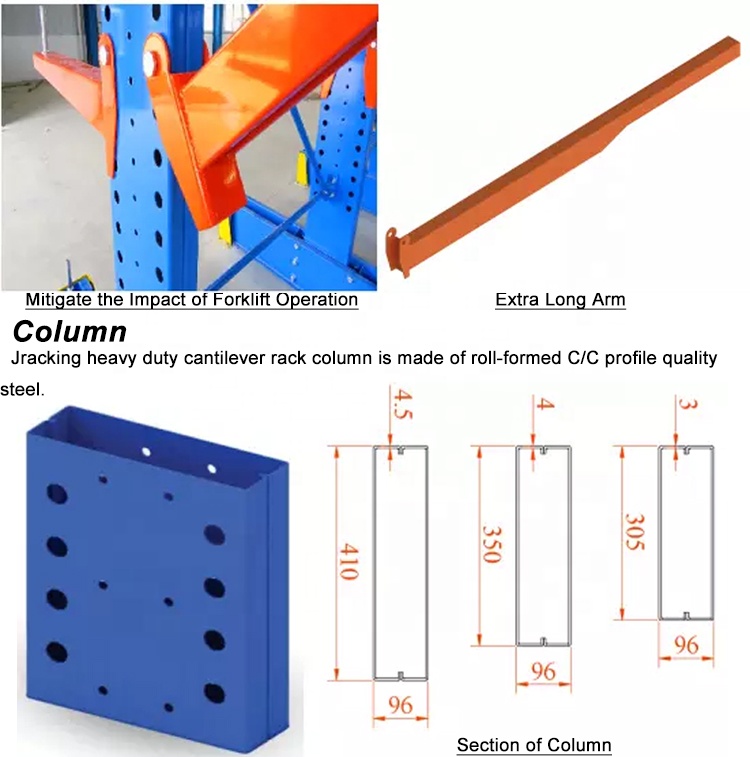

Ingenious connection between column and arm mitigates forklift operation impact.

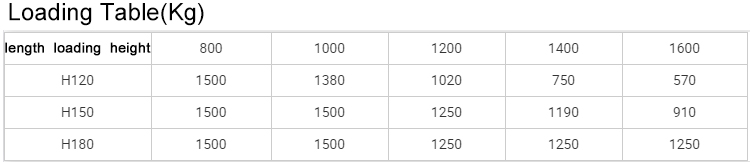

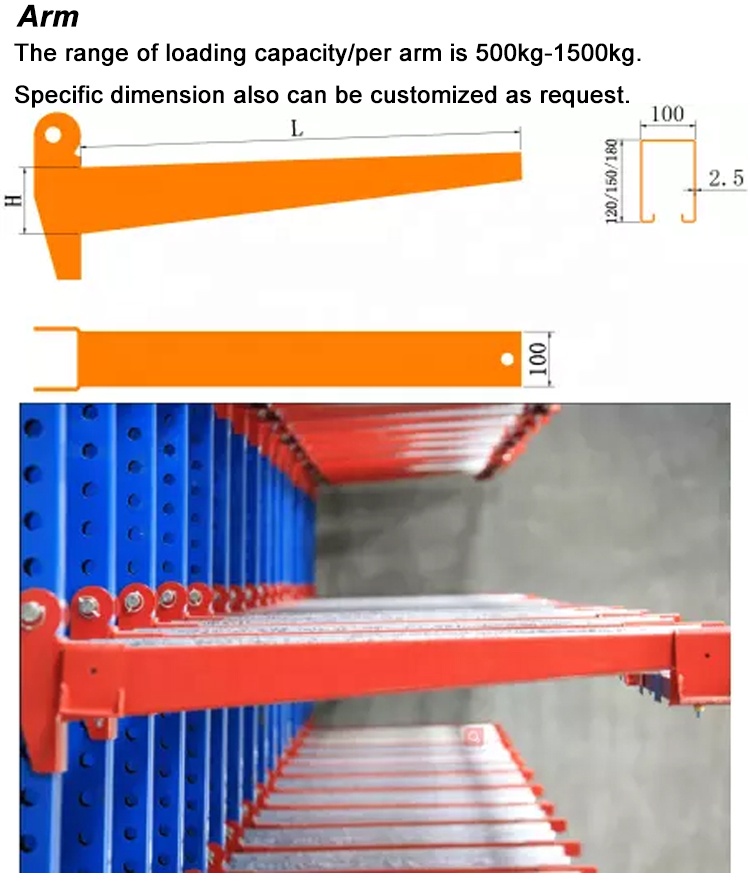

| Component | Specification | Length |
|---|---|---|
| Arm | H120 | 800 - 2000mm |
| H150 | ||
| H180 |
| Item | Dimension | C/C Distance |
|---|---|---|
| H-bracing | 60 x 30 x 2.5 | 500mm - 2000mm |
| X-bracing | Φ32 x 1.5 |
C/C distance: 1000, 1200, 1400, 1600, 1800, 2000.
Other specific dimensions can also be customized on request.
Product Categories
Company Profile
Certifications
Production Process
Frequently Asked Questions
Q1
What types of materials are best stored on cantilever racks?
Cantilever racking is ideal for storing long, bulky, or awkwardly shaped items such as timber, steel pipes, plastic tubing, furniture, plasterboards, and structural extrusions without front-column obstruction.
Q2
What is the maximum column height and weight capacity?
Column heights can exceed 6 meters and reach up to 10.5 meters. Single-arm load capacity standardly supports 1000kg and can reach up to 1500kg per arm depending on custom specifications.
Q3

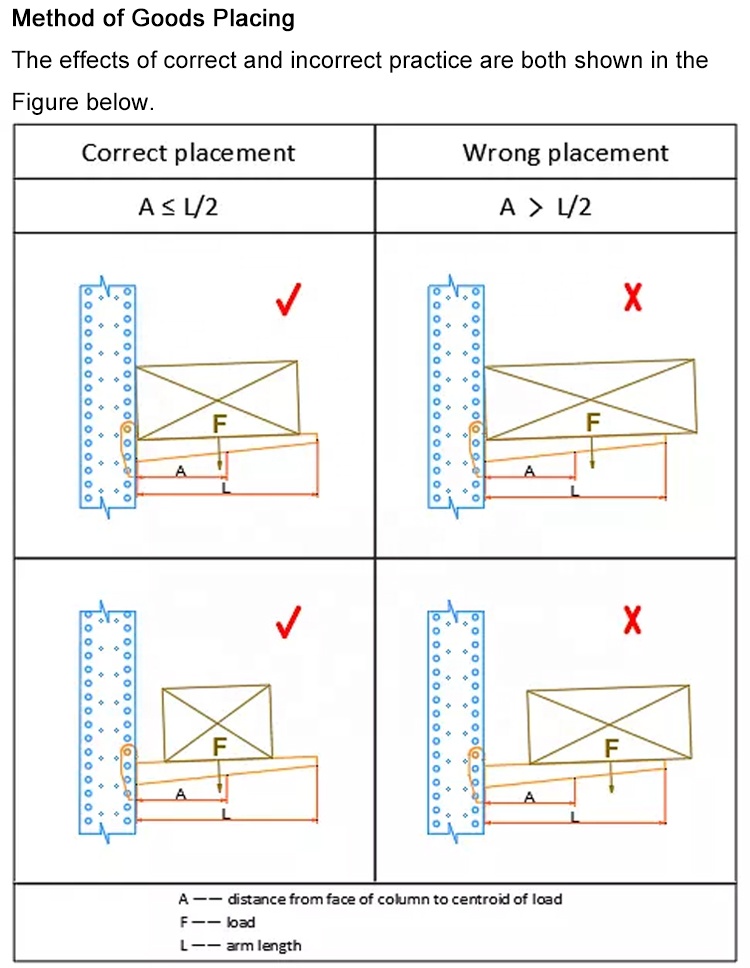

How does the 2° arm uptilt benefit storage safety?
The precision 2° upward incline compensates for structural deflection under heavy loads, ensuring that goods naturally settle inward toward the column rather than tipping forward.
Q4
Can cantilever racking be configured for single-sided or double-sided use?
Yes. Both single-sided bases (for placement along warehouse walls) and double-sided bases (for central floor aisles accessible from both directions) are fully supported.
Q5
What surface finishes are offered for outdoor or corrosive environments?
We offer standard electro-powder coating for indoor warehouses as well as heavy-duty Hot Dip Galvanization to prevent corrosion in outdoor storage or humid operating environments.
Q6
What international safety and quality standards do your racks satisfy?
Our cantilever racking products are certified and comply with strict global racking standards, including RMI, CE, ISO, TUV, and the Australian AS4084-2012 standard.
