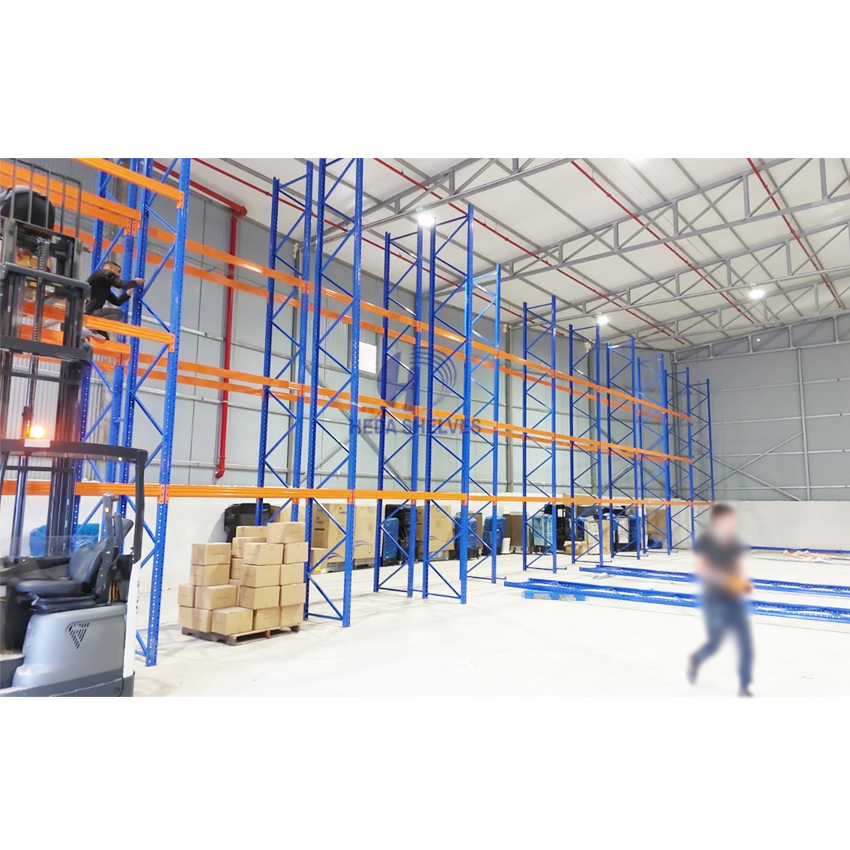

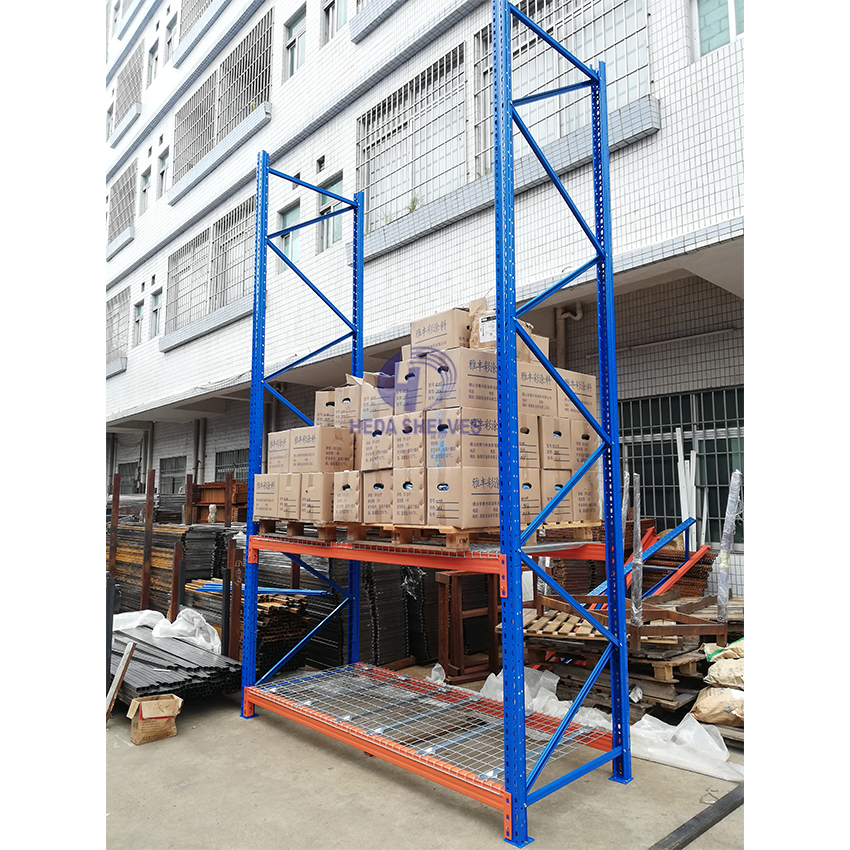

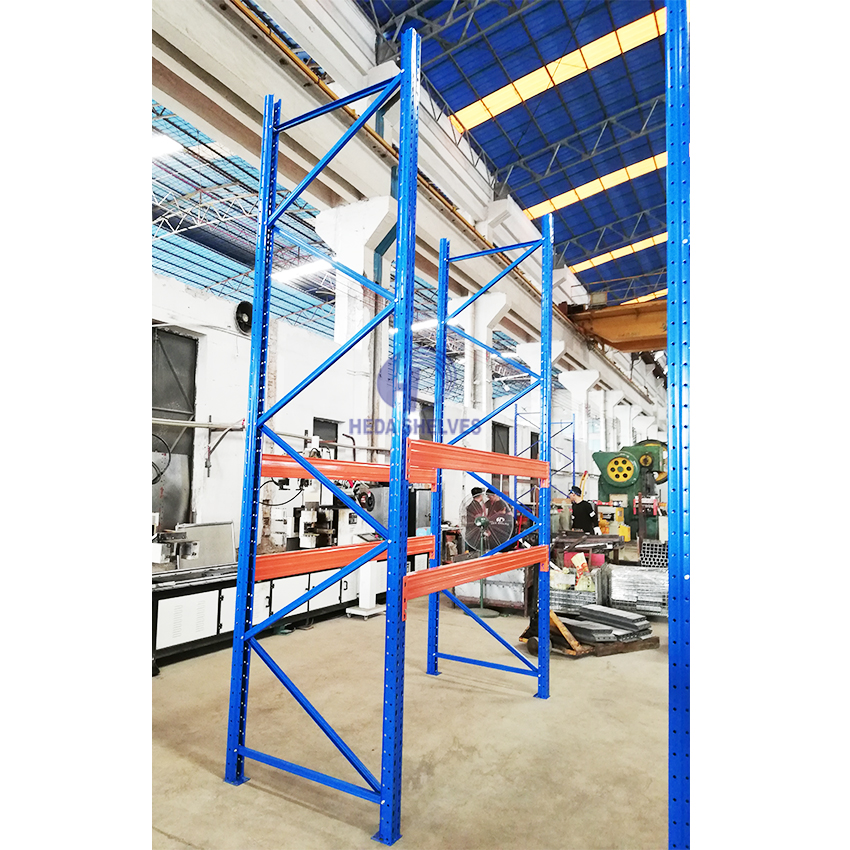

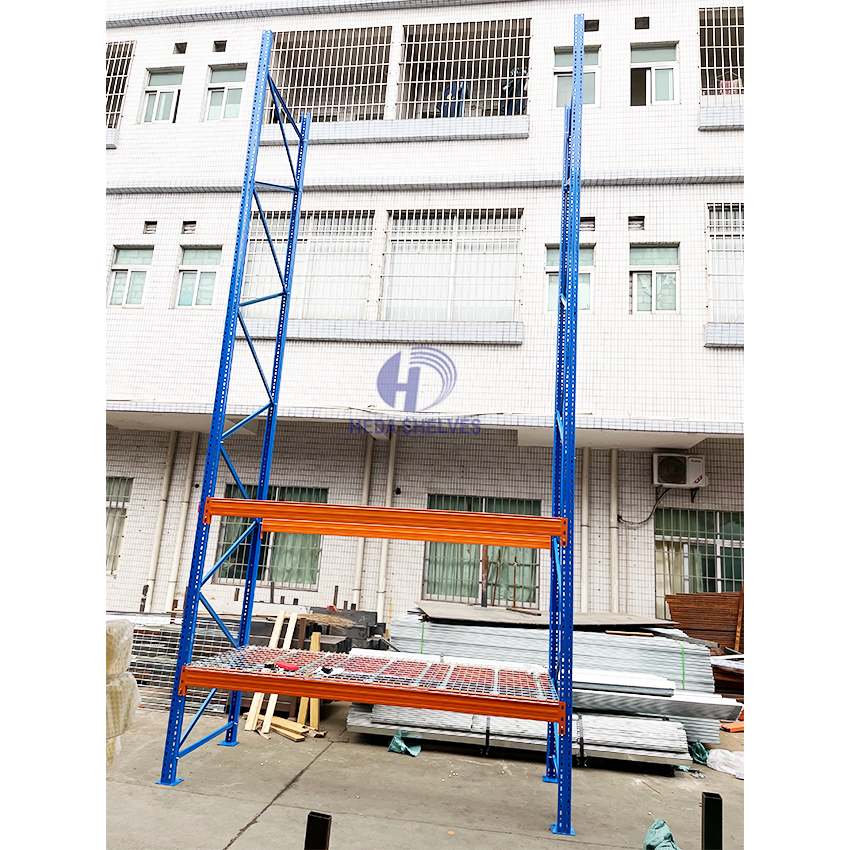

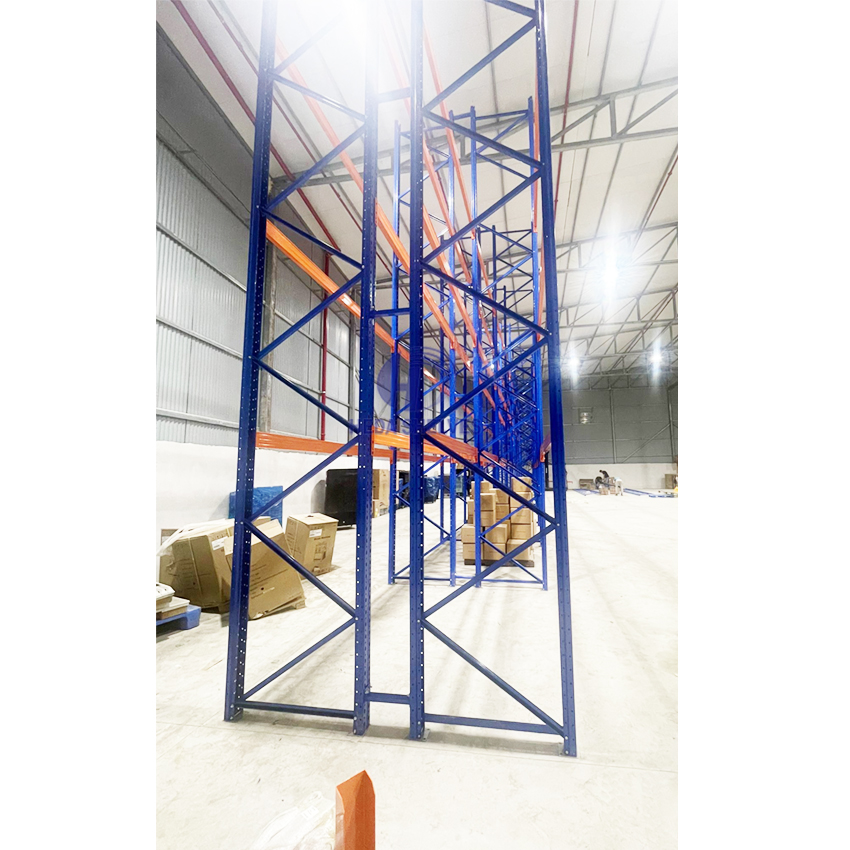

High Bay Heavy Duty Selective Pallet Racking System for Tall Warehouses and Industrial Storage
Product Description

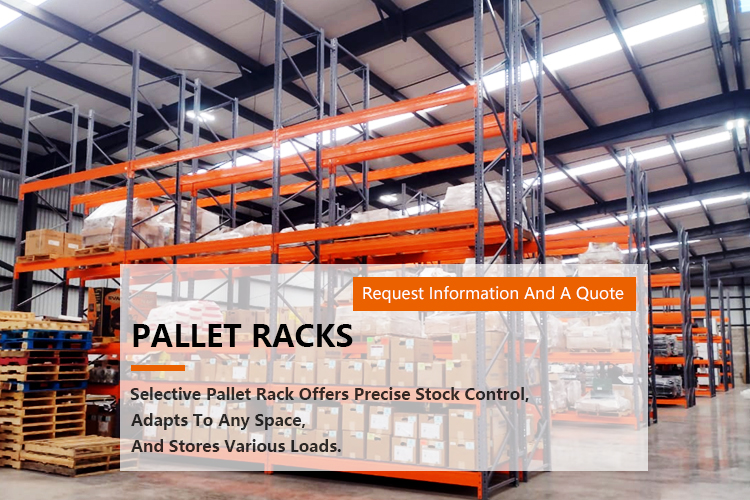

Pallet Racking System Overview
The Industrial Pallet Racking System is composed of upright frames, beams, and accessories such as safety pins and foot plates. It is a versatile and widely used storage solution, suitable for storing palletized goods in warehouses, distribution centers, and manufacturing facilities.
Advantages and Features:
- 1. Robust Structure: Designed for heavy-duty applications with high load capacity and excellent stability.
- 2. Flexible Configuration: Adjustable beam levels to accommodate various pallet sizes and storage needs.
- 3. Efficient Space Utilization: Maximizes warehouse storage by optimizing vertical and horizontal space.

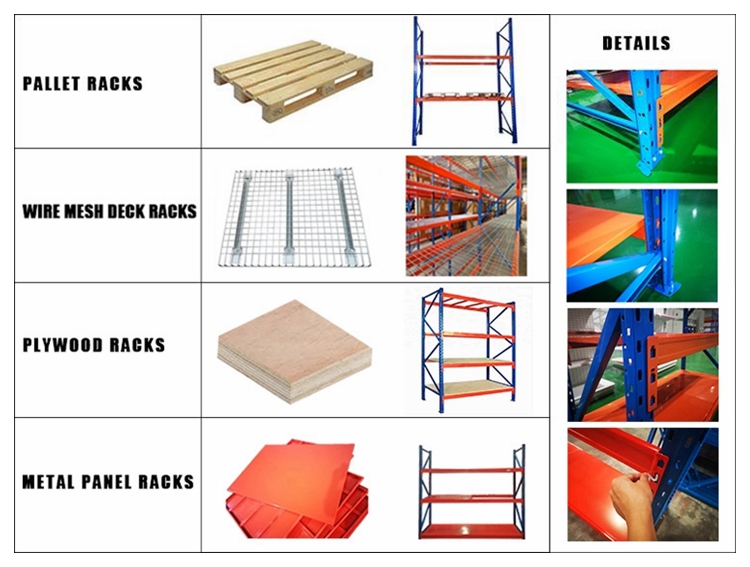

- 4. Compatibility: Suitable for storing different types of goods, including standard pallets, non-standard pallets, and bulk items.

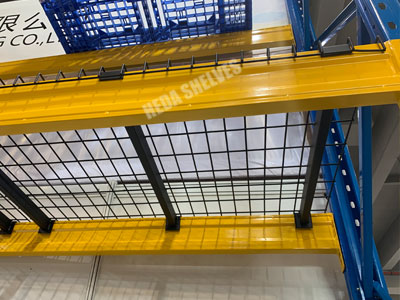

- 5. Optional Accessories: Available with additional components like wire decking, safety bars, and back mesh for enhanced functionality and safety.

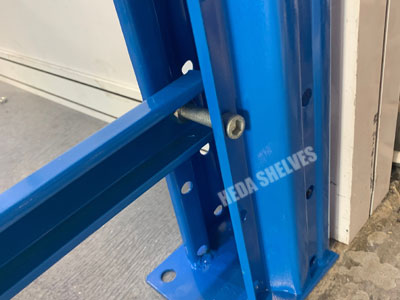

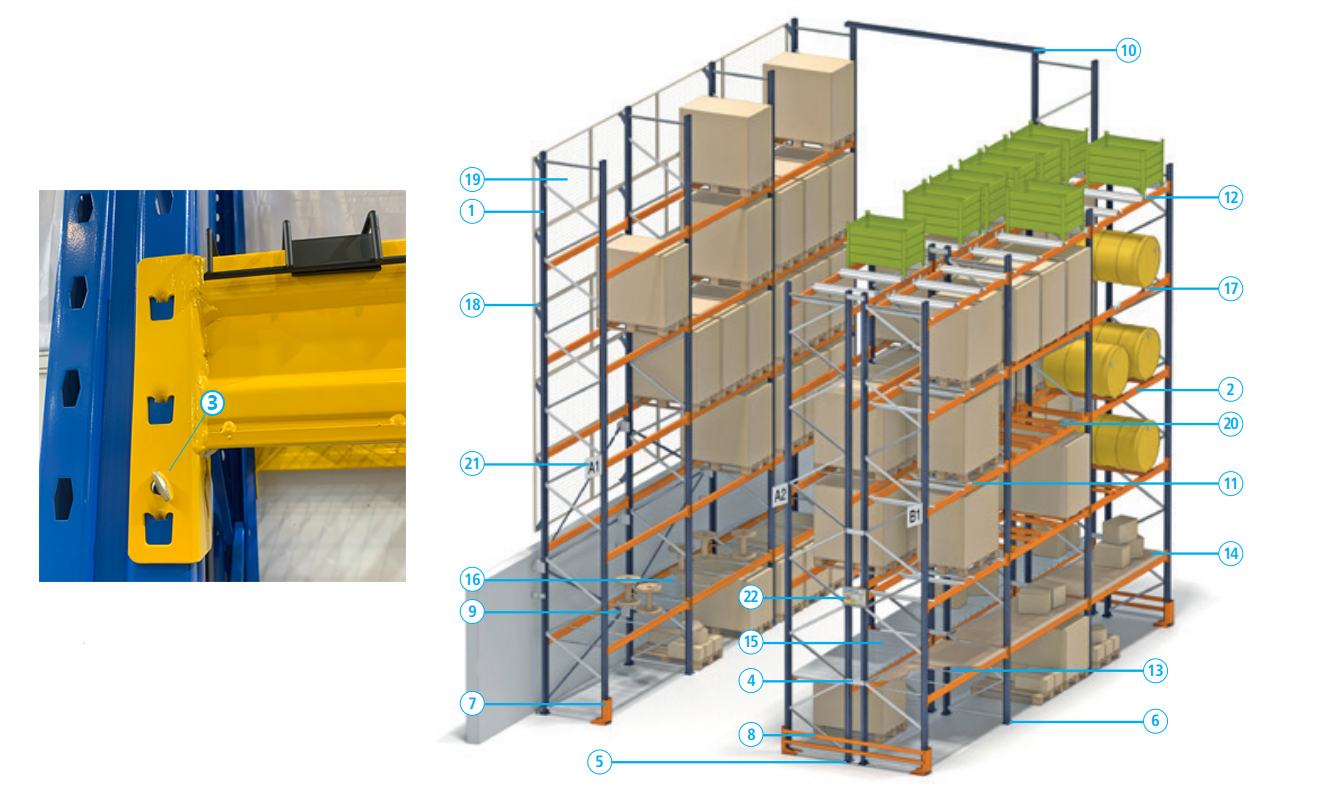

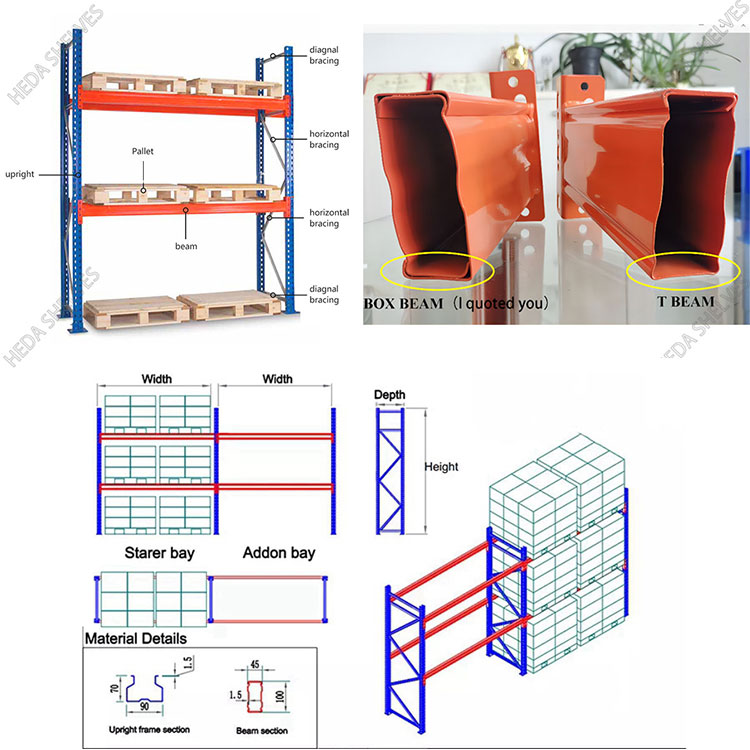

Structural Components

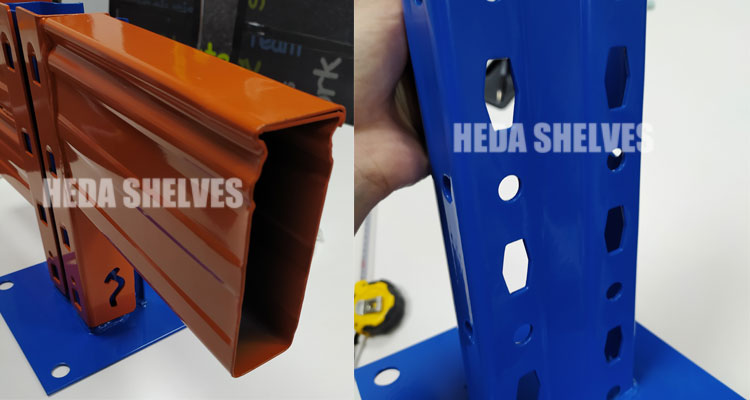

1. Frame
2. Beam
3. Safety locking mechanism
4. Frame union
5. Anchor bolts
6. Levelling shims
7. Upright protector
8. Lateral protection barrier
9. Cross bracing set
10. Top portal tie
11. Pallet cross tie
12. Container support
13. Chipboard shelving cross tie
14. Chipboard or melamine shelf
15. Galvanised picking shelf
16. Mesh shelf
17. Drum support
18. Pallet stop set
19. Anti-fall mesh
20. Raised cross tie
21. Aisle identification plate
22. Signalling plate
Product Description & Technical Specifications
| Material | Cold-Rolled Steel Q235B |
| Product Size | Length: 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900mm Width: 800 / 900 / 1000 / 1100 / 1200mm Height: 2000 ~ 6500mm (or Customizable) |
| Thickness | Column: 1.5mm, 2.0mm (or Customizable) |
| Load Capacity | 1000KG ~ 5000KG per layer (or Customizable) |
| Layers | 2-5 Adjustable Layers (or Customizable) |
| Color | Blue, Orange, Black, White, Grey (or Customizable) |
| Surface | Electrostatic Spray Surface |
| Feature | Anti-rust, Corrosion-protection |
| Guarantee Period | 5 Years Warranty |
| Remark | OEM & ODM Accepted |
| Relevant Certificate | CE, BV, ISO9001 |
| Use Area | Warehouse, Factory, Storage Place |
| Structure | Knock Down Structure, Easy Assembling, Convenient For Delivery |
| Function | Storage goods, rack, storage |
| Product Range | Warehouse, storage place |

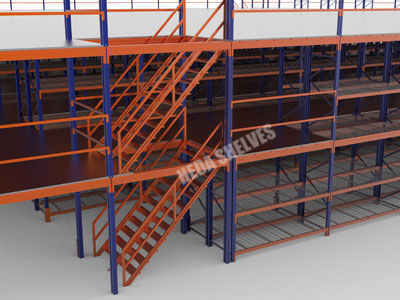

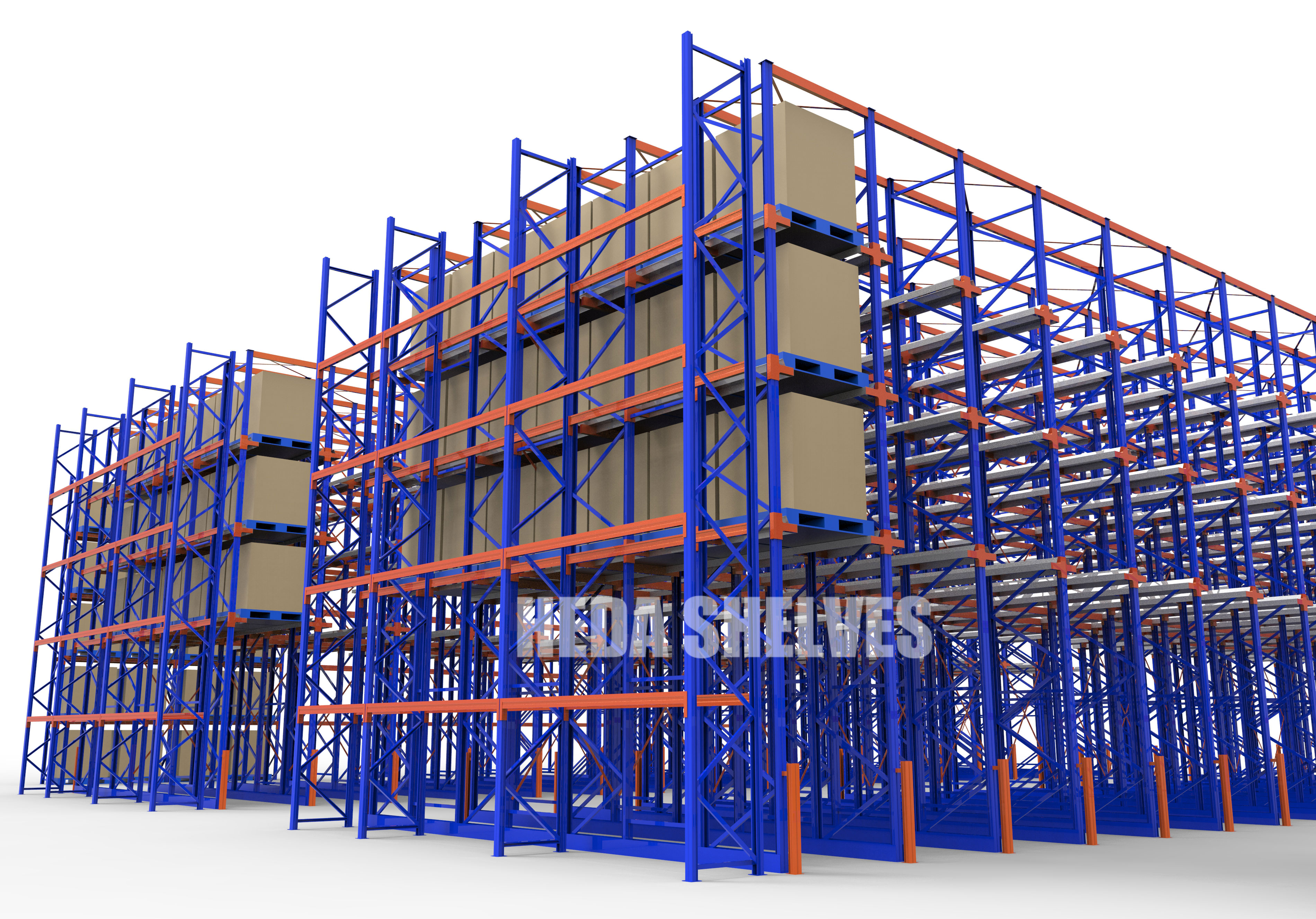

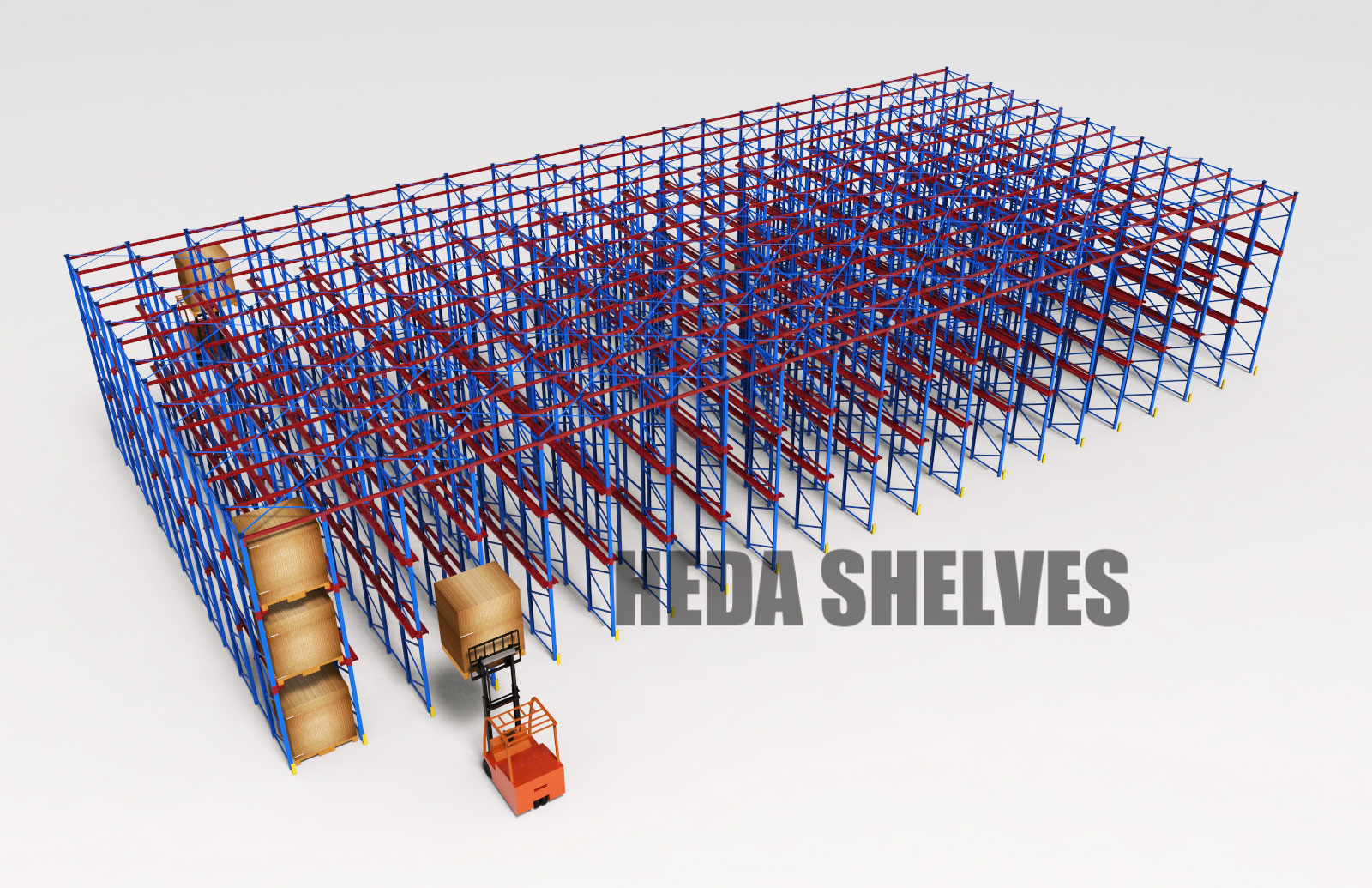

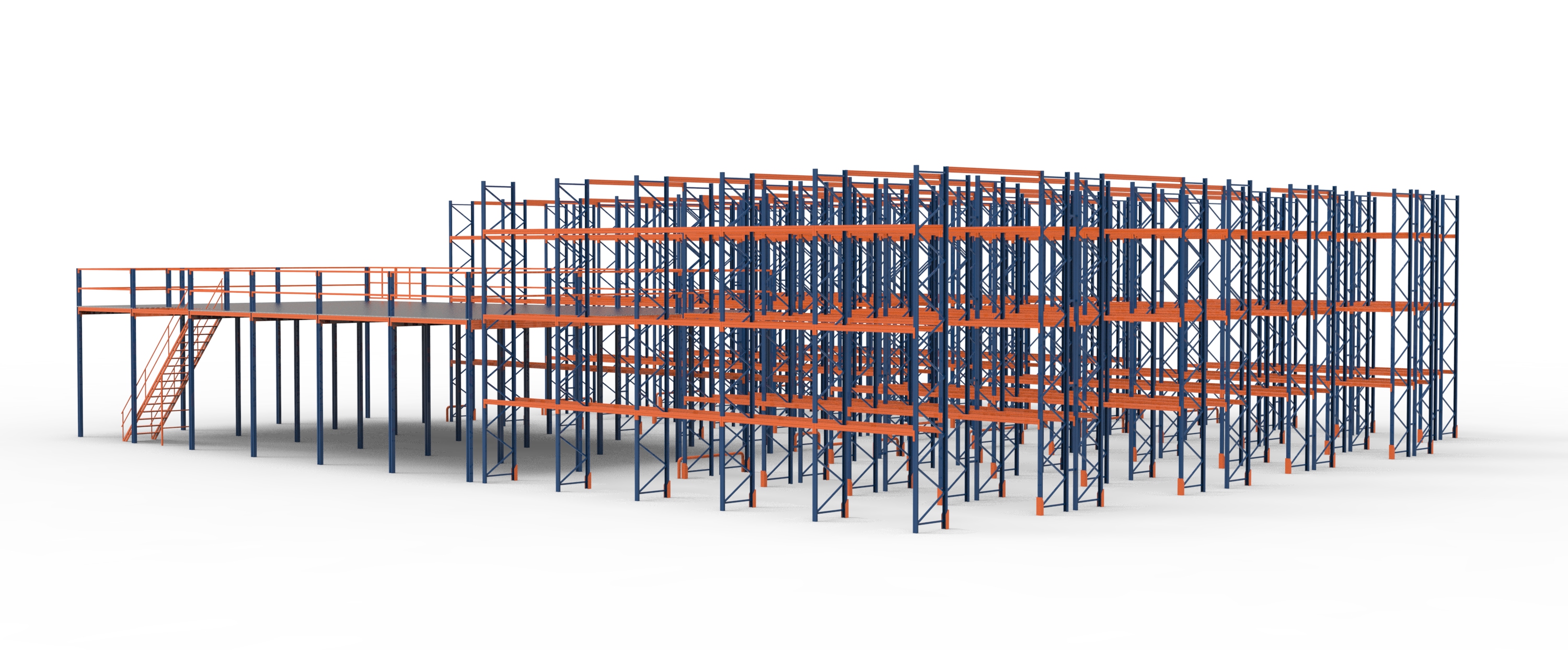

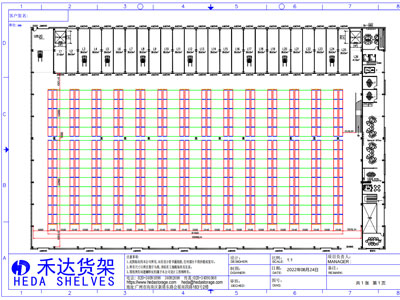

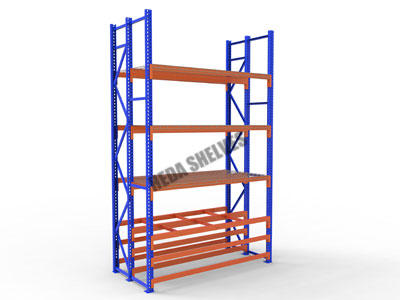

3D Drawing & Floor Plan Design

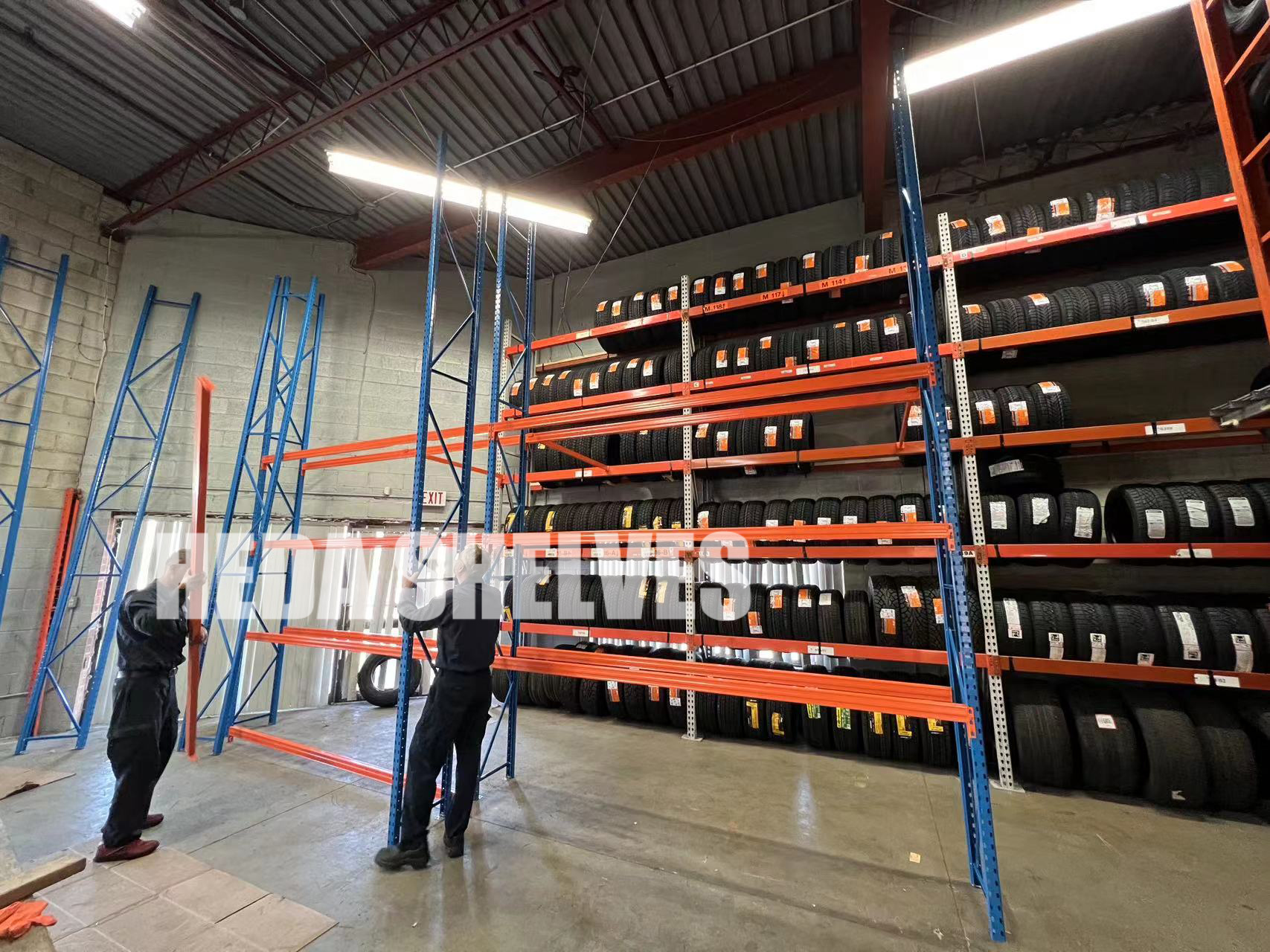

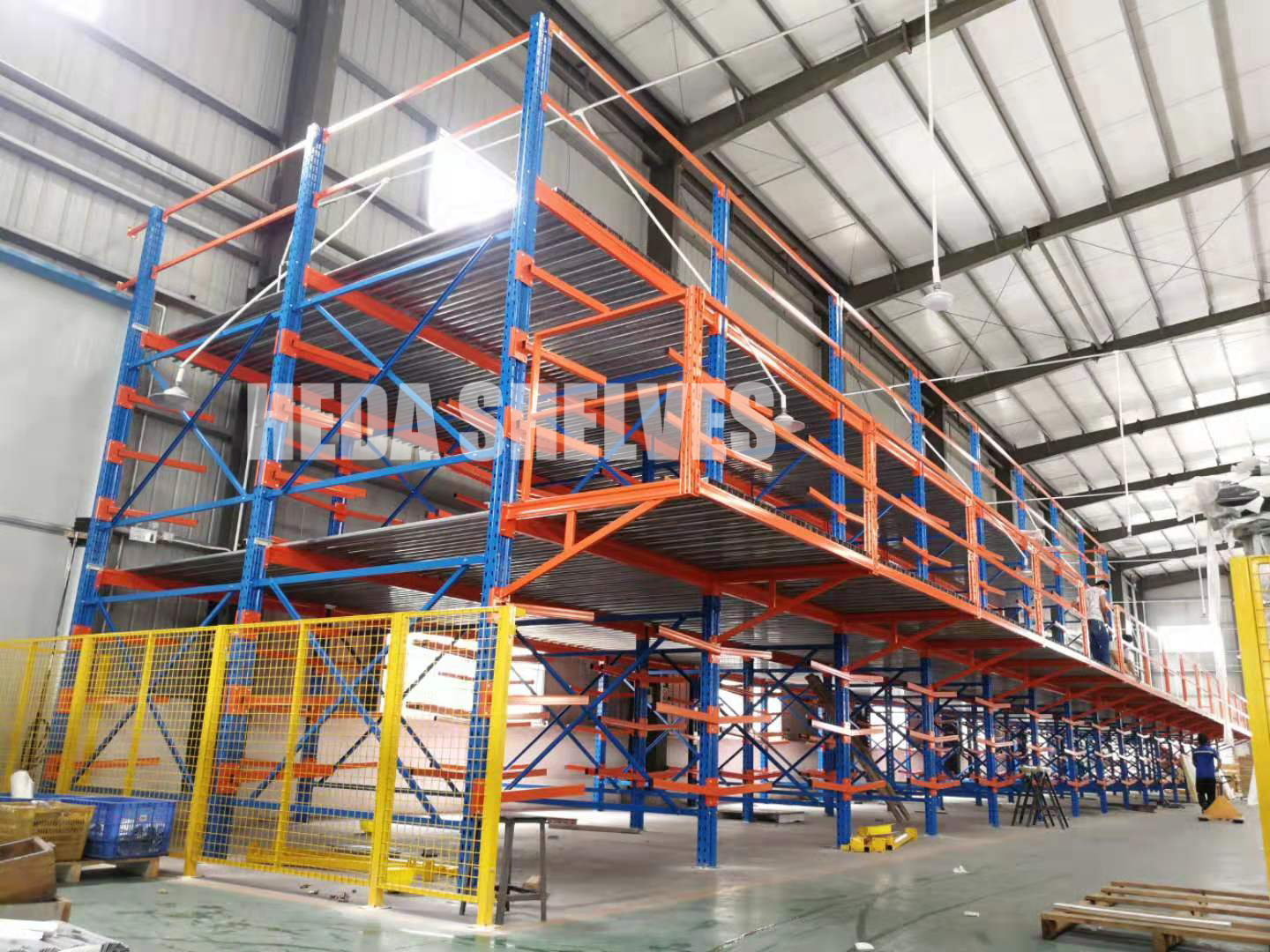

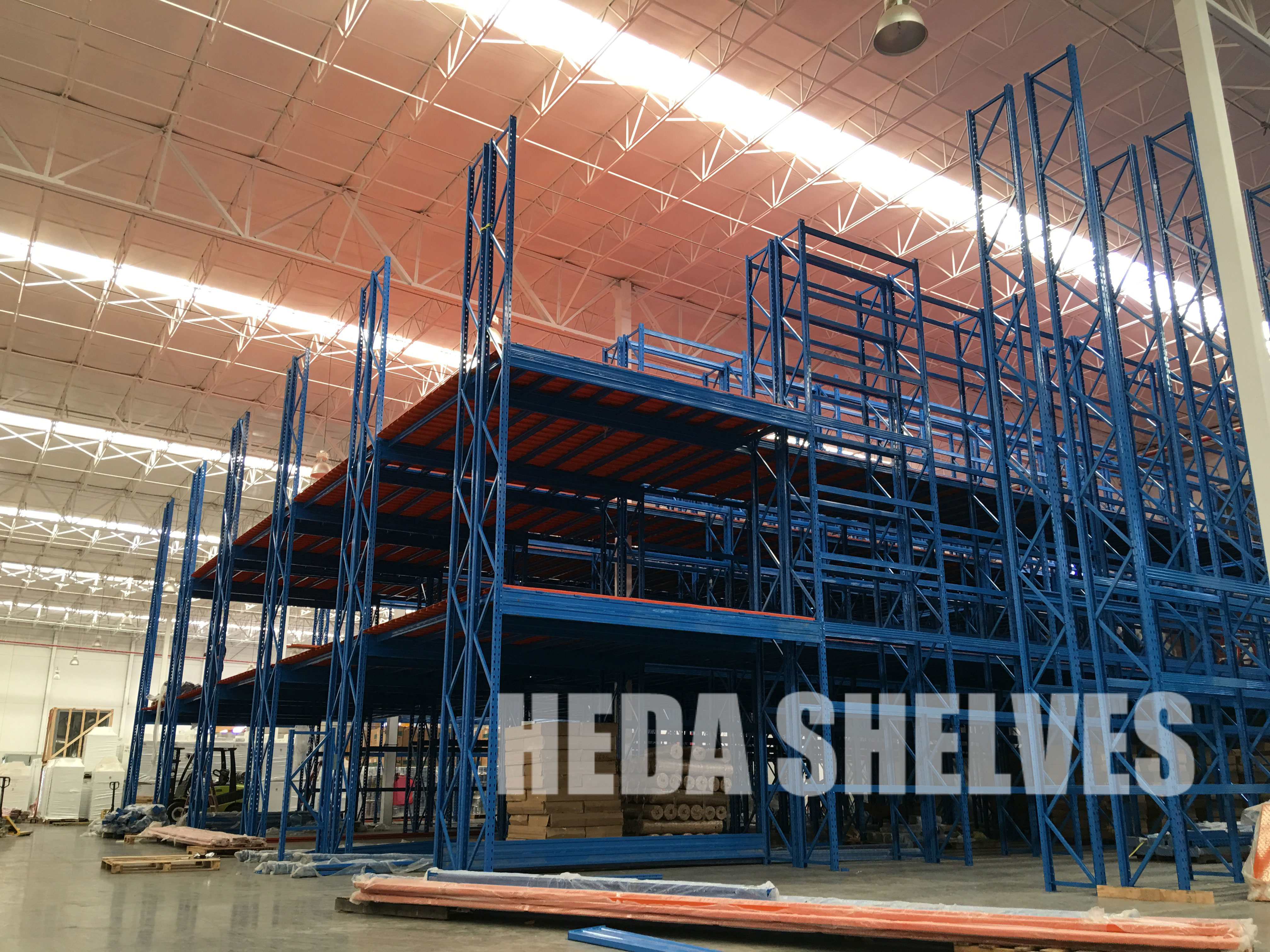

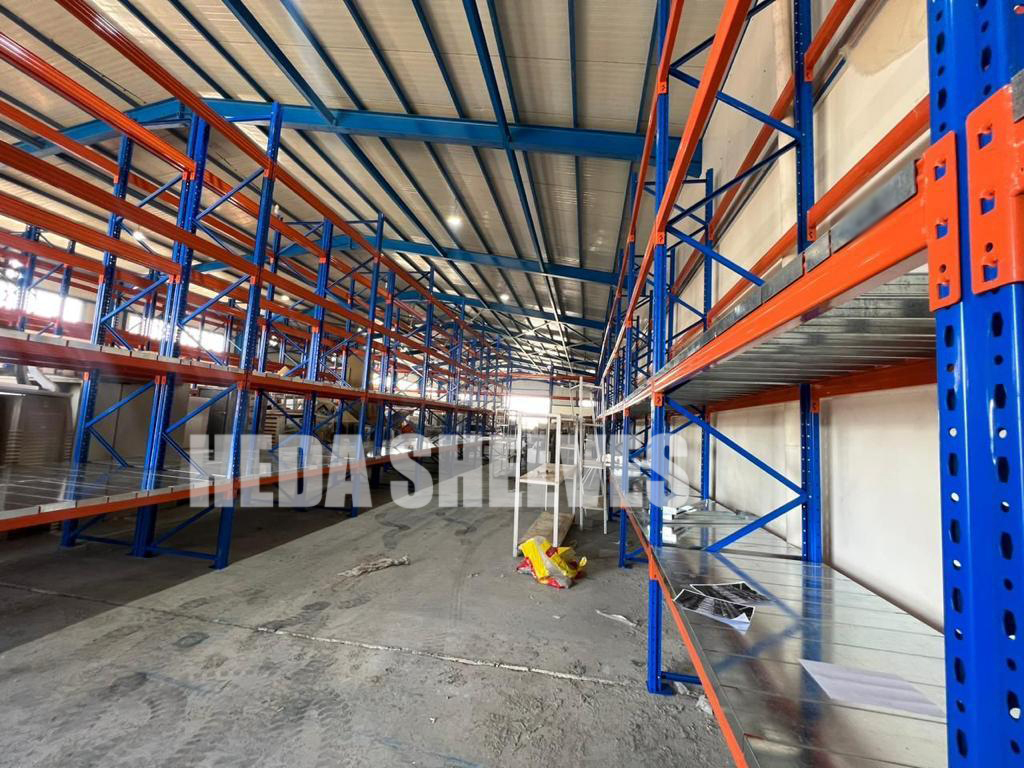

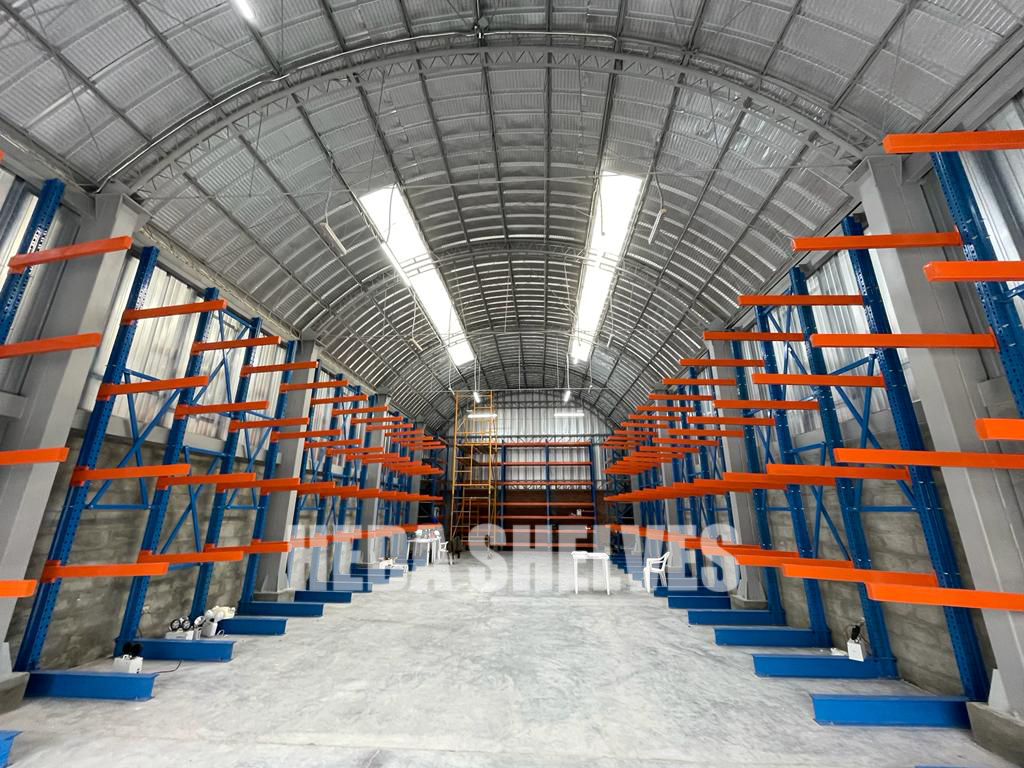

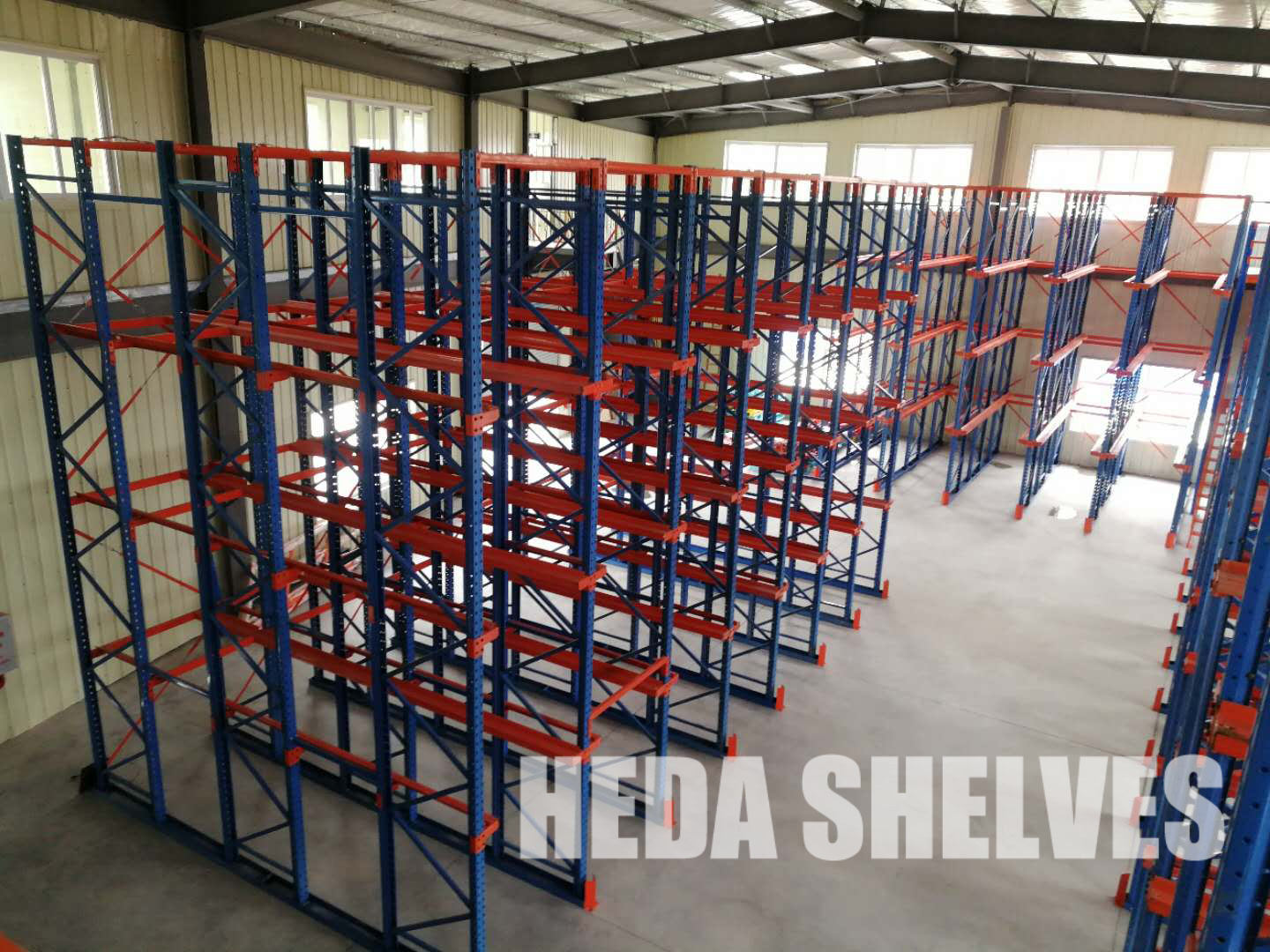

Successful Cooperation Cases

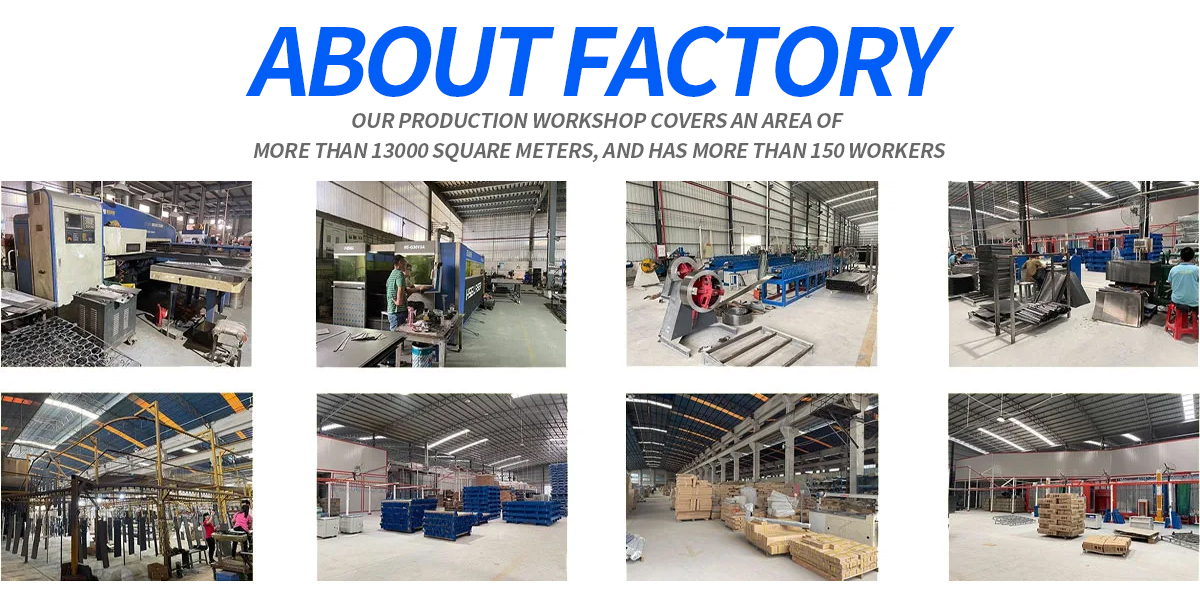

About HEDA Company & Our Factory
Guangzhou Heda Warehouse Equipment Co., Ltd. established in 2001 and located in Pazhou, is a trusted leader in the design, manufacturing, and installation of display stands, storage shelves, and supermarket equipment. With a factory spanning over 22,000 square meters and a skilled workforce of 120 employees, we deliver high-quality products at competitive prices to clients around the world.
Committed to excellence, we provide tailored warehouse storage solutions designed to optimize space and enhance efficiency for our customers. Guided by the principle of "Focused on Quality & Committed to Service," we aim to be your trusted global partner, delivering exceptional products and services to support your success.
Our Product Categories
( All products can be customized )
- Warehouse Racking & Equipment: Warehouse pallet racking, light medium racking, heavy duty racking, mezzanine floor racking systems, cantilever racking systems, drive-in racking systems, wide span shelving, pallets flow rack, carton flow rack, etc.
- Supermarket Shelves & Equipment: Supermarket gondola shelves, heavy duty gondola shelves, shopping carts, promotional carts, shopping baskets, cashier counters, and store equipment.
- Display Stands: Hardware tool display stand, customized metal product display stand, etc. Over 40% of our annual orders come from repeat customers across Southeast Asia, Japan, America, Canada, Australia, and Europe.
High Quality makes us own CE/ISO9001/BV Certification and have gained great credit from our foreign customers. We serve clients with the consistent principle of "Best Quality, Durable Structure, Perfect Design, Punctual delivery and Customer Satisfaction". Our development relies on your active participation and we will make every effort for further development.

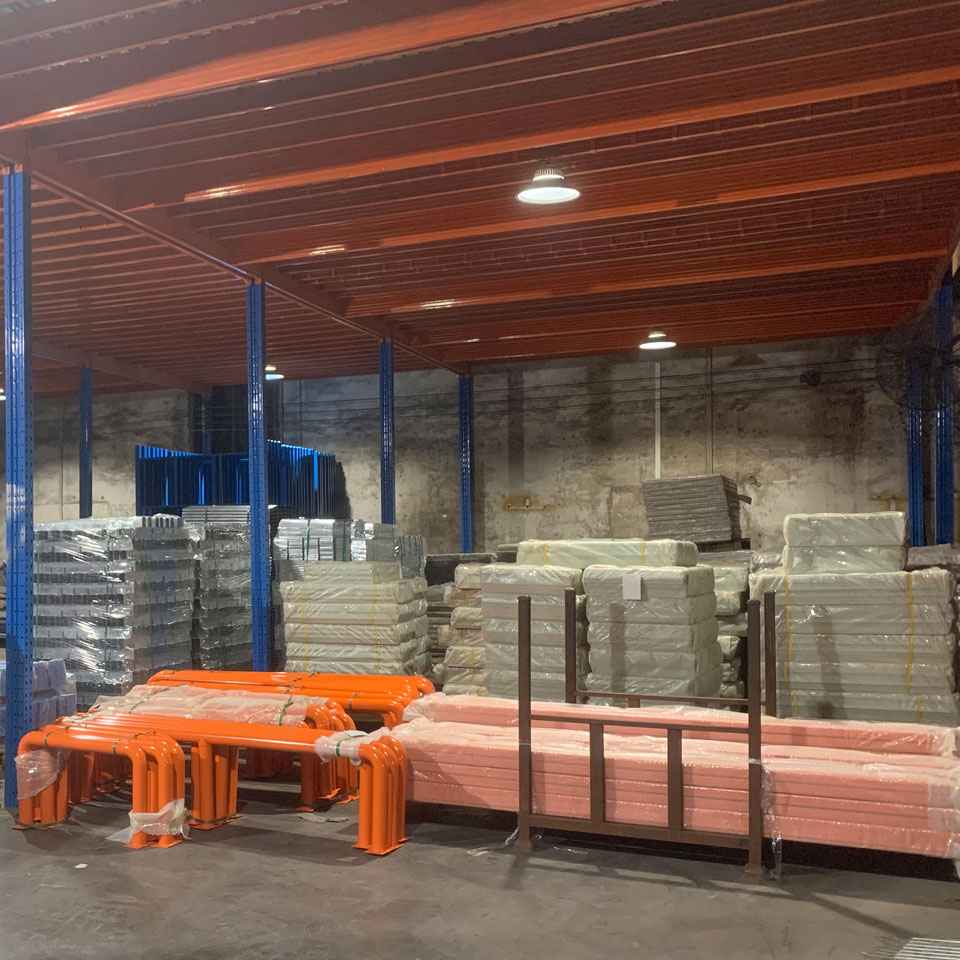

Packing & Delivery
Frequently Asked Questions (FAQ)
Are you a manufacture or trading company?
We are a manufacture. Our factory has been specializing in supermarket shelves, warehouse racks, and different kinds of display stands since 2001.
Where is your factory located and can I visit?
Our factory is located in Foshan, Guangdong. You are warmly welcome to visit whenever you are available.
What is your delivery time and payment term?
In general, delivery is within 15 days, depending on order quantity and shelving design. Payment terms: 30% deposit upon signing the PI, and the balance cleared by T/T before delivery.
How can I install the pallet racking systems?
We provide detailed installation instructions for every type of shelf. If needed, our engineers can also guide you for free.

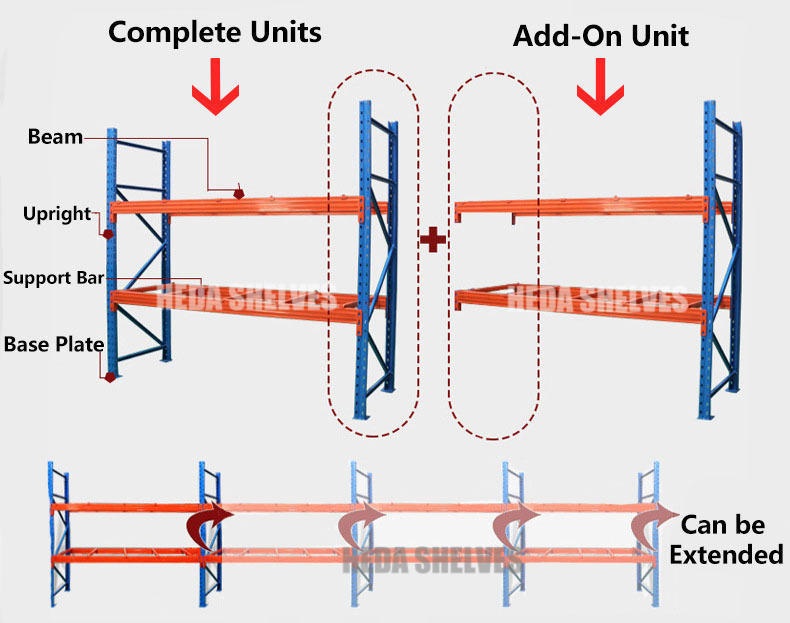

What is the difference between a main rack and an add-on rack?
The difference between these two kinds of racks is the upright. A main rack is the starter rack with 2 uprights, while an add-on rack is the connecting rack with only 1 upright. For instance, for 15 connected wall racks, the layout consists of 1 main rack and 14 add-on racks.
What is your standard packing manner?
Generally, shelves are flat packed by air bubble film/film in standard export cartons. Other custom packing options like wooden boxes are available upon request.
