Corrosion Protection Heavy Duty 2-Layer Steel Structure Mezzanine Floor Platform Pallet Storage Racking Powder Coated Finish for

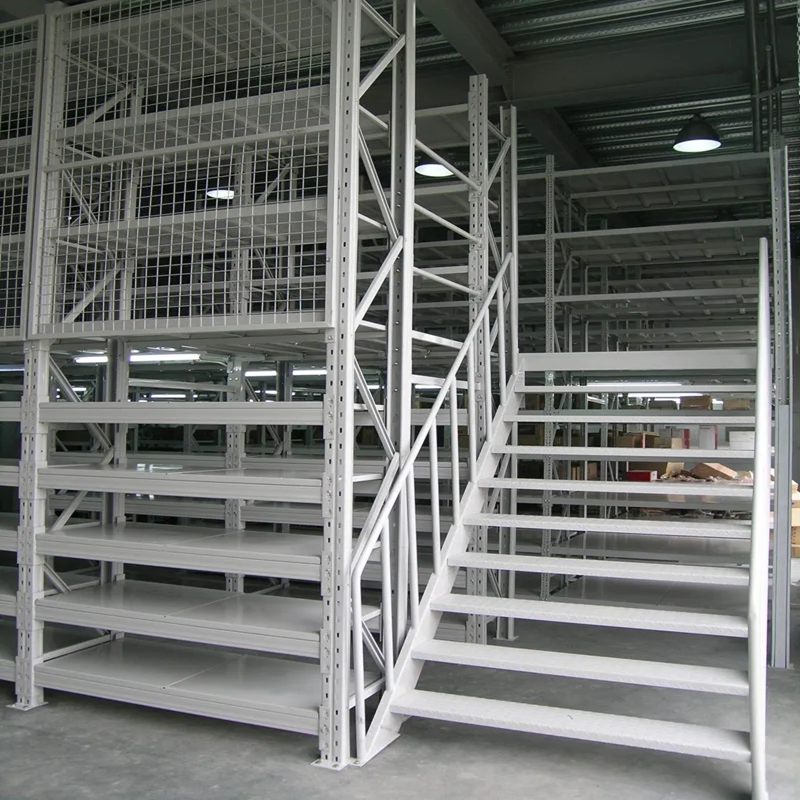

Loft-style shelf structure:

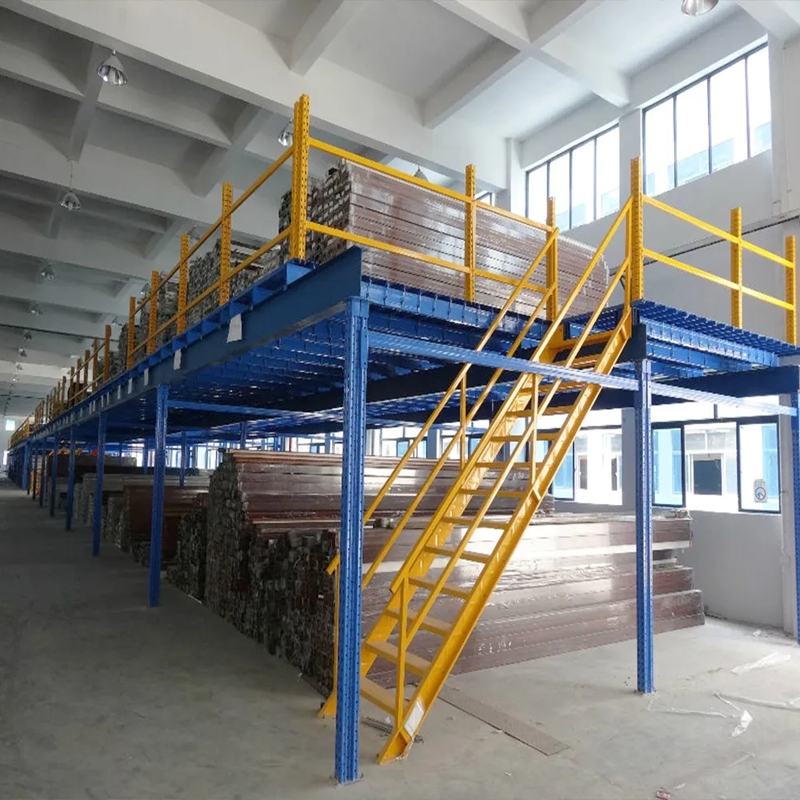

The steel structure floor with upright columns as the floor support. The floor is flat and the whole is strong. Carrying capacity is strong and uniform. It is suitable for the situation that the warehouse is high, the goods are small, the manual access and the large amount of access are available. It can be fully utilized to save the area of the storeroom.

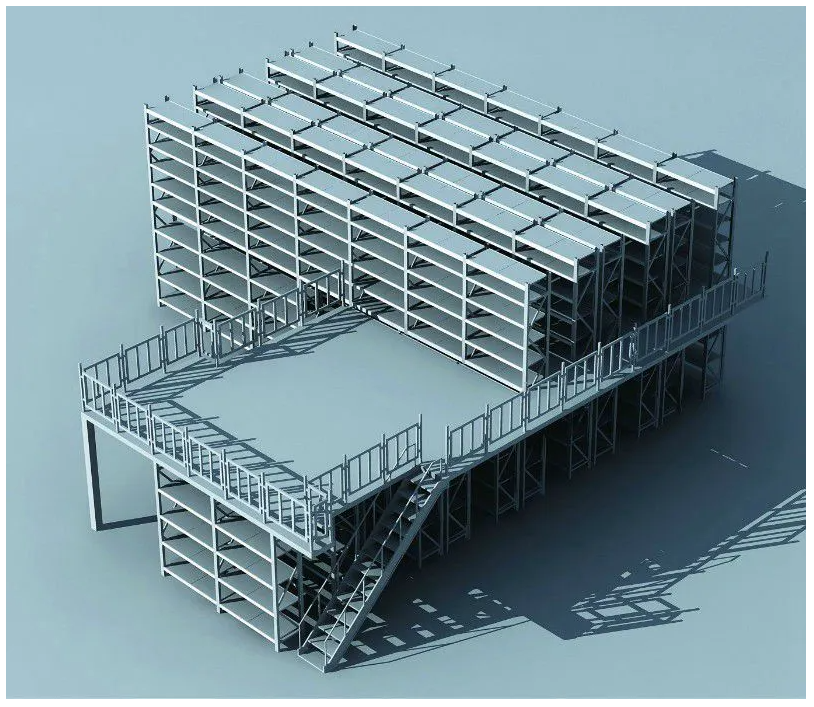

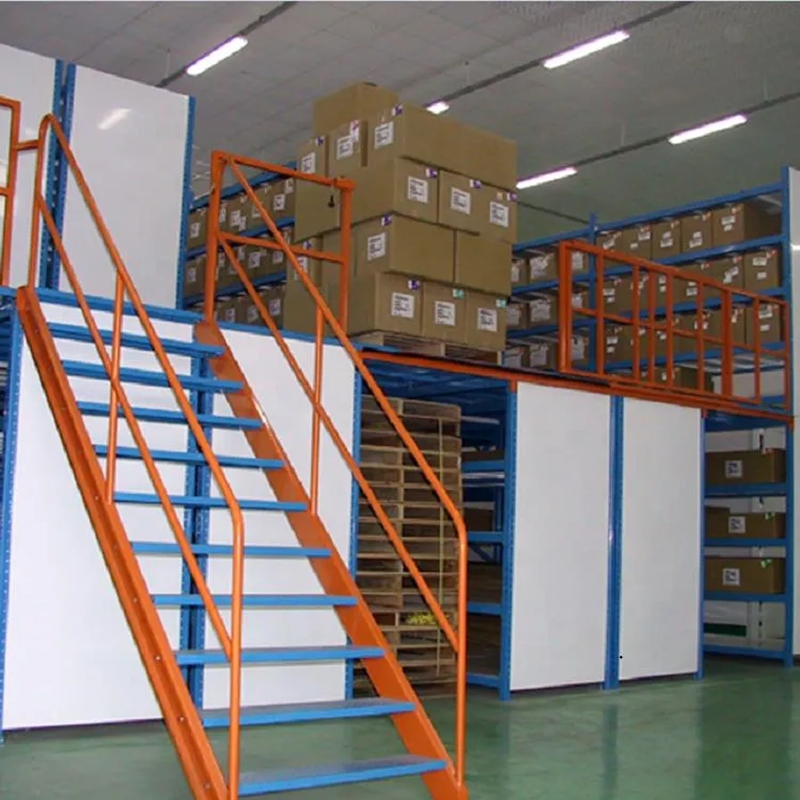

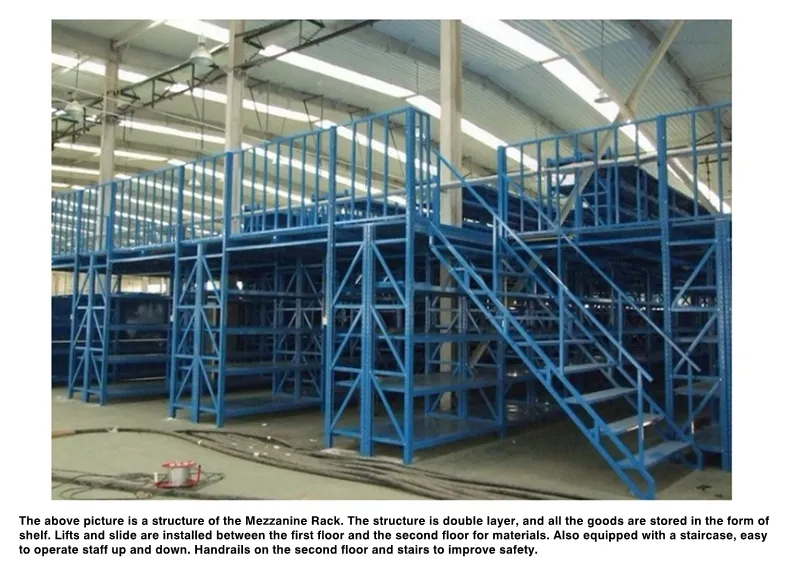

Depending on the actual site and the specific requirements, it can be designed as a multi-storey floor, usually 2 to 3 floors. The bottom shelf can be medium-duty shelves, heavy-duty shelves and other shelves. It is not only a system for storing goods, but also a support point for the upper weight. Equipped with stairs, guardrail and electric lifting platform and other auxiliary facilities.

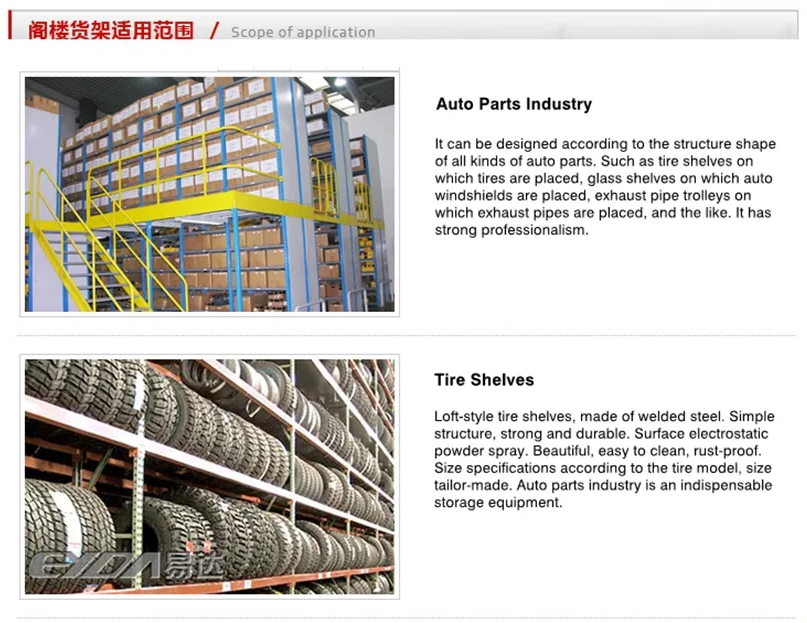

All combined structure, strong sense of three-dimensional. The use of high-quality carbon structural steel, quality, bearing, the appearance is very superior. According to the actual site needs, flexible design into two or more attic. Suitable for storing more variety and less bulk goods. Special C-shaped steel floor, snap-type structure, with a special locking device to lock, so that the loft together as one. The floor is flat. Dust, debris, small pieces will not fall into the downstairs. Downstairs lighting wiring can also be hidden and beautiful. Widely used in automotive, electronics, machinery and other industries.

The mezzanine rack is required for the height of the warehouse. Suitable for smaller goods, manual access, storage of large warehouses. Also need to consider lighting, fire and other issues.

1. The shape and size of the warehouse, the location of the warehouse gate and so on;
2. The size of a single piece of goods. When the volume of single piece goods is large, the width of the channel between the shelves is large. When the volume of single piece goods is small, the channel is small, but it is a generally not less than 700mm.
3. The general bearing capacity is at 300-1000KG/square meters. The column selects a round pipe with strong bearing capacity and less steel.

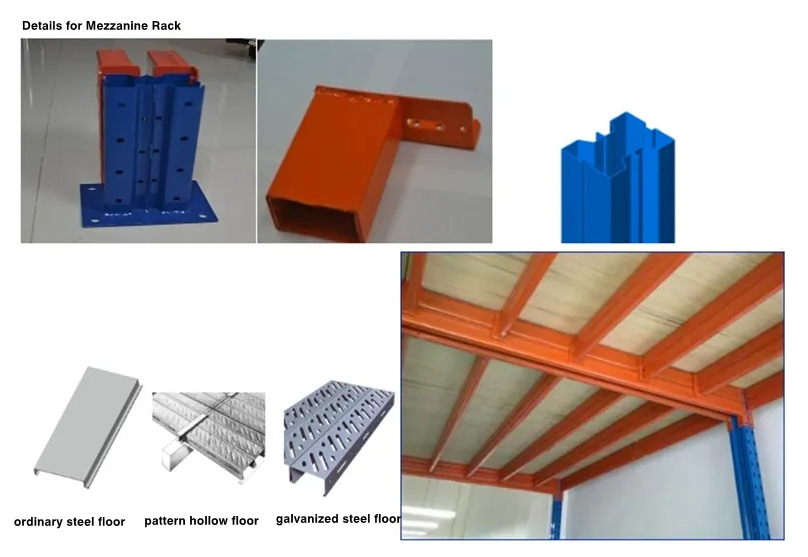

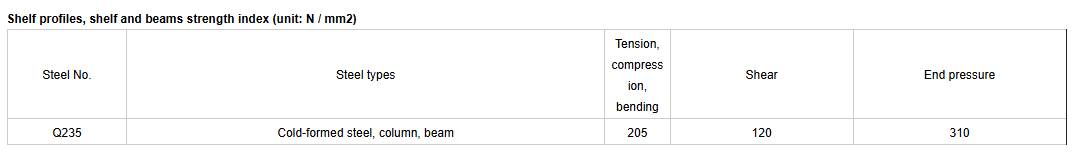

The use of material, specifications and standards for the main parts of the shelf:
1. Material: Baosteel Q235 or SS400, SPCC
2. Upright: normally with 5*47*1.5/1.8 Q235 convex cold rolling steel
3. Shelf board: 0.6-0.8mm thickness, high quality SPCC cold plate, which is welded by panel and reinforcement.
4. Beam: P tube or other profile
5. Floor beams

1. The installation of the attic type shelf is very simple and quick. Simple assembly, no screws. Custom specifications can be available. It is easy to use the pallet for delivery. It is the first choice for the large and medium sized and small enterprises to choose the storage shelf.

2. The attic shelf is suitable for the large and medium parts with uniform specifications. Easy to pick up, easy to pick up, fast, strong structure. The bearing weight of this shelf is mostly in the layer bearing 800kg. This platform can save space and greatly reduce the waste of space. Other specifications can be made, the shelves in the logistics enterprises, the large amount of plants,suitable for large and medium-sized warehouse.
