Double Deep Pallet Rack Heavy Duty Pallet Storage Racking 1000kg/2000kg/3000kg Per Layer Construction Warehouse Storage
Product Description

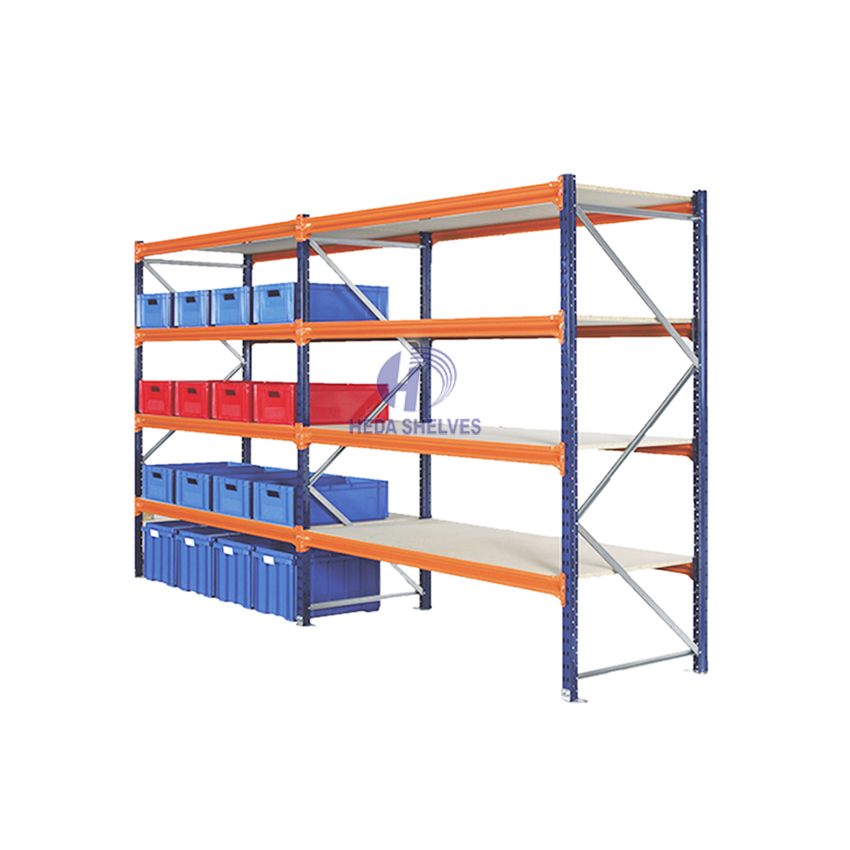

Pallet Racking System
The Industrial Pallet Racking System is composed of upright frames, beams, and accessories such as safety pins and foot plates. It is a versatile and widely used storage solution, suitable for storing palletized goods in warehouses, distribution centers, and manufacturing facilities.
Advantages and Features:
1. Robust Structure
Designed for heavy-duty applications with high load capacity and excellent stability.
2. Flexible Configuration
Adjustable beam levels to accommodate various pallet sizes and storage needs.
3. Efficient Space Utilization
Maximizes warehouse storage by optimizing vertical and horizontal space.
4. Compatibility
Suitable for storing different types of goods, including standard pallets, non-standard pallets, and bulk items.
5. Optional Accessories
Available with additional components like wire decking, safety bars, and back mesh for enhanced functionality and safety.
Specification
System Components & Accessories
1. Frame
2. Beam
3. Safety locking mechanism
4. Frame union
5. Anchor bolts
6. Levelling shims
7. Upright protector
8. Lateral protection barrier
9. Cross bracing set
10. Top portal tie
11. Pallet cross tie
12. Container support
13. Chipboard shelving cross tie
14. Chipboard or melamine shelf
15. Galvanised picking shelf
16. Mesh shelf
17. Drum support
18. Pallet stop set
19. Anti-fall mesh
20. Raised cross tie
21. Aisle identification plate
22. Signalling plate
Product Description
| Material | Cold-Rolled Steel Q235B |
| Product Size | Length: 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900mm Width: 800 / 900 / 1000 / 1100 / 1200mm Height: 2000 ~ 6500mm (or Customizable) |
| Thickness | Column: 1.5mm, 2.0mm (or Customizable) |
| Load Capacity | 1000KG~5000KG per layer (or Customizable) |
| Layers | 2-5 Adjustable Layers (or Customizable) |
| Color | Blue, Orange, Black, White, Grey (or Customizable) |
| Surface | Electrostatic Spray Surface |
| Feature | Anti-rust, Corrosion-protection |
| Guarantee Period | 5 Years Warranty |
| Remark | OEM & ODM Accepted |
| Relevant Certificate | CE, BV, ISO9001 |
| Use Area | Warehouse, Factory, Storage Place |
| Structure | Knock Down Structure, Easy Assembling, Convenient For Delivery |
| Function | Storage goods, rack, storage |
| Product range | Warehouse, storage place |
3D Drawing & Floor Plan Design

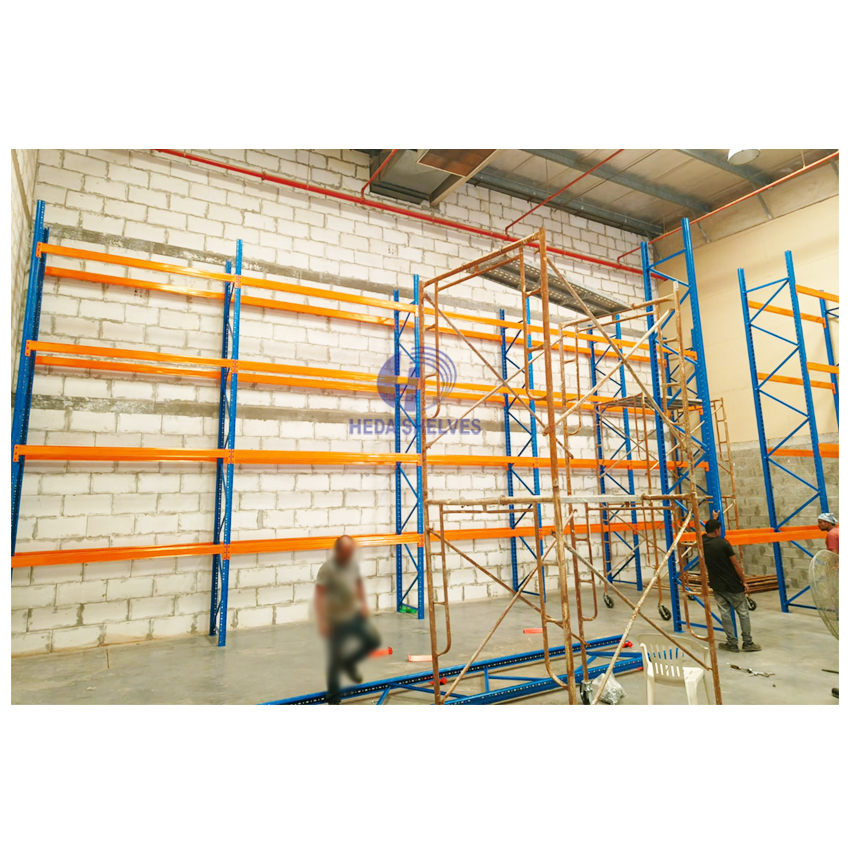

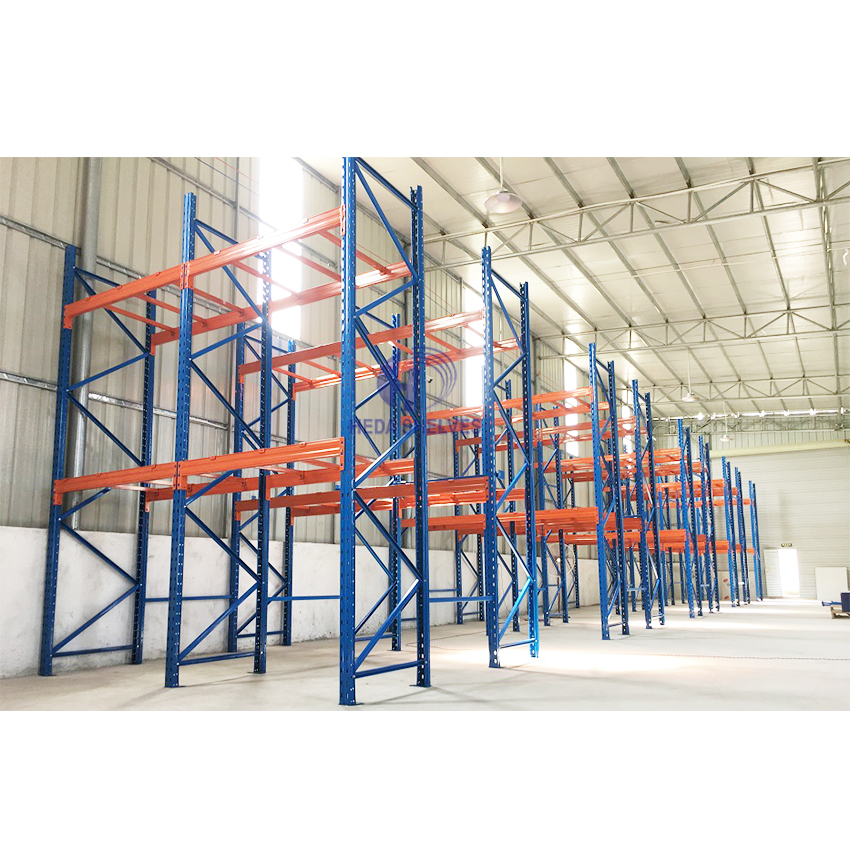

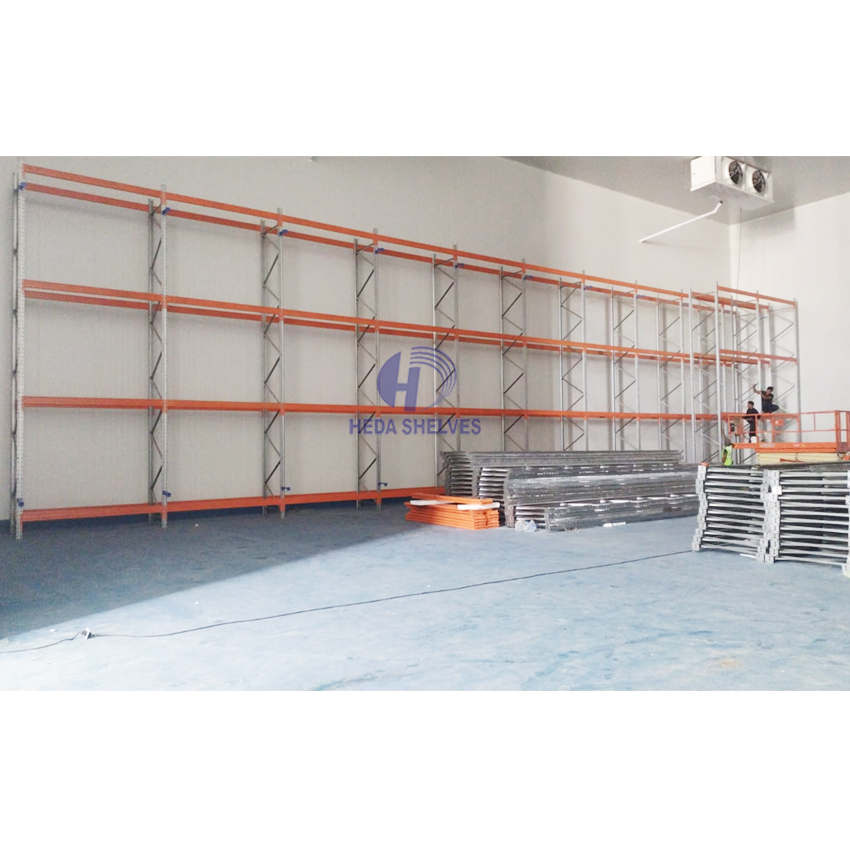

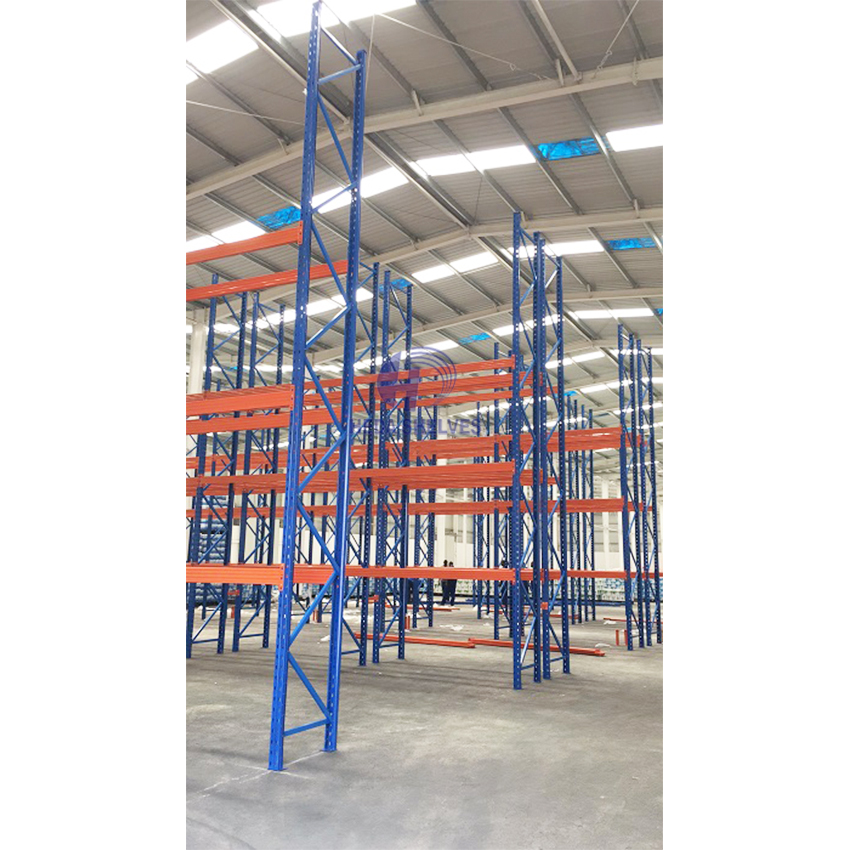

Successful Cooperation Cases
Our Factory & About HEDA Company
Guangzhou Heda Warehouse Equipment Co., Ltd. established in 2001 and located in Pazhou, is a trusted leader in the design, manufacturing, and installation of display stands, storage shelves, and supermarket equipment. With a factory spanning over 22,000 square meters and a skilled workforce of 120 employees, we deliver high-quality products at competitive prices to clients around the world.
Committed to excellence, we provide tailored warehouse storage solutions designed to optimize space and enhance efficiency for our customers. Guided by the principle of "Focused on Quality & Committed to Service," we aim to be your trusted global partner, delivering exceptional products and services to support your success.
OUR PRODUCTS (All products can be customized)
• Warehouse racking and warehouse equipment: warehouse pallet racking, light medium racking, heavy duty racking, mezzanine floor racking systems, and storage pallet racking in warehouses/workplaces (including cantilever racking systems, drive-in racking systems, wide span shelving, pallet flow rack, carton flow rack, etc.).
• Supermarket shelves, store fixtures, and equipment: supermarket gondola shelves, heavy duty gondola shelves, shopping carts, promotional carts, shopping baskets, cashier counters, and other supermarket store equipment.
• Display stands: hardware tool display stand, customized metal product display stand, etc. Our products are very popular in Southeast Asia, Japan, America, Canada, Australia, and Europe. Over 40% of our annual orders come from repeat customers.
High Quality makes us own CE / ISO9001 / BV Certification and have gained great credit from our foreign customers. We serve clients with the consistent principle of "Best Quality, Durable Structure, Perfect Design, Punctual delivery and Customer Satisfaction".
Our development relies on your active participation and we will make every effort for further development. With your support, we will move forward and further be the perfect shelving manufacturer and your best business partner!
Packing & Delivery
Frequently Asked Questions (FAQ)
1
Are you a manufacture or trading company?
We are manufacture. Our factory has been specializing in supermarket shelves, warehouse racks, and different kinds of display stands since 2001.
2
Where is your factory? Can I visit?
Our factory is located in Foshan, Guangdong. You are warmly welcome to visit whenever available.
3
What is your delivery time?
In general, within 15 days. It also depends on the order quantity and shelving design.
4
What is the term of payment?
Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T before delivery.
5
How could I install the racks?
We provide detailed install instruction for every type of shelf. If needed, we can also ask engineers to teach you for free.
6
What are main rack and add-on rack?
The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add-on rack is the continue rack with only 1 upright. For example, if there are 15 wall racks against the wall, the structure will be 1 main rack + 14 add-on racks.
