Movable Steel Pallet Racks Automation Warehouse Storage Racking System
Product Description
Product Description
Electric Mobile Racking
Electric mobile rack takes full advantage of the warehouse space 3 times space using rate as the general shelves. Each unit could be moved separately on the guide rail. It is easy to operate drive a unit just press the button. Every rack has its own transmission equipment link to electromotor, and equipped with safety device. It is mostly applied in refrigeratory or anti-explosion warehouse and provides a 100% access to load and retrieve.
| Name | Electric Mobile Rack | Material | Steel |
| Dimension | Different sizes are available | Color | Selective |
| Depth | Customized | Weight Capacity | Customized |
| Width | Customized | Height | Customized |
| Finish | Powder coated/Galvanised | ||
| Weld | Weld for automatic welding | ||
| Rust | Surface antirust | ||
| Usage | Warehouse Storage System | ||
| Function | Cold Warehouse | ||
| Certification | CE, ISO9001:2008 | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
Product Display
Brief Introduction
Electric Mobile Rack is the most common form of density storage, with the aid of forklift to access the goods. Its space utilization rate can reach more than 85%. The electric mobile rack is made up of track (or guide device), trolley (walking device), motor, rack, detection device, operation panel and software control system. According to the rail style, it is divided into guide rail type and non-guide rail type.
| Specification | Guide Rail | Non-Guide Rail |
|---|---|---|
| Loading Capacity | 32 tons/unit | 16 tons/unit |
| Wheel Material | Cast Iron | Polyurethane |
| Width of Trolley | 210/226mm | 300mm |
| Cost | Normal | High |
| Running Speed | Max 10m/min | |
| Notch | Need | No Need |
| Guide | Rail Guide | Mechanical Guide |
| Power of Motor | 0.4KW, 0.75KW | |
Features and Advantages
- Increases storage capacity by more than 85%
- Reduced operating and real estate costs through the system’s outstanding space utilization (surface area utilization of more than 80%).
- Suitable for multiple type of goods with small quantity.
- Direct access to the pallet slots prevents unnecessary and time-consuming relocations.
- Simple structure, easy to operate.
- Application: Earthquake-proof design, deep-freeze warehouses, manufacturing industry, food and drug industry, new energy industry.
Product Details

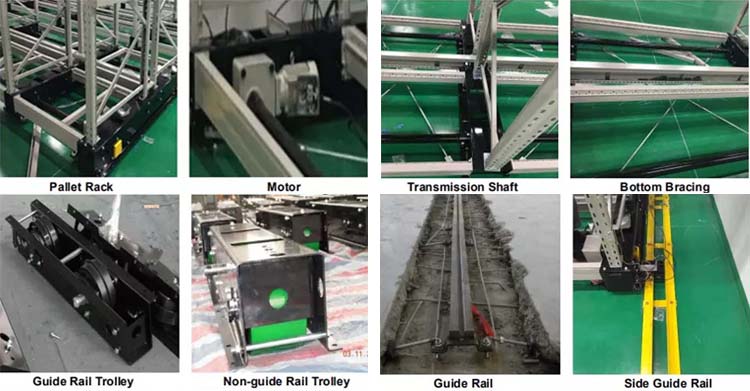

Electric Mobile Rack Components
| Rack Part | Pallet Rack |
| Transmission Part | Bottom bracing, Trolley, Motor, Transmission shaft |
| Control Part | Control system, Software |
| Guide Part | Guide rail or side guide rail |
Construction Process
Step 1: Guide rail construction
| Guide Rail | Non-Guide Rail |
|---|---|
| Guide rail electric mobile rack needs notching, rail laying, pouring and rail maintenance. It is suitable for a warehouse with large load capacity and slotting on the ground. | Non-guide rail electric mobile rack does not need notching. It is suitable for a warehouse with smaller loading requirements and no slotting on the ground. |
Product Categories
Company Profile
Certifications
Production Process
Frequently Asked Questions
What are your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are available for each model and can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: Good discounts are offered for large quantities.
2) Lead time: Normally 20-25 days after deposit received.
3) Sample policy: Samples are available for each model and can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing, China.
5) Discounts: Good discounts are offered for large quantities.
How can my goods be delivered?
1) Sea freight: We will update sea freight once we know your destination seaport.
2) Designated by client: Please provide contact details of your shipping agent and we will arrange delivery accordingly.
2) Designated by client: Please provide contact details of your shipping agent and we will arrange delivery accordingly.
What services do you offer?
1) Inquiries related to products or pricing are replied to within 12 hours.
2) Well-trained and experienced staff to address all inquiries in fluent English.
3) OEM & ODM services for custom racking system design.
4) Professional engineers available to formulate optimal solutions.
2) Well-trained and experienced staff to address all inquiries in fluent English.
3) OEM & ODM services for custom racking system design.
4) Professional engineers available to formulate optimal solutions.
What is the ordering and purchasing process?
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping
What are your main advantages?
1) Payment flexibility: O/A terms of 40-60 days available.
2) Lead time: Fast delivery capability for rush orders.
3) Direct pricing: Competitive factory-direct pricing.
4) Warranty: Two-year warranty with free replacement parts.
2) Lead time: Fast delivery capability for rush orders.
3) Direct pricing: Competitive factory-direct pricing.
4) Warranty: Two-year warranty with free replacement parts.
Does Jracking have a Minimum Order Quantity (MOQ) limitation?
No strict MOQ is required, though volume impacts price. It is recommended to order regular products to fit at least one 20ft container (approximately 15 tons) for optimal shipping cost-efficiency.
