High-Efficiency Warehouse Racking Systems Engineered for Iberian Facilities
Direct manufacturer solutions optimized for European Euro-pallets (EPAL-1 800x1200mm, EPAL-2 1200x1000mm), seismic resilience, and dynamic payload requirements.
Industrial Heavy Duty Customizable Honeycomb Modular Plug Profile Steel Pipe Storage Rack
Specialized modular honeycomb racking for dense storage of bar stock, steel profiles, and long industrial tubing without roll-risk.
View Specifications
Boltless Adjustable Heavy Duty Load-Bearing Steel Racks Warehouse Storage Shelving
Rapid-assembly modular shelving engineered for spare parts distribution, retail buffers, and manual carton picking facilities.
View Specifications

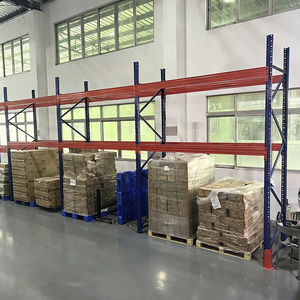

High Loading Capacity Multi-Level Steel Storage Shelf Upright Pallet Racking
High-strength vertical upright frames configured for high-bay pallet access, standard reach trucks, and high-frequency pallet rotation.
View Specifications

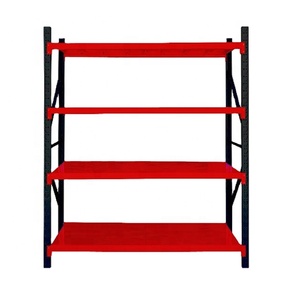

2000X500X2000mm Steel Medium Duty Long Span Industrial Warehouse Storage Shelving
Durable powder-coated 4-layer span shelving system suited for hardware distribution, e-commerce packing benches, and small parts.
View Specifications
Industrial Pallet Racking System Spliced Steel Drop-Over Deck Panel Storage Rack
Integrated steel decking panels ensuring non-standard pallet handling, split pallet protection, and complete safety over pedestrian aisles.
View Specifications
Foldable Stacking Turnover Rack Fabric Metal Movable Stacking Shelf
Movable stacking post racks for dynamic buffer zones, textile storage, seasonal overflows, and flexible freight turnover staging.
View Specifications
SDFD Heavy Duty Pallet Racking Durable Adjustable Box Beam Selective Pallet Rack
The industrial benchmark for 100% selective logistics. Cold-rolled interlocking box beams with high torsional resistance for multi-SKU hubs.
View Specifications
ASRS Heavy Duty High-Bay Storage Racking System With Stacker Crane Integration
Ultra-rigid structural tolerance steel racking engineered for automated storage and retrieval systems, stacker cranes, and radio shuttles.
View SpecificationsIberian Logistics Dynamics: The Transformation of Portuguese Warehousing
Portugal’s industrial logistics landscape is undergoing an unprecedented modernization cycle. Strategically positioned as the primary southwestern maritime gateway to Europe via the Atlantic ocean, the country has evolved from a regional distribution territory into a high-capacity logistics node. Major infrastructure development along the Lisbon-Santarém (Azambuja) logistics corridor, the concentrated export manufacturing clusters around Porto, Vila Nova de Gaia, and Maia, and the deep-water hub of the Port of Sines are driving substantial demand for standardized, high-density selective pallet racking.
Selective pallet racking accounts for over 68% of installed industrial pallet positions throughout Portugal. The operational requirement for 100% direct selectivity, accommodating varied FMCG inventory, automotive components (supplying the Palmela AutoEuropa hub), and temperature-controlled seafood and wine exports, makes selective systems the structural backbone of Portuguese supply chains. However, sourcing selective pallet racking in Portugal requires strict structural calibration to European design standard EN 15512:2020 and local seismic verification according to Eurocode 8 (NP EN 1998), particularly in the seismic-active zones of Lisbon, the Tagus Valley, and the Algarve.
Key Market Drivers Shaping Portuguese Intralogistics
Several distinct market realities dictate how warehouse operators in Portugal plan and commission selective racking installations:
• Nearshoring & Cross-Border Iberian Integration: Under the unified Iberian market (mercado ibérico), distribution centers in Santarém and Castanheira do Ribatejo routinely service both mainland Portugal and western Spanish provinces (Galicia, Extremadura). This dual-country fulfilment mandates versatile beam level layouts supporting diverse SKU load profiles.
• Seismic Vulnerability Mitigation: Portugal possesses significant seismic differentiation. While the north (Minho, Porto) exhibits lower seismic acceleration parameters, central and southern Portugal require substantial base-plate engineering, anchor embedment calculations (using M12 to M16 chemical or expansion anchors), and customized upright diagonal bracing configurations.
• Cost Optimization in Speculative Warehouse Development: With institutional logistics REITs expanding Class-A logistics parks, developers require direct factory exporters capable of supplying large container volumes with consistent roll-forming tolerances, certified epoxy-polyester electrostatic coatings, and full batch traceability.
Top 10 Selective Pallet Racking Factories & Exporters Serving Portugal
A rigorous comparative analysis of dominant manufacturers, factory-direct global suppliers, and localized Iberian distributors based on production capacity, compliance standards, and engineering support.
Guangzhou HEDA Shelves Co., Ltd.
Established in 2001, HEDA Shelves operates a state-of-the-art 30,000 m² specialized racking manufacturing base with monthly production capacity exceeding 30,000 metric tons. A trusted global exporter to over 120 countries, HEDA Shelves provides Portuguese industrial buyers with factory-direct pricing, custom CAD layouts, seismic loading calculations for southern Portugal, and complete CE (EN 15512) certification.
Mecalux Portugal
Mecalux is one of the dominant intralogistics groups across the Iberian peninsula. With an extensive commercial and technical presence in Portugal, Mecalux provides conventional selective pallet racking, mobile base racks, and proprietary WMS software integration. Premium brand reputation backed by significant European manufacturing facilities.
AR Racking (Grupo Arania)
AR Racking excels in automated structural design, high-strength cold-formed profiling, and fully galvanized upright components. Renowned throughout Portugal for executing heavy-capacity warehouse projects in Azambuja and Vila Franca de Xira, accompanied by sophisticated seismic simulation engineering.
SSI SCHAEFER Portugal
SSI SCHAEFER delivers world-class industrial racking systems with high integration capabilities for complex Portuguese automated hubs. Known for high dimensional precision, adjustable beams with specialized safety locks, and integrated material handling hardware.
Dexion Storage Solutions
A cornerstone of European industrial warehousing, Dexion supplies standard P90 selective pallet racking to Portuguese operators. The system offers standard frame depths, slotted pitch adaptability, and a comprehensive ecosystem of bolt-on pallet accessories, drum supports, and row spacers.
BITO - Sistemas de Armazenagem
BITO specializes in dynamic pallet handling, carton live storage, and selective pallet racks integrated with lower-tier order preparation tunnels. Popular among Portuguese retail chains and pharmaceutical distributors who prioritize ergonomic pick-levels beneath heavy reserve pallets.
Stow Group
Stow is an international producer of industrial storage rack systems with multiple European roll-forming plants. Offering standard selective racking and the advanced Stow Atlas shuttle carrier, they serve high-throughput logistics terminals in the Greater Porto and Setúbal industrial districts.
Jungheinrich Portugal
Known globally for material handling equipment, Jungheinrich also provides complete selective racking infrastructures tailored to their reach trucks and VNA (Very Narrow Aisle) man-up equipment, ensuring optimal beam clearance, guide rails, and inductive wire routing for Portuguese end-users.
Esnova Racks S.A.
Esnova operates large continuous automated roll-forming lines in northern Spain, supplying both light-duty shelving and heavy-duty selective pallet racks to Portuguese metalworking and trade warehouses. Excellent geographical proximity enables responsive freight dispatch across the northern Portuguese border.
Polypal Iberia (Whittan Group)
Part of the European Whittan Group, Polypal engineers custom industrial storage frameworks, mezzanine structures, and selective pallet racks across Portugal. Their engineering teams focus on rigorous safety compliance, providing full structural verification for high-risk industrial installations.
Selective Pallet Racking in Portugal's Core Industrial Sectors
How selective storage systems are customized to address unique sector-specific challenges across Portuguese commercial regions.
Azambuja & Santarém 3PL Hubs
Portugal’s premier logistics backbone handles multi-client FMCG operations. Selective pallet racking allows 100% SKU access for rapid retail picking, equipped with drop-over wire mesh decks and beam safety pins to support unpredictable multi-size pallet batches.
Palmela Automotive Tier-1 Buffers
Supplying the automotive cluster in Setúbal and Palmela requires exact just-in-sequence (JIS) dispatch. Heavy-capacity selective racks with reinforced column guards and heavy guide rails support steel gitterboxes and specialized custom engine pallets.
Douro & Alentejo Wine Maturation
Portugal’s signature wine and cork industries require strict climate and floor load balance. Selective racks configured with heavy-duty barrel cradles and galvanized lower levels resist barrel cellar moisture while protecting valuable vintage stocks.
Port of Sines Transshipment Freezers
Deep-water port cold stores require optimum space utilization at temperatures down to -25°C. High-bay selective configurations allow immediate access to varied fish and frozen export containers, finished in corrosion-resistant galvanized steel.
Porto & Maia Textile & Footwear
Northern manufacturing facilities utilize selective pallet racking combined with integrated mezzanine overheads. Ground levels house palletized raw fabric rolls while upper levels feature hanging garment runs and selective carton shelving.
Lisbon Pharmaceutical Distriparks
Pharma distributors under strict Infarmed regulatory compliance deploy high-cleanliness selective racks with closed steel panel decks, electrostatic anti-dust powder coating, and designated quarantine bay separations.
Why Global Logistics Contractors Partner with HEDA Shelves
Direct factory manufacturing strength, certified precision engineering, and dedicated export logistics designed to eliminate procurement overhead for Portuguese projects.
25+ Years Industrial Heritage
Founded in 2001, we bring over two decades of specialized racking manufacturing expertise, completing over 10,000 warehouse projects across Europe, ASEAN, and the Americas.
30,000 t Monthly Capacity
Our 30,000 m² automated production facility features continuous CNC roll-forming lines, automated punching, and dual robotic welding lines capable of servicing large industrial rollout deadlines.
European Standard Verification
Full adherence to CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 quality management standards. Upright and beam load calculations verified according to EN 15512 specifications.
Free Engineering & 3D Modeling
Our senior structural engineers provide free comprehensive CAD floor plan layouts, seismic base anchor calculations, and 3D warehouse renderings within 24–48 hours of project consultation.
Corrosion & Climate Protection
Advanced chemical pre-treatment (acid pickling, phosphating) and high-adhesion electrostatic powder coating guarantee long-term surface resistance against Atlantic coastal humidity.
Container-Optimized Logistics
Specialized bundling and modular steel pallet packaging minimize maritime transport damage while maximizing container cubic utilization (40HQ), driving down freight costs per pallet position to Portugal.
Frequently Asked Questions by Portuguese Racking Buyers
Essential guidance on importing, compliance, seismic regulations, and containerized logistics for Portuguese warehouse operators.
In Portugal, industrial steel storage racking must comply with EN 15512 (principles for structural design), EN 15620 (tolerances, deformations, and clearances), and EN 15635 (steel static storage equipment application and maintenance). For seismic regions (Lisbon, Setúbal, Algarve), verification under Eurocode 8 (NP EN 1998) is essential during building permit submission.
Containerized shipments from our factory in Guangzhou to the Port of Leixões (Porto) or Port of Sines / Lisbon generally average 26 to 32 days port-to-port sea transit. With optimized factory production schedules of 15 to 20 days, Portuguese clients receive custom-engineered systems within 6 to 8 weeks from final layout sign-off.
Under the standard EU Common Customs Tariff, steel racking falls under HS code 7308.90. Portuguese companies with an active EORI number can clear goods under standard CIF terms. Furthermore, Portugal’s autoliquidação do IVA na importação (reverse-charge import VAT) regime allows approved businesses to account for the 23% IVA directly on their VAT declaration without immediate cash outlay at customs.
Yes. While standard European configurations deploy 2,700mm clear-entry beams (for 3 × EPAL-1 pallets of 800×1200mm) or 3,600mm beams (for 4 × EPAL-1), our continuous automated CNC roll-forming lines can produce any custom beam length (e.g., 2,250mm, 3,300mm) and upright frame depths from 600mm to 1,500mm to match unique payload requirements.
All structural steel undergoes full immersion acid pickling and phosphating to eliminate surface scale before receiving a 60–80 micron electrostatic epoxy-polyester powder coat baked at 180°C. Finished parts are wrapped in protective polyethylene sheeting, bundled with composite strapping, and nested onto steel pallets to prevent friction abrasion during sea transit.
Every export container includes detailed structural assembly blueprints, frame erection sequence diagrams, anchor torque tables, and component numbering tags. For large warehouse developments, our engineering team provides step-by-step video installation conferences and can dispatch on-site erection supervision managers to verify compliance before system handover.
Plan Your Portuguese Warehouse Optimization Project
Send our senior engineering team your warehouse architectural layout, clear ceiling height, pallet specifications, and forklift model. Receive a complimentary 2D CAD layout, 3D structural rendering, and comprehensive factory-direct quotation within 48 hours.
