High-Efficiency Warehouse Racking & Modular Shelving Systems
Engineered with Q235B/Q355B structural steel, automated cold-roll forming, and anti-corrosive powder coatings certified for Singapore’s tropical humidity and strict BCA safety clearances.
Heavy Duty
OEM Custom
Medium Duty

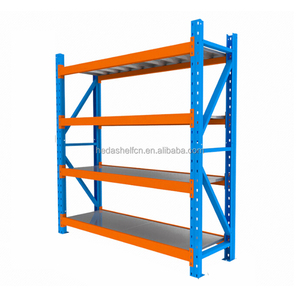

Boltless Quick-Fit
Structural Beam

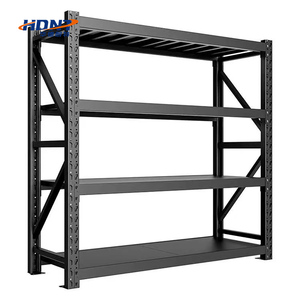

Workshop Spec
Multi-Tier Deck
Need customized pallet beam sizing, seismic baseplates, or PE structural calculations for JTC/BCA submissions?
Send an InquiryEngineering for Density: Overcoming Singapore’s High Land Rents and Space Deficits
In Southeast Asia’s primary transshipment epicenter, warehouse footprint is calculated down to the square millimeter. Optimizing cubic volume is the only viable path to protecting operating margins.
The Industrial Reality: Land Constraints, JTC Plot Ratios, and Skyrocketing PSF Rates
Industrial facility leases regulated by Jurong Town Corporation (JTC) and private landlords across Singapore command some of the highest price-per-square-foot (PSF) rates in the Asia-Pacific region, frequently hovering between SGD $1.80 to over $3.60 psf/month for prime logistics space in areas like Tuas, Pioneer, Changi, and Jurong East. Compounded by strict JTC land allocation rules that mandate stringent Gross Plot Ratios (GPR) and minimum building investment targets, warehouse operators cannot afford dead vertical air. Maximizing volumetric utilization through multi-tier catwalks, Very Narrow Aisle (VNA) systems, and radio shuttle automation is no longer a luxury—it is an economic imperative.
Vertical Cubic Maximization
Standard Singapore industrial ceiling clearances range from 9 to 14 meters. Selective single-deep racking wastes up to 60% of structural volume. We configure systems up to 12 meters with reinforced uprights, cutting storage cost per pallet by up to 45%.
- High-bay structural upright profiling
- Double-deep and VNA turret configurations
- Multi-level rack-supported mezzanines
BCA & SCDF Compliance
Installation in Singapore requires structural engineering oversight meeting Singapore Civil Defence Force (SCDF) fire code regulations, sprinkler penetration clearances, and Building and Construction Authority (BCA) dead-load safety margins.
- Wire mesh decking for fire sprinkler passthrough
- Minimum 500mm to 1000mm ceiling flue clearances
- Calculations aligned with SS EN 15635
Throughput Optimization
Tuas Mega Port expansion has accelerated Singapore’s transit speeds. Racking configurations must support high inventory velocity with dynamic pallet flow (FIFO), push-back gravity carts (LIFO), and semi-automated four-way radio shuttles.
- Fast order picking replenishment loops
- Heavy-duty beam deflectors and guide rails
- Automated shuttle channels up to 40 pallets deep
Tailored Racking Scenarios Across Key Singapore Industrial Zones
From bonded aviation logistics in Changi to chemical consolidation on Jurong Island, our storage infrastructure is customized for distinct operational environments across the Lion City.
Tuas & Pioneer Transshipment
Positioned directly adjacent to the Tuas Mega Port, facilities here demand rugged, high-turnover selective pallet racks and heavy drive-in structures capable of absorbing heavy reach-truck impacts.
- ISO 1200x1000mm & Euro 1200x800mm pallets
- Floor-anchored wrap-around column guards
- Heavy-duty 4.0mm structural baseplates
Changi & ALPS Free Trade Zone
Within the Airport Logistics Park of Singapore (ALPS), high-value electronics, aerospace spares, and pharmaceutical freight require high-density multi-tier mezzanine floors and longspan boltless shelving.
- Anti-static ESD powder coat options
- Dust-proof perforated galvanized steel planks
- Integrated goods-lift loading gates
Mandai & Boon Lay Cold Chains
Operating in chilled (+4°C) and deep-freeze (−25°C) facilities serving national food security reserves, where refrigeration power makes cubic space ultra-expensive.
- Semi-automated Radio Shuttle racks
- Galvanized corrosion-proof uprights
- Zero thermal-bridging anchor designs
Jurong Island & Petrochemical
Extreme duty storage for chemical drums, IBC totes, and raw polymer feedstocks requiring strict non-combustible materials, certified containment, and high shear resistance.
- 3,000 kg/tier beam ratings
- Welded structural drum barrel cradles
- Integrated spill containment bund clearance
Structural Rack & Shelving Technical Specifications
Compare load classifications, material certifications, and beam deflection ratios designed to meet Singapore BCA safety factors.
| Storage System Type | Material Standard | Max Load per Level | Standard Bay Height | Beam Deflection Ratio | Recommended Singapore Application |
|---|---|---|---|---|---|
| Heavy Duty Selective Pallet Racking | Certified Q235B / Q355B Hot-Rolled Strip Steel | 1,000 kg – 4,000 kg (Uniformly Distributed Load) | Up to 12,000 mm | ≤ 1/200 (SS EN 15635 compliant) | FMCG, Tuas port 3PL distribution hubs, retail cross-docking |
| Very Narrow Aisle (VNA) System | High-Tensile Cold-Rolled Carbon Steel | 1,000 kg – 2,500 kg per pallet pair | Up to 15,000 mm | ≤ 1/250 (High rigidity profile) | High-bay pharmaceutical warehouses, Changi aerospace parts |
| Radio Shuttle High-Density Racking | Q235B Structural Uprights with Aluminum Guide Rails | 500 kg – 1,500 kg per pallet | Up to 14,000 mm | ≤ 1/200 dynamic deflection | Mandai cold storage, deep-freeze seafood, beverage bottling |
| Industrial Longspan Shelving | SPCC Cold-Rolled Steel Sheet with Powder Coat | 300 kg – 800 kg per shelf tier | 2,000 mm – 4,500 mm | ≤ 1/180 manual loading standard | Automotive workshop spare parts, hardware retail picking |
| Rack-Supported Structural Mezzanine | Q355B Heavy Structural Columns and Cold-Formed Purlins | 300 kg – 1,000 kg per m² floor loading | Multi-Tier (2 to 4 Levels) | Engineered to BCA dead/live load rules | E-commerce fulfillment centers, Tampines logistics parks |
| Heavy Duty Cantilever Racks | Hot-Rolled H-Beam or Cold-Formed Steel | 500 kg – 3,000 kg per cantilever arm | 3,000 mm – 8,000 mm | Rigid cantilever moment design | Sungei Kadut timber stockists, metal conduit & rebar yards |
Corrosion Protection in Singapore’s High Humidity Environment
Singapore maintains year-round average humidity levels between 80% and 90%, paired with saline maritime air. Low-grade commercial paints quickly blister, oxidate, and compromise structural stability.
10-Stage Chemical Pre-Treatment
Every steel profile undergoes immersion degreasing, acid pickling to strip rust scale, zinc phosphating, and deionized water flushes. This creates a crystalline conversion layer ensuring complete mechanical bonding of epoxy powders.
Electrostatic Powder Curing (60–80μm)
Utilizing Swiss GEMA automated spray booths, virgin thermoset polyester-epoxy powders are cured at 180°C–200°C. The resulting coat resists micro-cracking during fork-truck impacts and withstands 500+ hours in ASTM B117 salt spray tests.
Hot-Dip Galvanizing (ISO 1461)
For unconditioned coastal sheds, open air stockyards, or sub-zero refrigeration docks where condensation cycles are relentless, we provide full hot-dip galvanized finishes with coating thicknesses exceeding 85μm for decades of rust-free life.
Emerging Warehouse Trends in Singapore: Moving Toward Autonomous Logistics
Singapore’s Smart Nation initiative and tight workforce limits are driving rapid transformation in physical storage infrastructure.
1. AGV & AMR Aisle Interfacing
Autonomous Mobile Robots (AMRs) and automated reach trucks require strict floor flatness tolerances (DIN 15185 / TR34) and millimeter-accurate pallet pick windows. Our robotic welding fixtures guarantee upright hole tolerances within ±0.1mm, eliminating structural misalignments during autonomous pallet engagement.
2. Green Logistics & Embodied Carbon
Singapore’s Green Plan 2030 requires industrial tenants to demonstrate carbon reductions. Our cold-roll optimization generates up to 18% higher load capacities using thinner, higher-yield Q355B alloy steel, reducing total steel tonnage, container freight emissions, and embodied structural carbon.
3. Modular Reconfigurability
Shortened JTC lease renewals (frequently 3-to-10 years) demand demountable storage architecture. Our boltless beam-connector hook designs with spring safety pins allow rapid unbolting, relocation, and re-erection in alternative leasehold buildings without hot-work or structural welding.
The HEDA Factory-Direct Advantage for Singapore Importers & Contractors
Eliminate intermediary markups, obtain direct design modifications from factory engineers, and leverage ultra-fast sea shipping lanes connecting Guangzhou directly to Singapore Port.
30,000 m² Mega Factory
Our expansive production hub in Guangzhou houses automated roll-forming lines, 3D laser cutters, robotic beam welding, and multi-color electrostatic powder coating bays producing 30,000 tons monthly.
5–7 Days Direct Transit
Direct weekly vessel departures from Nansha or Huangpu ports dock at Singapore PSA in just 5 to 7 days, providing turnaround speeds rivaling local stockists while preserving pure wholesale factory rates.
Complimentary CAD & 3D Render
Submit your warehouse blueprint or CAD floorplan. Our engineering team provides detailed 2D layout drawings, 3D spatial renders, and structural load distribution calculations within 24 to 48 hours at zero cost.
Audited CE & ISO Credentials
Backed by official CE certification (No. 2435-CPR-8605159), ISO 9001:2015 quality management (No. 18624Q00169R0M), and RoHS compliance, facilitating smooth local safety and compliance checks.
Singapore Industrial Racking Procurement FAQ
Key technical, regulatory, and shipping considerations addressed by our Senior Project Engineering Team.
Transform Your Singapore Warehouse Into a High-Density Asset
Consult with our engineering team today to receive a complimentary custom 2D/3D warehouse storage layout, structural load calculations, and competitive factory-direct CIF Singapore pricing.
