Industrial Storage Systems for Indian Logistics Hubs
From Bhiwandi's high-turnover FMCG fulfillment centers to Chakan's heavy automotive component lines, our structural pallet racking solutions optimize vertical cube density while complying strictly with seismic and floor loading parameters.
High-Density LIFO

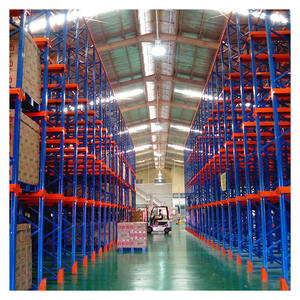

Drive-in Pallet Rack System for Bulk & Cold Storage
100% Selective
Conventional Selective Pallet Racking for Forklifts
Max Height Density

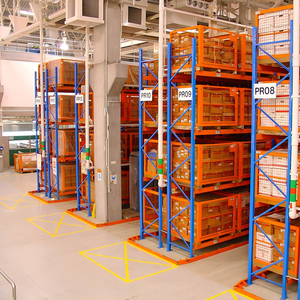

Very Narrow Aisle (VNA) Heavy Duty Racking System
Long Item Profile
Heavy Duty Cantilever Storage System for Steel & Pipes
Medium-Duty Pick

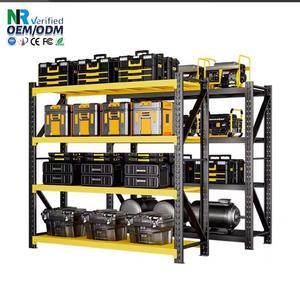

Long Span Adjustable Steel Storage Shelving Racks
High Bay Master
2800KG 5-Tier High Bay Heavy Duty Industrial Rack
Automated Interface
Cold-Rolled Steel

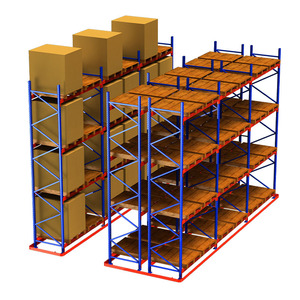

Mobile High-Bay Cold-Rolled Narrow Aisle Racks
Structural Standards Built for Indian Industrial Warehouses
Sourcing pallet racking for India requires stringent structural engineering beyond general warehousing specs. From seismic zone verifications under IS 1893 to humidity mitigation in coastal Maharashtra, our systems are certified to global and national stress standards.
High-Grade Q355B / Q235B High-Tensile Steel
We source prime, certified structural strip steel directly from premier mills (Baosteel/Shougang). Uprights are continuously cold-roll formed from high-yield Q355B steel, exhibiting minimum yield strengths exceeding 355 MPa. This ensures high ultimate load safety margins under full vertical and transverse beam deflections, complying seamlessly with IS 800:2007 structural steel design criteria and EN 15512 cold-formed member principles.
Indian Seismic Zone III, IV & V Calculations
India's industrial corridors cross critical tectonic zones—from the high-activity NCR belt (Zone IV) to Kutch and Uttarakhand (Zone V). Our structural engineers calculate static and dynamic seismic loads according to IS 1893 (Part 1): 2016. We integrate heavy-gauge footplates, enlarged anchor studs (M12-M16 grade 8.8 chemical or wedge anchors), and high-frequency portal diagonal bracing to withstand horizontal ground accelerations.
Monsoon-Proof Pretreatment & Coating
Warehouses across coastal regions (Nhava Sheva, Chennai, Cochin, Haldia) encounter relative humidity surpassing 85-95% during monsoon cycles. Components undergo an automated 10-stage pre-treatment featuring hot immersion alkaline degreasing, zinc phosphating, and deionized cascades, followed by Swiss Gema electrostatic epoxy-polyester thermosetting powder bake at 180°C. Delivers 500+ hours salt-spray resistance with scratch hardness ≥2H.
Engineered for India's Core Industrial Corridors
India’s post-GST logistics framework requires consolidation from small town godowns into multi-acre, centralized Grade-A distribution hubs. We engineer our rack geometry to match regional supply-chain formats.
Automotive & 3PL Fulfillment
Tailored for high-turnover logistics parks off NH-48 and the Mumbai-Pune corridor. Features heavy beam spans suited for standardized 1200x1000mm four-way entry Indian wooden/plastic pallets carrying automotive components and retail FMCG batches with 24/7 reach-truck cycles.
Omnichannel & E-Commerce High-Bay
Configured for the dense mega-fulfillment centers of Gurugram, Bilaspur, and Farukhnagar. Integrates Very Narrow Aisle (VNA) and Multi-Tier Catwalk Mezzanines that utilize clear internal building heights of 11m to 14m, multiplying usable cube efficiency within expensive footprint real estate.
Heavy Machinery & EV Battery Spares
Serving electronics, EV manufacturing, and precision engineering zones around Sriperumbudur, Oragadam, and Bengaluru Rural. Reinforced upright profiles (90x68 to 120x95mm) handle high concentrated point loads with drop-in wire mesh decks and pallet support bars.
Controlled Atmosphere Agro-Pharma
Engineered for sub-zero freezer cold stores (-25°C to +4°C) storing pharmaceuticals, horticulture produce, and marine exports. Utilizes high-density Radio Shuttle systems and Drive-in arrays that minimize open cubic air volume, curbing costly refrigeration electricity loss.
Our 10-Step ISO 9001:2015 Manufacturing Workflow
Every batch dispatched to India is fabricated in-house under CE Certificate No. 2435-CPR-8605159 and ISO 9001 guidelines, guaranteeing zero structural variations.
Raw Coil Sourcing
Mill-certified Q235B/Q355B coils with ultrasonic defect and chemical assay screening.
Precision Slitting
Automated slitting lines slice wide coil down to precise profile strip widths within ±0.1mm.
CNC Pitch Punching
High-speed punch presses execute clean 50mm/75mm pitch holes with zero burrs.
Multi-Roll Forming
Multi-station continuous roll formers roll uprights with up to 12 structural bends.
Box Beam Forming
Interlocking interlocking double-C beam profiles seam-welded for high torque resistance.
Robotic Welding
Robotic Panasonic MIG stations fuse beam connectors with deep penetration fillets.
Surface Conditioning
High-pressure shot-blasting or acid-wash to strip all surface scale and oil grease.
Zinc Phosphating
Micro-crystalline conversion layer deposited for optimal paint bond and corrosion arrest.
Electrostatic Coat
Gema guns apply 60-80μm non-toxic epoxy-polyester powder, oven-cured at 180°C.
Container Bundling
Bundled with steel banding, corner protectors, and moisture barriers for ocean freight.
Frequently Asked Questions by Indian Importers & Contractors
Direct clarity on import tariffs, shipping logistics to Indian container ports, local engineering standards, and on-site assembly guidance.
What are the standard shipping transit times to Indian ports?
We ship factory-direct from our port facilities in Guangzhou/Nansha/Shenzhen. Typical ocean transit times to Western ports (Nhava Sheva/JNPT, Mundra) range between 14 to 18 days. Shipments to Eastern and Southern ports (Chennai, Cochin, Krishnapatnam, Kolkata) take approximately 12 to 16 days. We provide complete FOB, CIF, or CFR shipping documentation including Commercial Invoices, Packing Lists with container weight distribution, and Certificates of Origin.
What HS Codes apply and what are the Indian customs duties?
Pallet racking components, uprights, and beams are classified under Indian Customs Tariff HSN Code 7308.90 ("Structures and parts of structures of iron or steel"). While customs duties and GST (typically 18% Integrated Goods and Services Tax - IGTAX) are assessed at the port of entry, importing directly from our OEM factory yields substantial net savings over local branded distributors even after accounting for Basic Customs Duty (BCD) and social welfare surcharges.
Can you provide structural layout drawings and STAAD Pro models?
Yes. Our in-house engineering team provides complimentary 2D AutoCAD equipment layouts, full 3D layout renderings, and cross-sectional elevation drawings indicating clear aisle widths, forklift turning radiuses (AST), and safety clearances. For EPC contracts, institutional tenders, and municipal warehousing permits, we supply structural stress verification calculations aligned with IS 800:2007 and EN 15512 structural load parameters.
How is container packing optimized to reduce shipping freight?
Racking systems can be voluminous if improperly packed. We use specialized long-profile container packing techniques. Uprights are bundled in nested orientations with protective interleaving, and beams are strapped on dedicated steel runners for rapid forklift unloading at Indian Container Freight Stations (CFS). A typical 40-foot High Cube (40HQ) container is loaded up to 22 to 25 metric tons, maximizing cubic volume and lowering ocean freight cost per pallet position.
Do you provide on-site installation support across Indian states?
Every order is shipped with step-by-step 3D assembly manuals, isometric anchor layout plans, and piece-marked component schedules. For large-scale multi-tier mezzanines or automated high-bay racking systems, we deploy experienced site erection supervisors to oversee local installation crews in Maharashtra, Haryana, Tamil Nadu, Karnataka, and Gujarat, ensuring certified torque settings and upright plumbless tolerance.
What custom OEM specifications can be configured?
We provide comprehensive OEM customization: upright profiles ranging from 80mm to 140mm face widths, metal thicknesses from 1.5mm to 3.0mm, custom beam profiles (step beams, box beams, tube beams), customized powder coating matching your corporate RAL branding, and specialized decking options (galvanized steel panels, drop-in wire mesh, anti-spill flanged dividers, pallet flow rollers).
Plan Your Warehouse Storage Expansion with Factory-Direct Engineering
Submit your architectural layout, warehouse dimensions (Length x Width x Clear Height), pallet parameters (Length x Depth x Height, Gross Weight), and material handling equipment (forklift lift height and aisle requirement). Our engineering desk will deliver an optimized CAD proposal and CIF price breakdown within 24 hours.
