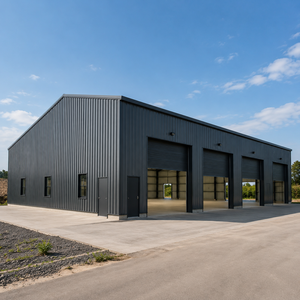

Prefabricated Large Span Steel Structure Warehouse Building
Engineered structural frames with pre-galvanized or hot-dip surface treatments tailored for heavy industrial warehousing, high-cube distribution centers, and modular storage depots.
Engineered Storage Portfolio
High-Density Storage & Structural Warehouse Solutions
Explore our heavy-duty industrial pallet racking systems configured specifically for commercial distribution hubs, cold storage chambers, and automated sorting centers across North America.
CAIYUN Heavy Duty Radio Shuttle Stacking Storage Rack
High-density deep lane storage integrating automated shuttle carts with rugged zinc-protected channel uprights, optimal for sub-zero freezer applications and high-throughput beverage fulfillment.
Industrial Galvanized Heavy Duty VNA & Double Deep Racking
Corrosion-proof pallet storage designed for Very Narrow Aisle and Double Deep operations. Maximizes structural stability against wet outdoor yards, chemical fumes, and washdown processes.
Heavy Duty Industrial Adjustable Beam Storage Rack
Versatile selective framework featuring heavy gauge step/box beams and precision 2-inch pitch adjustability compatible with standard GMA 48x40 pallets across US logistics infrastructures.
Heavy-Duty 5-Layer Drive-In Pallet Rack & Display System
Continuous rail layout eliminating internal aisles for high-volume LIFO batch inventory. Engineered with reinforced overhead ties and protective base channels for warehouse club operations.
Heavy Duty Pallet Rack with Triple-Upright Frame & Decks
Heavy-duty multi-column configurations built to accommodate non-standard skid dimensions, oversized machinery storage, and heavy dead loads without sagging or deflection under extreme tonnage.

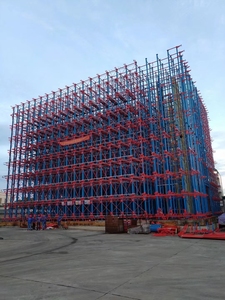

Deep-Lane Pallet Shuttle High-Density Retrieval System
Maximizes volumetric efficiency up to 85% by leveraging radio-frequency intelligent shuttles operating within zinc-plated guiding rails. Minimizes lift truck travel and maintenance downtime.
Custom Hanging Roll & Carpet Display Racking System
Tailored structural cantilever and pipe-spindle rack units engineered for rolled textiles, heavy carpeting, industrial coils, and vinyl materials requiring suspended, crease-free access.
Technical Whitepaper
Engineering Galvanized Storage Systems for US Regulatory Standards
A rigorous metallurgical and structural evaluation of hot-dip galvanized (HDG) versus pre-galvanized cold-formed roll structural steels under ANSI MH16.1 guidelines.
Structural Steel Grade Selection & Seismic Design Criteria
In the United States supply chain ecosystem, seismic hazards (governed by the International Building Code [IBC] and ASCE 7) dictate strict moment frame and base plate calculations. Guangzhou Heda Shelves Co., Ltd. fabricates upright columns and load beams utilizing certified Q235B and Q355B structural carbon steels—direct structural equivalents to ASTM A36 and ASTM A572 Grade 50. Our engineering calculations take into account the Spectral Response Accelerations (Ss and S1) defined for high-seismic zones like California, Washington State, and the New Madrid Seismic Zone.
By engineering oversized, heavy-gauge base anchor shoes (up to 1/2-inch plate thickness) with multi-anchor expansion or adhesive sleeve bolt patterns, our systems distribute dead and dynamic seismic base shear loads effectively into 6-to-10-inch reinforced concrete floor slabs. Every frame is engineered with Finite Element Analysis (FEA) to confirm beam-to-column connector rigidity and rotational spring constants, guaranteeing total structural compliance under ANSI MH16.1: Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks.
Hot-Dip Galvanized (ASTM A123) vs. Pre-Galvanized Coil Processing
Galvanized pallet racking serves an irreplaceable role across environments where traditional electrostatic epoxy-polyester powder coats degrade over time. In cold storage distribution centers operating at -20°F to 34°F (-29°C to 1°C), continuous thermal cycling induces dew-point condensation. When moisture infiltrates pinholes or scratches in conventional paint, sub-film corrosion and rust blooming inevitably undermine structural integrity.
We supply two metallurgical zinc-coating solutions tailored to operational budgets and humidity severity:
1. Batch Hot-Dip Galvanizing (ASTM A123 / ISO 1461): Finished structural weldments, punch-perforated uprights, and tubular racking components undergo full chemical immersion (degreasing, hydrochloric acid pickling, fluxing, and molten zinc bath at 840°F / 450°C). This process forms an iron-zinc alloy layer chemically bonded to the base substrate with a minimum coating thickness of 65–85 microns (approx. 2.0 to 2.5 oz/ft²), delivering self-healing cathodic sacrificial protection for up to 50 years in maritime coastal yards, chemical washdown areas, and sub-zero freezers.
2. Continuous Pre-Galvanized Roll Forming (ASTM A653 / G90): For indoor automated facilities requiring balanced economics and clean finishes, components are roll-formed directly from pre-coated structural sheet coils with zinc yields up to 275 g/m² (G90). This produces uniform, flash-free surfaces ideal for automated guided vehicles (AGVs) and radio shuttles without requiring secondary machining.
Localized Applications
Where Galvanized Systems Outperform in North American Facilities
From the freezing winter logistics hubs of the Midwest to humid coastal operations along the Atlantic seaboard, galvanized structural racking delivers lifetime operational savings.
Cold Storage & Blast Freezer Facilities
Commonly deployed throughout cold logistics corridors in Chicago, Dallas, and Pennsylvania. Galvanized steel eliminates peeling and paint chips that contaminate frozen poultry, meat, dairy, and pharmaceutical products under strict USDA and FDA sanitary audits.
Outdoor Staging Yards & Coastal Ports
Installed at logistics yards, marine supply warehouses, and construction depots in Jacksonville, Long Beach, and Savannah. Withstands heavy rain, high saline coastal mist, seasonal snowpack, and aggressive UV exposure without structural corrosion.
Chemical, Fertilizer & Agriscience Storage
Critical across Midwestern agricultural distribution networks storing bagged fertilizers, pesticides, industrial salts, and volatile cleaners. The dense zinc metallurgical barrier prevents caustic chemical vapors from attacking load-bearing structural members.
Industry Evolution
Emerging Trends Shaping US Industrial Warehousing
How automation, warehouse height densification, and supply-chain nearshoring dictate modern pallet racking procurement.
High-Cube Vertical Optimization (>40 ft)
With industrial land costs climbing near Tier-1 US metropolitan centers, warehouse operators are moving up. We build heavy-duty continuous splice-welded uprights reaching beyond 40 feet with tight deflection ratios under 1/180th of beam length.
Shift toward Teardrop & Structural Hybrids
US procurement teams demand boltless convenience alongside the structural resilience of C-channel frames. We manufacture hybrid systems featuring teardrop punching for rapid beam reconfiguration combined with structural channel columns for forklift impact resistance.
Integration with Semi-Automated 4D Shuttles
Labor shortages across North America have accelerated investments in semi-automated pallet shuttles. High precision alignment, perfectly leveled galvanized guide tracks, and mill-spec tolerances are crucial to eliminate shuttle jamming during peak fulfillment.
US Buyer Knowledgebase
Frequently Asked Questions by North American Procurement Teams
Direct engineering answers on building code compliance, seismic engineering certifications, freight transit, and packaging.
Are your racking systems compliant with US RMI and ANSI MH16.1 standards?
Yes. All structural members, cold-formed profiles, and connectors are engineered in full alignment with the Rack Manufacturers Institute (RMI) Specification ANSI MH16.1. We provide certified structural calculation packages, weld inspection documentation (compliant with AWS D1.1/D1.3), and mill test reports (MTR) for local city building permit applications.
What is the difference between Hot-Dip Galvanized and Electro-Galvanized finishes?
Electro-galvanizing applies a micro-thin layer (typically 5–12 microns) of zinc via electrolytic deposition, which is easily compromised in humid or cold storage settings. Our hot-dip process completely immerses welded steel into 450°C molten zinc, producing an 85+ micron thick metallurgical bond that resists deep mechanical abrasions and prevents rust creep.
Can you customize teardrop slot punch patterns for existing US warehouse inventory?
Absolutely. As an OEM manufacturer, we engineer our roll-forming punch tooling to match industry-standard North American teardrop configurations (compatible with Interlake, Ridg-U-Rak, and others). This allows our upright frames and step beams to integrate smoothly with your existing pallet racking installations.
How do you handle seismic load calculations for California and the West Coast?
We work with registered US professional engineers (PE) to model base shears, ground acceleration factors (SDS and SD1), and column buckling ratios according to ASCE 7 and IBC chapters. Upright gauges, heavy-duty diagonal bracing channels, and high-tensile anchor bolts are specified directly on the stamped permit drawings.
What are standard ocean shipping transit times and packaging protocols to US ports?
Direct sea transit from our factory port in Guangzhou / Nansha runs roughly 16–22 days to US West Coast ports (Los Angeles, Long Beach, Oakland) and 28–35 days to East Coast / Gulf ports (Savannah, Houston, Newark). Components are bundled with heavy steel strapping, corner protectors, and moisture-barrier shrink wrap to eliminate salt spray corrosion during ocean voyage.
Do you supply accessories like wire decks, pallet supports, and column guards?
Yes. In addition to uprights and beams, we manufacture flared or step-channel galvanized wire mesh decks, pallet support crossbars, row spacers, anti-collapse safety backing screens, and heavy-gauge floor-anchored steel column guards engineered for high-impact forklift contact.
Enterprise Heritage
Guangzhou Heda Shelves Co., Ltd. Advantage
Combining 25+ years of heavy industrial manufacturing capability with rigorous quality verification at every stage of fabrication.
25+ Years OEM Precision
Dedicated warehouse storage manufacturing since 2001, employing over 300 skilled technicians, certified AWS structural welders, and in-house CAD/FEA design engineers.
Engineering & Layout Support
Complimentary DWG architectural layout schematics, 3D structural visual simulations, and rigorous pallet dead/live load structural calculations prior to purchase commitment.
Verified ISO & CE Quality
Operating under ISO 9001:2015 Quality Management certification (No. 18624Q00169R0M), CE certification (No. 2435-CPR-8605159), and full raw steel traceability.
Direct Container Loading
Our 30,000 m² factory guarantees 30,000 metric tons monthly output, optimizing container space (20GP/40HQ) with zero transshipment handling to reduce logistics costs.
Ready to Build or Upgrade Your US Warehouse Facility?
Connect directly with our engineering team to review your building blueprints, slab specifications, pallet loading criteria, and seismic parameters. Receive an initial CAD layout and competitive factory-direct quote within 24 hours.
