Certified Standard Pallet Racking & Specialized Storage Systems
Direct factory supply fabricated from premium Q235B/Q355B high-tensile structural steel. Fully compatible with North American tear-drop configurations, heavy beam connectors, and Massachusetts seismic anchor specifications.
High Density Adjustable Double Deep Pallet Racking
Configured for 2-deep reach trucks, boosting pallet capacity by 50% without requiring additional aisle space. Ideal for high-throughput FMCG hubs along the I-495 beltway.
View Product
Heavy Duty Wire Mesh Foldable Stacking Tire Rack
Modular 4-way forklift entry wire mesh stacking cages. Collapsible footprint saves 80% freight volume on backhaul transport for regional New England automotive distributors.
View Product
Gravity Flow Roller Track FIFO Carton Picking Rack
Smooth-flow PE/ABS rollers engineered for dynamic split-case picking. Guaranteed zero-energy FIFO stock rotation for pharmaceutical and life science reagents in Middlesex County.
View Product
Precision Very Narrow Aisle (VNA) Pallet Racking
Maximizes vertical clear height up to 15 meters with aisle widths as tight as 1.6 meters. Accommodates wire-guided turret trucks to dramatically lower cost per pallet in urban Boston.
View Product

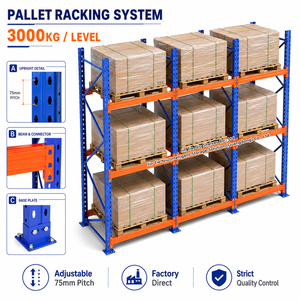

Standard Heavy Duty Selective Pallet Rack 3000KG
The benchmark solution for general warehousing. Delivers immediate 100% pallet selectivity, roll-formed boxed step beams, and structural locking pins rated for seismic safety.
View Product
Ventilated Industrial Heavy Duty Steel Locker Cabinet
All-welded cold-rolled steel cabinet with electrostatic anti-corrosion coating. Engineered for logistics staffing lockers, industrial locker rooms, and facility operational staging.
View Product
Anti-Rust Medium Duty Shelving with Steel Separators
Engineered for manual parts rooms, sub-assembly picking stations, and hardware supply rooms. Features 50mm pitch adjustable shelf decks and integrated compartmental dividers.
View Product
H-Section Structural Cantilever Heavy Material Rack
Unobstructed linear storage for lumber, steel tubing, extruded PVC, and structural trusses. Custom load capacities exceeding 3,000 kg per arm with hot-dip galvanized outdoor finish options.
View ProductGreater Boston Logistics Landscape & Industrial Storage Economics
The Greater Boston industrial real estate market presents a demanding operational environment for supply chain managers, 3PL providers, and distribution executives. Across Middlesex, Essex, Worcester, and Norfolk counties, industrial vacancy rates hover near historic lows while average asking rents have ascended rapidly to premium levels ranging between $18.00 and $26.50 per square foot NNN. In congested submarkets such as the Inner Suburbs (Chelsea, Everett, South Boston) and the inner I-95/Route 128 logistics loop, clear ceiling heights in older building inventory frequently average only 18 to 24 feet. Consequently, warehouse operators cannot afford wasted vertical cube or inefficient floor layouts.
To achieve profitable throughput, companies operating logistics nodes across the I-495 beltway (Franklin, Marlborough, Devens) and the Route 24 industrial corridor are aggressively moving away from legacy wide-aisle configurations. High-density storage engineering—specifically double-deep pallet racks, very narrow aisle (VNA) systems, and multi-tier picking structures—has evolved from a capital luxury into a structural survival strategy. Procuring directly from a tier-one China wholesale manufacturer like HEDA Shelves empowers Boston facility operators to bypass multi-tiered distributor markups, saving 30% to 45% in baseline capital expenditure while obtaining structural racking certified to rigid North American structural criteria.
Direct maritime logistics through Massport's Conley Container Terminal provide a streamlined import route for heavy containerized steel racking. Deepened to 50 feet, Conley terminal welcomes direct Asian ocean carrier services, eliminating the drayage congestion and intermodal rail delays commonly encountered when routing through the Ports of New York/New Jersey. Our dedicated maritime export team packages factory shipments with container-maximized nested bundles, optimizing 40-foot High Cube (40HQ) container payloads to reduce landed freight expense per pallet position by up to 28%.
Engineered Application Scenarios Across Greater Boston Industries
Standard pallet racking cannot follow a one-size-fits-all model. Storage architecture must adapt to localized inventory characteristics, compliance guidelines, and picking kinematics. Below is how our factory-direct racking assemblies integrate into Boston's core industrial ecosystems:
Biotech & Life Sciences (Cambridge • Waltham)
Boston stands as the world's premier biopharmaceutical supercluster. High-throughput reagent distribution centers and cold storage walk-in vaults require sanitizable, anti-microbial powder-coated racking with open wire mesh decking. Our gravity carton flow and selective rack bays maintain absolute batch control and strict expiration date tracking (FIFO), providing continuous validation under FDA 21 CFR Part 11 and cGMP warehousing mandates.
Cold Chain & Seafood (Seaport • New Bedford)
From maritime seafood consolidation in Gloucester and New Bedford to central perishables distribution at the New England Produce Center in Chelsea, freezer square footage demands supreme volumetric density. Our heavy-duty drive-in and automated radio shuttle systems operate flawlessly in temperatures as low as -30°C. Enhanced hot-dip galvanized and epoxy pre-treatment options shield steel profiles against ambient moisture and saline washdown corrosion.
3PL Cross-Docking & E-Commerce (I-495 Beltway)
High-velocity fulfillment hubs in Franklin, Devens, and Worcester handle extreme SKU diversity with rapid daily turnover. Our adjustable selective racking and multi-tier rack-supported mezzanine platforms maximize vertical envelope utilization. Engineered with standardized 50mm and 75mm beam adjustment pitches, configurations adapt overnight to fluctuating holiday pallet dimensions and carton picking demands.
Engineering Metallurgy, Structural Safety & Massachusetts 780 CMR Compliance
Structural integrity in heavy-load industrial storage is governed by exacting physics. Every component leaving our manufacturing floors is designed and verified in accordance with the Rack Manufacturers Institute (RMI) ANSI MH16.1 specifications (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks) and the structural load mandates of the Massachusetts State Building Code (780 CMR), which incorporates the International Building Code (IBC).
While New England is not typically classified as an extreme seismic epicenter, Massachusetts 780 CMR requires rigorous seismic engineering calculations for commercial storage fixtures exceeding 8 feet in height, especially under Seismic Design Categories B and C common to coastal estuaries. Our factory structural engineering department provides seismic site-specific base plate calculations, anchor bolt shear-and-pullout analysis, and horizontal beam safety factor certification signed off by credentialed structural analysts.
| Racking Component | Material Specification | Yield Strength (Fy) | Tensile Strength (Fu) | Fabrication Technology & Standards |
|---|---|---|---|---|
| Upright Columns | Q235B / Q355B Grade Steel | 235 – 355 MPa | 370 – 510 MPa | Continuous multi-station cold roll forming; automated CNC teardrop/omega hole punching. |
| Boxed Step Beams | Q235B Cold-Formed Steel | 235 MPa minimum | 370 – 500 MPa | Twin C-channel continuous seam welding; interlocking 3- or 4-rivet end connectors with spring pins. |
| Seismic Base Plates | Hot-Rolled Structural Plate | 250 MPa minimum | 400 – 520 MPa | Heavy-gauge welded plate; multi-anchor hole patterns designed for Hilti/wedge anchor floor embedment. |
| Diagonal & Horiz. Bracing | Structural C-Section Profiles | 235 MPa | 370 – 480 MPa | Triangulated truss bracing bolted with Grade 8.8 high-tensile structural fasteners. |
| Surface Finish | Thermoset Epoxy-Polyester | ASTM D3363 Class 2H | ASTM D2794 Impact 160 in-lb | 9-stage immersion pickling, phosphatizing, and 80–120μm electrostatic powder baking at 200°C. |
Localized Strategic Trends Shaping Greater Boston Warehouse Operations
Modern supply chain logistics in eastern Massachusetts is undergoing a structural paradigm shift driven by technological automation, labor constraints, and ecological efficiency mandates:
1. Vertical Densification
With commercial land acquisition costs across the I-95/Route 128 corridor reaching record highs, modern speculative construction is emphasizing 36-foot to 40-foot clear heights. Racking architectures are shifting from low-density 3-level storage to 6-to-8-tier high-bay installations that leverage narrow-aisle reach trucks and wire-guided swing-reach turret masts to double cubic storage density without expanding the building foundation.
2. Robotics & AGV Readiness
The chronic shortage of certified forklift operators throughout Middlesex and Worcester counties has accelerated the deployment of Autonomous Mobile Robots (AMRs) and automated pallet shuttle carriers. Our racking systems are built with tighter dimensional tolerances (±1.0mm) and reinforced bottom guide rails, ensuring continuous operational alignment with automated guided vehicle sensors.
3. NFPA 13 Fire Sprinkler Design
Boston-area municipal fire departments enforce uncompromising fire sprinkler clearance rules under NFPA 13 regulations. Standard solid decking creates hazardous dry shadow zones during a fire. We supply flared wire mesh decks and perforated steel panels that guarantee open water penetration (>70% open area), mitigating the need for costly in-rack sprinkler retrofits.
Factory Pedigree: End-to-End Precision Manufacturing
HEDA Shelves operates a vertically integrated production infrastructure, eliminating subcontractors and maintaining stringent quality assurance from steel coil uncoiling to ocean container stuffing. Our Guangzhou manufacturing campus utilizes computer-controlled cold roll-forming lines capable of stamping complex upright profiles without localized micro-cracking, preserving the ultimate yield properties of the raw steel.
Precision Punching
Automated high-speed CNC punching arrays generate clean teardrop and diamond lock-pin ports with zero metallurgical burrs, guaranteeing instant bay alignment on-site.
Robotic Welding
Automatic CO2 shielded robotic welders fabricate structural beam end connectors, creating continuous, pore-free penetration fillets that resist dynamic seismic fatigue.
Chemical Treatment
Full 9-stage immersion bath pre-treatment dissolves residual rolling mill scale and creates an iron phosphate crystal substrate for lifetime powder coat adhesion.
Electrostatic Finish
Automated powder spray booths apply lead-free thermoset polyester coatings, oven-cured at 200°C to prevent chipping, peeling, and surface oxidation under heavy pallet scrapes.
Frequently Asked Questions for Greater Boston Procurement
Clear, direct answers regarding ocean freight routing to Conley Terminal, ANSI MH16.1 compliance, Massachusetts building permits, and custom factory engineering.
Accelerate Your Boston Warehouse Storage ROI
Eliminate intermediary distributor surcharges. Partner directly with China's leading certified pallet racking manufacturer for precision engineering, seismic compliance, and factory-direct volume pricing delivered to your Greater Boston facility.
