Stacking Rack
Export-Grade Heavy Systems
Engineered Storage & Material Handling Equipment
Direct factory-engineered structural frames, high-density mobile racking, boltless shelving, and specialized cantilever configurations manufactured for harsh international industrial environments.
Industrial Shelving
4 Tier Heavy Duty Foldable Boltless Metal Storage Rack Adjustable Industrial Warehouse Storage Shelves Commercial Steel Shelving
Tool-Free Lock
Foldable Uprights
Cold Chain Automation

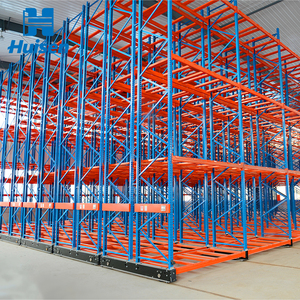

Industrial Automatic Cold Rolled Steel Mobile Pallet Racking Warehouse Shelves Mobile Rack System for Cold Room Storage
Sub-Zero -30°C
PLC Controlled
Chrome Storage
Modular Adjustable Warehouse Storage Unit 4 Tiers Chrome Steel Industrial Heavy Duty Wire Shelf Racking System
Anti-Bacterial
High Airflow
Galvanized Heavy
Commercial Duty
Adjustable Layer Light Duty Warehouse Storage Steel Rack Boltless Metal Shelving Unit for Garage Factory Workshop
Riveted Locking
Rapid Assembly
Specialty Cantilever
High-Bay Distribution
Heavy Duty High Bay Warehouse Racking System Industrial Pallet Storage Shelves for Large Distribution Warehouses
Up to 5,000kg/lvl
High Bay ASRS
Engineering White Paper
Hot-Rolled Structural Racking vs. Cold-Formed Systems
A structural evaluation of load dynamics, torsional rigidity, forklift impact resilience, and lifecycle operational cost for heavy industrial supply chains.
In high-throughput omnichannel distribution centers, cold-storage food hubs, and heavy industrial yards, selecting the optimal steel framing methodology constitutes one of the most critical Capex decisions. As a veteran China structural pallet rack supplier and global exporter since 2001, Guangzhou Heda Shelves Co., Ltd. analyzes the precise metallurgical and structural divergence between hot-rolled structural steel (C-Channels and I-Beams) and roll-formed sheet profiles.
Impact Abuse Tolerance
Hot-rolled structural C-channels feature web thicknesses ranging from 4.0mm to 8.0mm, yielding more than 300% greater impact energy absorption when struck by Class 2 & Class 4 counterbalanced forklifts compared to light 1.8mm roll-formed uprights.
Sub-Zero Ductility (-30°C)
Under cold-storage conditions, thin-gauge cold-formed steel suffers severe embrittlement. Structural Q355B/ASTM A36 sections maintain ductile fracture behavior, preserving torsional strength under heavy, fluctuating freezer pallet cycles.
Bolted Frame Integrity
Structural pallet racks utilize Grade 8.8 heavy-hex structural bolts to unite columns and load beams. This eliminates clip-dislodgement hazards and ensures moment-connection stability under lateral seismic ground accelerations.
| Technical Characteristic | Hot-Rolled Structural C-Channel (HEDA) | Standard Cold-Formed Roll Steel | Engineering Benefit for Warehouse Operations |
|---|---|---|---|
| Steel Section Profile | Solid C-Channel (ASTM A36 / Q235B / Q355B) | Open Roll-Formed Lip Section (1.5mm - 2.5mm) | Eliminates internal hidden corrosion; allows complete washdown |
| Forklift Impact Resistance | High (Resists 10kN+ perpendicular forces) | Low (Prone to local buckling & column puncture) | Cuts rack upright replacement & repair shutdowns by 85% |
| Beam-to-Column Connection | Heavy-Duty High-Tensile Structural Bolting | Teardrop / Keyhole friction spring clips | Prevents catastrophic beam lift-off under irregular pallet exits |
| Service Life in Harsh Logistics | 25 to 40+ Years (Continuous Industrial Duty) | 7 to 12 Years before localized failure | Delivers lowest overall Total Cost of Ownership (TCO) |
| Outdoor & Marine Suitability | Superior (Hot-Dip Galvanizing 85μm+) | Limited (Thin zinc pre-galvanized edges oxidize) | Zero structural decay under maritime tropical humidity |
Export Leadership Since 2001
Guangzhou HEDA Shelves: Enterprise Manufacturing Authority
Combining 25+ years of heavy manufacturing mastery with integrated global supply chain logistics, delivering tailor-made structural warehousing systems to over 120 nations.
30,000m²
Automated Factory Facility
30,000T/Mo
Monthly Steel Output Capacity
10,000+
Completed Global Installations
25+ Yrs
Engineering Heritage (Since 2001)
Verified International Standards
CE CPR certified (No. 2435-CPR-8605159) and ISO 9001:2015 quality certified (No. 18624Q00169R0M). Every batch undergoes Charpy V-notch impact testing and tensile yield analysis.
Strategic Port Proximity
Our industrial base in Guangzhou provides direct multimodal linkage to Nansha, Huangpu, and Shenzhen ports, enabling 2–5 day direct maritime transit to ASEAN and rapid containerized dispatch globally.
Bespoke Structural Engineering
In-house team of 30+ registered structural calculation engineers providing seismic analysis, SAP2000 frame simulation, building wind-load engineering, and tailored CAD drawings free of charge.
Our 10-Stage Precision Manufacturing Protocol
From certified mill steel coils to maritime-grade containerization, quality control gates are embedded in each production phase.
01
Raw Material Test
Spectrometric testing of Q235B & Q355B structural steel billets.
02
CNC Laser Cutting
Sub-millimeter automated slicing of structural channels and heavy baseplates.
03
Precision Punching
Continuous hydraulic stamping for accurate vertical pitch alignment.
04
Cold Roll Forming
Multi-stand heavy rolling lines creating uniform geometric load beams.
05
Robotic MIG Welding
Shielded gas automated seam welding ensuring deep joint penetration.
06
Shot Blasting
Removal of mill scale and surface rust to SA 2.5 cleanliness standards.
07
Phosphating Pre-Treat
9-stage chemical wash ensuring exceptional electrostatic coating adhesion.
08
Powder Polymerization
Thermoset polyester powder baked at 200°C for UV & impact resistance.
09
Load Verification
Static load deflection and structural shear destruction testing.
10
Export Containerizing
Anti-scratch wrapping, steel-strapped bundles, and balanced 40HQ packing.
CE Certified Racking
EN 1090 / EN 15512 Execution
ISO 9001:2015 System
Certified Management Reg. 18624Q00169R0M
RoHS & Green Coat
Non-Toxic Lead-Free Finish
Rapid Lead Times
15-20 Days Fast-Track Production
Strategic Sourcing 2026-2030
Global Procurement & Technological Evolution
Key technological and macroeconomic developments steering warehouse infrastructure investments across North America, Europe, the Middle East, and Southeast Asia.
ASRS & Shuttle-Optimized Structural Uprights
Modern mega-fulfillment centers are shifting from pure manual forklift handling to hybrid 4D pallet shuttle and autonomous guided vehicle (AGV) systems. Structural C-channel frames provide the millimetric deflection tolerances (less than 1/1000 under full load) essential for optical shuttle guidance and robotic retrieval cranes.
Duplex Anti-Corrosion Systems
High relative humidity and salt-laden atmospheres in coastal logistics corridors (such as Southeast Asia, the Gulf region, and the Mediterranean) accelerate steel rust. Future procurement demands duplex protection: hot-dip galvanizing per ISO 1461 combined with an electrostatic polyester powder topcoat, delivering 30+ year maintenance-free operation.
Dynamic Seismic Dissipation Footings
Regulatory updates across the Pacific Rim (PNS/NSCP in the Philippines, SNI in Indonesia, ASCE 7 in the USA) mandate advanced non-linear dynamic spectrum analysis. Structural racking procurement now dictates reinforced ductile base plates, anchor shear-cone redundancy, and seismic back-bracing systems to withstand magnitude 8.0+ tremors.
Direct Engineering Answers
Structural Pallet Rack Sourcing FAQ
In-depth responses to the most frequent technical, commercial, and operational questions asked by procurement directors, EPC contractors, and logistics engineers.
? How do structural pallet racks compare in price with roll-formed racking?
Structural pallet racking involves an initial material investment approximately 25% to 40% higher than light roll-formed steel due to the heavier mass of hot-rolled structural steel (Q355B/ASTM A36). However, in operations with high forklift traffic or cold environments, structural racks reduce damage-related repairs by up to 85%, cutting the Total Cost of Ownership (TCO) within 3 to 5 years.
? Can HEDA Shelves engineer racking systems for seismic zones?
Yes. Our engineering department uses finite element analysis (FEA) and dynamic response spectrum software compliant with ASCE 7-22, RMI ANSI MH16.1, and Eurocode 8. Based on your site-specific seismic parameters (Ss and S1 values, soil class), we engineer widened baseplates, reinforced anchor embedments, and heavy-duty frame bracings.
? What are the standard lead times for custom export orders?
Standard production cycles range from 15 to 25 days depending on project tonnage. Thanks to our 30,000 m² production complex and proximity to Guangzhou and Shenzhen ports, sea freight transit takes just 2–5 days to Vietnam, 3–5 days to the Philippines, 5–7 days to Singapore/Thailand, and 14–28 days to Middle Eastern and European ports.
? What data is required to generate a complimentary CAD warehouse layout?
To deliver an accurate CAD floor plan, 3D render, and structural load calculation, we need: building interior architectural drawings (clear height under truss, column grid, slab thickness, and door positions), pallet dimensions (Width × Depth × Height including cargo overhang), maximum pallet unit weight, and forklift model specifications (lift height and aisle turning radius).
? How do you prevent internal frame corrosion during international sea freight?
All export products undergo 9-stage pre-treatment (pickling, phosphating, and de-greasing) followed by thermosetting electrostatic powder coating or full hot-dip galvanization. Components are bundled with protective corrugated paper, edge guards, and vapor corrosion inhibitor (VCI) shrink wrap, then packed into moisture-sealed 40HQ shipping containers.
? Does HEDA provide on-site installation support in overseas markets?
Every consignment includes 3D assembly blueprints, marked piece numbers matching the packing list, and comprehensive step-by-step installation videos. For large logistics installations, our international engineering division provides remote video supervision or deploys certified installation directors on-site.
Ready to Optimize Your Warehouse Capacity & Safety?
Connect with Guangzhou HEDA Shelves engineering specialists today. Get a customized structural warehouse layout design, static load calculation report, and export quotation tailored to your operational specifications.
