Engineered Storage & Slotted Racking Systems for Demanding Warehouses
As a premier Chinese manufacturer and global exporter, our product range spans from high-density automated dynamic systems to high-load slotted steel frameworks, all manufactured with certified roll-formed steel, strict tolerance controls, and anti-corrosion surface treatments.

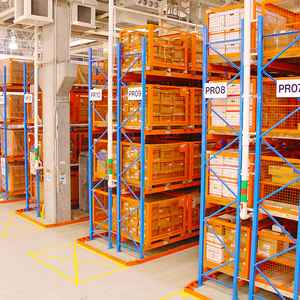

High Bay VNA
Ultra-narrow aisle (VNA) system engineered for high-density vertical cube exploitation, fitted with precision guide rails and rigid upright frame bracing.
FIFO Picking
High-velocity dynamic roller beds ensuring strict FIFO inventory rotation for fast-moving consumer goods, e-commerce fulfilment, and assembly lines.

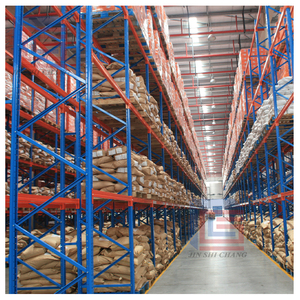

Universal 100% Access
Direct access to every single pallet position. Standard 50mm / 75mm slotted pitch allows instant beam re-profiling as SKU configurations evolve.
Dense Mobile
Floor-embedded tracked motorized base carriages converting static aisles into movable blocks, doubling warehouse storage capacity under identical footprints.

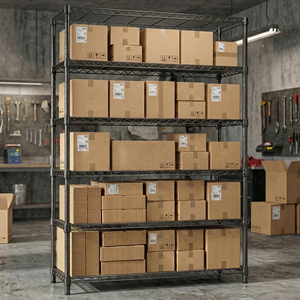

Wire Deck Multi-Tier
Reinforced slotted wire shelving allowing maximum light penetration and fire sprinkler drainage, compliant with NFPA safety codes for cleanrooms and parts storage.
Long-Span Cantilever
Unobstructed frontal opening specifically calculated for structural steel profiles, PVC conduit, timber, bar bundles, and oversized asymmetric cargo.
Dynamic Pallet Flow
Self-braking roller flow beds designed for high-density FIFO pallet streams in buffer zones, cold storage transit bays, and automated production outfeeds.
Double Deep High Density
Stores two pallets deep in a single-aisle format utilizing pantograph reach trucks, lowering aisle footprint by 30% while maintaining moderate SKU selectivity.
Why Choose Guangzhou Heda Shelves as Your Direct China Racking Partner
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has developed from a dedicated steel roll-forming facility into a tier-1 multinational storage equipment manufacturer. Operating across an expansive 30,000 m² modern manufacturing plant, we deliver rigorous quality assurance, bespoke engineering, and factory-direct export economics.
Structural Steel Grade Q235B & Precision Roll Forming
We source prime hot-rolled and cold-rolled steel coils exclusively from premier state mills like Baosteel and Shougang. Utilizing 24-station continuous roll-forming lines, our slotted angle profiles, upright columns, and box beams maintain dimensional tolerances within ±0.2mm, preventing racking twist and residual internal tension.
Multi-Stage Surface Pre-Treatment & Epoxy Coating
To resist severe tropical humidity, coastal maritime salt spray, and chemical exposure, every steel component undergoes a rigorous 9-stage pre-treatment: degreasing, ultrasonic water washing, acid pickling, rust removal, and zinc phosphating, followed by 60–80 micron electrostatic epoxy-polyester powder baking.
Verified International Compliance: CE & ISO 9001:2015
Guangzhou Heda Shelves operates under verified quality audit standards. We hold CE Certificate No. 2435-CPR-8605159, confirming structural execution in accordance with EN 1090-1 and EN 15512, alongside ISO 9001:2015 Certification No. 18624Q00169R0M and strict RoHS ecological compliance.
Technological Innovations Reshaping Industrial Slotted Angle & Heavy Racking
Modern warehouse storage is shifting rapidly from static structural shelving toward modular, data-integrated intralogistics ecosystems. Engineering enhancements in cold-formed steel sections, anti-seismic anchor calculations, and corrosion barrier chemistry are setting new performance baselines for B2B procurement worldwide.
Ultra-High-Strength Micro-Alloyed Cold-Formed Steel
Transitioning from traditional hot-rolled angles to micro-alloyed, high-yield cold-formed steel (HC340LA / S355MC) enables a 15–20% reduction in deadweight while maintaining identical safe working load (SWL) capacities, dramatically lowering shipping container freight overheads.
Multi-Axis CNC Laser Punching & Teardrop Geometry
Moving away from single-stroke mechanical dies toward high-speed multi-axis fiber laser punching allows variable-pitch slotted angles with micro-tolerances. Dual-keyed teardrop and butterfly slot geometries eliminate bolt loosening while ensuring rigid interlock deflection resistance.
Dynamic Finite Element Analysis (FEA) & Seismic Design
Modern global EPC contracts mandate compliance with Eurocode 3, FEM 10.2.02, and ASCE 7 seismic standards. Advanced non-linear FEA modeling simulates frame buckling, cyclic earthquake loading, and upright ground anchor shear to guarantee system stability in active seismic zones.
Hybrid AGV / AMR and RFID Sensor Connectivity
Slotted frameworks are evolving to host automated guided vehicle (AGV) reflective targets, LiDAR clearance brackets, and embedded RFID sensor arrays. Real-time pallet weight sensing and deflection detection prevent structural overloads before catastrophic collapses occur.
Strategic Sourcing Trends for Global Importers and EPC Contractors
Procuring slotted angle racking systems from China is moving beyond raw FOB price-per-kilogram negotiations toward total life-cycle cost (TCO) optimization, container cubing density, and verifiable carbon compliance.
| System Parameter | Traditional Slotted Angle (Bolted) | Modular Boltless Slotted Shelving | Heavy-Duty Beam Racking (VNA / Selective) |
|---|---|---|---|
| Raw Material Specification | Q195 / Q235 Cold Rolled Strip | Q235B High-Tensile Strip | Q235B / Q355B Structural Steel |
| Standard Upright Profile | L-shape 38x38, 40x40, 50x50 mm | C-profile or T-profile 55x47 mm | Omega (Ω) profile 80–120 mm wide |
| Pitch Adjustment Step | Fixed 25mm / 50mm Oval Punch | Modular 38mm / 50mm Butterfly Slot | 50mm / 75mm Teardrop / Hexagonal Slot |
| Safe Working Load (SWL) | 80 – 180 kg per shelf tier | 150 – 400 kg per shelf tier | 1,000 – 4,500 kg per beam level |
| Installation Speed Ratio | Baseline (1.0x - requires wrench tightening) | 3.5x Faster (Rubber mallet tap-lock) | 2.8x Faster (Drop-in beam pin lock) |
| Shipping Cube Efficiency (40HQ) | Extremely High (Nestable bundle packing) | High (Flat-pack component nesting) | Medium-High (Frame knocked-down CKD) |
| Primary Target Application | Workshops, Retail Backrooms, Archive Files | E-Commerce Picking, Light Industrial Parts | High-Bay Pallet Warehouses, 3PL Distribution |
Container Utilization & CKD Bundling Optimization
With maritime ocean freight volatility remaining a key supply chain variable, tier-1 buyers demand Complete Knocked-Down (CKD) packing engineering. Slotted angle sections are precision-nested into high-density steel-banded bundles with wooden crating spacers, achieving over 26 tons / 62 m³ container utilization in every 40HQ.
Direct Mill-to-Port Documentation & Traceability
Modern procurement governance requires transparent quality documentation. Buyers no longer accept uncertified trading intermediaries; enterprise B2B purchasing workflows require verified steel melt numbers, EN 10204 3.1 chemical inspection certificates, third-party weld testing reports, and ISO certificate authentication directly from factory source.
Green Powder Chemistry & Low-VOC Compliance
Global ESG benchmarks are accelerating the phasing out of heavy-metal pigments and solvent-borne coatings. Chinese export leaders utilize heavy-metal-free, TGIC-free thermosetting polyester powder coatings that release zero volatile organic compounds (VOCs), ensuring full compliance with European REACH and RoHS standards.
Frequently Asked Questions for Sourcing Slotted Angle & Warehouse Racking
Get definitive answers from our senior project engineering team regarding steel metallurgy, custom dimensional tolerances, shipping logistics, and structural safety calculations.
Our standard slotted angles are manufactured from high-grade Q235B cold-rolled steel. Common export profile dimensions are 38x38mm, 40x40mm, and 50x50mm, with steel wall thicknesses ranging from 1.5mm up to 3.0mm. Custom punch holes (oval, round, or multi-slot combinations) are available on automated continuous roll-punch lines with standard 50mm or 75mm spacing increments.
Structural calculations strictly adhere to international engineering standards FEM 10.2.02 and EN 15512. For pallet racking beams, the maximum permissible deflection limit under uniformly distributed load (UDL) is calculated at L/200, whereas slotted angle shelving tiers follow L/250 or L/300 depending on client architectural specifications. Every project layout includes signed structural load tables.
Yes. For clients located in seismically active regions such as the Philippines, Indonesia, Japan, New Zealand, or western South America, we incorporate regional spectral acceleration coefficients (Ss and S1) into our engineering FEA models. We reinforce upright cross-sections, enlarge baseplate dimensions, use heavy-duty mechanical or chemical chemical expansion anchors, and install diagonal portal ties.
For standard indoor distribution centers, our 9-stage pre-treated electrostatic powder coating provides superior durability. For ambient coastal locations, sub-zero cold storage facilities, or outdoor semi-covered yards, we recommend Hot-Dip Galvanization (HDG) conforming to ISO 1461 with zinc bath coating thickness of 65–85 microns, delivering 25+ years of maintenance-free anti-corrosion protection.
Standard production lead time for standard slotted angle orders (1 to 3x 40HQ containers) is 15 to 20 calendar days from CAD drawing approval and deposit receipt. Our Guangzhou facility is located within an hour of major Nansha, Huangpu, and Shenzhen ports. Direct sea transit times are 2–5 days to Vietnam, 3–6 days to the Philippines, 5–8 days to Singapore/Malaysia, 18–25 days to Europe, and 20–28 days to the US West Coast.
Yes. Over 65% of our monthly 30,000-ton capacity is dedicated to OEM and ODM production for international racking brands and regional equipment distributors. We offer customized roll-forming hole punches, bespoke RAL powder-coat color matching, embossed logo stamping on uprights, branded packing cartons, and neutral shipping documentation.
