ANSI / RMI Tested
Engineered Storage Infrastructure
Field-Proven High-Density Industrial Racking Systems
Explore our structural steel solutions designed to maximize volumetric efficiency, streamline throughput cycles, and withstand heavy cyclic loads across demanding warehouse environments.
ANSI / RMI Tested
Custom Subframe
Bulk Order Tubular Subframe Metal Frames Fabrication Crossmember Rack
VNA High-Bay
High-Bay Heavy-Duty Beam Cold-Rolled Very Narrow Aisle Racking
Logistics Hub Grade
Heavy Duty Warehouse Shelving Teardrop Racking for Distribution Centers
Automation Auxiliary

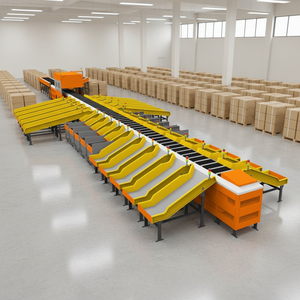

VPAI Logistic Equipment Dynamic Parcel Weighing Sorting Conveyor
Hot-Dip Galvanized
Modular Q235 Hot-Dip Galvanized Post Pallet Stacking Frame Rack
Rapid Assembly
Heda Factory Metal Boltless Stacking Industrial Warehouse Storage Racks
Retail Integration
Double-Sided Heavy Duty Freestanding Metal Supermarket Display Racks
The Engineering Paradigm of High Density Pallet Racking in Modern Logistics
As global real estate values escalate and metropolitan warehouse vacancy rates drop below historical thresholds, industrial logistics operators face a structural challenge: how to scale volumetric capacity without acquiring additional floor area. High density pallet racking systems have transitioned from passive steel shelving into sophisticated structural engineering frameworks capable of increasing storage density by 60% to 200% compared to conventional selective layouts.
Choosing an industrial-grade manufacturing factory is no longer a simple transactional comparison of steel tonnage quotes. High density systems—encompassing Drive-In, Push-Back, Pallet Flow, Very Narrow Aisle (VNA), and Automated Radio Shuttle Racking—subject structural members to complex load interactions. Upright columns and dynamic guide rails experience static gravity loads, continuous cyclic dynamic fatigue, seismic ground accelerations, forklift impact stresses, and micro-climate temperature transitions. Partnering with a vetted manufacturer equipped with in-house roll-forming, laser punching, certified robotic welding, and automated surface passivation determines the long-term structural safety of multi-tier facilities.
Information Gain Insight: Calculating the Total Cost of Ownership (TCO) in high density storage demands rigorous structural analysis. A system specified with sub-gauge steel or substandard powder coating can degrade rapidly under high humidity or sub-zero refrigeration conditions, resulting in micro-deflections that bind automated shuttles or cause structural upright fatigue failures.
Comparative Analysis: High-Density Structural Methodologies
System architects and project engineers must evaluate high-density methodologies against their operational throughput profiles, rotation strategies (FIFO vs. LIFO), and capital expenditure horizons.
| Storage System Type | Space Utilization | Selectivity Profile | Inventory Method | Ideal Application Sector |
|---|---|---|---|---|
| Radio Shuttle Racking | 85% – 90% Volumetric Density | Lane-Dependent High Speed | Configurable FIFO / LIFO | Cold Storage, Food & Beverage, High-Volume FMCG |
| Drive-In / Drive-Through | 70% – 80% Density | Low Direct Access | Strict LIFO (Drive-In) / FIFO | Uniform SKUs, Raw Materials, Seasonal Bulk |
| Gravity Pallet Flow | 80% – 85% Density | High per Dedicated Lane | Automated Gravity FIFO | Perishable Goods, Pharmaceutical Expiry Control |
| Push-Back (Cart / Roller) | 65% – 75% Density | Medium (2–6 Pallets Deep) | Mechanical Gravity LIFO | Medium Rotation Buffers, Staging Facilities |
| Very Narrow Aisle (VNA) | 60% – 70% Density | 100% Immediate Direct Access | Pure FIFO / LIFO Flexible | E-commerce Fulfilment, High-SKU Distribution |
Industry Audit: Top 10 High Density Pallet Racking Factories
When engineering procurement directors compile tender matrices for regional distribution centers, evaluating manufacturing credentials is paramount. Below is a professional directory evaluation of the top manufacturing powerhouses driving global high-density supply chains.
1. Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, HEDA Shelves operates a 30,000 m² advanced fabrication complex boasting a monthly structural steel conversion output exceeding 30,000 tons. Holding CE (No. 2435-CPR-8605159), ISO 9001:2015, and RoHS compliance, HEDA specializes in heavy-duty radio shuttle, drive-in, structural mezzanines, and tear-drop configurations, offering customized full-lifecycle engineering support across ASEAN, Europe, and the Americas.
2. SSI SCHAEFER Group
A German global enterprise renowned for fully automated turnkey intralogistics, high-bay automated rack-clad buildings, and shuttle technologies. Ideal for multi-million-dollar mega-automation investments demanding deep software and mechanical integration.
3. Mecalux, S.A.
Headquartered in Spain with robust production footprints across Europe and North America, Mecalux provides extensive Automated Storage and Retrieval Systems (ASRS) and dynamic high-density push-back and pallet flow racking backed by their proprietary WMS software suite.
4. Nedcon B.V.
Based in the Netherlands, Nedcon is widely recognized as a premier European manufacturer for automated warehouse racking and complex industrial steel mezzanine frameworks, excelling in high-precision structural tolerance projects.
5. Dexion Storage Solutions
A heritage brand originating in the United Kingdom, Dexion operates extensive fabrication infrastructure serving EMEA and APAC regions with versatile heavy-duty adjustable pallet racking, mobile heavy shelving, and flow racking.
6. Stow Group
Headquartered in Belgium, Stow has established a massive global presence with dedicated automated sub-brands. They are celebrated for precision-engineered radio shuttle systems and robust rack configurations optimized for robotic automated interfaces.
7. Frazier Industrial Company
The premier structural steel pallet racking manufacturer in North America. Unlike cold-rolled manufacturers, Frazier specializes strictly in heavy hot-rolled structural steel channels, providing extreme abuse resistance for rugged logistics hubs.
8. Interlake Mecalux Inc.
Operating several high-capacity rolling plants across the United States and Mexico, Interlake delivers ubiquitous teardrop-compatible storage configurations for vast logistics corridors across the Western Hemisphere.
9. Daifuku Co., Ltd.
Headquartered in Japan, Daifuku is a premier material handling automation innovator globally. Their automated rack frameworks are engineered for millimeter-perfect tolerances in high-bay seismic installations worldwide.
10. Ridg-U-Rak, Inc.
A venerable United States manufacturer producing over 100 million pounds of cold-rolled and structural racking per year, renowned for proprietary hook-and-slot and column seismic base isolation designs.
Manufacturing Quality & Factory Engineering Verification: The HEDA Edge
For international supply chain managers, the primary operational risk in cross-border equipment sourcing lies in structural fidelity, weld integrity, and corrosion tolerance. Guangzhou Heda Shelves Co., Ltd. resolves these uncertainties through an uncompromising, in-house manufacturing process that governs raw steel transformation across 10 controlled stages:
Certified High-Tensile Steel
We source prime, mill-certified cold-rolled steel coils (Q235B and high-strength low-alloy structural grades). Every batch undergoes spectrometer chemical verification and tensile elongation stress tests before mechanical feeding.
Continuous Cold-Roll Forming
Our dedicated roll-forming production lines progressively shape upright columns without introducing thermal micro-fractures. In-line continuous computer-controlled punching ensures 50mm, 75mm, and teardrop hole alignments within ±0.5mm tolerances.
Phosphating & Powder Adhesion
Unlike budget workshops that skip immersion treatment, HEDA implements an automated pickling, acid rinsing, and phosphating sequence before applying non-toxic electrostatic epoxy-polyester powder. This protects structural components against 80%+ tropical ASEAN humidity and sub-zero condensation cycles.
Strategic Procurement Trends in High-Density Storage (2026–2030)
Logistics directors, facility planners, and real estate investment trusts (REITs) are altering their capital deployment strategies. The following macro-procurement shifts dictate the next generation of high-density warehouse racking tenders:
1. Convergence of Pallet Shuttle and ASRS Fleets
Stand-alone manual drive-in systems are increasingly retrofitted or bypassed for semi-automated 2D and 4D radio shuttle racking. Shuttles are natively integrated with automated vertical lifters, creating lights-out automated buffers that dramatically reduce operator lift-truck transit distances and fuel usage.
2. Seismic-Resilient and Micro-Climate Calculations
With massive supply chain expansions across seismically active zones in the Ring of Fire (Indonesia, Philippines, Taiwan, Western Americas), tenders demand site-specific finite element analysis (FEA). Base plates, anchor shear strengths, and diagonal bracing geometries must be engineered to prevent dynamic progressive collapse during seismic excitation.
3. Modular Hybrid Mezzanines
Modern omnichannel distribution hubs integrate heavy-duty rack-supported mezzanine platforms above high-density pallet channels. This hybrid topology utilizes clear height for case-picking and automated parcel sorters, balancing bulk pallet reserves with high-velocity SKU consolidation in a unified footprint.
Procurement Engineering FAQ: High Density Pallet Racking
How does HEDA ensure structural safety in tropical or coastal climates?
Every steel component undergoes pre-treatment pickling and chemical phosphating to remove micro-oxides before receiving electrostatic epoxy-polyester powder coating. For exterior, seaside, or cold-storage environments, we manufacture hot-dip galvanized components meeting EN ISO 1461 standards to completely eliminate internal oxidation risks.
Can layout configurations accommodate non-standard pallets?
Yes. Our in-house engineering studio provides complimentary customized 2D CAD architectural layouts and 3D structural modeling. We engineer beam clearances, pallet guide rails, and entry shoes to interface seamlessly with Euro pallets, US GMA pallets, Asian standard sizes, or non-standard custom steel crates.
What is the factory lead time and direct shipping timeline?
With our 30,000-ton monthly capacity, standard project orders are fabricated within 15–25 business days. Shipped directly from Guangzhou Port or Nansha, transit to major ASEAN ports (such as Manila, Singapore, Bangkok, Port Klang, and Cat Lai) ranges between 2 to 8 days, optimizing schedule certainty.
What documentation and quality certifications accompany orders?
Every shipment arrives with verified factory test certificates, raw material mill reports, certified structural loading specifications, and sequential installation schematics. We hold active CE Certification No. 2435-CPR-8605159 and ISO 9001:2015 Certification No. 18624Q00169R0M.
Transform Your Warehouse Volumetric Storage Density
Consult with our senior logistics design engineers today. Submit your facility drawings for a complimentary CAD layout, 3D visualization, and structural finite element analysis quote directly from the manufacturing source.
CE Certified No. 2435-CPR-8605159
ISO 9001:2015 No. 18624Q00169R0M
RoHS Compliant Environmental Standards
30,000 m² Direct Fabrication Facility
