Heavy-Duty Frame
Custom OEM Storage Rack Frame | Heavy Duty Steel Welded Fabrication for Warehouse Pallet Racking
Q235B / Q355B Steel
Custom Upright Pitch
High-Performance Hardware
Featured Industrial Racking & Warehouse Infrastructure
Engineered for intense load distribution, high turnover ratios, and heavy-duty seismic resistance. Explore standard and customizable modules ready for factory-direct dispatch.
Heavy-Duty Frame
Safety Decking
Heavy Duty Galvanized Steel Load Bearing Support Bar Drop-In Type Wire Mesh Decking Panel for Warehouse Pallet Rack Storage
Hot-Dip Galvanized
Fire Safe Openings
Facility Infrastructure

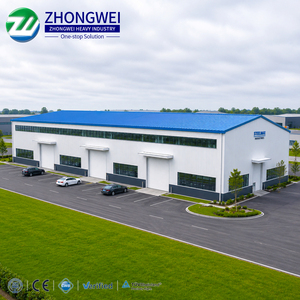

Steel Structure Building Large Span Warehouse For Industrial Storage And Logistics Warehouse Storage
Clear Span Architecture
Turnkey Logistics
Material Handling

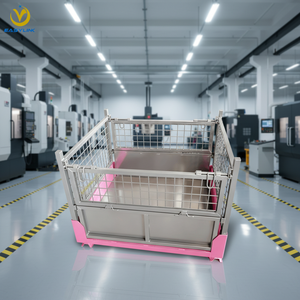

Foldable Steel Mesh Powder Coated Heavy Duty Stackable Storage Bin for Smart Warehouse & Racking
Collapsible Design
4-Way Forklift Entry
Dynamic Gravity Flow

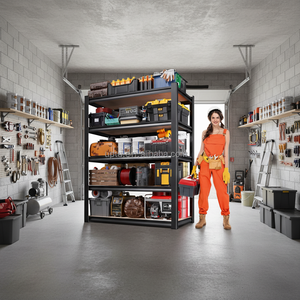

Live Pallet Flow Racking Gravity-Fed Heavy Duty Steel Wire Shelving Adjustable Quick Installation Warehouse Storage for
FIFO Pallet Flow
Speed Controller Brakes
2000kg Capacity

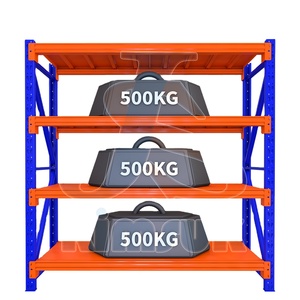

Ultra Heavy Duty Industrial Pallet Racking 2000kg Steel Shelving Rack with Dual Anti-Collision Beams 24/7 Free Technical Support
Reinforced Beams
Anti-Impact Guards
Space Expansion

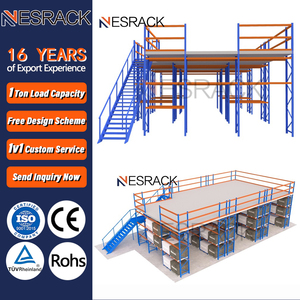

Customizable Nelson Heavy Duty Metal Racking Shelves Adjustable Layers Anti-Rust Finish Powder Coated CE/ISO9001 Mezzanine
Multi-Tier Integration
300-1000 kg/m²
Modular Stacking

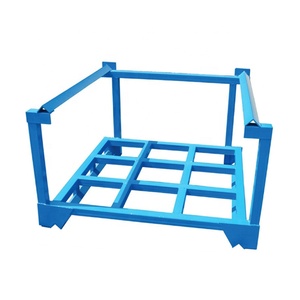

Heavy Duty Industrial Stacking Steel Shelf Storage Rack for Factory Warehouse Stacking Racks
Flexible Footprint
Post-Pallet System
Engineering Whitepaper
Understanding Gravity Feed (Pallet Flow) Storage Mechanics
Gravity feed pallet racking, universally designated in industrial intralogistics as Pallet Flow Racking or Dynamic Live Storage, operates on an unpowered, sloped roller track mechanism that harnesses earth's natural gravitational vector. Unlike static selective pallet systems requiring continuous forklift aisle navigation, gravity systems segregate loading and unloading operations into two dedicated, opposed aisles. Pallets are inducted at the elevated charging face (incline pitch ranging from 2.5% to 4%, typically 1.5° to 2.3°), navigate an engineered roller track bed under controlled acceleration, and arrive seamlessly at the discharge face for high-speed retrieval.
This strict physical segregation ensures uncompromising First-In, First-Out (FIFO) stock rotation, making it the premier architectural standard for temperature-controlled cold chains, high-velocity pharmaceutical fulfillment centers, fast-moving consumer goods (FMCG) distribution buffers, and food processing plants facing strict batch integrity and expiry control mandates.
Critical Mechanical Subsystems in Gravity Feed Engineering
To eliminate pallet runaway catastrophic structural failure, high-precision engineering must balance kinetic energy dissipation across extended lane depths (often spanning 2 to 25 pallets deep). Industrial gravity flow racks depend on three mission-critical mechanical subsystems:
Centrifugal Speed Controllers (Brake Rollers)
Integrated directly within the roller track bed at calculated intervals (typically every 1 pallet position), internal planetary gearboxes utilize centrifugal friction clutches. When a traversing pallet accelerates beyond safe velocity (exceeding 0.25 to 0.3 m/s), internal flyweights expand against brake drums, maintaining a constant, safe coasting velocity regardless of total pallet payload weight (from 300 kg up to 1,500 kg).
Automatic Pallet Separator Mechanisms
In deep-lane configurations, dynamic hydrostatic pressure accumulates at the discharge face. An engineered floor-level mechanical pallet separator isolates the front extraction pallet from the rear queued line by a physical 150-200mm gap. This completely relieves backpressure, allowing forklift operators to extract the pick pallet effortlessly without friction jamming or vehicle hydraulic damage.
Heavy-Duty End Stops & Impact Dampers
Constructed from reinforced structural steel angle profiles equipped with high-durometer polyurethane elastomer bumpers, end stops absorb the terminal docking kinetic shock of fully loaded pallets. Heavy-gauge anchor base plates distribute shear loads directly into the concrete floor slab, preserving upright column structural integrity against cumulative fatigue wear.
Supplier Evaluation Matrix
Top 10 Gravity Feed Pallet Racking Factories & Global Suppliers
A comparative architectural evaluation of global tier-1 racking manufacturers versus direct-from-source engineering fabrication powerhouses based on engineering depth, structural steel compliance, and cost-to-performance ratio.
Selecting an industrial gravity flow racking partner requires rigorous technical evaluation. While European and American integrators provide brand prestige, Asian direct-manufacturing tier-1 giants like Guangzhou HEDA Shelves Co., Ltd. have re-engineered the global supply chain by coupling precision OEM roll-forming and welding fabrication with rapid lead times and direct-from-mill pricing.
| Manufacturer / Supplier | Primary Manufacturing Hub | Core Flow Racking Strengths | Certification & Compliance | Sourcing Advantage |
|---|---|---|---|---|
| HEDA Shelves (Guangzhou HEDA Shelves Co., Ltd.) | Guangzhou, China (30,000 m² Plant) | Custom heavy-duty roller tracks, deep lane flow systems, integrated mezzanine & push-back racking | CE, ISO 9001:2015, RoHS | Direct factory pricing, custom OEM/ODM, 2-10 days sea transit to ASEAN, free 3D/CAD structural design |
| SSI Schaefer | Neunkirchen, Germany / Global | Fully integrated high-throughput automated logistics, live storage pick tunnels | EN 15512, ISO 9001, FEM 10.2.02 | Turnkey global systems integration for ultra-large automated logistics parks |
| Bito-Lagertechnik Bittmann GmbH | Meisenheim, Germany | Precision carton and pallet flow tracks, proprietary twin-roller assemblies | RAL-RG 614, ISO 9001, CE | High mechanical refinement in pharmaceutical cleanroom and cold-chain sectors |
| Interroll Group | Sant'Antonino, Switzerland | Proprietary magnetic speed controllers, modular dynamic roller beds | CE, ISO 9001, UL Listed | Industry-leading roller and drive component sub-assembly supplier to worldwide OEMs |
| Mecalux, S.A. | Barcelona, Spain / USA / Poland | Extensive pallet flow and automated AS/RS warehousing integration | ISO 9001, ISO 14001, RMI Certified | Robust European and American warehouse distribution logistics footprint |
| Stow Group (Averys) | Spiere-Helkijn, Belgium | Standardized structural rack frames, high-bay dynamic live storage | EN 15512, ISO 9001 | High structural strength profiles suited for extreme pallet weights |
| Jungheinrich AG | Hamburg, Germany | Integrated warehouse equipment, forklift-to-rack ergonomic flow interfaces | ISO 9001, FEM Compliant | Holistic ecosystem pairing MHE vehicles with storage racking infrastructure |
| Dexion (Gonvarri Material Handling) | Laubach, Germany / Romania | Custom pallet flow systems with advanced brake roller intervals | EN 15512, ISO 9001, ISO 14001 | Proven structural performance in challenging climate and distribution nodes |
| Frazier Industrial Company | Long Valley, NJ, USA | Structural steel channel racking, high impact resistance flow lanes | RMI Certified, AISC | Exceptional durability in rugged heavy industrial forklift environments |
| Nedcon (voestalpine Group) | Doetinchem, Netherlands | Engineered micro-tolerance modular live storage for system integrators | EN 15512, ISO 9001, CE | Specialized high-density dynamic storage for complex intralogistics systems |
Enterprise Manufacturing Authority
Why Engineering Direct-Sourcing from HEDA Shelves Transforms ROI
Over 25 years of specialized structural fabrication, world-class steel processing, and verifiable certifications deliver heavy-duty performance at direct factory pricing.
Precision Cold Roll-Forming & Surface Metallurgy
Founded in 2001, Guangzhou HEDA Shelves Co., Ltd. has grown into an international engineering powerhouse with over 300 experienced technical craftsmen, structural design engineers, and automated manufacturing specialists. Sourcing directly from HEDA provides unmatched advantages over standard trading companies and high-overhead global integrators:
Certified Steel Chemistry & High-Yield Raw Materials
Every upright, diagonal brace, and load beam is rolled from certified Q235B or high-tensile Q355B cold-rolled carbon steel coils, guaranteeing load deflection ratings well within standard L/200 thresholds.
Anti-Corrosive Pickling, Phosphating & Electrostatic Powder Coating
To resist 85%+ relative humidity and harsh coastal climates in Southeast Asia, Latin America, and the Middle East, our 10-step finishing line applies an automatic pickling and phosphating pre-treatment followed by thermoset epoxy-polyester powder coating (60-90 μm thickness) or hot-dip galvanizing for cold storage longevity.
Rigorous Compliance: CE & ISO 9001:2015 Certified
Tender with total confidence. HEDA Shelves holds official CE Certification (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management Accreditation (No. 18624Q00169R0M), ensuring full compliance with international safety and seismic codes.
Complimentary Engineering: CAD Floor Plans & 3D Dynamic Renderings
Prior to production, our in-house engineering team calculates dead, live, wind, and seismic loadings to deliver comprehensive AutoCAD architectural layouts and 3D stress-analysis models at zero upfront charge.
Strategic Horizon
Future Product Development & Procurement Trends (2025–2030)
Where intralogistics architecture meets material science. The five pivotal technological shifts dictating next-generation gravity feed pallet storage investments.
Hybrid Gravity-Shuttle Convergent Systems
The physical boundary between gravity live storage and semi-automated radio shuttle carts is blurring. Future high-density facilities increasingly employ gravity flow lanes for automated buffering right behind Autonomous Mobile Robots (AMRs) or Automated Guided Forklifts (AGFs). This eliminates continuous electrical track powering while providing instantaneous, zero-latency pallet staging.
Magnetic Contactless Eddy-Current Speed Braking
Traditional mechanical centrifugal brake rollers experience continuous internal pad wear and require maintenance cycles in abrasive cold or chemical environments. Next-generation gravity flow lanes are shifting toward sealed, permanent neodymium magnetic eddy-current controllers. These deliver completely contactless, non-wearing, maintenance-free deceleration unaffected by freezing frost, moisture, or chemical vapors.
Universal Composite Multi-Runner Pallet Tracking
With global supply chains transitioning from standard wooden Euro (1200x800) and GMA (48x40") pallets to plastic composite, steel skids, and slip-sheets with irregular underside runners, roller bed designs now incorporate triple-track staggered polyurethane wheel beds and universal continuous steel roller beds capable of moving defective or flexible pallet bottoms without snagging.
Predictive IoT IoT-Enabled Roller Health Monitoring
Modern mega-distribution hubs now demand predictive health sensing. Wireless vibration, bearing temperature, and cycle-count sensors embedded within end-stop buffers and critical brake rollers transmit telemetry directly to Cloud Warehouse Management Systems (WMS), alerting facilities to roller bearing fatigue before a lane blockage disrupts shipping schedules.
Near-Zero Carbon Steel & Eco-Finishes
Green building mandates (LEED Gold, BREEAM) are imposing carbon tracking on warehouse hardware. Enterprise buyers prioritize mills utilizing electric arc furnace (EAF) low-carbon steel coils coupled with heavy-metal-free, zero-VOC powder coatings that deliver extreme salt-spray resistance (exceeding 500 hours under ASTM B117) with minimal environmental footprints.
Engineering Knowledge Base
Frequently Asked Procurement & Engineering Questions
In-depth technical answers addressing pallet tolerances, slope angles, cold store performance, seismic resistance, and international shipping.
EngineeringWhat is the ideal slope gradient for gravity feed pallet racking systems?
The standard engineering slope gradient ranges between 2.5% and 4.0% (corresponding to approximately 1.5° to 2.3° of incline, or a drop of roughly 35 mm to 40 mm per linear meter). The precise angle is dictated by pallet bottom construction (standard wooden pallet with continuous perimeter base vs. plastic skid), total weight variation across SKUs (e.g., 400 kg empty tote loads vs. 1,200 kg liquid drums), and ambient temperature. At HEDA Shelves, we conduct physical flow ramp tests using actual client pallet samples to determine the optimal gradient before line manufacturing begins.
Quality ControlCan poor-quality or damaged wooden pallets run in gravity flow lanes?
Pallet quality is the single most critical operational variable in gravity flow systems. Broken bottom runners, protruding nails, loose boards, or severe center deflection (exceeding 25 mm under load) can cause pallets to jam midway down an enclosed lane, creating severe safety and operational hazards. For facilities managing variable pallet qualities, HEDA Shelves engineers full-width, continuous cylindrical steel rollers rather than twin-wheel skate tracks, paired with secondary entry guide funnels and bottom safety runner skids to prevent straddling or track binding.
Cold ChainHow does sub-zero cold storage (-25°C to -30°C) affect gravity feed rollers?
Extreme cold directly increases lubricant viscosity within internal planetary gearboxes of centrifugal speed controllers, potentially stalling lightweight pallets. Additionally, frost condensation can reduce friction coefficient on roller surfaces. For frozen seafood, meat, and pharmaceutical cold storage facilities, HEDA Shelves supplies specialized low-temperature synthetic lubricants rated down to -35°C, knurled galvanized steel roller jackets for enhanced grip, and hot-dip galvanized upright frames to prevent condensation-induced rust.
Seismic SafetyHow are seismic load calculations incorporated into tall gravity racking structures?
In seismically active areas such as Indonesia, the Philippines, Japan, and the American Pacific West, dynamic horizontal accelerations can derail pallets or cause frame buckle. Our structural engineering team designs according to EN 15512 and RMI standards, incorporating reinforced upright column cross-sections, widened heavy-duty floor anchor base plates with dual M16/M20 chemical anchors, transverse vertical bracing towers, and extended safety end retainers to keep pallets securely locked within lanes during ground displacement.
ProcurementWhat information is required to receive an accurate CAD layout and price quotation?
To provide a free 3D rendering, AutoCAD layout, and exact structural quotation, our engineering team requires: (1) Warehouse building CAD drawings showing clear height under roof joists and building column grid lines; (2) Pallet specifications including width, depth, overall height, and minimum/maximum gross load; (3) Pallet bottom runner orientation (2-way or 4-way entry); (4) Daily pallet turnover/throughput rates; and (5) Operational ambient temperature conditions.
LogisticsWhat are the standard ocean freight transit times from HEDA's Guangzhou plant?
Strategically located in Guangzhou, China, adjacent to major deep-water ports (Nansha, Huangpu, Shenzhen), HEDA Shelves provides ultra-fast sea freight dispatch. Direct port-to-port sea transit times are typically: 2–5 days to Vietnam (Haiphong/Cat Lai), 3–5 days to the Philippines (Manila), 5–7 days to Singapore and Thailand (Laem Chabang), 6–8 days to Malaysia (Port Klang), 7–10 days to Indonesia (Jakarta), 14–18 days to Australia (Sydney/Melbourne), and 20–28 days to major European and US West Coast ports under FOB, CIF, or DDU terms.
Optimize Your Warehouse Density with HEDA Gravity Feed Racking
Eliminate wasted forklift travel lanes, achieve strict FIFO inventory compliance, and boost cubic storage capacity by up to 60%. Connect directly with our senior intralogistics structural engineers for a complimentary CAD floor plan, dynamic 3D rendering, and factory-direct price quotation.
