100% Selective
Racking and Shelving Suppliers Adjustable Warehouse Pallet Rack Industrial Shelving Systems
50/75mm Pitch
1,000–4,500kg / Level
ISO 9001:2015 & CE Certified Racking Manufacturer Since 2001
OEM/ODM Warehouse Pallet Storage Racks Factory & Suppliers
Structural engineering, custom steel fabrication, and direct logistics execution for industrial logistics distribution hubs, automated 3PL facilities, and cold chain architectures worldwide.
Precision Engineered Inventory Systems
Factory-Engineered Racking Systems Built to Rigorous Load Tolerances
Our industrial racking portfolio addresses diverse warehouse topologies, high cubic efficiency criteria, and heavy unit loads. Fabricated from certified Q235B and Q355B cold-rolled structural steel, every system complies with EN 15512, RMI (ANSI MH16.1), and FEM 10.2.02 international load bearing specifications.
Heavy Profiles
Multi Layer Vertical Space Saving Cantilever Rack Round Tube Square Tube Inventory Cantilever Racking
Open Frontage
Up to 3,000kg / Arm
Triple-Upright
Heavy Duty Pallet Rack with Triple-Upright Frame spray-Coated Steel Decks for Industrial Storage
Reinforced Frame
Point-Load Safe
North American Standard
Teardrop Upright Heavy Duty Warehouse Storage North American Standard Pallet Rack
Teardrop Pattern
RMI Interchangeable
VNA System
Reach Truck Aisle Steel Warehouse Building Narrow Racking High Capacity Galvanized Steel Frame System
1,600–1,900mm Aisle
Vertical Reach >15m
Multi-Tier Pick
Multi-tier Light Medium Heavy-Duty Warehouse Shelving; Steel Thickened Floor-Standing Storage Racks
E-Commerce Ready
Modular Catwalks
Vertical Multiplication
Heavy Duty Industrial Storage Warehouse Racks Pallet Racking Systems Attic Loft Mezzanine Platforms
300–1,000kg / m²
Interlocking Floors
Corrosion-Resistant

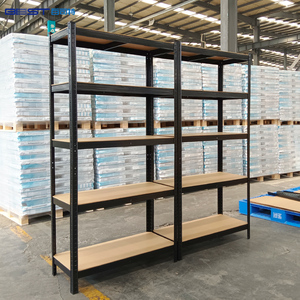

Powder-coated Stainless Steel Warehouse Shelves Detachable Upright Heavy Duty Shelving
Chemical & Washdown
Modular Assembly
Engineering Data Sheets
Storage Density vs. Selectivity: Warehouse Racking Structural Matrix
Selecting an industrial rack system requires balancing floor space footprint, operational forklift dynamics, stock keeping unit (SKU) picking speeds, and capital expenditure amortization over a 15–25 year asset life cycle.
| Racking Architecture | Cubic Volumetric Utilization | Pallet Selectivity | Inventory Method | Floor Load Profile | Primary Material Standard |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | FIFO (First-In, First-Out) | 2.5 – 4.5 Tons / Base Plate | Q235B / Cold-Formed Steel |
| Narrow Aisle (VNA) Racking | 60% – 70% | 100% Direct Access | FIFO (First-In, First-Out) | 4.0 – 8.0 Tons / Base Plate | High-Tensile Q355B Box Beams |
| Radio Shuttle Automation | 80% – 85% | Lane-Dependent (Batch) | Hybrid FIFO / LIFO | 6.0 – 12.0 Tons / Frame | Galvanized Rails + Q355B Columns |
| Drive-In / Drive-Through | 65% – 75% | 20% – 30% Per Lane | LIFO / FIFO | 5.0 – 9.0 Tons / Post | Impact-Resistant Rolled C-Channels |
| Cantilever Racking System | 50% – 60% | 100% Profile Open Front | Free Selective Loading | Up to 3,000kg / Arm Moment | H-Section Hot Rolled / I-Beams |
| Rack-Supported Mezzanine | 100% – 200% Floor Gain | Bin & Pallet Mixed | Multi-Level Manual & Cart | 300 – 1,000 kg / m² Floor Deck | Cold-Rolled Interlocking Steel Plates |
Strategic Market Horizon (2025–2030)
Future Procurement & Technological Trends in Warehouse Storage Racks
Supply chain resilience, seismic resilience criteria, and aggressive integration of Autonomous Mobile Robots (AMRs) are redefining what industrial procurement officers require from Tier-1 storage rack manufacturers.
1. Direct-to-Factory OEM/ODM Procurement Disintermediation
Procurement officers for multinational distribution networks are systematically eliminating domestic intermediary distributors in favor of engineering-direct manufacturer contracts. By interfacing straight with Chinese production mills, operators achieve a 22% to 35% capital expenditure reduction while securing direct access to FEA (Finite Element Analysis) structural calculation engineers, bespoke hole punch dies (Teardrop, 50mm, 75mm, Omega), and customized electrostatic powder coating formulations.
- Zero distributor margin markups
- Tailored roll-formed profiles matched to seismic codes
2. Automation-Ready Hybrid Dynamic Topology
Static warehouse storage is rapidly retrofitting into semi-automated and robotic execution hubs. Modern procurement contracts now mandate "Automation-Ready" tolerances—specifying beam deflection limits tighter than 1/200th of span (often L/300 or L/400) to host 4-Way Radio Shuttle carriers, AGVs, and automated crane forks. Racking uprights are reinforced with precision guide rails, sensor reflectors, and integrated cable trays to support autonomous throughput.
- Seamless migration from manual picking to AMR shuttle systems
- Laser-guided base plate alignments for high-bay stability
3. Advanced Anti-Corrosion for Extreme Climatology
Warehousing operations across high-humidity coastal zones (such as Southeast Asia, GCC, and Gulf of Mexico ports) as well as sub-zero pharmaceutical cold storage (-25°C to -40°C) demand advanced surface metallurgy. Standard single-coat paints are being replaced by hot-dip galvanization (HDG ASTM A123, 60–80µm zinc thickness) and dual-layer multi-stage pickling, phosphating, and thermo-hardened polyester powder coatings.
- Zero paint peeling under continuous condensation
- 1,000+ hour salt-spray testing validation
Guangdong Manufacturing Superiority
Factory-Direct Engineering Capabilities: Guangzhou Heda Shelves
Since 2001, Guangzhou Heda Shelves Co., Ltd. has stood as a premier Chinese manufacturer of heavy-duty warehouse storage infrastructure, serving supply chain leaders, distribution integrators, and port hubs across more than 120 countries.
30,000 m² Production Powerhouse
Our Guangzhou production base houses automated continuous roll-forming lines, automated laser cutting tables, and robotic beam welding units, delivering over 30,000 tons of structural steel storage racks every month.
- 300+ Skilled engineers and technicians
- Lead times compressed to 15–25 days
Complimentary 3D & CAD Layouts
Before fabrication begins, our licensed structural engineers calculate your warehouse clear heights, slab point-load capacities, forklift turning radii, and fire sprinkler clearance to deliver certified CAD schematics and 3D realistic renderings.
- FEA structural stress load simulations
- Tailored seismic bracing computations
CE & ISO 9001:2015 Traceability
Quality is not an afterthought. We hold verifiable international credentials including CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Certificate No. 18624Q00169R0M, and comprehensive RoHS chemical compliance for eco-sensitive installations.
- Raw steel mill batch test certificates
- Third-party destructive load test verification
Optimized Global Container Shipping
Our Guangzhou factory location guarantees swift access to Nansha, Huangpu, and Shenzhen container ports. Engineered bundling methods ensure maximum cubic fill of 40HQ containers without racking deformation during sea transit.
- FOB, CIF, and DDU/DDP terms available
- Barcoded components for zero-confusion assembly
2001
Founded Year
300+
Engineers & Staff
30,000t
Monthly Output
30,000m²
Factory Footprint
120+
Countries Supplied
10,000+
Projects Completed
Traceability & Tolerance Management
10-Stage Precision Manufacturing: From Raw Steel Coil to Shipping Container
Unlike assembly operations that outsource critical processes, HEDA Shelves executes every step within our certified Guangzhou manufacturing plant under strict ISO 9001:2015 quality surveillance.
01
Prime Steel Sourcing
Certified Baosteel and Shougang Q235B & Q355B coils verified for tensile yield.
02
Precision CNC Slitting
High-speed slitting lines trim coil sheets within ±0.2mm tolerance bands.
03
Automated Punching
Continuous CNC punch presses punch 50mm/75mm or teardrop patterns with zero distortion.
04
Cold-Bend Forming
Multi-station cold bending presses shape heavy gauge steel into rigid omega uprights.
05
Roll Profile Forming
Continuous rolling mills form step beams, box beams, and interlocking decking panels.
06
Surface Polishing
Automated shot-blasting and edge de-burring eliminate mill scale and weld spatter.
07
Robotic Beam Welding
Multi-axis robotic arms fuse beam end connectors with deep penetration continuous seams.
08
Pickling & Phosphating
An 8-stage immersion pre-treatment bath removes grease and etches rust-inhibiting phosphate crystals.
09
Powder Coating Line
Electrostatic epoxy-polyester application baked at 200°C for superior impact resilience.
10
Final QC & Bundling
Deflection verification, barcode labeling, and heavy-duty shrink strapped pallet bundling.
Specialized Sector Configurations
Application Engineering: Meeting Strict Regulatory Standards
From blast freezer storage to automotive component distribution and aggressive chemical zones, our racking frameworks conform to localized fire codes and hygienic handling mandates.
Sub-Zero Engineering
Cold Chain, Frozen Seafood & Beverage Distribution
Refrigerated warehouse space incurs high thermal power costs per cubic meter. Our semi-automated Radio Shuttle and Drive-In configurations compress aisle waste, enabling up to 85% volumetric fill at temperatures down to -30°C.
- Low-temperature lubricant ratings for high-density shuttle rollers
- Hot-dip galvanized base shoes preventing floor corrosion
- Gravity flow roller systems for strict FIFO expiry management
Unobstructed Profile Storage
Steel Tubes, Extrusions & Building Material Supply
Handling long, awkward, and heavy items like PVC pipes, structural steel tubes, and timber profiles causes forklift bottlenecks in conventional selective pallet racks. Our Heavy-Duty Cantilever systems offer uninterrupted horizontal storage lanes with load capacities reaching 3,000kg per arm level.
- Single and double-sided freestanding column orientations
- Pivot-arm designs that swing upward upon impact to avoid column warping
- Removable end-stops preventing cylindrical pipes from rolling
Procurement Clarity & Technical Support
Frequently Asked Questions: Sourcing Warehouse Racks Factory-Direct
Clear, transparent answers addressing structural calculations, international shipping terms, seismic engineering, and OEM customization capabilities.
What engineering parameters are required to generate an accurate CAD layout and load calculation?
To provide free CAD layouts and accurate structural pricing, our engineering department needs: (1) Warehouse architectural drawings specifying clear roof height, column grids, and egress doors; (2) Pallet dimensions (W × D × H) including product overhang and maximum gross weight; (3) Forklift specifications including mast lift height and turning radius; and (4) Floor slab thickness and concrete compressive strength (psi or MPa).
How does HEDA ensure rack integrity in seismic active regions like the Philippines and Indonesia?
We engineer structural frameworks according to local seismic accelerations (Ss and S1 values). For seismic zones, our engineers incorporate enlarged base plates, high-grade mechanical anchors (or chemical resin studs), reinforced heavy-duty horizontal/diagonal column bracing, and box-welded seismic beam connector brackets compliant with RMI and Eurocode 8 criteria.
What is the standard manufacturing lead time and port-to-port sea transit duration?
Standard production lead times range between 15 to 25 days depending on project tonnage and color specification. Operating our factory in Guangzhou provides access to Pearl River Delta ports (Nansha/Shenzhen). Typical ocean shipping transit to Southeast Asia takes 3–8 days, to Middle East ports 14–18 days, to European main ports 25–32 days, and to North American West Coast ports 14–20 days.
Can you manufacture custom OEM hole punch patterns and match existing rack systems?
Yes. We specialize in custom OEM/ODM production. If you operate an existing installation and need compatible beams or uprights, our tooling facility produces American standard Teardrop, 50mm metric European pitch, 75mm Australian pitch, and custom Omega profiles. Custom RAL color matching is standard across our automated powder lines.
How does HEDA Shelves protect structural steel against tropical humidity and coastal salt-mist?
We employ an 8-stage pre-treatment process: hot alkaline degreasing, twin water flushes, acid pickling to eradicate micro-scale rust, zinc phosphating to establish an inert crystalline bonding layer, and final deionized washing. This is followed by an electrostatic thermo-cured epoxy-polyester coating. For harsh outdoor or coastal yards, continuous hot-dip galvanizing is applied.
What installation guidance and post-delivery project support do you provide?
Every overseas container shipment arrives with barcoded structural bundles, CAD assembly elevation prints, bolt torque schedules, and step-by-step video installation manuals. For large distribution centers and multi-tier mezzanines, we dispatch bilingual on-site installation supervisors to coordinate and certify local assembly teams.
Ready to Maximize Your Cubic Storage Capacity? Request a Free CAD Proposal
Provide your warehouse floor dimensions, ceiling clearance heights, and pallet configurations. Our senior logistics engineers will return a complete layout design, structural load analysis, and factory-direct quotation within 24 hours.
