Engineered Structural Bulk Storage Solutions
Guangzhou HEDA Shelves Co., Ltd. provides architectural-grade racking platforms, pallet flow solutions, and multi-tier picking structures. Built strictly according to ISO 9001:2015, CE EN 15512, and FEM guidelines for demanding logistics operations.
Metal Rack Warehouse Racking Systems Pallet Racking Storage Rack
Warehouse Storage Rack Adjustable 90x70x2.0mm Upright for Bulk Logistics
Engineering Bulk Purchasing Heavy Duty Modern Extendable Double Face Book Storage Rack
Warehouse Storage Rack Modular Metal Racking With High Loading Capacity
High Capacity 10-Tier Storage Rack Anti-Tilt Sturdy Metal Frame Organizer
High Capacity Steel Storage Cabinet, Ventilated Metal Rack for Commercial Purchase

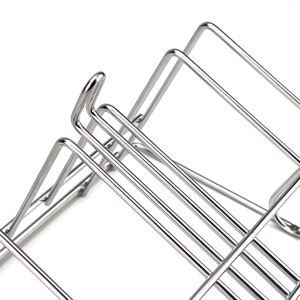

Bulk Custom Metal Wire Storage Rack Unit for Retail Brands and Distributors
Heavy Duty Warehouse Industrial Storage Metal Portable Steel Racks Pallet Stacking Frames
Engineering Paradigms in Modern Bulk Storage Rack Sourcing
Modern global logistics networks are transitioning from static, low-density racking toward dynamically reconfigurable high-density matrix configurations. Global distribution hubs require structures engineered to withstand rigorous daily handling, severe climate cycles, and complex international trade compliance codes.
As international supply chains expand across Southeast Asia, North America, and Europe, industrial buyers are prioritizing suppliers who provide rigorous engineering documentation, including finite element analysis (FEA), verified weld integrity, and automated cold-roll profiling. HEDA Shelves addresses these mission-critical demands by integrating end-to-end manufacturing under one roof—from automated sheet uncoiling and precision punch presses to continuous roll-forming lines and robotic electrostatic powder coating tunnels.
500h Salt Spray & Tropical Coating
Every structural column and boxed beam passes through an intensive 8-stage pickling, chemical degreasing, and phosphating pre-treatment system. Our epoxy-polyester electrostatic powder coating resists tropical humidity, chemical condensation, and saline air in coastal hub logistics.
Turnkey OEM / ODM Customization
We tailor vertical upright geometries (such as 90x70mm, 100x70mm, and 120x95mm), steel thicknesses from 1.5mm to 3.0mm, and custom slot pitches (50mm or 75mm). We support custom corporate branding, private labeling, and bespoke structural connection clips for global distributors.
Seismic Verification & FEM Compliance
Our in-house structural engineering group calculates live load distribution, floor anchor shear stresses, and seismic sway tolerances according to Eurocode EN 15512, RMI guidelines, and local building authorities across active seismic zones in the Philippines, Indonesia, and the Americas.
Comparative Technical Matrix: Selecting the Right Bulk Storage Topology
Logistics operators must align system mechanics with inventory rotation rates (FIFO vs. LIFO), floor plate clear height, and forklift handling tolerances. The following matrix illustrates key engineering parameters for selecting industrial bulk racking topologies:
| Storage Topology | Aisle Access Profile | Floor Space Utilization | Pallet Selectivity | Typical Applications |
|---|---|---|---|---|
| Selective Pallet Racking | Wide Aisle (3.0m - 3.5m) | 40% - 50% | 100% Direct Access | FMCG, 3PL Warehousing, Multi-SKU E-commerce |
| Drive-In / Drive-Through | Single/Dual Entry Lane | 65% - 75% | LIFO / FIFO by Lane | Cold Storage, Agricultural Harvest, Seasonal Bulk |
| Radio Shuttle Automation | Automated In-Lane Shuttle | 75% - 85% | LIFO / FIFO Automatic | Sub-Zero Freezers, Beverage Bottling, High-Volume DCs |
| Push-Back Cart Systems | Single Front Aisle | 60% - 70% | LIFO (2–6 Pallets Deep) | Medium Rotation Buffer, Staging Bays, Tooling Storage |
| Heavy Duty Cantilever | Open Front Column Face | Variable / High | 100% Side Access | Steel Pipes, Extrusions, Timber, Sheet Plate Bundles |
| Rack-Supported Mezzanines | Integrated Multi-Level Deck | 150% - 200% Floor Expansion | Manual Cart / Conveyor | B2C Parcel Fulfillment, Garment Sorting, Spare Parts Hubs |
Future Trajectories: Smart Racking & Sustainable Logistics Infrastructure
Strategic warehouse investments over the next decade will be defined by three distinct engineering shifts: autonomous mobile robot (AMR) compatibility, circular cold-formed structural steel lifecycle economics, and real-time load displacement monitoring.
1. Structural Integration with AS/RS & Shuttle Systems: Traditional static racking is rapidly being augmented with automated guidance pathways. Racking frames are no longer mere static steel skeletons; they now serve as high-tolerance guide rails for automated shuttles, autonomous reach trucks, and top-running cranes. Roll-forming tolerance limits must stay under ±0.5mm across 12-meter continuous upright profiles to eliminate automated carriage jamming.
2. Advanced Anti-Corrosion Nanotechnology: Given the surging demand for sub-zero food cold chains across tropical and coastal transit zones, traditional single-coat wet paints are obsolete. Racking suppliers are standardizing on specialized polyester-polyurethane hybrid powders and continuous hot-dip galvanizing (HDG) that offer over 500 to 1,000 hours of neutral salt spray resistance (ASTM B117), preventing oxidation in freezing, thaw-cycle condensation zones.
3. Low-Carbon Steel & High-Yield Cold-Forming: By deploying micro-alloyed, ultra-high-strength steel grades (such as Q355B and high-yield cold-rolled coils), modern racking frames reduce deadweight by 15% to 22% while increasing ultimate load capacities. This lowers ocean container freight costs per pallet location, curbs operational carbon footprints, and ensures maximum structural elasticity against seismic ground accelerations.
