High-Performance Storage & Heavy-Duty Racking Systems
Manufactured to FEM, RMI, and EN 15512 safety directives. Each system incorporates structural steel profiles, high-yield beam connections, and advanced corrosion-resistant surface coatings designed for extreme industrial operational demands.
Semiconductor Grade

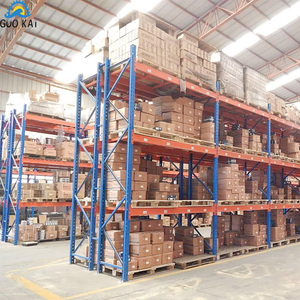

High Density VNA

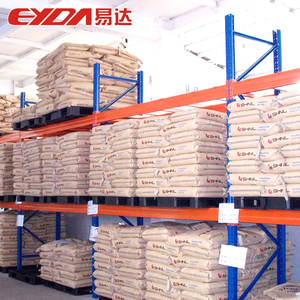

100% Selectivity

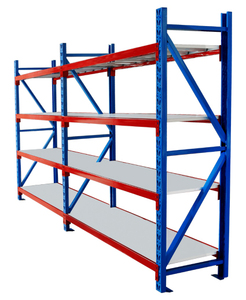

Modular Factory Unit
Multi-Application
E-Commerce Ready

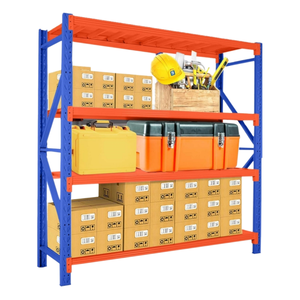

High Duty Detachable
End-to-End Precision Manufacturing & Global Compliance
As an authoritative Chinese manufacturing hub, Guangzhou Heda Shelves Co., Ltd. integrates raw steel metallurgy testing, proprietary automated cold roll-forming, robotic continuous welding, and multi-stage powder finishing. Fully certified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Registration No. 18624Q00169R0M.
Structural Steel Metallurgy
We source certified prime structural carbon steel coils (Q235B and Q355B / SS400 equivalents) characterized by stable yield points and uniform mechanical elongation properties, mitigating micro-fissure risks under prolonged dynamic payload stress.
- High-yield strength steel coil inspection
- Yield stress validation up to 355 MPa
- Tensile fracture testing per batch lot
Micro-Toleranced Roll Forming
Continuous automated CNC roll-forming lines execute multi-pass cross-sectional shaping with dimensional tolerances locked within ±0.5mm, guaranteeing precise interlocking connector tabs and upright profile stability across 15-meter heights.
- High-precision automated CNC tooling
- Continuous punching for pitch flexibility (50/75mm)
- Optimum cross-sectional section modulus
Seismic & Wind Resistance
For installations in high-seismic active tectonic belts (e.g., Philippines, Indonesia, Latin America), our structural engineering unit runs dynamic modal finite element simulations to establish enhanced base plate thickness, heavy tie bracing, and high-tensile chemical anchors.
- Structural dynamic response spectrum testing
- Customized floor anchoring and back-to-back ties
- Seismic safety factor allowances > 1.5
Standardized 10-Step Controlled Production Cycle
Full oversight from uncoiling to maritime container loading ensures flawless structural integrity.
Raw Material QC
Precision Cutting
Automated Punching
Cold Bending
Profile Roll Forming
Shot & Polish Prep
Robotic Welding
Pickle & Phosphate
Epoxy Powder Coat
Export Container Pack
Macro Procurement Dynamics & Modern Storage Trends (2025–2030)
Strategic analysis for warehouse operators, logistics executives, and procurement engineers navigating supply chain scaling, land cost inflation, and automation convergence.
Vertical Density & High-Cube
Global industrial real estate values have driven floor footprint premiums upward by 35% in major logistics corridors. Procurement strategies are rapidly departing from traditional low-profile 6-meter designs in favor of 12-to-24 meter vertical configurations.
Maximizing volumetric cubic meter efficiency allows supply chain directors to triple storage pallet capacity within identical boundary constraints, lowering amortized facility lease overhead per stored SKU.
ASRS & Automated Shuttle Ready
Static manual storage is steadily integrating with semi-automated and autonomous mobile systems. Contemporary OEM procurement demands racking uprights engineered with tight deflection criteria (under L/200 under dynamic shock loads).
Standardized guide rails for Radio Shuttles, pallet runners, and autonomous mobile robot (AMR) top-deck interfaces are increasingly specified in base OEM mechanical drawings to ensure future-proof automation compatibility.
Tropical C4/C5 Anti-Corrosion
Coastal logistics parks, cold storage distribution centers, and high-humidity equatorial zones face premature structural oxidation when utilizing standard paint finishes. Next-generation procurement places heavy priority on advanced pre-treatment regimes.
Multi-stage zinc-phosphate immersion coupled with 80-120 micron thermosetting epoxy powder polymer barriers ensures over 500 hours of neutral salt spray resilience, preventing interior steel embrittlement.
| Storage Racking Category | Optimal Footprint Efficiency | Direct Selectivity | Typical Payload Ratings | Handling Machinery Compatibility |
|---|---|---|---|---|
| Standard Selective Racking | Baseline (35% - 40% Floor Utilization) | 100% Direct Immediate Access | 1,000 kg – 4,500 kg / beam level | Standard Counterbalance, Reach Trucks |
| Very Narrow Aisle (VNA) | High (Up to 60% Space Reduction) | 100% Direct Immediate Access | 1,500 kg – 4,000 kg / beam level | Articulated Trucks, Wire/Rail-Guided VNA |
| Drive-In / Drive-Through | Very High (Up to 75% Floor Volumetric) | Low (LIFO / FIFO by Batch) | 1,000 kg – 2,000 kg / pallet space | Counterbalance & Narrow Reach Trucks |
| Semi-Automated Radio Shuttle | Ultra-High (Up to 85% Density) | Indexed (High Throughput FIFO/LIFO) | 500 kg – 2,500 kg / pallet carrier | Electric Radio Shuttles + Conventional Forklift |
| Heavy Duty Cantilever Systems | Specialized Linear Storage | 100% Frontal Linear Access | 1,000 kg – 3,000 kg / load arm | Side-loaders, Multi-directional Forklifts |
Frequently Asked Questions on OEM Procurement & Export
Essential guidance for global project directors, civil engineers, and supply chain managers.
What structural steel standards are utilized in custom upright and beam profiling?
Our upright columns and load-bearing box beams are manufactured from prime grade Q235B and high-yield Q355B hot-rolled micro-alloyed carbon steel coils (tested in conformance with EN 10025-2 and ASTM A36/A572 Grade 50 equivalents). Mill test certificates (MTC) documenting chemical analysis and tensile yield metrics are supplied with every export shipment.
How are structural deflection limits calculated for high-capacity pallet beams?
Under peak static design load, beam vertical elastic deflection is strictly engineered to not exceed L/200 (1/200th of clear span length) as established by FEM 10.2.02 and RMI standards. For automation-ready or robotic reach environments, tighter structural thresholds of L/250 to L/300 are engineered into section modulus calculations to safeguard sensor navigation.
Can structural engineering be adapted to seismic risk zones and weak concrete slabs?
Yes. By feeding local geotechnical data (soil category, floor slab thickness, compressive concrete strength f'c, and localized seismic coefficient ground acceleration), our structural engineers generate finite element dynamic load distribution models. We configure reinforced base plates, heavy-gauge diagonal bracing nodes, and high-shear mechanical anchors accordingly.
What surface treatment protocols are applied to resist tropical humidity and ocean transit?
Prior to powder coating, components undergo automated multi-chamber pre-treatment including degreasing, acid pickling to eliminate scale, and chemical zinc phosphating. Finished components receive an electrostatic thermosetting epoxy-polyester powder layer cured at 180°C–200°C (thickness 70–110µm). For outdoor and cold-storage operations, hot-dip galvanization is available.
How do you optimize container packing to reduce transoceanic shipping freight costs?
Uprights are nested with protective surface spacers, beams are palletized with protective edge guards, and smaller connecting accessories are crated in high-density steel-strapped containers. Our 3D container packing simulations routinely maximize volume occupancy above 92% inside standard 40HQ maritime containers, minimizing freight cost per pallet position.
What verification certifications are available for site municipal approvals and tenders?
HEDA products possess third-party verified CE certification (Certificate No. 2435-CPR-8605159) for structural execution, ISO 9001:2015 quality management accreditation (Registration No. 18624Q00169R0M), and environmental RoHS validation. Full mechanical calculation dossiers and stamped structural drawings are issued for commercial projects.
Consult with Senior Warehouse Racking Engineers
Submit your warehouse floor plans, ceiling clear heights, and pallet specifications. Our structural engineering team delivers free CAD floor layouts, static load calculation schematics, and factory-direct OEM quotations within 24 business hours.
