Engineering Optimization for Small Warehouses: Overcoming the Footprint Dilemma
Small-scale warehouse operators, distribution annexes, and urban micro-fulfillment centers operate under radically different economic and mechanical constraints compared to expansive regional distribution centers (DCs). When footprint area is capped between 500 and 3,000 square meters, horizontal floor wastage incurs an immediate financial penalty. Traditional off-the-shelf shelving systems frequently underperform in these environments, resulting in compromised aisle widths, poor volumetric cubic utilization, and severe bottlenecking of manual or automated material handling equipment.
As an authoritative OEM and ODM manufacturer, our structural design philosophy for small warehouse racking centers on Volumetric Cubic Ratio Maximization (VCRM). Rather than evaluating floor footprint exclusively, our structural engineers model three-dimensional space down to the millimeter. By integrating custom vertical upright heights, customized pitch spacing (50mm, 75mm, or 76.2mm teardrop configurations), and application-specific load beams, we convert underutilized ceiling clearance into secure, high-density inventory storage. Whether retrofitting an existing urban facility with low overhead beams and structural building columns or outfitting a high-density cold room, custom OEM engineering transforms spatial liabilities into operational throughput advantages.
Physical Integrity, Steel Metallurgy, and Load Distribution
A primary structural failure mode in small warehouses occurs when light-duty racks are unintentionally overloaded by rapid SKU turnover or unbalanced concentrated point loads. Our manufacturing facility utilizes high-tensile hot-rolled and cold-rolled structural steel, primarily certified Q235B and high-strength Q355B grades. Each beam section profile is mechanically rolled with integrated safety interlocking connectors and cold-formed multi-ribbed upright columns. Under FEM 10.2.02 and ANSI/RMI MH16.1 design standards, structural safety factors are strictly engineered so that the maximum deflection ratio across any span does not exceed L/200 under full dynamic rated capacity.
| Racking Architecture | Typical Payload / Tier | Volumetric Efficiency | Handling Equipment Compatibility | Ideal Small Warehouse Application |
|---|---|---|---|---|
| Selective Pallet Racking | 1,000 kg – 3,500 kg | 40% – 50% | Counterbalance, Reach Trucks, VNA | High SKU variety, 100% direct picking selectivity |
| Narrow Aisle (VNA) Pallet Racking | 800 kg – 2,500 kg | 65% – 75% | Articulated Forklifts, Turret Trucks | Ceiling heights > 6m with restricted floor space |

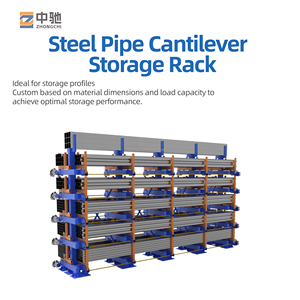

| Motorized / Cantilever System | 500 kg – 5,000 kg/arm | 55% – 70% | Side Loaders, Overhead Gantry Cranes | Long steel pipes, extrusions, timber, bar stocks |
| Multi-Tier Mezzanine Racking | 300 kg – 1,000 kg/m² | 85% – 95% | Hand Pallet Trucks, Vertical Reciprocating Conveyors | Doubling floor area for e-commerce small-part picking |
| Medium-Duty Boltless Shelving | 150 kg – 600 kg | 50% – 60% | Manual Cart Picking, AGVs | Automotive aftermarket, pharmaceutical, carton handling |
Emerging Procurement Trends in Small Warehouse Storage Infrastructure
The global supply chain landscape is witnessing a structural migration toward localized urban logistics, last-mile micro-fulfillment hubs, and hyper-dense manufacturing spare-part buffer stores. As industrial real estate lease rates escalate across key logistics corridors, procurement directors and facility planners are altering their purchasing behaviors away from generic commodity racks toward customized, value-engineered OEM solutions. Several key procurement dynamics define current capital investment decisions:
Pre-Engineered Mezzanine & Catwalk Integration
Rather than committing to civil construction or relocating to expansive facilities, procurement teams utilize rack-supported mezzanines that convert clear vertical space into dual-tier or triple-tier operating floors, immediately doubling usable square footage without foundation modifications.
AMR & AGV-Ready Structural Tolerances
Autonomous mobile robots (AMRs) and automated guided vehicles demand tighter manufacturing dimensional tolerances. Modern OEM racking demands laser-calibrated upright punching and deflection-resistant base plates to ensure automated machinery navigates aisles without spatial error.
Seismic & Tropical-Grade Engineering
Procurement specifications now frequently mandate regional resilience. In seismic zones (such as Southeast Asia and the Pacific Rim), structural footplates and upright profile gauges are thickened to absorb lateral seismic kinetic energy, paired with corrosion-resistant pickling pre-treatments.
Furthermore, procurement contracts increasingly stipulate Direct-From-Factory Sourcing models. By bypassing middle-tier brand markups and trading houses, end-users collaborate directly with OEM manufacturing plants. This direct access allows client-side engineering teams to review finite element analysis (FEA) models, CAD layout configurations, and 3D architectural renderings before metal coil slitting commences.
Future Development Trends: Smart, Modular, and Carbon-Efficient Storage
Looking toward 2030, warehouse racking is evolving from static passive structural steelwork into dynamic, semi-automated physical architectures. OEM manufacturers are focusing substantial research and development on several critical trajectories:
1. High-Precision Modular Boltless Toolless Reconfiguration
Modern fast-turnover warehouses cannot afford extended downtime during seasonal SKU re-profiling. Next-generation medium-duty and pallet beam racking integrates high-precision CNC locking pins, quick-release mechanical interlocks, and modular slotted connectors that allow single-operator beam adjustment without sacrificing dynamic load ratings or structural rigidity.
2. Eco-Friendly Closed-Loop Electrostatic Coating
With stringent global environmental mandates (RoHS compliance, volatile organic compound [VOC] reductions), our production lines have transitioned to fully automated zero-VOC electrostatic powder curing systems. Utilizing non-toxic polyester and epoxy resins, our curing ovens bake durable 60–80 micron protective coats that endure high-impact fork contact, acidic environments, and high-humidity ambient air without delaminating or emitting toxic off-gases.
3. Embedded Sensor Telemetry and Structural Health Monitoring
The emergence of Industrial Internet of Things (IIoT) sensors has paved the way for smart racking components. Strategic OEM installations now integrate acoustic emission sensors and miniature strain gauges within base-plate footings to detect micro-deflections, unrecorded forklift impacts, and structural fatigue long before physical failure can occur.
Enterprise Advantages: Why Partner with Guangzhou Heda Shelves Co., Ltd.
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into an internationally verified leader in commercial and industrial storage systems. Operating from our modern 30,000 square meter manufacturing campus staffed by over 300 technical engineers and production specialists, we maintain a robust monthly output capacity exceeding 30,000 metric tons of structural steel storage equipment.
Our competitive advantage lies in end-to-end manufacturing autonomy. Rather than subcontracting critical structural operations, every process—from high-precision steel coil slitting and automated roll forming to multi-stage chemical surface treatment—is managed under strict ISO 9001:2015 (Certificate No. 18624Q00169R0M) quality protocols and certified in full compliance with European CE Standard EN 1090 / Construction Products Regulation (Certificate No. 2435-CPR-8605159).
Our 10-Stage In-House Precision Manufacturing Pipeline
Certified Steel
Incoming certified Q235B/Q355B coils tested for tensile yield & metallurgical composition.
Precision Shearing
Automated slitting and high-speed CNC shearing to precise structural tolerances.
CNC Punching
Multi-station automated punch presses generate exact pitch (teardrop, butterfly, diamond).
Cold Roll Forming
Multi-roller continuous profiling ensures structural upright ribbing and zero cross-section stress.
Beam Forming
Precision step-beam and box-beam cold profiling with tight deflection control geometry.
Robotic Welding
Automated multi-axis robotic welders join beam connectors with continuous high-penetration beads.
Surface Polishing
Mechanical de-burring, shot blasting, and surface micro-leveling prior to chemical treatment.
Pickling & Phosphating
Multi-tank chemical washing, rust stripping, and zinc phosphating for maximum primer adhesion.
Electrostatic Coat
Automated powder spray booths with uniform 60-80μm polymer resin and high-temp curing.
QC & Ocean Packing
Dimensional laser verification, trial load pre-assembly, and container-optimized bundling.
Frequently Asked Questions: Small Warehouse Racking Procurement
Key technical, structural, and logistical considerations addressed by our Senior Structural Applications Engineering Team.
Aisle dimensions are dictated primarily by the turning radius and outer dimension envelope of your material handling equipment, not by the racking itself. Standard counterbalance forklifts generally require aisle clear widths of 3.5 to 4.0 meters. However, for small warehouses seeking maximum density, switching to Reach Trucks reduces aisle clearance to 2.7–3.0 meters. Utilizing Very Narrow Aisle (VNA) turret trucks or articulated forklifts (e.g., Bendi/Aisle-Master) can shrink aisles down to 1.6–1.9 meters, immediately expanding pallet storage capacity by 40% to 50% across the exact same building footprint.
Yes, custom engineering is our primary factory competency. When our design team receives your building CAD floor plan or structural survey drawings, we design around architectural columns, fire suppression riser pipes, overhead cranes, HVAC ducting, and building truss clearances. Upright frame heights, bay depths, and beam span lengths can be customized down to the millimeter to bridge around building columns or nest tightly into recessed building envelopes, ensuring no cubic meter is abandoned.
We exclusively employ certified high-strength structural carbon steels (Q235B and Q355B), engineered strictly to European FEM 10.2.02 and American ANSI/RMI MH16.1 specifications. To mitigate forklift collision damage—the single most common hazard in tight, small-warehouse environments—we engineer heavy-gauge wraparound column guards, floor-anchored bullnose aisle protectors, and reinforce the lowest 1,000mm of exposed corner uprights with internal structural steel stiffeners.
The selection hinges on your SKU profile and picking method. Selective Pallet Racking is optimal if your operations primarily handle palletized, uniform unit loads moved exclusively via forklift with high inventory turnover. If, conversely, your inventory involves thousands of fragmented, hand-picked e-commerce SKUs, small components, or light carton boxes, a Rack-Supported Mezzanine is superior. It incorporates heavy-duty lower pallet racking that directly supports an elevated second-tier steel floor, allowing simultaneous manual picking on the upper deck while bulk palletized storage continues below.
Corrosion protection starts with chemical pre-treatment. Before powder application, all steel profiles pass through a multi-stage automated immersion line featuring acid pickling (stripping all mill scale and oxidation) and chemical zinc phosphating (depositing a micro-crystalline protective adhesion barrier). We then electrostatically spray thermosetting polyester resin powder, cured in continuous baking ovens at 180°C to 200°C. For coastal, outdoor, or sub-zero cold room environments, we also provide hot-dip galvanized (HDG) finishes conforming to ISO 1461, ensuring decades of rust-free operation.
To allow our engineering department to prepare an exact CAD schematic and structural calculation free of charge, please provide: (1) Warehouse architectural drawings or clear internal length, width, and clear height measurements; (2) Positions of columns, overhead obstructions, and access doors; (3) Pallet specifications (width, depth, overall height including cargo, and maximum gross weight); (4) Model and lifting parameters of your forklift equipment; and (5) Ambient warehouse operating temperature and any local seismic calculation mandates.
