Custom OEM Medium Duty Pallet Racking Supplier & Exporter

Engineering Authority: Medium Duty Pallet Racking Systems in Modern Supply Chains

Medium duty pallet racking systems, commonly specified to accommodate uniform distributed loads ranging between 500 kg to 2,000 kg per beam level, represent the structural backbone of fast-moving e-commerce fulfillment hubs, 3PL buffer facilities, automotive secondary assembly depots, and pharmaceutical distribution networks. While heavy-duty structural channel solutions cater to massive coil, foundry, and structural steel loads, medium duty configurations maximize floor area utilization without the prohibitive structural dead loads and expensive foundation requirements often associated with over-engineered racking infrastructure.

Manufactured using cold-rolled high-strength structural grade steels such as Q235B and Q355B (equivalent to ASTM A36 and ASTM A572 Grade 50), high-integrity racking systems rely on computerized continuous roll-forming lines. The mechanical structural integrity of uprights is heavily dictated by complex geometry: multi-bend Omega (Ω) column profiles deliver optimal radius-to-thickness ratios, reducing torsional buckling and axial distortion under dynamic seismic and operational forklift impact conditions. Precision slotted beam connectors equipped with integrated anti-disconnect safety pins ensure instantaneous structural locking while retaining modular adjustment spans across 50mm or 75mm pitches.

Surface longevity is critical in coastal, humid, or refrigerated warehouse settings. Factory operations utilize extensive pickling, chemical degreasing, and zinc phosphating pre-treatments, followed by the automated application of thermosetting electrostatic polyester powder coatings (average 60–80 microns thickness). This process creates impervious barriers against surface oxidization, mechanical abrasion, chemical spillage, and ambient moisture fluctuations, maintaining load integrity across decades of intense duty cycles.

Future Procurement Trends in Industrial Storage Engineering

The global warehousing landscape is shifting from static, highly isolated racking frames to deeply integrated, dynamic, and multi-tier structural ecosystems. B2B procurement leaders and supply chain logistics directors are adapting to three dominant macroeconomic and technological shifts:

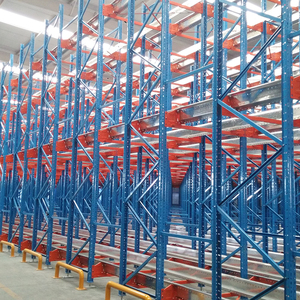

1. Convergence of Medium Duty Frameworks with Semi-Automation: While full AS/RS installations require exorbitant capital outlay and lengthy engineering cycles, modern operations favor hybrid scalability. Standardized medium-duty upright frameworks are now custom engineered to host automated 4-way radio shuttles, AGV-guided bottom transfer channels, and high-speed vertical reciprocating conveyors (VRCs). This allows warehouses to double volumetric throughput incrementally while managing CapEx.

2. Climate-Resilient & Seismic Structural Modeling: With industrial growth accelerating across seismically volatile and tropical markets such as Southeast Asia, the Pacific Rim, and the Americas, rack specifications are becoming stringently localized. Procurement documents increasingly mandate engineering calculation reports detailing baseplate anchoring stress under dynamic earthquake acceleration, along with customized cyclic salt-fog coating validations to withstand relentless 80%+ ambient humidity.

3. Supply Chain Traceability and Verified Metallurgical Integrity: Enterprise operators can no longer afford structural downtime or catastrophic frame failures. Modern procurement workflows demand complete mill test certificates (MTCs), verifiable steel origin data, documented continuous seam-welding certifications, and third-party verified ISO 9001:2015 and CE conformance (such as EN 15512, EN 15620, and RMI standards) prior to shipment staging.
