Precision Engineered Pallet Racking & High-Density Storage Solutions
Direct factory procurement of structural steel storage solutions engineered for logistics distribution centers, cold chain facilities, heavy manufacturing yards, and automated eCommerce fulfillment warehouses.

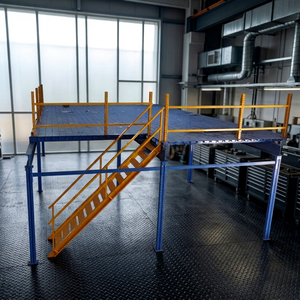

Industrial Mezzanine Racking System Lit Mezzanine Double Industrial Platforms Warehouse Mezzanine Floor System
Transforms vertical overhead cube space into multi-level operational platforms. Integrates heavy-duty upright columns with hot-rolled steel decking.
- Floor Capacity: 300 – 1,000 kg/m²
- Decking Types: Steel Plate, Grating, Bimodal
- Structure: Rack-Supported / Structural

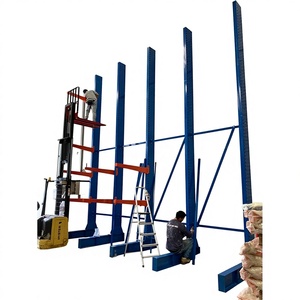

Cantilever Storage Rack Heavy Duty Cantilever Racking System Steel Cantilever Racking System
Clear-front accessibility engineered without front upright columns. Built specifically to eliminate obstruction when handling bar stock and lumber.
- Load Per Arm: 500 – 1,800 kg/Arm
- Arm Lengths: 600 – 1,800 mm
- Configuration: Single / Double Sided

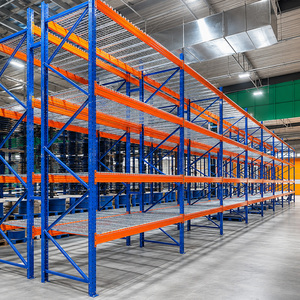

High Density Racks Industriales Warehouse Storage Rack Pallet Racking for Automotive Parts Distribution Center
Customized beam geometry accommodating heavy engine blocks, chassis components, body stampings, and compartmentalized tire stillages.
- Bay Load: Up to 4,500 kg/Level
- Safety Accessories: Upright Protectors, Mesh Decks
- Standard Pitch: 50 mm / 75 mm Adjustable
Heda Gravity Carton Flow Racking Selective Warehouse Roller Racking System
Integrated inclined aluminum roller tracks powered by gravity. Supports automated replenishment and rapid split-case SKU order picking.
- Incline Gradient: 3.0% – 5.5% Calibrated
- Lane Capacity: 50 – 150 kg/Roller Meter
- Picking Principle: Strict FIFO Compliance

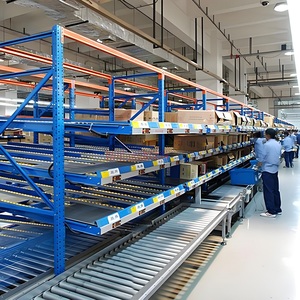

Factory Price Carton Flow Rack Adjustable Wheel Track Shelving for Warehouse Order Picking
Modular roller tracks with adjustable guide lanes. Drastically minimizes operator walking distances in high-velocity pharmaceutical and CPG packing lines.
- Track Material: High Impact Polyethylene
- Loading per Layer: 200 – 600 kg
- Adjustability: Tool-Free Lane Dividers

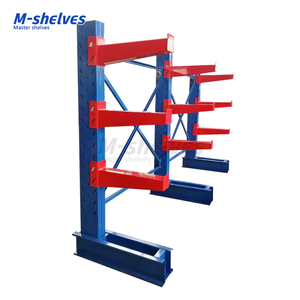

Heavy Duty Cantilever Racks Warehouse Garage Storage System for Lumber and Pipe
Engineered for building supply depots and lumber distribution yards. Structural columns withstand lateral impact loads and high cantilever moment forces.
- Column Section: H-Section / C-Profile
- Finish: Hot-Dip Galvanized / Epoxy
- Tower Heights: Up to 9,000 mm

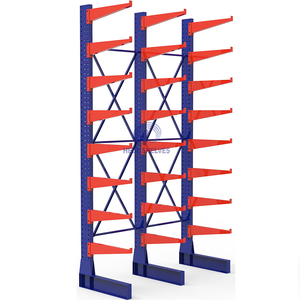

HEDA Heavy Duty Storage Warehouse Racks Cantilever Racking System for Large Item Storage Lumber Steel Beams Metal Pipes
Heavy profile columns bolted to structural foundation slabs. Accommodates overhead crane handling and oversized raw metal plate bundles with zero deflection.
- Max System Load: Up to 15,000 kg/Bay
- Steel Grade: Certified Q235B / Q355B
- Mounting: Heavy-Duty Chemical Anchors

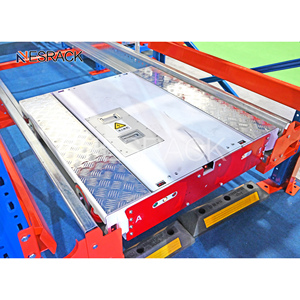

High Quality Customized Warehouse Storage Pallet Shuttle Rack Heavy Duty Racks Manufacturer Racking System Made In China
Ultra-dense storage utilizing intelligent autonomous shuttles operating along deep storage tunnels. Slashes forklift operating hours and transit risks.
- Shuttle Velocity: Up to 1.1 m/s (Loaded)
- Battery System: Lithium Iron Phosphate (LiFePO4)
- Cold Store Limit: Down to -28°C Verified
Why International Procurement Leaders Partner with HEDA Shelves
A direct look at our metallurgical precision, robotic welding lines, and rigorous engineering validations that back 10,000+ completed warehouse installations globally.
Certified Structural Steel Integrity
We source structural Q235B and high-yield Q355B hot-rolled strip steel from premier domestic mills. Every production heat is verified via chemical composition spectrography and tensile yield testing to comply with EN 15512, RMI MH16.1, and AS4084-2012 structural standards.
Tropicalized Surface Protection
Warehouse racking in coastal and tropical ASEAN zones suffers from severe oxidation. Our automated 10-stage pre-treatment (acid pickling, phosphating, pure-water passivation) precedes an electrostatic polyester powder coating cured at 200°C. Delivers 60–90µm thickness tested to resist 500+ hours of continuous salt spray.
Seismic Engineering & Finite Element Analysis
For installations situated in seismically active circum-Pacific regions (e.g., the Philippines, Indonesia, Japan, Western Americas), our certified structural engineers run custom ANSYS and STRAP finite element simulations. We engineer oversized baseplates, custom bracing nodes, and high-tensile anchor configurations that exceed UBC and Eurocode 8 seismic demands.
Comparative Performance Matrix: Pallet Racking Systems
A technical engineering comparison assisting logistics planners, industrial engineers, and CFOs in balancing CapEx against space utilization, selectivity, and throughput efficiency.
| Racking System Type | Floor Space Utilization | SKU Selectivity | Handling Speed / Throughput | Inventory Discipline | Relative CapEx / Position |
|---|---|---|---|---|---|
| Standard Selective Racking | 40% – 50% | 100% Direct Access | Standard Forklift Dependent | Universal (FIFO / LIFO) | Low (Baseline) |
| Very Narrow Aisle (VNA) | 65% – 75% | 100% Direct Access | High (Turret Truck / Wire Guided) | Universal (FIFO / LIFO) | Moderate – High |
| Drive-In / Drive-Through | 70% – 80% | 15% – 25% (Batch SKU) | Slow (Mast Enters Structure) | LIFO (Drive-In) / FIFO | Economical |
| Gravity Pallet Flow Rack | 75% – 85% | Per Lane Dedicated | Fast (Dedicated Load/Pick Faces) | Strict FIFO (Automatic) | High (Roller Beds) |
| Radio Shuttle Automation | 85% – 90% | Per Channel Flexible | Rapid (Shuttle Auto-Retrieval) | Flexible (Software Switched) | Moderate – Automated |
| Multi-Tier Mezzanine | 150% – 250% (Volumetric) | 100% Carton / Bin Level | High (Decentralized Zones) | Dynamic / Multi-Level | Medium (Per m² Gain) |
Emerging Trends Reshaping Global Pallet Racking Procurement (2025–2030)
Macroeconomic shifts, land constraints, cold chain expansion, and automated material handling integration are redefining how enterprises source, engineer, and deploy racking assets.
1. AMR & AGV Co-Engineering
Traditional racking design assumed manual counterbalanced or reach forklifts. Modern facilities demand recessed baseplate anchors, widened bottom tunnel clear spans, and laser-reflective target mounting across uprights to enable seamless navigation for Autonomous Mobile Robots.
2. Sub-Zero Cold Chain Density
Surging frozen pharmaceutical, seafood, and prepared meal supply chains make refrigerated cubic meters extremely costly. Importers are universally transitioning from standard selective racks to automated Radio Shuttle systems that eliminate refrigerated empty aisle space.
3. Factory-Direct Container Nesting
With ocean freight volatility, procurement teams prioritize suppliers with optimized nesting CAD plans. HEDA engineers bundle roll-formed beams and boxed upright frames to maximize 40HQ container payload efficiency up to 26–28 metric tons, lowering freight cost per pallet location.
4. Structural Demountability
Evolving leasehold industrial parks force tenants to avoid permanent civil alterations. Bolted structural steel mezzanines and bolt-together modular racking allow enterprises to dismantle, pack, relocate, and reconfigure their complete internal storage assets when leases expire.
Advanced Manufacturing Trends Driving Product Reliability
How cutting-edge roll forming, metallurgy, and digital twins are elevating warehouse safety, payload capacities, and operational lifespan.
Continuous CNC Roll-Forming Lines
Legacy press-brake bending introduces residual micro-stresses along sheet corners. Modern manufacturing employs continuous cold roll-forming lines with 22-station profiling rollers. This produces ultra-consistent upright column profiles with unbroken structural grain lines, boosting torsional resistance under dynamic forklift impacts.
Robotic Seam Welding & Interlock Connectors
Beams rely on high-precision robotic multi-axis welding cells to fuse beam profiles with 3-claw or 4-claw stamped connectors. This automated fusion eliminates human welder fatigue variances, guaranteeing 100% complete weld penetration that avoids shear failures under maximum beam deflection limits (L/200).
Smart IoT Telemetry & Structural Health
The latest industrial evolution bridges physical steel with cloud monitoring. Strain-gauge sensors mounted to critical uprights monitor load weights in real time, triggering instant automated alerts if dynamic overloading, forklift collision shock, or foundation settlement threatens structural stability.
Frequently Asked Questions: Sourcing Racking from China
Direct answers from our senior project engineering team covering structural standards, lead times, tropical anti-corrosion, seismic design, and shipping logistics.
HEDA Shelves fabricates components primarily from premium certified Q235B and Q355B cold-rolled structural steel coils (equivalent to ASTM A36 and S355JR). Our structural calculations, safety factors, and load deflections are certified to European Standard EN 15512 (CE 2435-CPR-8605159), ISO 9001:2015, FEM 10.2.02, and American RMI MH16.1 specifications.
Unlike budget suppliers who apply coating over lightly wiped oil, all our steel components undergo a thorough 10-step chemical immersion process including acid descaling, iron phosphating, and passivation. We apply premium lead-free thermosetting epoxy-polyester powder (60–90µm thick). For outdoor lumber yards, coastal docks, or freezing plants, we provide ISO 1461 hot-dip galvanization.
To deliver an accurate, zero-cost CAD layout and static load report, we require: (1) Warehouse architectural drawings indicating clear height under roof joists, door bays, and column grids; (2) Pallet specifications (width, depth, height including goods, and maximum payload); (3) Forklift model, minimum turning aisle clearance (AST), and max mast lift height; (4) Local seismic zone parameters.
Yes. We regularly design for high ground acceleration zones (PGA ≥ 0.4g). We engineer heavy-gauge uprights, cross-aisle spine bracing frames, dual seismic moment connection plates, oversized foundation baseplates (up to 20mm thick), and heavy-duty M16/M20 chemical resin wedge anchors rated against concrete breakout forces under dynamic seismic tremors.
Operating our 30,000m² manufacturing facility in Guangzhou places us minutes from Nansha and Huangpu ports. Typical direct sea freight transit is: 2–5 days to Vietnam; 3–5 days to Manila; 5–7 days to Singapore / Bangkok; 6–8 days to Port Klang; 7–10 days to Jakarta; 18–25 days to Australia / Middle East; 25–35 days to European and North American gateway ports. We offer FOB, CIF, CFR, and DDP terms.
Every export package comes with color-coded component tagging, step-by-step 3D assembly shop drawings, and high-resolution video installation walkthroughs. For large-scale distribution centers and complex multi-level mezzanine catwalk systems, HEDA dispatches certified on-site mechanical installation supervisors or provides live video engineering support.
Plan Your Warehouse Storage Layout with HEDA Engineers
Send us your building dimensions, pallet specs, and throughput requirements. We deliver a complimentary CAD layout, 3D structural render, and factory-direct quotation within 24 hours.
