Featured Industrial Pallet Racking Systems
Discover field-tested, certified heavy-duty storage configurations tailored for modern third-party logistics (3PL), cold chain logistics, high-density manufacturing hubs, and dynamic distribution centers.
Mracking Heavy Duty Industrial Palletized Racking 1000-4000kg
Engineered for intense warehouse operations requiring individual pallet selectivity. Utilizes cold-rolled Q235B upright frames with modular 75mm beam adjustment increments.
Heavy-Duty Steel Forklift Pallet Industrial Metal Racking Platform
Stackable, anti-rust structural metal pallet bases designed with rounded impact-deflecting corners. Perfectly suited for moisture-intensive and bulk chemical floor storage.

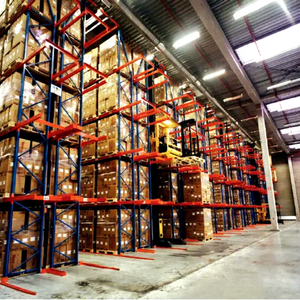

Drive in Pallet Rack Industrial Drive Pallet Racking Storage
Eliminate aisle space wastage with maximum continuous lane density. Ideal for homogenous cold-storage SKUs operating on standard Last-In, First-Out (LIFO) inventory cycles.

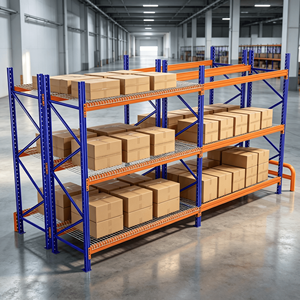

Custom Heavy Duty Industrial Steel Pallet Racking System
Versatile adjustable warehouse pallet racking protected with electrostatic powder coating. Features customized clear bay openings, heavy box beams, and integrated seismic cross-bracing.
Heavy Duty Steel Roller Dynamic FIFO Gravity Racking System
Gravity-driven pallet flow roller lanes tailored for fast-moving consumer goods (FMCG) and perishable pharmaceutical batches demanding strict First-In, First-Out throughput control.

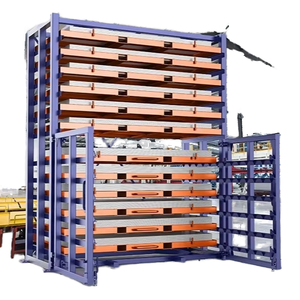

Heavy Duty Forklift 5 Layer Drive-In Steel Plate Storage Rack
Constructed with high-strength structural cantilevered guidance rails to handle intensive sheet metal packs, die sets, and excessive point-load pallets without structural deformation.
Heavy Duty Steel Powder Coated FIFO Pallet Flow Racking
Modular expandable storage infrastructure featuring integrated entry guide shoes, brake roller assemblies, and safety stop end-separators for secure, controlled pallet descents.
Heavy Duty Galvanized Warehouse Metal Pallet Shuttle Rack
Semi-automated radio shuttle racking engineered with hot-dip galvanized and zinc coatings to withstand harsh conditions, deep freeze environments (-30°C), and coastal humidity.
Global Compliance & Precision Manufacturing Capabilities
Guangzhou HEDA Shelves Co., Ltd. (founded 2001) pairs high-tonnage automated cold-roll production with European Union structural certification to ensure complete site safety and zero failure rates.
Verified CE Certification
Legally documented CE compliance (Certificate No. 2435-CPR-8605159) alongside ISO 9001:2015 accreditation, ensuring your steel assemblies comply strictly with EN 15512, EN 15620, and EN 15635 racking safety norms.
10-Stage Precision Processing
Total quality control over raw coiled steel slicing, automatic column CNC punching, cold profile continuous rolling, laser welding, and high-temp phosphating pre-treatment before electrostatic powder bake-in.
Complimentary Layout & FEA
Our veteran engineering team delivers free site CAD drawings, 3D architectural mockups, and Finite Element Analysis (FEA) load calculations to guarantee column-buckling safety before production starts.
Port-Proximate Ocean Shipping
Direct dispatch from Guangzhou port terminals cuts intermodal inland drayage expenses. Rapid sea shipping connects our factory to Southeast Asian, Middle Eastern, European, and American ports with optimized container stuffing.
EN 15512: The European Structural Standard Explained
Unlike uncertified racking that relies solely on simple bending calculations, CE-certified industrial pallet racking is rigorously evaluated under the limit state design principles governed by EN 15512. This requires full physical component destruction testing: testing upright section stub compression, frame torsional stiffness, and beam-end connector lock-in rotational performance.
By determining real stiffness indices and structural play, our structural engineers can calculate ultimate limit states (ULS) and serviceability limit states (SLS) with absolute safety factors (gamma factors of 1.4 for dead loads and 1.5 for variable pallet placements).
- High-Yield Certified Steel: Fabricated using mill-certified Q235B and Q355B cold-rolled steel coils with traceable mechanical chemical composition.
- Torsional Resistance: Uprights feature omega and multi-flange profiles with closed structural returns to mitigate torsional buckling during lateral forklift nudges.
- Seismic Adaptation: Optional engineered baseplates, seismic heavy ties, and subfloor anchor depths suited for Pacific Ring of Fire zones.
Comprehensive Heavy Duty Specifications
| Component | Standard Specification | Engineered Option |
|---|---|---|
| Upright Columns | 80/90/100/120mm Width (1.8–2.5mm) | 140/160mm Heavy Guage (3.0mm) |
| Box Load Beams | Twin-C Interlocking 80–160mm | Custom Open/Closed Tube Profiling |
| Corrosion Barrier | 60–80μm Epoxy Powder Coating | Hot-Dip Galvanizing (80–120μm) |
| Deflection Ratio | 1/200th of Span (EN Standard) | 1/300th Deflection for Auto-Cranes |
| Connector Pins | Spring-Lock Safety Bolts | Heavy-Duty Grade 8.8 Through-Bolts |
Future Procurement & Technological Trends in Pallet Racking
Supply chain disruptions, land cost surges, and labor overheads are changing how logistics directors procure storage equipment. Keep your facility ahead of the technological curve.
1. Convergence with AS/RS & Radio Shuttles
Static storage is increasingly giving way to semi-automated and automated platforms. Procurement trends indicate a sharp move toward high-density Radio Shuttle racking and AS/RS stacker crane systems that operate up to 30-meter roof heights, quadrupling storage capacity on existing warehouse land footprints.
2. Cold-Chain & Galvanized Substrates
With massive capital pouring into temperature-controlled food distribution and bio-pharmaceutical logistics, procurement teams are shifting away from plain paint coats. Hot-dip galvanized racking and cryogenic-tolerant structural steel variants are becoming the standard to prevent premature corrosion caused by sub-zero condensation.
3. IoT Structural Health Monitoring
Modern warehouse operations are shifting from reactive rack maintenance to predictive safety models. Pallet racking procurement will soon prioritize structural frames pre-drilled or equipped for impact sensors, optical rack-deflection tracking, and smart RFID-tagged load beams that notify safety managers of localized forklift collision damage in real time.
Frequently Asked Questions by Industrial Buyers
Key technical, compliance, and import questions to consider when evaluating international racking manufacturers.
