Featured Industrial Pallet Racks & Precision Storage Solutions
Engineered from premium Q235B/Q355B cold-rolled structural steel, rigorously tested under EN 15512 static load conditions, and coated with electrostatically applied anti-corrosive polymers.
Heavy Duty Drive-In & Drive-Through Racks
Maximum density pallet storage eliminating conventional service aisles. Ideal for uniform SKU batches, cold rooms, and mass reserve storage.
Modular Industrial 5-Layer Adjustable Rack
Multi-tier modular framework with boltless tear-drop and keyhole connectors. Rapid beam pitch adjustment with 50mm increment flexibility.

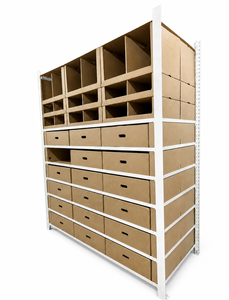

Slotted Angle Shelving with Component Drawers
High-precision American T-Type slotted angle profile equipped with modular small-parts drawers for dense sorting, MRO spares, and hardware staging.

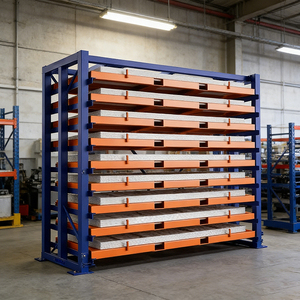

Vertical Sheet Metal Roll-Out Tray System
Specialized mechanical roll-out drawers for dense sheet steel, metal plates, and dies. Forklift and vacuum crane overhead hoist friendly design.

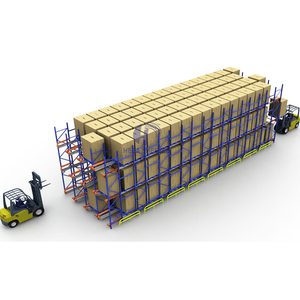

Automatic 4-Way Shuttle Pallet Racking
Next-generation automated storage and retrieval system (AS/RS). High-speed robotic carriers navigate cross-aisle rail profiles for 3D automated throughput.

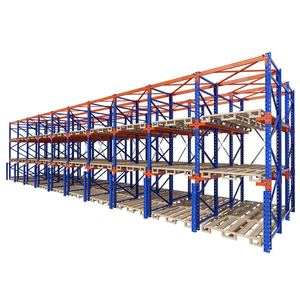

Cost-Effective Drive-In & Drive-Thru Storage
Structural cantilever beam arms with heavy-gauge guide rails allowing forklifts to enter storage lanes directly. Minimizes total warehouse footprint.

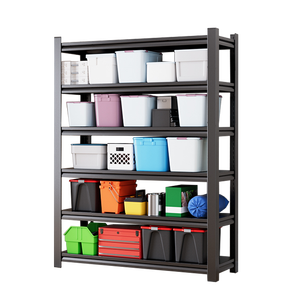

Adjustable Slotted Angle Industrial Steel Rack
Versatile slotted metal framing system engineered for light-to-medium industrial workshops, fulfillment packing benches, and retail backroom inventory.

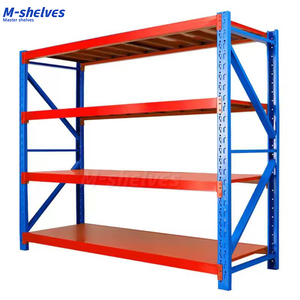

Customized Industrial Iron Storage Shelving
Heavy-gauge welded and bolted frame configurations engineered for maintenance garages, e-commerce picking lines, and archive depository facilities.
Structural Load Verification Under EN 15512 & CE Standards
Modern industrial pallet storage racking is no longer a simple static steel framework; it is a critical load-bearing structural system operating under dynamic forces, pallet handling eccentricities, and regional seismic stresses. Guangzhou Heda Shelves Co., Ltd. builds every upright frame, box beam, and bracing member in compliance with the stringent limit-state design requirements of EN 15512:2020 (European Steel Racking Specification) and RMI MH16.1 standards.
Under our CE Certificate No. 2435-CPR-8605159, all cold-formed structural sections utilize certified high-tensile Q235B and Q355B structural steel. These materials undergo finite element method (FEM) analysis to establish true beam-end connector moment-rotation characteristics, torsional stability under asymmetric loading, and deflection thresholds governed by the strict L/200 maximum uniform load criteria.
To resist severe environmental risks—ranging from sub-zero moisture condensation in cold-chain logistics to excessive tropical humidity in coastal export hubs—components undergo a rigorous 10-step metallurgical preparation, featuring full chemical pickling, zinc-iron phosphating, and 60-80 micron electrostatically baked polyester powder coating.
Mechanical Performance & Material Benchmark
| Structural Parameter | Standard Racking (Commercial) | HEDA Industrial CE Certified |
|---|---|---|
| Yield Strength (Fy) | 215 - 235 N/mm² | ≥ 355 N/mm² (High-Stress Uprights) |
| Beam Deflection Limit | L / 150 | ≤ L / 200 (Safe Working UDL) |
| Connector Safety Lock | Single friction-pin | Dual Spring-Steel 5kN Shear Pins |
| Coating Adhesion | Direct spray (1-stage) | Pickling + Phosphating + Electrostatic |
| Seismic Assessment | Static calculation only | Eurocode 8 & ASCE 7 3D Dynamic FEA |
2001
Established Year & Direct Manufacturing
30,000 m²
Guangzhou Heavy Production Plant
30,000 t
Monthly Steel Rolling Capacity
10,000+
Global Warehouse Projects Built
Why Tier-1 Importers and Logistics Integrators Choose Us
As a verified direct manufacturer with over two decades of engineering excellence, we eliminate trading intermediaries while ensuring structural safety, full traceability, and direct-to-port ocean transit.
In-House 10-Step Controlled Production
From raw uncoiled steel, cold bending, high-speed automated column punch stamping, robotic beam welding, to pickling-phosphating and baking lines—every component is forged in our 30,000 m² plant.
Rapid Sea Transit to Major Ports
Located in Guangzhou, our export shipping hub directly connects to global trade lanes. Direct maritime transit to ASEAN hubs ranges from 2–5 days (Vietnam), 3–5 days (Manila), to 5–7 days (Singapore/Thailand).
Free 3D Layout & Seismic FEA
Our 30+ dedicated project engineers model CAD floor schematics, clearance envelopes, and 3D simulations before production, verifying forklift turning radius (AST) and dynamic floor loading constraints.
Full Regulatory Certification
Guangzhou Heda Shelves holds verified CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Management Certification No. 18624Q00169R0M, and RoHS green coating compliance for global cross-border tenders.
Future Procurement Trends in Industrial Storage & Warehousing
As global warehousing encounters soaring commercial land values, labour deficits, and stringent carbon reduction targets, procurement directors are shifting toward next-generation racking criteria.
Convergence of Static Racks with 4-Way AS/RS Shuttles
Traditional selective storage is rapidly transitioning to semi-automated and fully autonomous radio shuttle systems. Procurement for 2025–2030 demands tight-tolerance upright cold-rolling (±0.5mm profile tolerance) to ensure robotic pallet crawlers traverse cross-aisle rail networks without sensor jamming or track derailment.
Recycled Scrap Metallics & Low-VOC Powder Finishes
Global multinational enterprise ESG audits are mandating embodied carbon footprints across supply chain assets. Future industrial racking procurement favours high-tensile lightweight profiles that use 15% less virgin iron ore while retaining identical UDL ratings, accompanied by lead-free, VOC-free thermoset powder polymers.
Circum-Pacific Ring Dynamic Load Engineering
With high investment in regional distribution hubs across seismic hotspots (e.g., the Philippines, Indonesia, and Japan), warehouse developers no longer accept generic load tables. Procurement requires site-specific ground acceleration (PGA) seismic simulations with ductile baseplates and high-strength back-to-back cross bracing.
Frequently Addressed Sourcing, Structural & Export Inquiries
Direct technical clarifications from HEDA’s structural engineers to assist procurement heads, site supervisors, and warehouse architects.
Q1: How does HEDA guarantee compliance with CE marking for load-bearing steel racking?
HEDA Shelves operates under CE Certificate No. 2435-CPR-8605159, certified under European harmonised standards (EN 15512 / EN 1090). This mandates verified factory production control (FPC), mill test certificates (MTC 3.1) verifying steel yield and elongation parameters, automated welding inspections, and documented destructive load tests on beam-connector assemblies.
Q2: What specific warehouse data is mandatory to formulate an accurate CAD layout and load matrix?
We require your architectural drawing showing clear height below trusses, fire sprinkler overhead buffers, column spacing, floor slab thickness and reinforcement capacity (Slab UDL/Point load capacity), pallet envelope dimensions (width x depth x height including cargo overhang), gross pallet mass, and forklift model (mast height, aisle width AST requirements).
Q3: How does the coating handle sub-zero cold room temperatures and condensation cycles?
In standard dry warehouses, our electrostatically applied polyester powder coating (60–80 microns) provides heavy protection. For deep freeze installations (-25°C to -30°C) or open maritime yards, we recommend either low-temperature impact-resistant powder formulations or complete Hot-Dip Galvanization (HDG compliant with ISO 1461), eliminating thermal embrittlement and under-film rust creep.
Q4: Can HEDA engineer rack solutions suited for active seismic earthquake fault zones?
Yes. By utilizing localized geotechnical acceleration data (Ss, S1 spectra parameters), our engineers specify heavy-duty anchor embedment depths, enlarged stiffener baseplates, cold-formed tubular diagonal braces, and enhanced safety locking mechanisms designed to absorb lateral dynamic wave forces without catastrophic progressive frame collapse.
Q5: What measures prevent beam unseating caused by forklift driver operating errors?
Every beam-to-upright connection incorporates our proprietary spring-steel safety locks engineered to withstand an upward dislodgement impact force exceeding 5,000 N (5 kN), well beyond standard safety thresholds. Heavy-gauge column leg wrap-around guards and upright aisle-end crash barriers further protect key upright frames.
Q6: What container loading optimizations are implemented to lower oceanic freight costs?
Because structural steel components can quickly hit maritime container weight limits before volume is filled, HEDA custom-bundles uprights and pallet beams with nested cross-sectional nesting. Numbered bundle packing allows maximum utilization of 40HQ payload limits, substantially reducing sea shipping costs per pallet position.
Transform Your Warehouse Density & Structural Safety
Send our senior engineering team your warehouse architectural floor plans, inventory pallet specifications, and throughput targets. We deliver complete 2D CAD layouts, 3D renderings, and structural engineering proposals within 24 hours.
