Specialized Industrial Racking & Flow Systems
Industrial racking systems custom manufactured from premium Q235B structural steel, rigorously surface-treated, and certified under European CE directives for worldwide operations.
Heavy Duty
Multi-Level Industrial Q235 Steel Pallet Racking
Cold-rolled omega-profile upright assemblies calculated to withstand intense dead-weight and continuous dynamic forklift cycles across high-bay hubs.
Explore Technical Specs
Direct Access
Heavy Duty Steel Warehouse Pallet Racking
Modular beam-locking configuration engineered for versatile SKU sorting, rapid retrieval times, and maximum floor-to-ceiling space consolidation.
Explore Technical Specs
FIFO Flow
Modular Steel Carton Flow Dynamic Racking
Aluminum roller track systems paired with split-lane dividers, purpose-built for fast-order e-commerce picks and ergonomic fulfillment stations.
Explore Technical Specs
Automation
High-Density Pallet Shuttle Racking System
Semi-automated deep-lane runners carrying payloads up to 3,000kg. Eliminates forklift rack penetration while delivering optimal sub-zero cold room density.
Explore Technical Specs
LIFO Density
Durable Powder-Coated Push-Back Pallet Rack
Telescopic nested cart tracks operated via single-aisle access points, providing high storage volume retention alongside selective multi-SKU flexibility.
Explore Technical Specs
Manual Picking
High-Quality Industrial Medium-Duty Shelving
Boltless, step-beam adjustable shelf architectures calibrated for manual item storage, maintenance workshops, and spare-part warehousing.
Explore Technical Specs
North American Standard

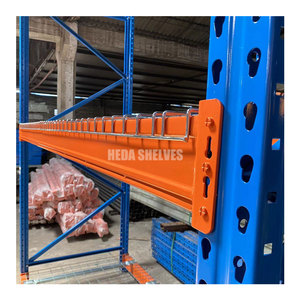

Universal Teardrop Pallet Rack System
Interchangeable slide-in connection profiles adhering strictly to RMI configurations, supporting effortless reconfiguration and retrofit scalability.
Explore Technical Specs
Modular Utility
Interlocking Heavy-Duty PVC Slat Wall System
Waterproof industrial-grade wall storage organizer offering modular tool holding, vertical decluttering, and high mechanical impact resistance.
Explore Technical Specs
Gravity Flow Pallet Racking: Mechanics, Physics & Design Principles
A rigorous examination of First-In, First-Out (FIFO) dynamic storage lanes, mechanical braking controllers, and dynamic load dissipation under intense warehouse throughput.
True FIFO Inventory Integrity
Gravity flow pallet racking operates on an inclined plane (typically 2.5% to 3.5% pitch). Dedicated load faces and retrieve faces isolate material handling traffic. Forklifts loading product at the rear never interact with retrieval teams picking from the front, totally eliminating SKU aging and product obsolescence.
Centrifugal Braking Rollers
To safely manage pallet velocity across deep-lane configurations (up to 20 pallets deep), internal centrifugal brake rollers automatically engage as rotation speed rises. Speed is mechanically limited to approximately 0.2 to 0.3 m/s, preventing terminal impact damage to downstream pallets and front upright assemblies.
Separating Stop Mechanisms
At the discharge end, specialized mechanical pallet separators isolate the lead pallet from line pressure applied by upstream accumulation. Relieved from backward forces, retrieval forklifts extract the lead pallet effortlessly without frictional dragging, mast binding, or roller frame distortion.
Future Sourcing & Technological Trajectories in Gravity Flow Systems
Logistics engineering is advancing beyond static mechanical storage. Warehouse developers must anticipate emerging procurement trends, lifecycle economics, and technological integrations over the 2026–2035 horizon.
| Evaluation Dimension | Conventional Gravity Racks | Next-Gen Engineered Flow Systems | Strategic Impact for Importers |
|---|---|---|---|
| Roller Track Kinematics | Standard galvanized drums, rigid pitch | Dual-bearing composite polymer drums with magnetic speed controllers | Reduces kinetic rolling resistance variance across ambient and cold-chain settings. |
| IoT Integration | Manual visual SKU inspection | Integrated optical sensors & weight telemetry along gravity lanes | Transmits real-time batch movement and auto-triggers WMS replenishments without RFID hand-scanners. |
| Metallurgical Standard | Unspecified commercial mild steel | Certified Q235B / Q355B with verified EN 15512 yield limits | Guarantees deflection tolerances under dynamic shock-loading and sustained dead loads. |
| Anti-Corrosion Architecture | Single-pass standard paint spray | Pre-treatment pickling & phosphating + electrostatic thermosetting resin | Resists severe tropical humidity (85%+ RH) and aggressive marine port environments without flaking. |
1. Total Cost of Ownership (TCO) vs Capital Outlay
While automated storage and retrieval systems (ASRS) carry heavy software, motor, and sensor maintenance costs, gravity flow racks leverage passive potential energy. Zero kilowatt-hour electrical consumption throughout the operational storage cycle provides unmatched 10-year ROI for high-turnover FMCG, pharmaceutical, and cold-chain cold stores.
2. Cold Storage Energy Density Maximization
Every cubic meter of conditioned airspace represents escalating thermal operating costs. Gravity flow pallet lanes eliminate redundant forklift access aisles, slashing building volume cooling requirements by up to 45% compared to standard selective layouts while safeguarding temperature-critical perishables via strict batch rotation.
3. Climate-Resilient Modular Metallurgy
Global warehouse sourcing focuses heavily on resilience against atmospheric moisture, thermal shock, and seismic shifts. Customizing structural upright gauges, heavy-duty floor anchor brackets, and thick-film galvanized base shoes prevents structural cracking across earthquake-prone regions and tropical ports.
Guangzhou HEDA Shelves: Global Production Powerhouse
Exporting verified warehouse storage systems worldwide since 2001. Operating a massive 30,000 m² advanced manufacturing facility engineered for international distributors, 3PL titans, and system integrators.
30,000 Tons Monthly Output
High-capacity roll-forming lines, automated punch presses, and continuous robotic welding arrays guarantee dependable project lead times, supporting fast sea freight dispatch from our Pearl River Delta manufacturing hub.
Complimentary 3D & CAD Engineering
Before steel coil profiling begins, our senior logistics engineering division delivers free comprehensive CAD floor plan layouts, volumetric 3D stress renders, and seismic beam deflection structural calculations customized to site constraints.
Fast Coastal Sea Freight Access
Direct positioning near Guangzhou and Nansha international ports facilitates 2-to-10 day maritime container dispatch across Southeast Asia, the Middle East, Africa, Europe, and the Americas on flexible FOB, CIF, or DDP terms.
Controlled Engineering Lifecycle: Raw Steel to Container Loading
Precision quality assurance at every manufacturing stage eliminates site assembly deviations and guarantees structural reliability under full design payloads.
Steel Assay & Slitting
Certified Q235B high-tensile hot-rolled steel strip validation, thickness micrometer gauging, and high-speed rotary slitting.
Continuous Roll-Forming
Multi-station cold rolling forming lines precision-profile seamless omega upright columns and interlocking beam structures.
Robotic Seam Welding
Automated gas metal arc welding (GMAW) binds structural connector claws to beam members with zero micro-void penetrations.
Pickling & Phosphating
9-stage chemical immersion cleanses mill scale, degreases surfaces, and coats metal with protective zinc-phosphate conversion films.
Thermoset Powder Coating
Electrostatic dry powder application cured at 200°C produces high scratch, corrosion, and tropical humidity-resistant finishes.
Frequently Asked Questions: Global Sourcing & System Deployment
Essential considerations for structural engineers, project procurement directors, and warehouse operations managers.
What pallet quality and tolerances are required for gravity flow lanes?
Gravity systems require structurally intact, undamaged pallets with solid bottom runners running parallel to roller travel. Wooden pallets conforming to GMA, EUR/EPAL, or heavy plastic injection designs perform reliably. Cracked boards, loose nails, or sagging stringers cause roller jams. Trial roller testing is highly recommended for non-standard loads.
How does the CE certificate (No. 2435-CPR-8605159) safeguard structural safety?
Our CE certification confirms full conformity with the European Construction Products Regulation (CPR) and standard EN 15512 (Steel static storage systems). It verifies that column upright sections, beam load deflections (1/200 limit), connection nodes, and weld integrity withstand sustained service loads alongside dynamic safety factors.
What site variables are necessary to generate an accurate layout design?
To produce a comprehensive CAD proposal, our engineering team requires: warehouse clear height beneath beams/sprinklers, slab thickness and concrete compressive capacity (f'c), pallet dimensions (Width x Depth x Height including cargo overhang), maximum and tare weights, and operating forklift specs (mast collapsed/extended height and turning radius).
How are gravity racks protected against marine transit and tropical rust?
All fabricated components undergo acid pickling and chemical phosphating prior to electrostatic polyester powder coating, preventing micro-corrosion under the paint skin. For cold stores, high-salinity ports, or open-air loading docks, continuous hot-dip galvanization (HDG) conforming to ISO 1461 can be specified across frames and roller tracks.
Can the slope and roller configuration handle variable load weights within one lane?
Significant pallet weight disparities (e.g., 300kg mixed with 1,200kg) along the same gravity lane demand specialized engineering. Our systems resolve this via intermediate self-regulating centrifugal brake rollers combined with customized spring-loaded impact rollers at entry zones, ensuring steady velocities regardless of cargo mass.
What installation support, container packing, and on-site oversight do you provide?
Structural components are custom bundled, tagged with alphanumeric lane designations, and containerized to maximize 40HQ cube utilization while preventing shipping transit scuffs. Shipments include comprehensive 3D assembly shop drawings, bolt torque specifications, video manuals, and optional on-site dispatch of bilingual installation supervisors.
Ready to Maximize Floor Space and Implement Seamless FIFO Operations?
Consult directly with Guangzhou HEDA Shelves engineering specialists. Receive free warehouse CAD layout designs, payload calculations, and custom factory-direct quotations within 24 hours.
