Engineered Heavy-Duty Adjustable Shelving Systems
Constructed from high-tensile Q235B/Q355B structural carbon steel and validated under CE Certificate No. 2435-CPR-8605159. Each configuration delivers fully adjustable pitch levels, modular expansions, and high load-bearing thresholds for modern distribution hubs.

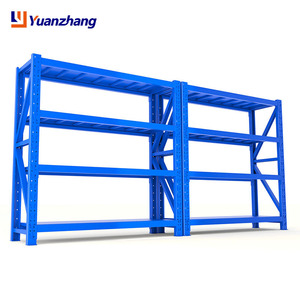

Custom Heavy-Duty Metal Rack Storage Shelf High Quality Iron Cargo Equipment
MZG Industrial Heavy Duty 6-Tier Powder-Coated Metal Wire Shelving Organizer Rack
Heavy Duty Selective Pallet Rack Q235 Seismic Reinforced Wire Mesh Storage
High Bay Steel Fulfillment Warehouse with Wide Cargo Doors and Large Flexible Layout
High Density Storage, First In Last Out, Powder Coated Carbon Steel Drive-in Racking
Advanced Intelligent Selective Pallet Rack With Efficient Conveying System
Metal Rack Storage Shelf Heavy Duty Selective Pallet Beam Racking Industrial Cargo
71.3" W Metal Storage Shelves, 5000LBS Heavy Duty Garage & Industrial Shelving Units
Guangzhou HEDA Shelves: Enterprise Capabilities & Compliance
With over two decades of dedicated steel fabrication and automated cold-roll forming, Guangzhou Heda Shelves Co., Ltd. supplies industrial enterprises, cold chain distribution hubs, and third-party logistics (3PL) centers worldwide. Every component is produced under strict compliance protocols.
CE & ISO 9001 Certified Operations
Our products carry official CE Certificate No. 2435-CPR-8605159, compliant with European structural standard EN 15512, alongside ISO 9001:2015 Certification (No. 18624Q00169R0M) and RoHS environmental adherence for paint resins.
Complimentary CAD/3D Layout & FEA
Our in-house design engineering team provides complete static and dynamic calculation sheets, Finite Element Analysis (FEA) reports, and structural 3D CAD blueprints before commercial commitment, mitigating layout errors.
10-Stage Precision Manufacturing
From decoiling raw Baosteel/Ansteel plates to precision laser cutting, CNC automatic multi-station punching, roll profile forming, robotic welding, pickling/phosphating pre-treatment, and electrostatic powder curing, every stage remains internal.
Technical Specifications, Material Science & Seismic Design
Industrial warehouse shelving failure is rarely an isolated incident; it results from material fatigue, incorrect beam deflection modeling, or inadequate pre-treatment in humid environments. The following data highlights our structural parameters.
In accordance with EN 15512:2020 (Steel static storage systems - Specification of beam pallet racking), calculating limit states requires verifiable steel yield strengths, precise moment resistance across beam-end connectors, and base plate anchor tensile validation. Guangzhou Heda Shelves utilizes verified carbon steel conforming to European S235JR/S355JR equivalents, engineered to mitigate permanent plastic deformation under dynamic forklift docking and high seismic vibrations.
| Steel Grade & Metric | Yield Strength ($R_eH$ Min) | Tensile Strength ($R_m$) | Standard Application Focus | Anti-Corrosion Surface Finishing |
|---|---|---|---|---|
| Q235B Carbon Steel | ≥ 235 MPa | 370–500 MPa | Standard Selective Racks, Longspan Utility Shelves | Pickling + Phosphating + 70–90μm Epoxy Powder Coat |
| Q355B Low-Alloy Steel | ≥ 355 MPa | 470–630 MPa | Heavy-Duty High Bay Uprights, Heavy Cantilever Arms | Electrostatic Thermosetting Polyester Resin |
| Pre-Galvanized Coil (Z275) | ≥ 250 MPa | 330–450 MPa | Wire Decking Panels, Humid / Cold Chain Environments | Hot-Dip Galvanized Zinc Layer ≥ 275 g/m² |
| Custom Seismic-Grade Upright | ≥ 355 MPa (Cold Worked) | 510–650 MPa | Seismic Zones (PGA ≥ 0.3g), AS/RS Clad Racks | Dual-layer Polyurethane Marine-Grade Topcoat |
Deflection & Safety Factor Verification: In our standard selective pallet and heavy-duty utility beam configurations, the maximum allowable vertical deflection limit ($\delta$) is calibrated to $\delta \le L / 200$ (where $L$ is clear beam span between columns) under full structural test load. Every beam-to-column connector utilizes a robotic 3-or-4-claw interlock mechanism secured with mechanical spring safety locking pins that resist unintended vertical dislodgement exceeding 5 kN.
Key Procurement Trends in Global Warehouse Infrastructure
Procurement executives, warehouse design engineers, and logistics developers are moving away from single-purpose static shelving. B2B purchasing cycles through 2026–2030 are driven by the following four structural trends.
Modularity & Reconfigurable Geometry
Supply chain volatility requires warehouses that adapt in hours. Modern procurement favors 50mm/75mm adjustable pitch frames with boltless accessories, converting pallet racks into carton live storage or picking catwalks.
AMR & AGV Floor Compatibility
Adjustable shelving bases now integrate flush, seismic floor shims and reinforced bottom-tier clearance to allow Autonomous Mobile Robots (AMRs) and automated shuttle cars to maneuver underneath without clearance hazards.
Stringent Tropical & Coastal Durability
Driven by logistics expansion across Southeast Asia and coastal logistics parks, buyers demand 1,000-hour ASTM B117 salt-spray test resistance, utilizing multi-stage chemical pre-wash lines to permanently halt subterranean rust under 80%+ humidity.
Factory-Direct Engineering Transparency
Middleman markups are shrinking. Enterprise procurement heads insist on direct mill certificates, full traceability of steel coils, verified third-party CE credentials, and direct technical consultations with factory design engineers.
Next-Generation Structural Developments in Storage Engineering
Modern racking fabrication combines metallurgical advancements, robotic automation, and digital twins. Our manufacturing facility in Guangzhou leads implementation across three core technological verticals.
Automated Continuous Roll-Forming
Using multi-station CNC profiling machines, our upright columns receive gradual cold deformation across up to 24 rollers. This prevents micro-fracturing along bend radii, ensuring consistent yield strength across sections reaching 120mm x 95mm with 2.5mm–3.0mm wall thickness.
Seismic Energy Dissipation Bases
To safeguard operations in seismic zones such as Indonesia, the Philippines, and the Pacific Rim, we engineer heavy forged base plates anchored with Hilti/Fischer mechanical expansion or chemical anchors, featuring engineered ductile flexure zones that absorb seismic shock waves.
Eco-Friendly Low-VOC Powder Curing
Our 200-meter automated continuous coating line utilizes zero-lead, heavy-metal-free thermosetting TGIC-free polyester powder. Cured at 200°C for 20 minutes, the molecular cross-linking achieves 3H pencil hardness, scratch tolerance, and chemical spill resilience.
Frequently Asked Questions by Industrial Buyers
Clear, technically verified answers addressing structural specifications, safety certifications, logistics lead times, and factory-direct ordering parameters.
◆ How do I verify your CE and ISO certifications?
Our CE certificate (No. 2435-CPR-8605159) is issued under the Construction Products Regulation (CPR 305/2011/EU) by an accredited European notified body, verifying compliance with EN 15512. Our ISO 9001:2015 registration (No. 18624Q00169R0M) is registered and publicly auditable. Official certified copies are provided with layout quotes.
◆ What data is required for a structural layout proposal?
To deliver an accurate CAD design and load calculation, please share: (1) Warehouse architectural drawings showing clear heights, column grids, and doors; (2) Pallet dimensions (W × D × H) including cargo overhang; (3) Maximum gross weight per pallet; (4) Forklift specifications, including mast lift height and turning radius.
◆ How is corrosion prevented in high-humidity climates?
Every structural upright, beam, and bracer undergoes an 8-stage pre-treatment: alkaline degreasing, water rinsing, acid pickling (derusting), phosphate conversion coating, and high-purity rinsing before electrostatic powder application. For outdoor yards or sub-zero freezers, hot-dip galvanization is available.
◆ What are typical ocean shipping transit times from Guangzhou?
Located near major Guangzhou and Shenzhen container ports, port-to-port sea transits are exceptionally fast: 2–5 days to Vietnam; 3–5 days to Manila; 5–7 days to Singapore and Bangkok (Laem Chabang); 6–8 days to Port Klang (Malaysia); 7–10 days to Jakarta (Indonesia); and 18–25 days to Western Europe or North American West Coast ports.
◆ How is safe container packing handled for overseas freight?
Beams and uprights are bundled with steel strapping, corrugated corner protection, and anti-friction shrink wrap to prevent transit scratches. Small accessories, base plates, splice brackets, and bolts are boxed, palletized, and secured with heavy-duty dunnage air bags inside each 20GP or 40HQ container.
◆ Can your factory provide on-site installation support?
Yes. Every shipment includes step-by-step CAD installation drawings and component number maps. For large-scale racking, AS/RS, or structural mezzanine projects, HEDA Shelves can dispatch senior installation supervisors to your site or partner with local certified engineering teams.
